Description
Specification:

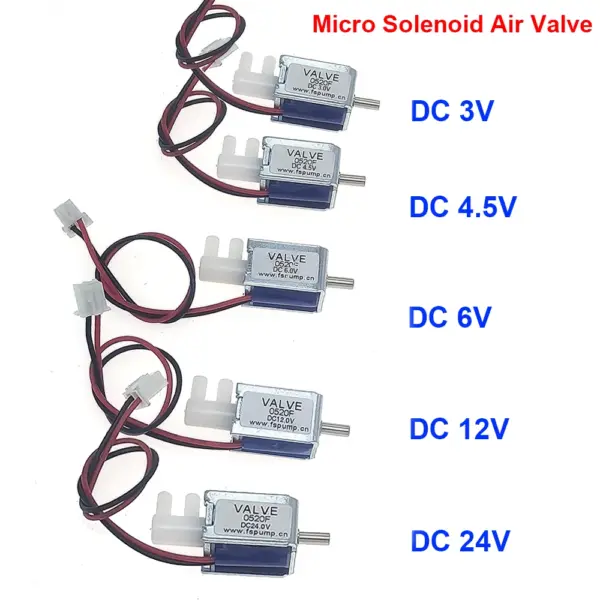

1.Rated voltage: DC 3.0V , DC 4.5V , DC 6.0V , DC 12.0V , DC 24.0V
2.Rated current: <310mA , <230mA , <150mA , <100mA , <70mA
3.Venting speed: <3S (the time required for the air pressure to degas from 300mmHg to 15mmHg in a500cc container)
4.Pressure range: 0-350mmhg
5.Sealability: The inflation is stopped after the inflation pressure is from 0 to 300 mmHg in a 500cc container, and the reduced pressure is less than 5 mmHg/min after 30 seconds of stabilization.
6.Use fluid: Air
7.Service life: In a 500CC container, inflate for 10 seconds, exhaust for 5 seconds, test for more than 50,000 cycles.
8.Operating temperature range: 0°C ~ 55°C
9.Noise: Put a 5cm sponge under the air pump, 30cm away from the noise meter (<60dB).
10.Power: <2w
1.Rated voltage: DC 3.0V , DC 4.5V , DC 6.0V , DC 12.0V , DC 24.0V
2.Rated current: <310mA , <230mA , <150mA , <100mA , <70mA
3.Venting speed: <3S (the time required for the air pressure to degas from 300mmHg to 15mmHg in a500cc container)
4.Pressure range: 0-350mmhg
5.Sealability: The inflation is stopped after the inflation pressure is from 0 to 300 mmHg in a 500cc container, and the reduced pressure is less than 5 mmHg/min after 30 seconds of stabilization.
6.Use fluid: Air
7.Service life: In a 500CC container, inflate for 10 seconds, exhaust for 5 seconds, test for more than 50,000 cycles.
8.Operating temperature range: 0°C ~ 55°C
9.Noise: Put a 5cm sponge under the air pump, 30cm away from the noise meter (<60dB).
10.Power: <2w
Package Include:
1PCS* Valve
