Description
Specification:
Model: 1/8 AC 110V
1.Model Number: 2V025-1/8-110V AC
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/8″ NPT Female Port
4.Coil Voltage: AC 110V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/8″ NPT Female Port
4.Coil Voltage: AC 110V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
Material :
1.Body Material: Aluminum
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
———————————————————————————————————————————————–
Model: 1/8 AC 220V
1.Model Number: 2V025-1/4-220V AC
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/8″ NPT Female Port
4.Coil Voltage: AC 220V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/8″ NPT Female Port
4.Coil Voltage: AC 220V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
Material :
1.Body Material: Aluminum
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
————————————————————————————————————————————————-

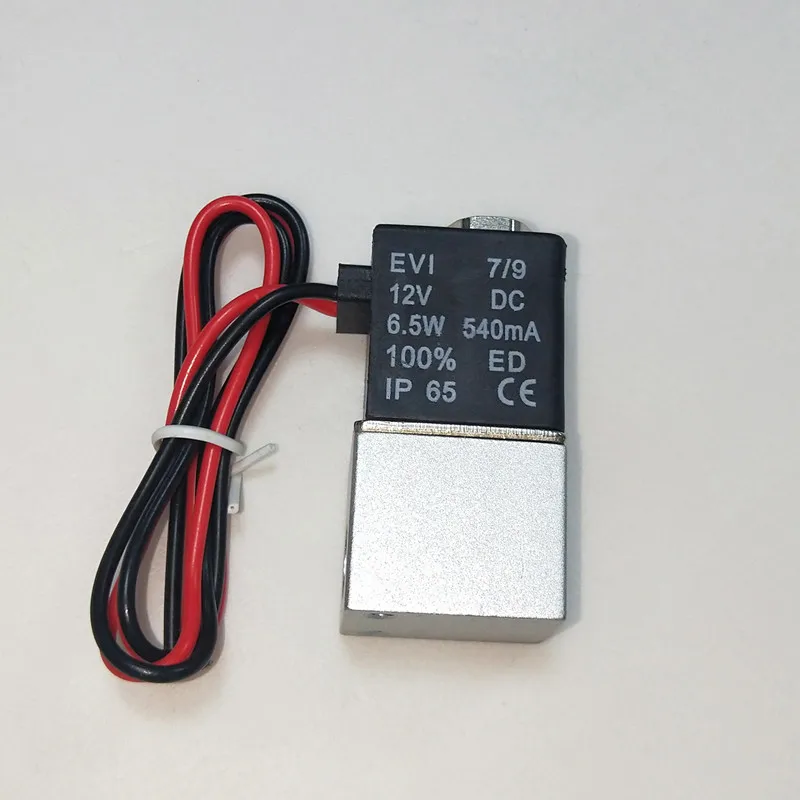

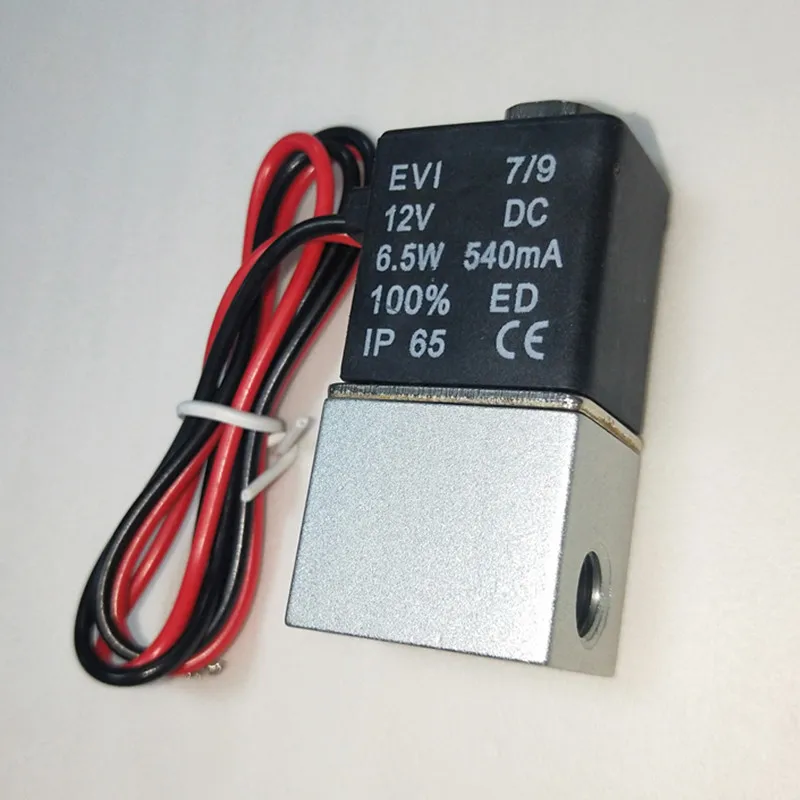

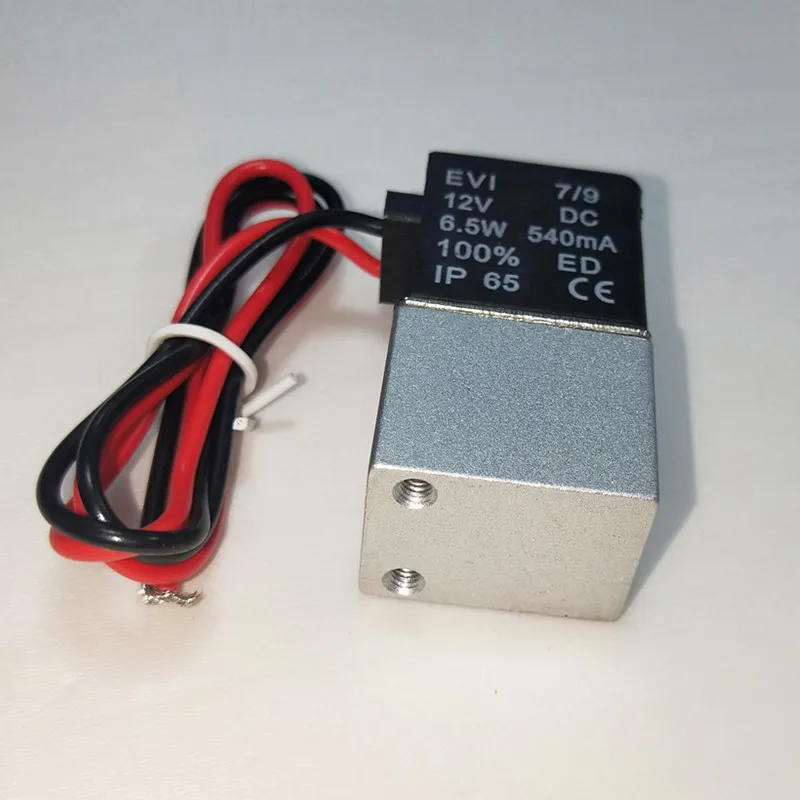

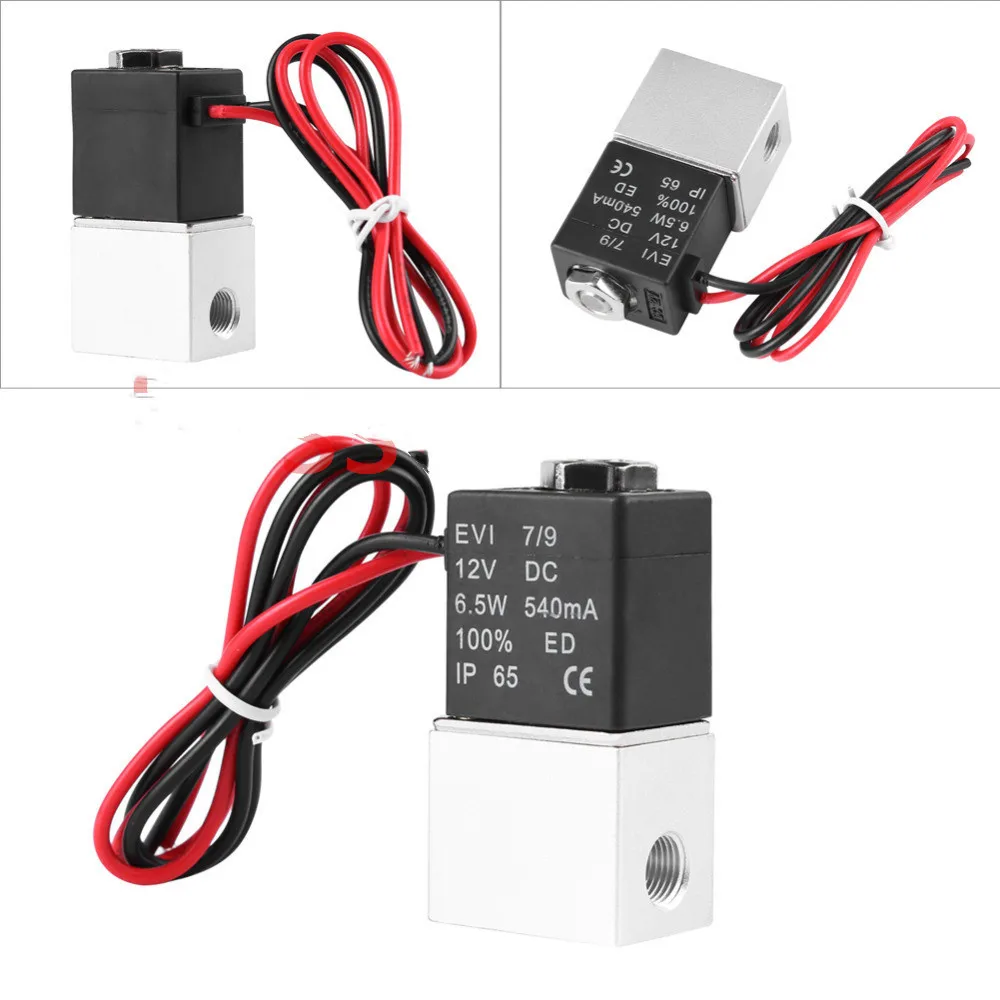

Model: 1/8 DC 12V
1.Valve Type: 2 Way Normally Closed (Valve opens with energized)
2.Port Size: 1/8″ NPT Female Port
3.Coil Voltage: DC 12V
4.Service Media: Air, Gas, Liquid, Water
5.Operation Model: Direct Acting
6.Flow Model: Uni-Directional
7.Flow Rate: 0.23Cv (Fluid Flow)
8.Response Time: Less than 50 ms
9.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
10.Operating Temperature: -10 to 80 °C
11.Coil Power: 6.5W
————————————————————————————————————————————————-
Model: 1/8 DC 24V
1.Model Number: 2V025-1/8-24VDC
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/8″ NPT Female Port
4.Coil Voltage: DC 24V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/8″ NPT Female Port
4.Coil Voltage: DC 24V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
————————————————————————————————————————————————-
Model: 1/4 AC 110V
1.Model Number: 2V025-1/4-110V AC
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/4″ NPT Female Port
4.Coil Voltage: AC 110V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/4″ NPT Female Port
4.Coil Voltage: AC 110V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
Material :
1.Body Material: Aluminum
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
————————————————————————————————————————————————
Model: 1/4 AC 220V
1.Model Number: 2V025-1/4-220V AC
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/4″ NPT Female Port
4.Coil Voltage: AC 220V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/4″ NPT Female Port
4.Coil Voltage: AC 220V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power:
Material :
1.Body Material: Aluminum
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
2.Seal Material: NBR (Buna N)
3.Armature Tube Material: Brass
4.Plunger & Spring Material: Stainless Steel
————————————————————————————————————————————————
Model: 1/4 DC 12V
Port Size: 1/4″ NPT Female Port
Coil Voltage: DC12V
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C
Coil Power: 6.5W
Material:
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
————————————————————————————————————————————————-
Model: 1/4 DC 24V
1.Model Number: 2V025-1/4-24V DC
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/4″ NPT Female Port
4.Coil Voltage: DC 24V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power: 6.5W
2.Valve Type: 2 Way Normally Closed (Valve opens with energized)
3.Port Size: 1/4″ NPT Female Port
4.Coil Voltage: DC 24V
5.Service Media: Air, Gas, Liquid, Water
6.Operation Model: Direct Acting
7.Flow Model: Uni-Directional
8.Flow Rate: 0.23Cv (Fluid Flow)
9.Response Time: Less than 50 ms
10.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
11.Operating Temperature: -10 to 80 °C
12.Coil Power: 6.5W
Material :
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
——————————————————————————————————————————————-

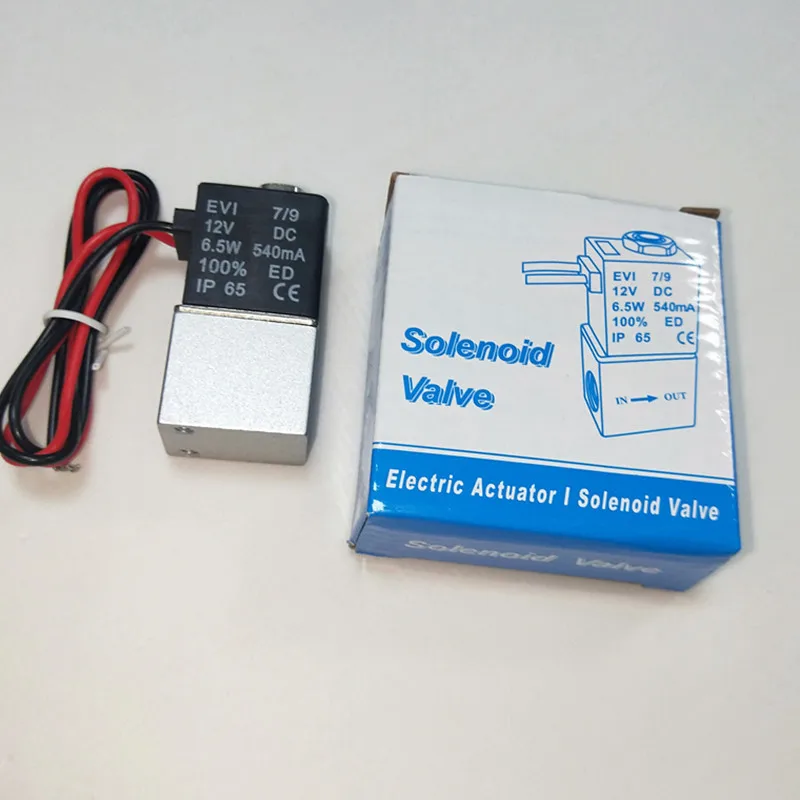

Package Include:
Mini valve x 1pc
