Description

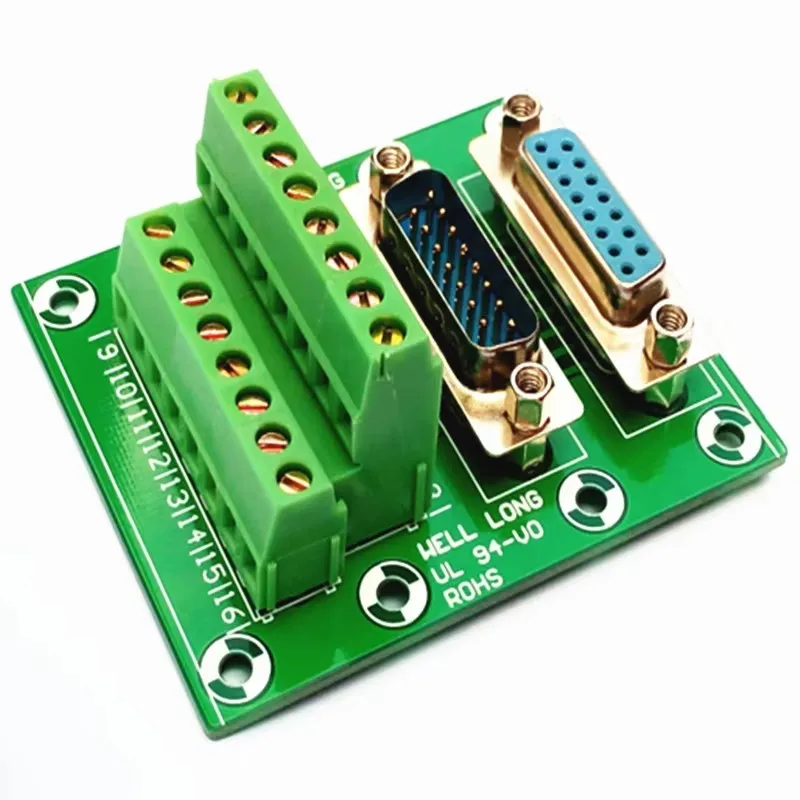

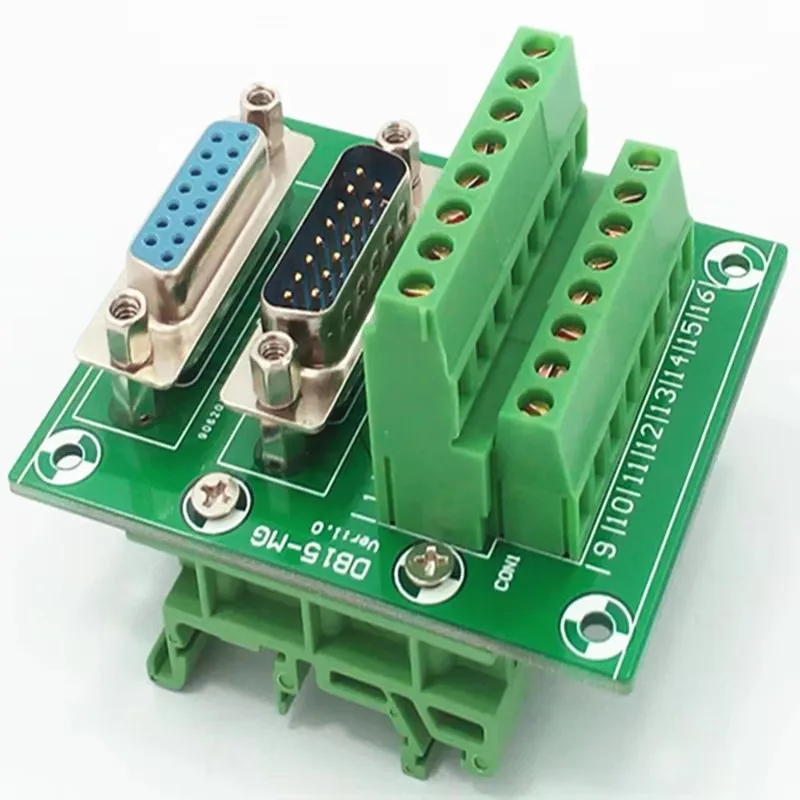

D-SUB DB15 DIN Rail Mount Interface Module Male / Female Header Breakout Board, Terminal Block, Connector.
DB15 Male/Female header connectors.

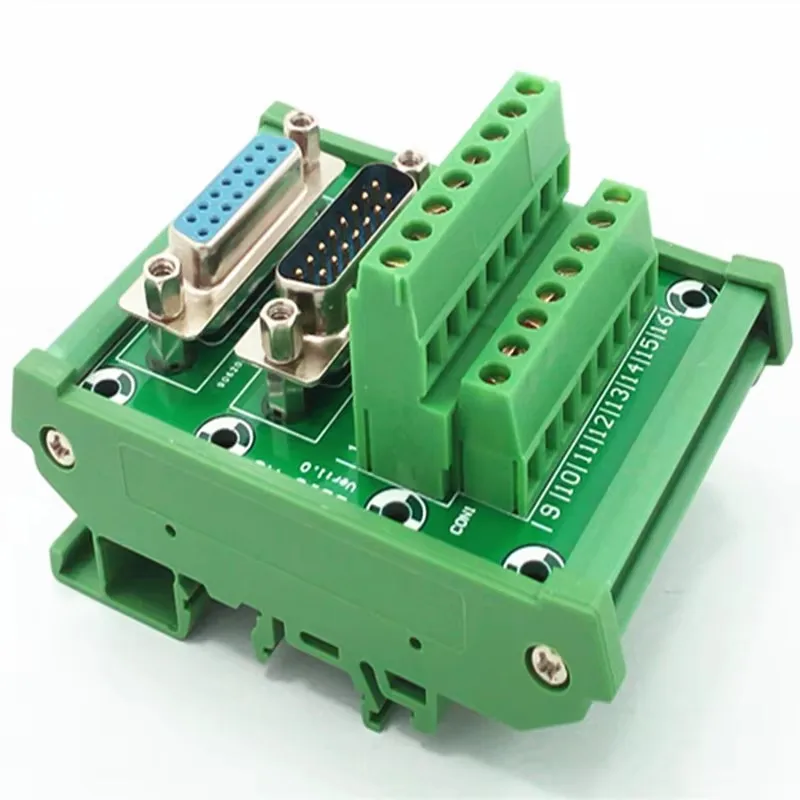

Din rail mountable – for width 35 / 32 / 15mm rails.
Pitch 5.0mm/0.197" screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

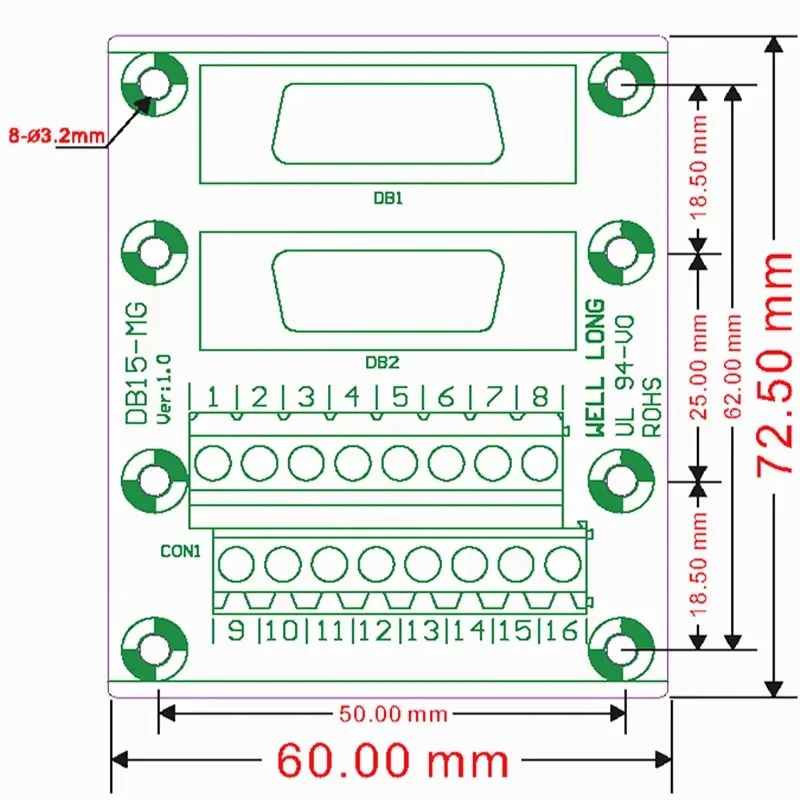

External dimensions: 87 x 62 x 54mm(W x L x H).
PCB dimensions: 72.5 x 60mm(W x L).
100% new, never used.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range – 24-12AWG.
Strip length – 5mm.
Screws – M3,steel,Zinc plating color.
Pin header and Cage – Brass.
