Description
feature:
Using microprocessor (MCU) control, high cost
High power density, small and beautiful appearance
Full metal housing, very low electromagnetic interference

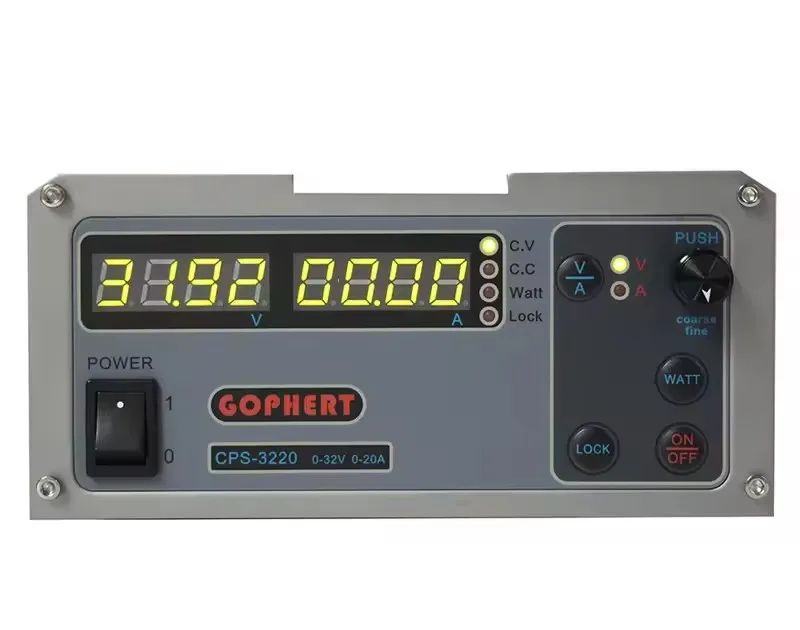

Using encoder to adjust the voltage and current, set fast and accurate
Four digital voltmeter and ammeter, set and display exactly two digits after the decimal point
Active power factor correction (Active PFC), rated output power factor> 97%;
High efficiency, efficiency up to 90%
Low ripple noise, ripple peak is less than 30mV
Output ON / OFF switch
Smart protection: output short circuit protection, tracking overvoltage protection (Tracking OVP), tracking overcurrent protection (Tracking OCP), over temperature protection (OTP)
Specifications:
Operating voltage range 170 – 264Vac
Operating frequency range 45 – 65HZ
Output voltage range 0 – 32V
Output current range 0 – 20A
Power correction factor ≥ 97%
Efficiency (220Vac, full load) ≥ 88%
Full load input current (220Vac) ≤3.3A
No-load input current (220Vac) ≤ 180mA
Voltage meter accuracy ≤ 0.3% + 1 digits
Ammeter Accuracy ≤ 0.3% + 2 digit
Constant pressure state
Load regulation (0-100%) ≤ 30mV
Input voltage regulation rate (198-264Vac) ≤ 10mV
Ripple noise (Peak-Peak) ≤ 30mV
Ripple noise (r.m.s) ≤ 3mV
Set the accuracy of ≤ 0.3% + 10mV
Transient response time (50% -100% rated load) ≤ 1.0ms
Constant current state
Load regulation (90% -10% Rated Voltage) ≤ 50mA
Input voltage regulation rate (198-264Vac) ≤ 20mA
Ripple current noise (peak-to-peak) ≤ 30mAp-p
Set the accuracy of ≤ 0.3% + 20mA

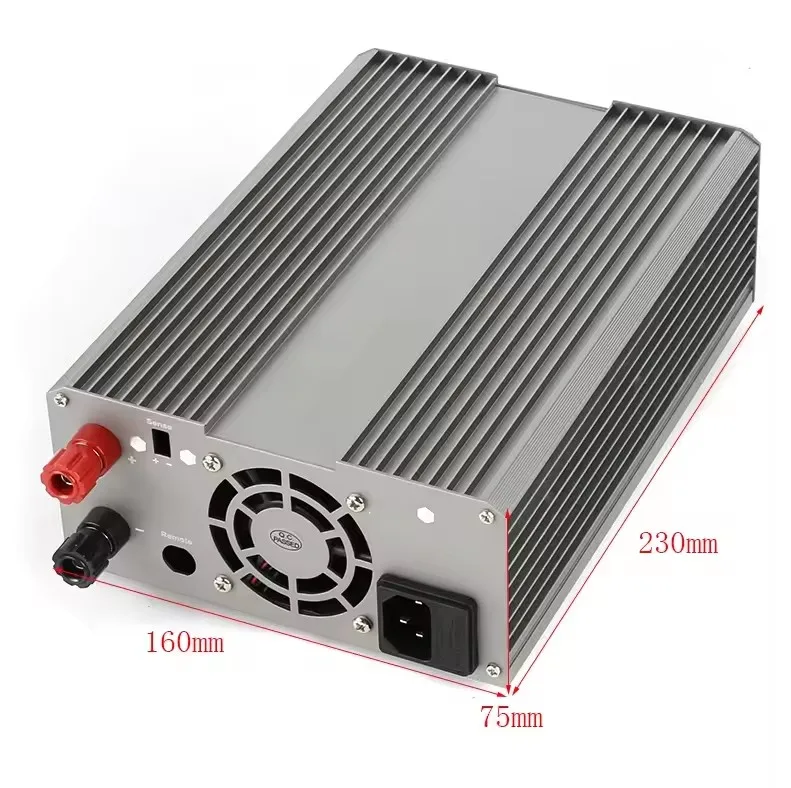

Size (width × height × depth) 160 × 75 × 215mm
Net weight 1.8KG
