Compressor Valve 1/4" Normally Closed Pneumatic Aluminum Solenoid Valves 12V 24V Voltage For Air Water Oil

DC 12V Solenoid Valve 1/4" 1/8" 2 Way Normally Closed Direct-acting Pneumatic Valves For Water Air Gas

Specifications
Model Number: 2V025-1/4-12VDC/ 2V025-1/8-12VDC
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Port Size: 1/4" NPT Female Port, 1/8" NPT Female Port
Coil Voltage: DC12V
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting

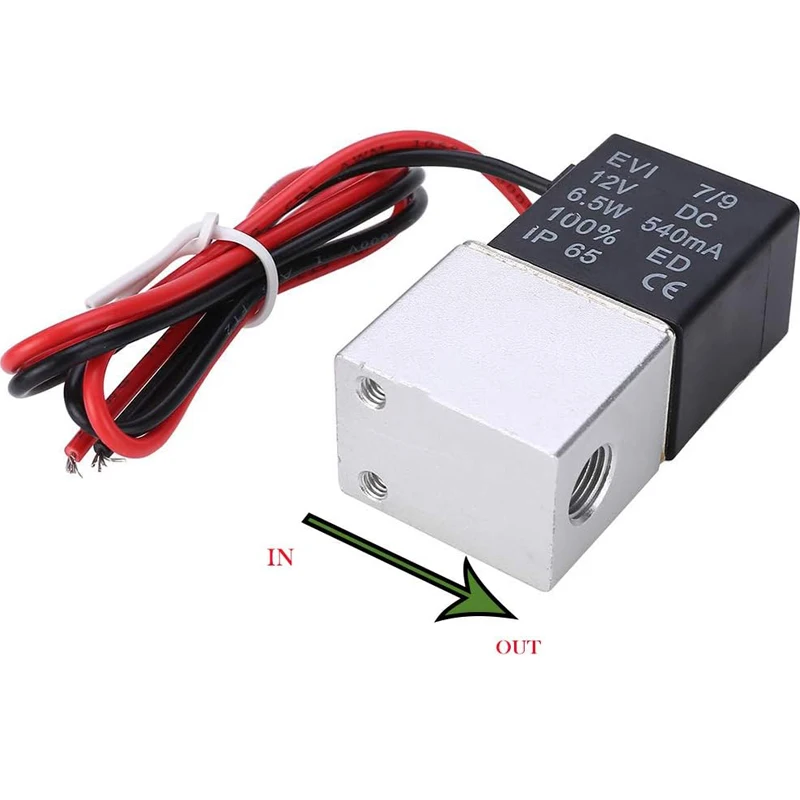

Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C
Coil Power: 6.5W
Material:
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel

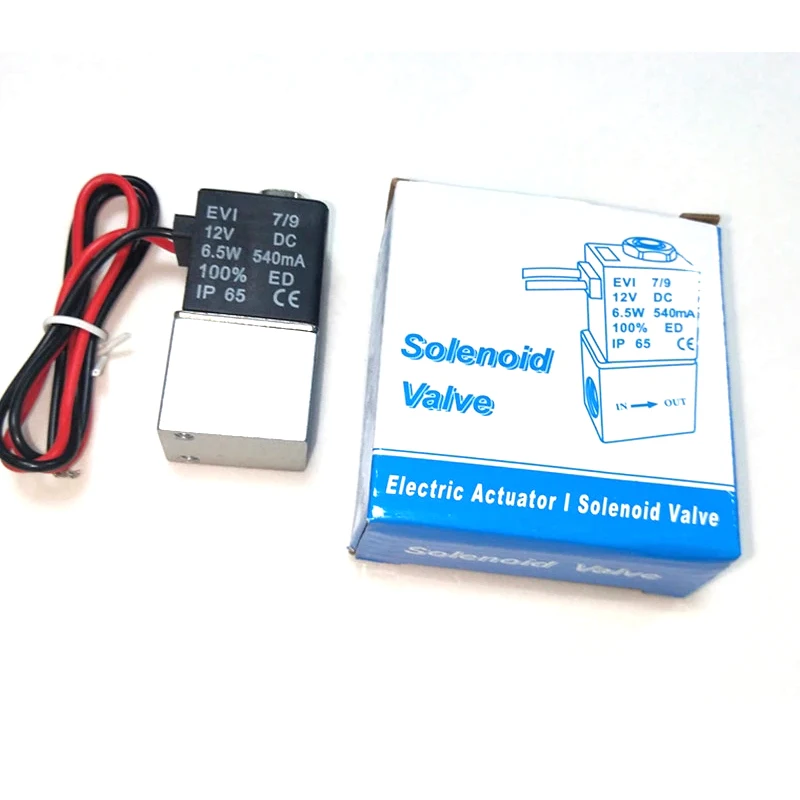

Package included
1 x Solenoid Valve
