Description

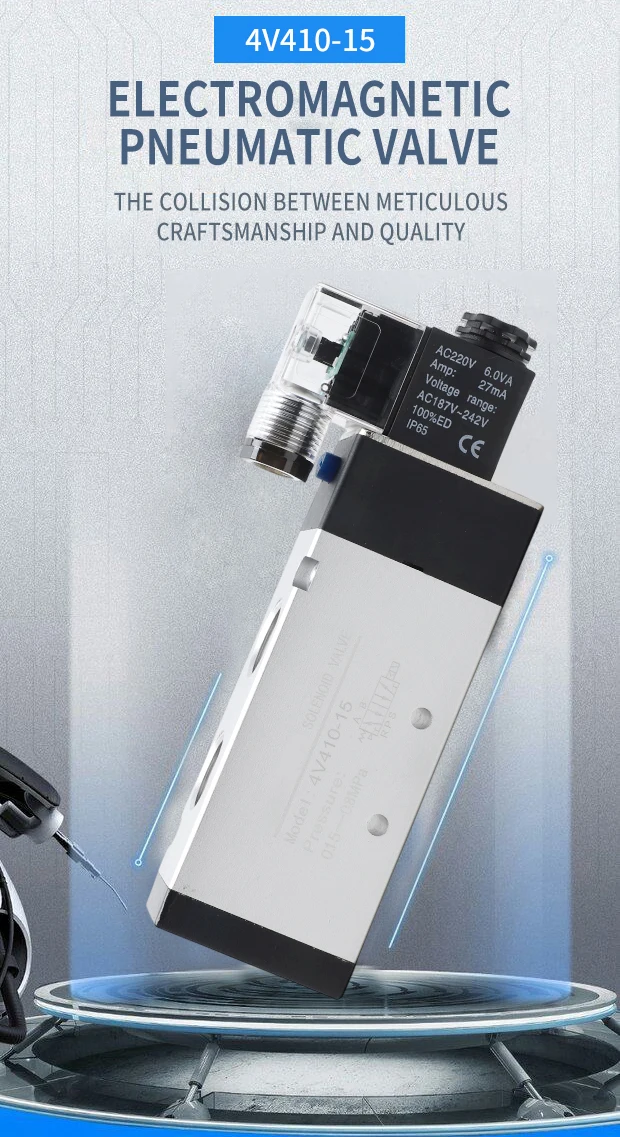

Model:4V410-15
Working Medium:40 Micron Filtered Air
Motion Pattern:Inner Guide Type
Type:2 Position 5 Way
Temperature:Rise 35°C
Operating Pressure:1.5 ~ 8kgf/cm2
Effective Area:50mm⊃2
Protect Class:IP65
Port Connection:Air Inlet =Air Outlet=Exhaust =PT 1/2
Air Inlet/ Exhaust Diameter:1.85cm/ 0.73"
Black Pull Into Diameter:1.1cm/ 0.43"
Total Size (Approx.):16.5 x 7.3 x 3.3cm / 5.3" x 2.6" x 0.87" (L * W * T)
Working Voltage:DC12V DC24V AC110V AC220V
Package Content:1 x Pneumatic Solenoid Valve
