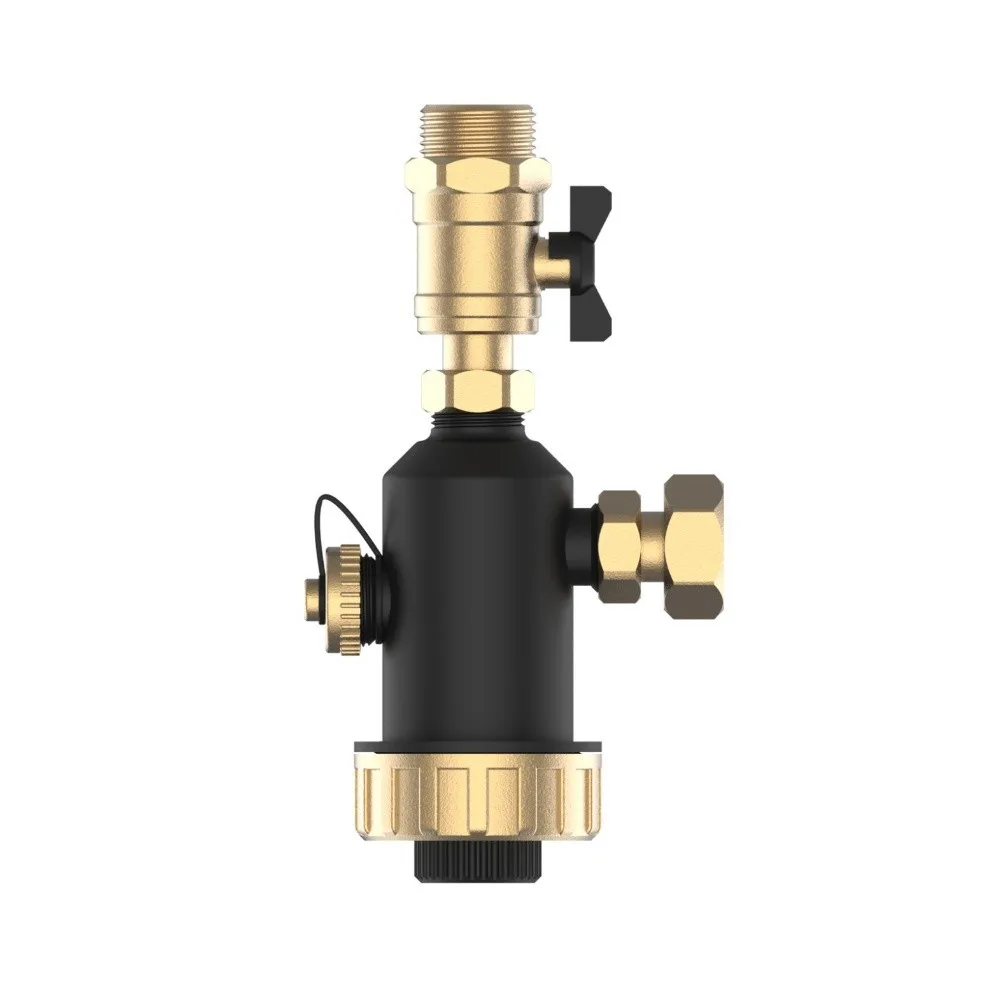

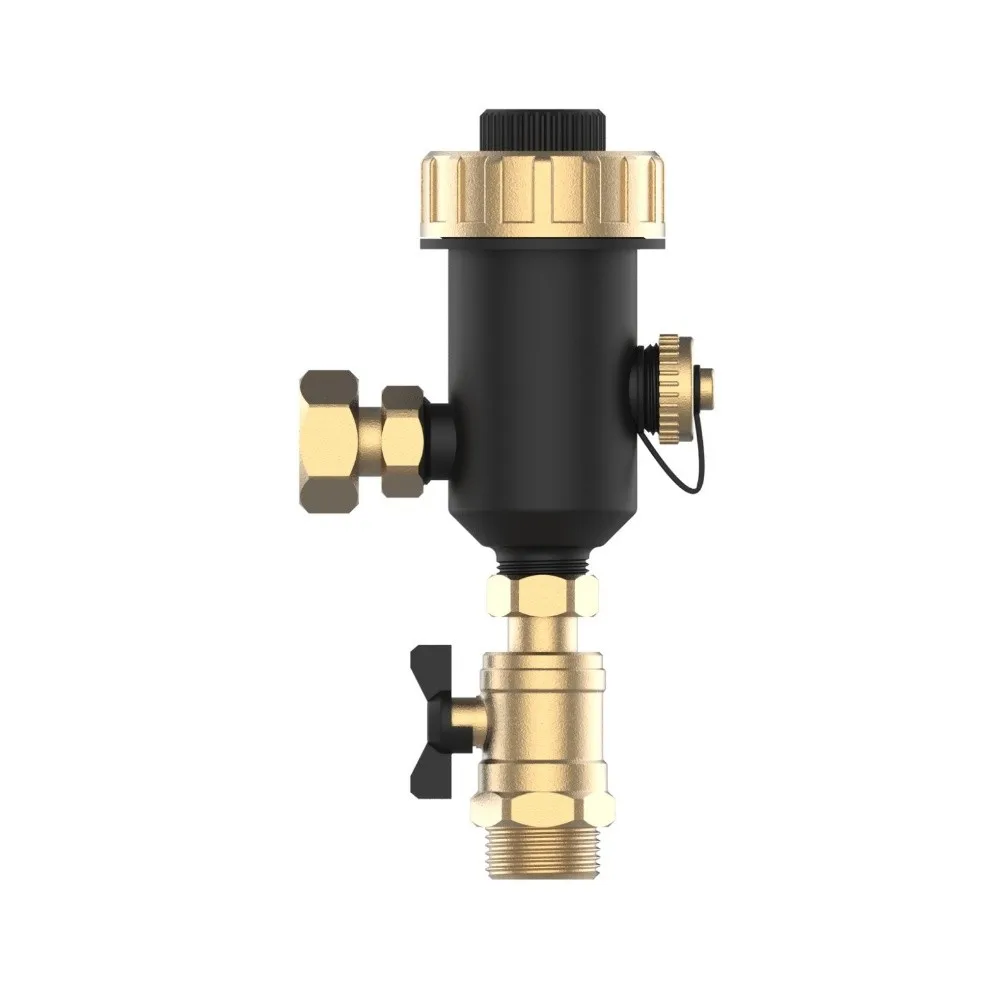

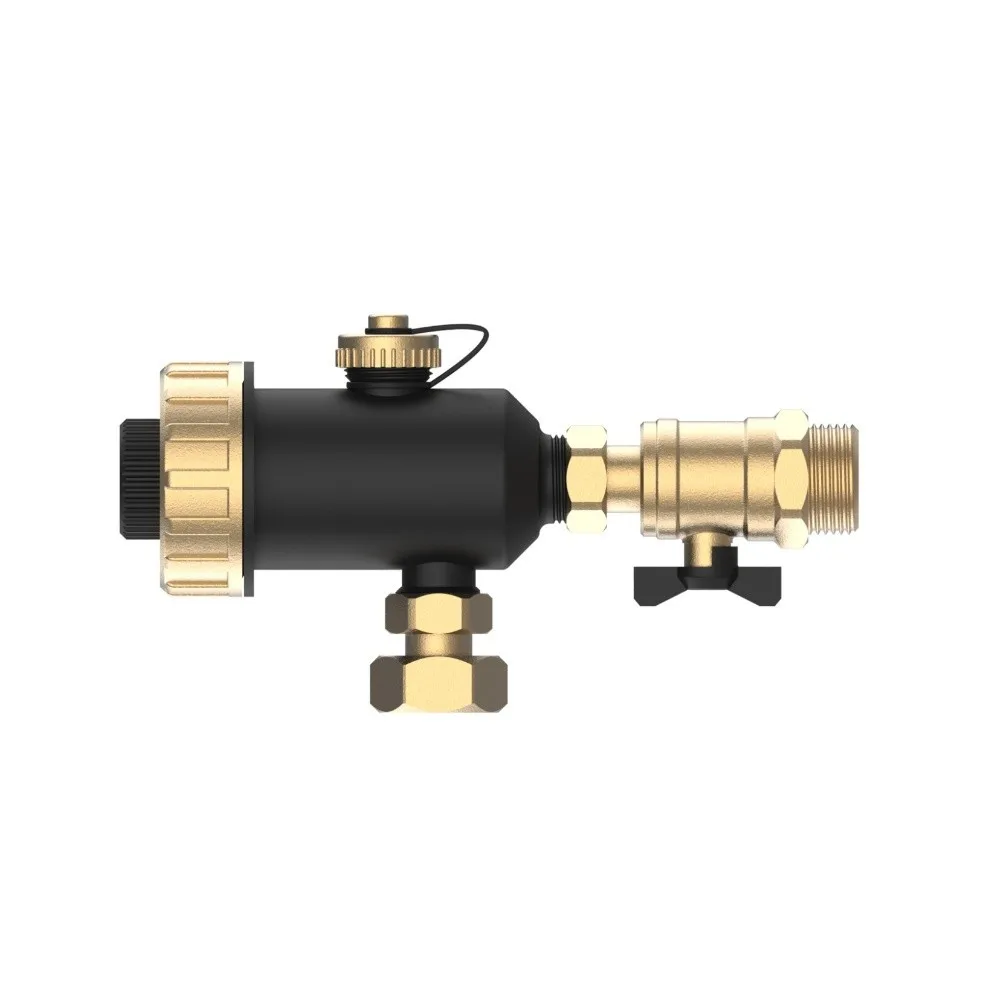

Boiler Magnetic Filter Dirt Separator DN20-3/4 External Thread For Underfloor Heating System Boiler Filter

Features:

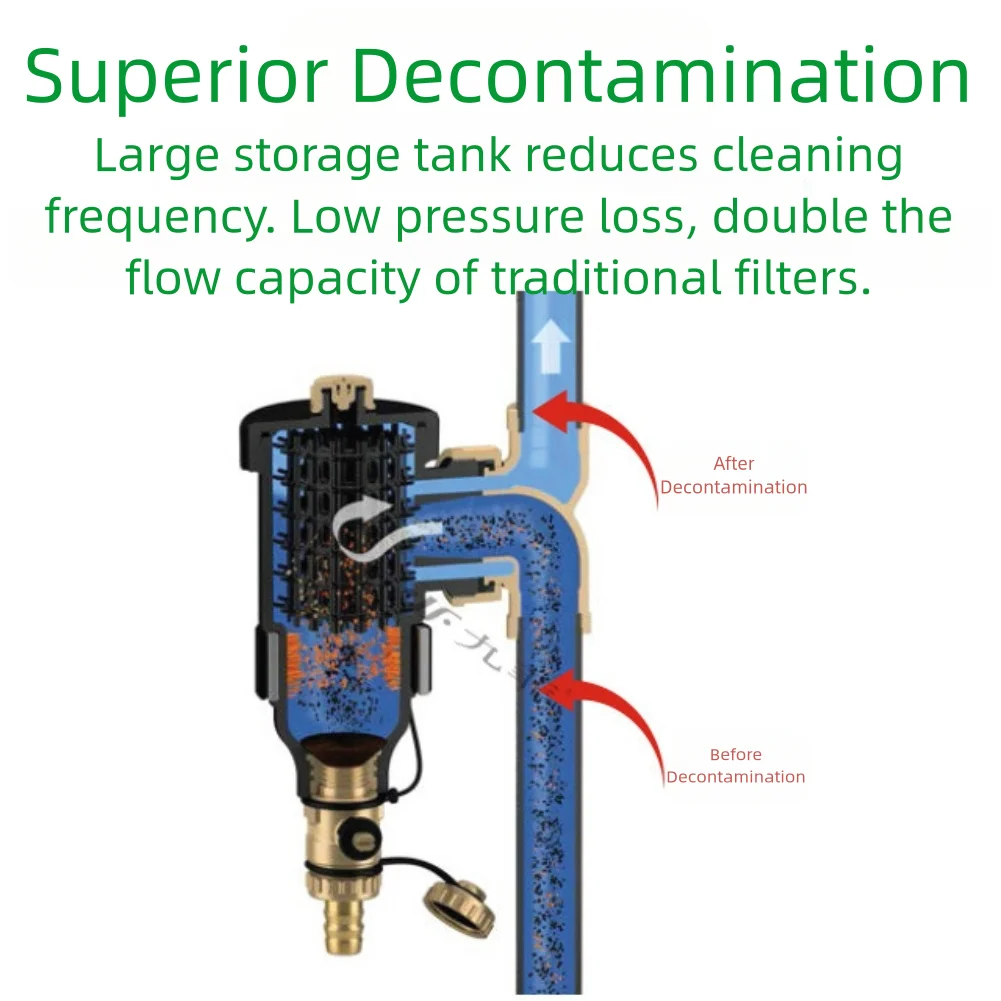

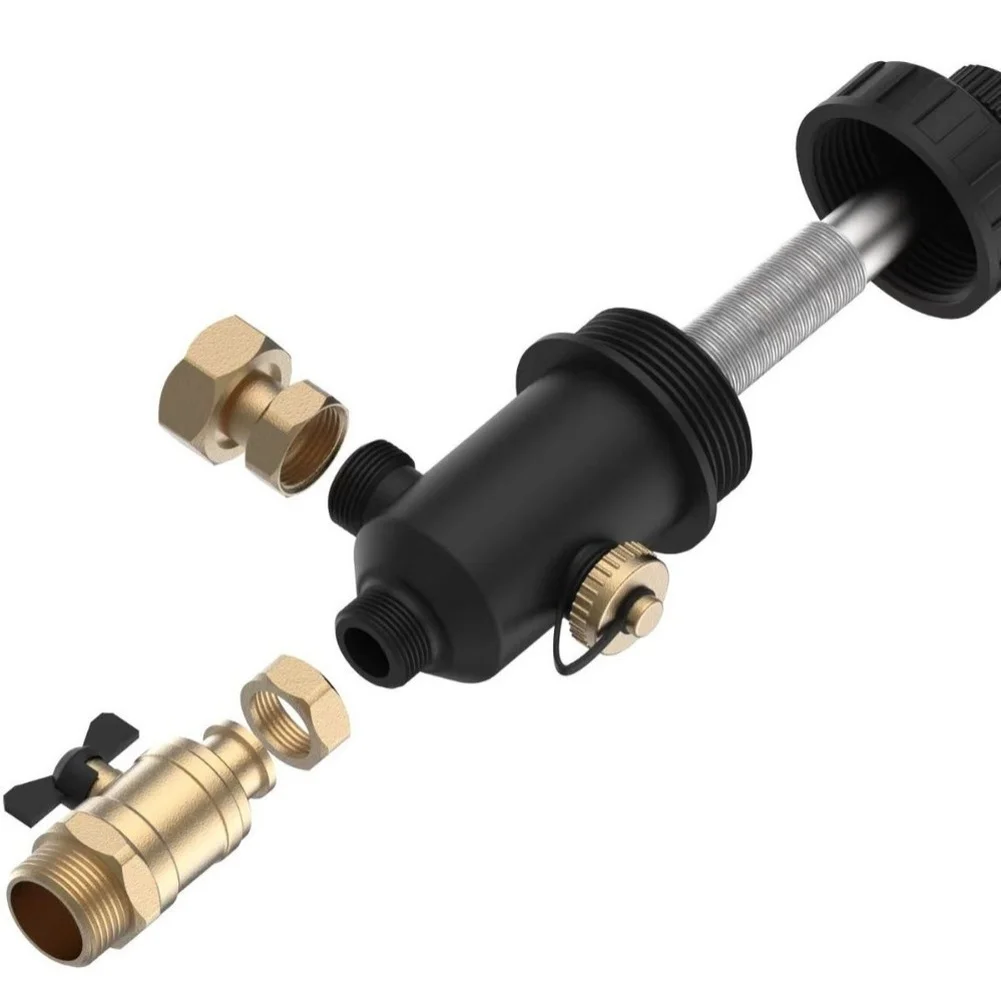

1. Its internal components include a radial separation mesh on the for surface. Impurities in the water collide with the separation mesh and settle into the magnetic purification filter.

2. A storage tank below. Rust and impurities in the system-are attracted to the inner wall of the storage tank by the magnetic force of the removable magnetic ring A on the magnetic purification filter housing, impurities from returning to the-system.

3. The large internal space of the magnetic purification filter reduces the water flow velocity, making it easier for particles and impurities in the water to settle due to gravity.

4. Equipped with a drain valve at the bottom of the magnetic purification filter, it can also be opened to drain water while the system-is running.

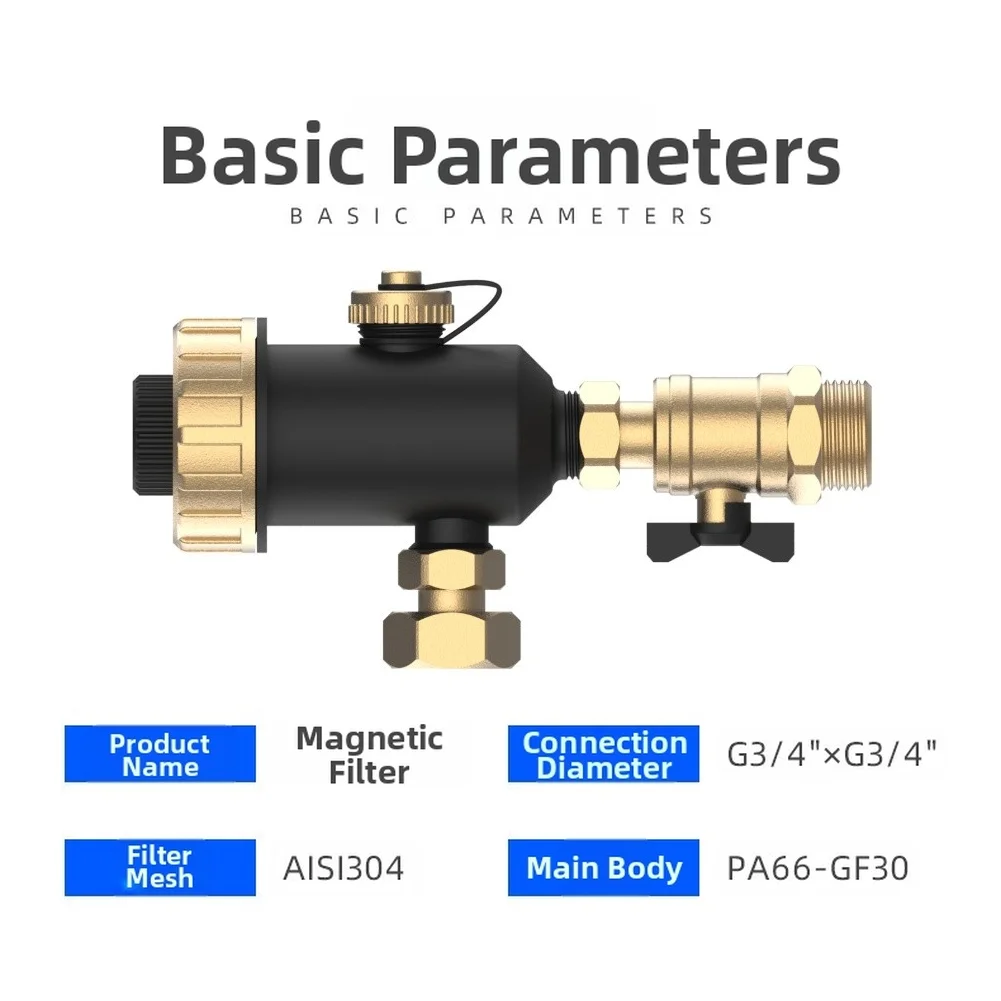

Specifications:

Part  Name: DN20/3/4 external thread Boiler Magnetic Filter

Material: Engineering Plastic/Brass

Color: Black

Size: DN20/3/4" = 25mm external thread

Application: Filtering magnetic impurities

Working Medium: Non-corrosive water

Application: HVAC equipment

Connection way: Threaded connection

Filter Cartridge: Stainless steel mesh

Number of Filter Cartridges: 1

Suitable for: Not for direct drinking

Rated Power: 0.5W

Temperature Range: 0 to 75°C

Water Pressure Range: 0.1-0.16 MPa

Water Purification: Removes scale, rust, and other sediments

Filtration-Level: Single-stage-filtration

Water Outlet way: Unidirectional water outlet

Package content:

1 * DN20/3/4 Boiler Magnetic Filter

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
