Description
boat pump flow sensor for bilge pumps Automatic Electric Water Pump Float Switch DC Bilge Pump Switch Available
|
Product Name |
Bilge Pump Float Switch |
|
Max Amps 12volts |
20A |
|
Max Amps 24 volts |
10A |
|
Max Amps 32 volts |
8A |
|
Wire length |
1m |
|
Wire gauge size |
18 |
|
N.W/N.W |
0.16kg/0.2kg |
-

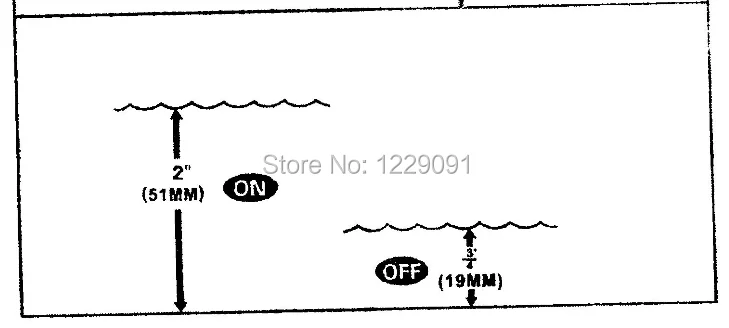

Turn pump on when water level reaches 2’’ (51mm)
-
Turn pump off when water level reaches 3/4’’ (19mm)
-
This product should be used with recommended size fuse for the pump to which it is connected.
-
Not to be used with 110v appllications.
-
Ideal flow sensor for bilge pumps
-
Heavy duty flow switch is designed for the toughest applications
-
Keep all wire connections above the highest water level. wires should be sealed with a waterproof marine sealant to prevent wire corrosion.
A bilge pump float switch is a smart device used in boats that turns on a bilge pump when the water in the bilge reaches a certain level. It is a must-have in any boat that is left unattended for any length of time, as all boats tend to leak at least some water. This switch is submerged, so you need to waterproof the electrical connections and hang the wires to ensure they stay as dry as possible.
Our bilge pump float switch is safer than mercury switches, this switch utilizes a mercury-free rolling ball mechanism and includes an exclusive anti-spike feature to prevent the rapid on/off cycling encountered with some switches. Made of rugged thermoplastic. Universal design works with all 12V, 24V and 32V bilge pumps.
Application:
The float switch is good for yachtsmen, commercial fisherman & boat builders all over the world.For use with pumps drawing up to 20 amps.
Note:
periodically clean any accumulated debris from around the switch or integral switch guard. This will allow free flow of water to the float.
