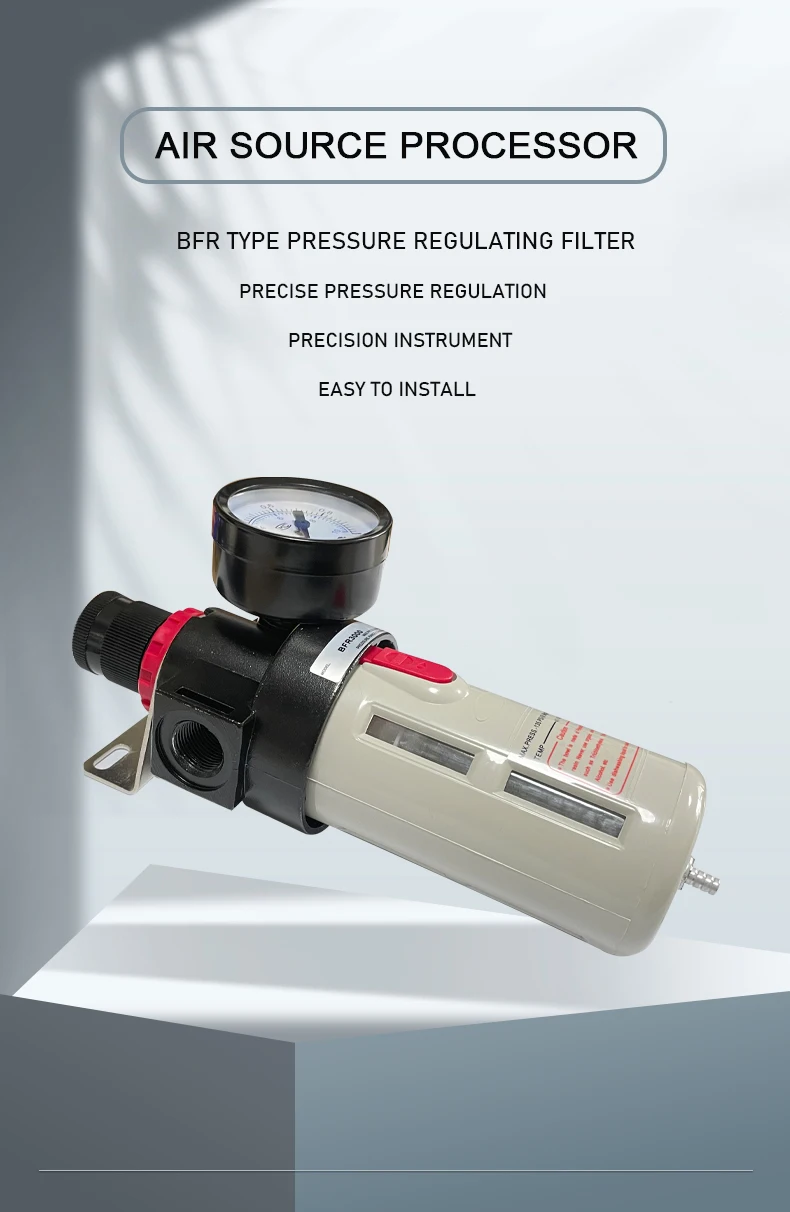

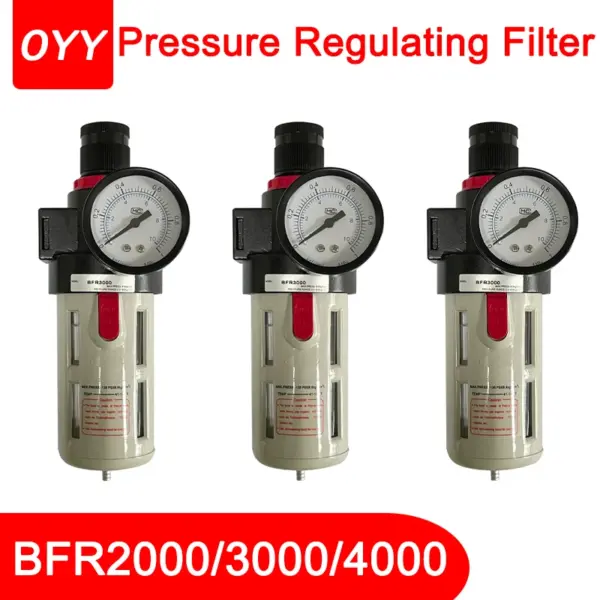

BFR2000 BFR3000 BFR4000 1/4 3/8 1/2 Air Compressor Oil Water Separator Filter Regulator Air Source Processor Manual Drainage

Product Feature

1.The structure is delicate and compact, which is convenient for installation and application.

2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.The pressure loss is low and the efficiency of water separating is high;

4.In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).

Installation&Usage

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice "→" direction) and thread type arecorrect.
3.Please notice whether installation condition accords with technical requirements (such as working pressure" and applied temperature range").
4.The medium used or installation environment shall be noticed. The matters with chlorine, carbon compound, aromatic compound and oxidizing acid and alkali shall be avoided to prevent the damage of bowl and oil bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descendingorder.

6.Keep dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.
