Description
Features:

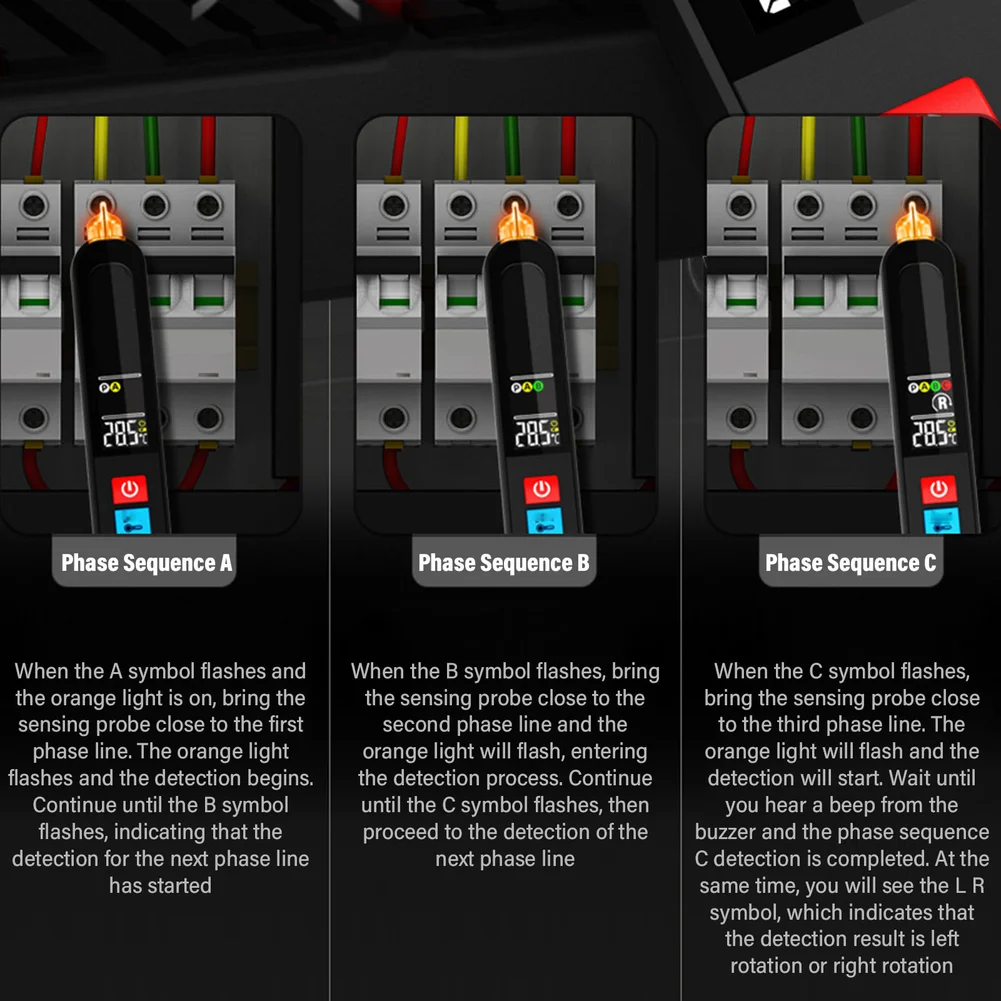

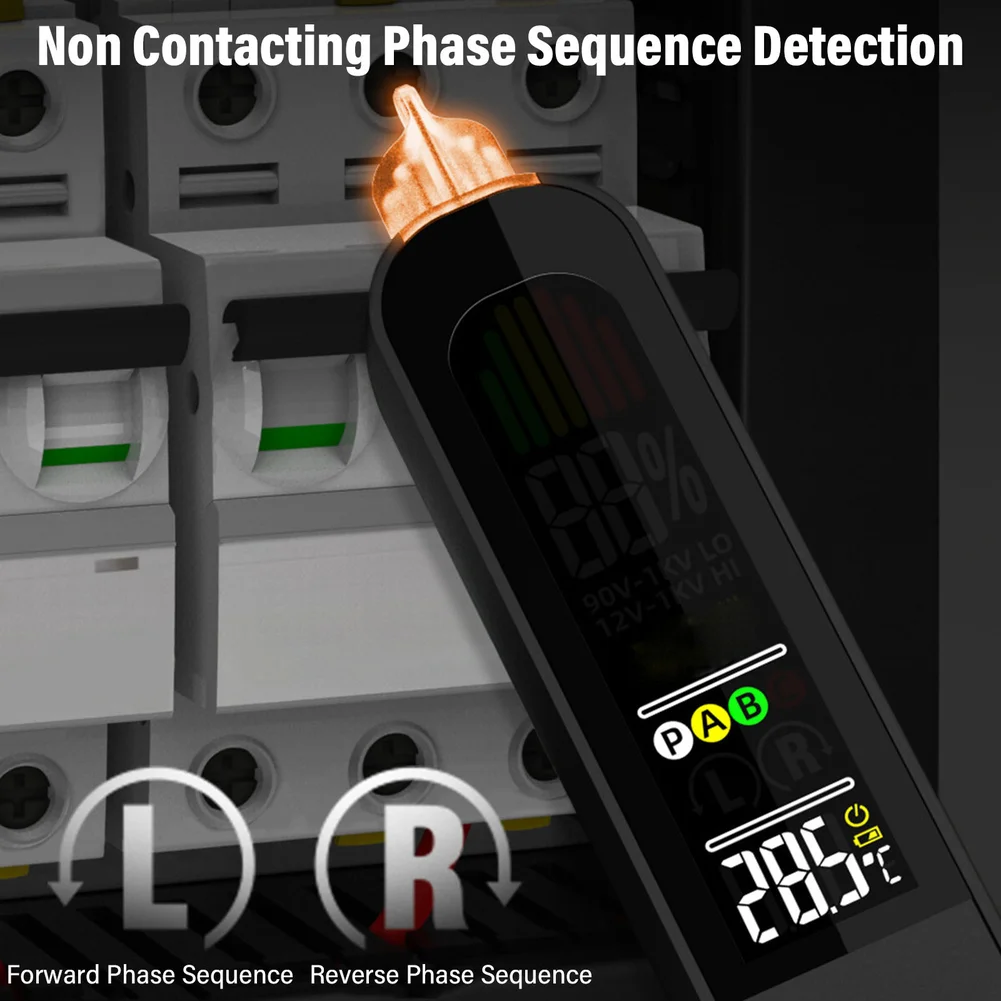

1. Three-phase rotation indicator: This non-contact voltage tester integrates a three-phase rotation indicator, clearly displaying left (L) or right (R) rotation, simplifying electrical phase checks during troubleshooting.

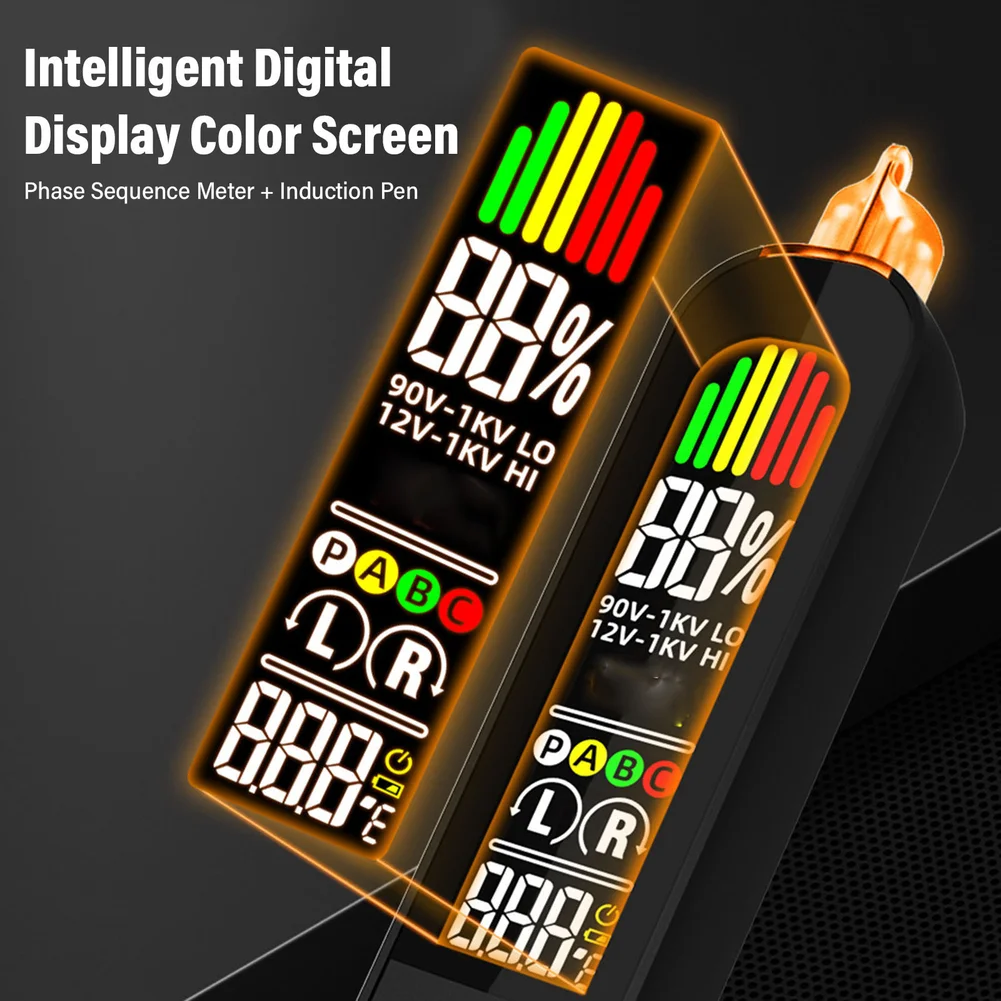

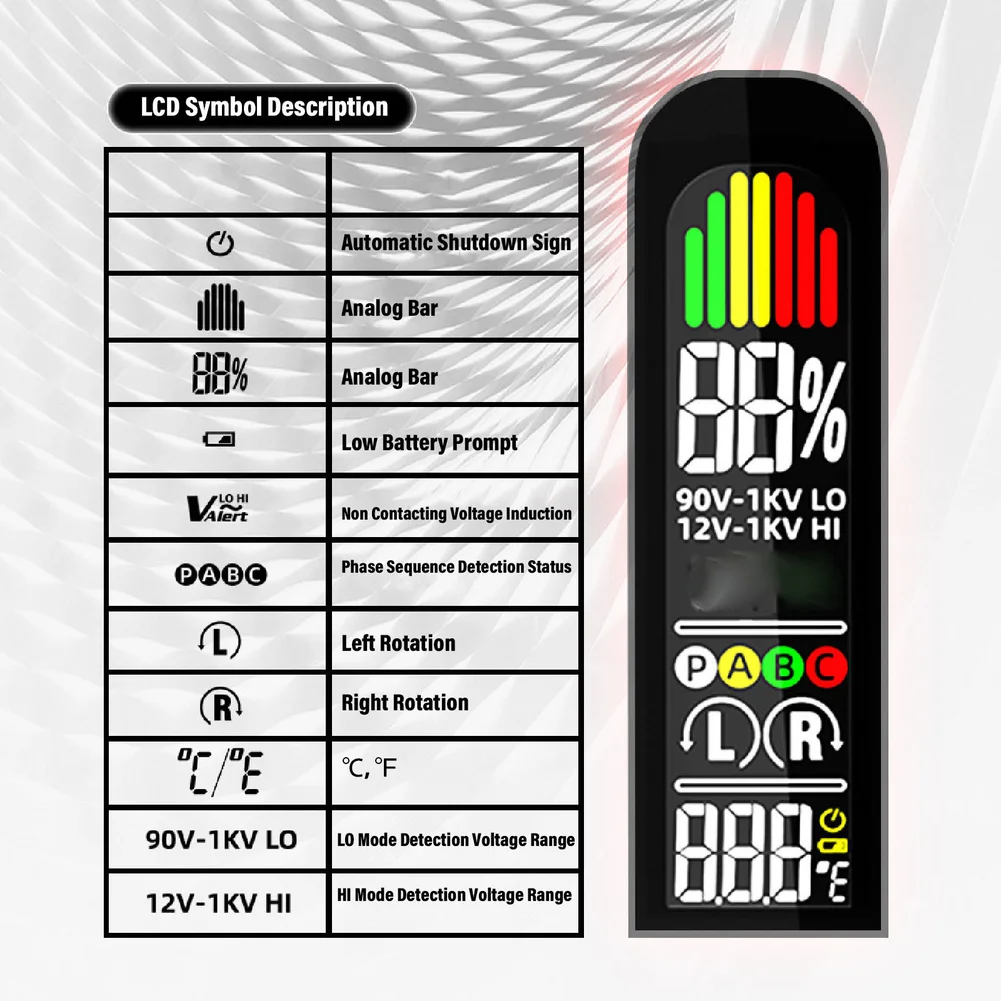

2. Signal percentage and analog bar: This voltage tester features a large color LCD screen that simultaneously displays the voltage signal percentage and analog bar, providing real-time measurement.

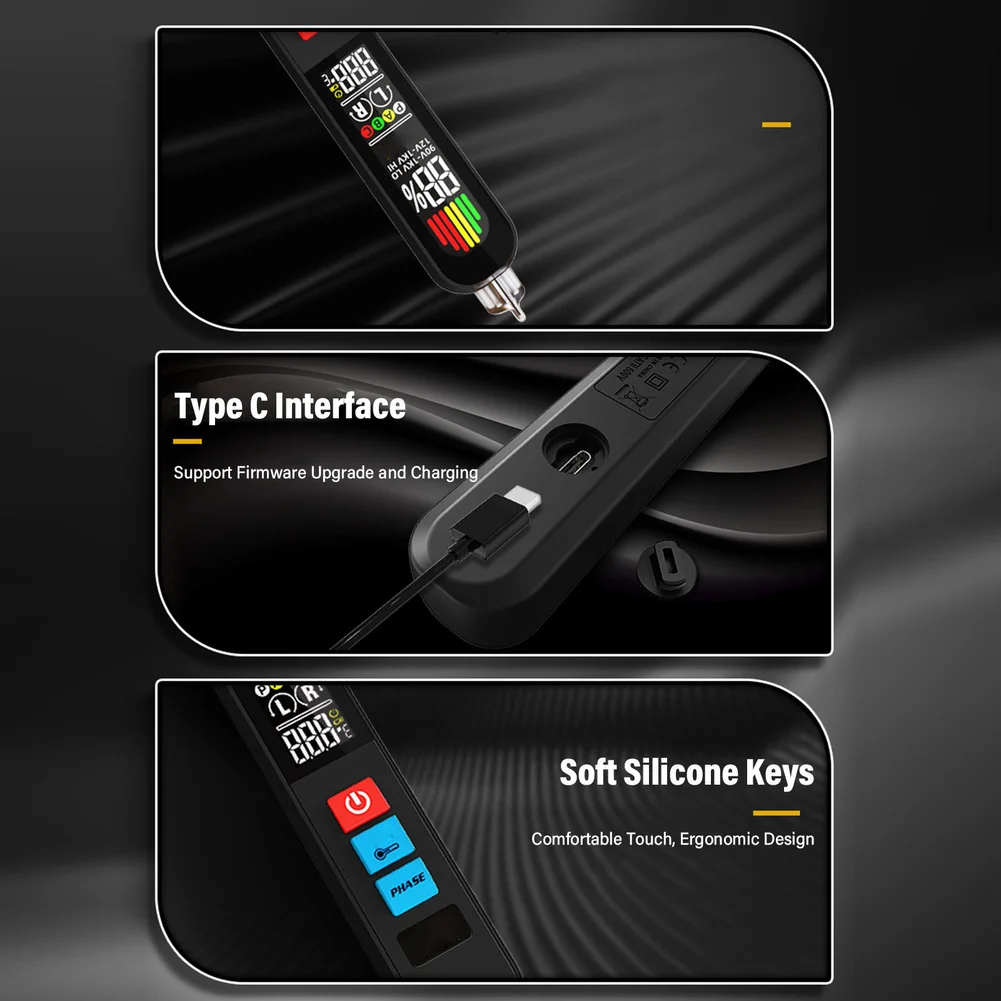

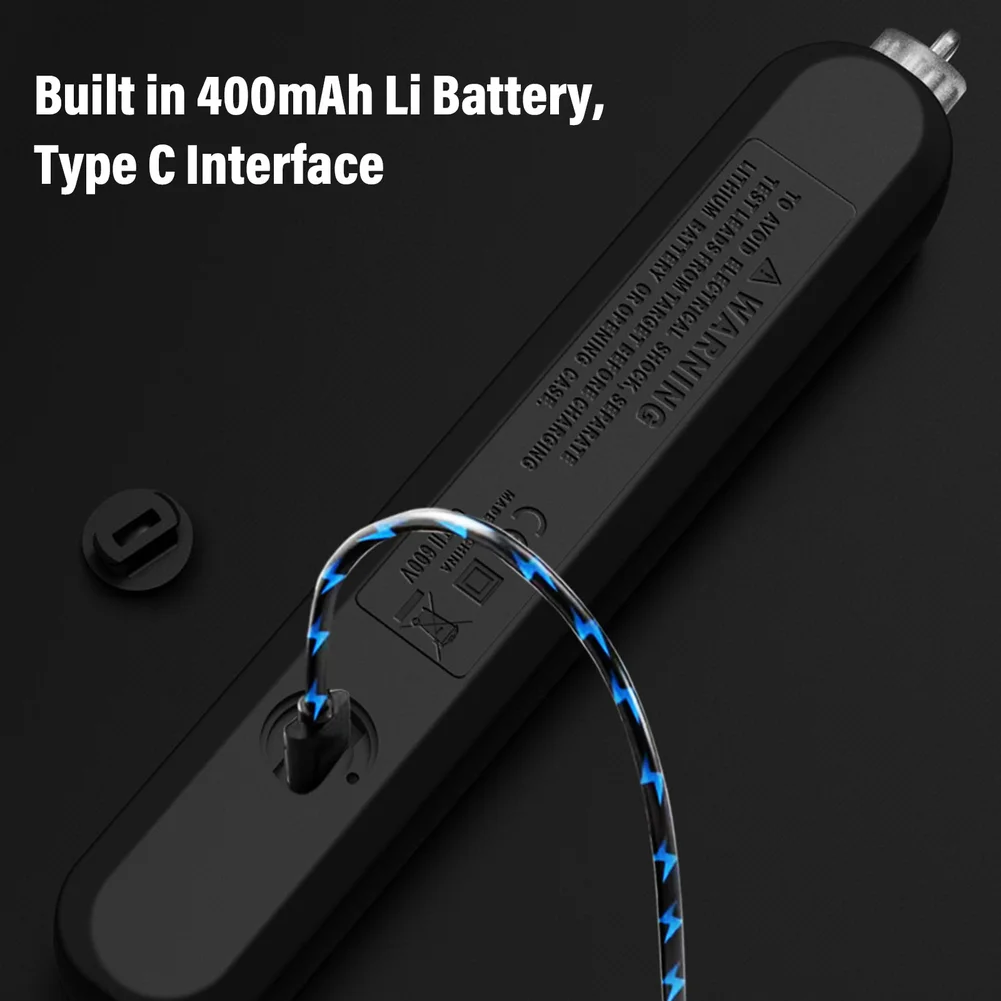

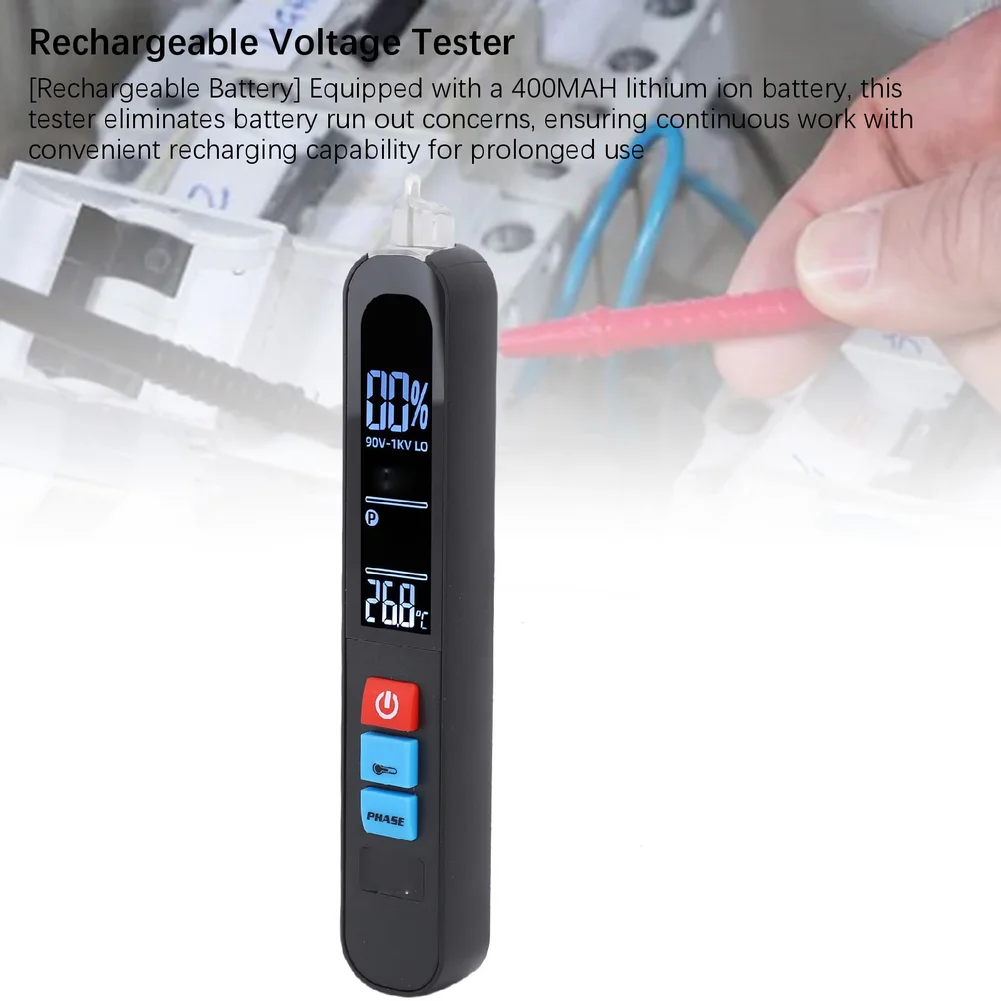

3. Rechargeable battery: Equipped with a 400mAh lithium-ion battery, eliminating worries about battery depletion,continuous operation, and easy recharging extends usage time.
4. Six ranges: This non-contact voltage tester offers two sensitivity modes, high and low, each with three adjustable ranges (low, medium, and high) to adapt to different voltage detection scenarios.

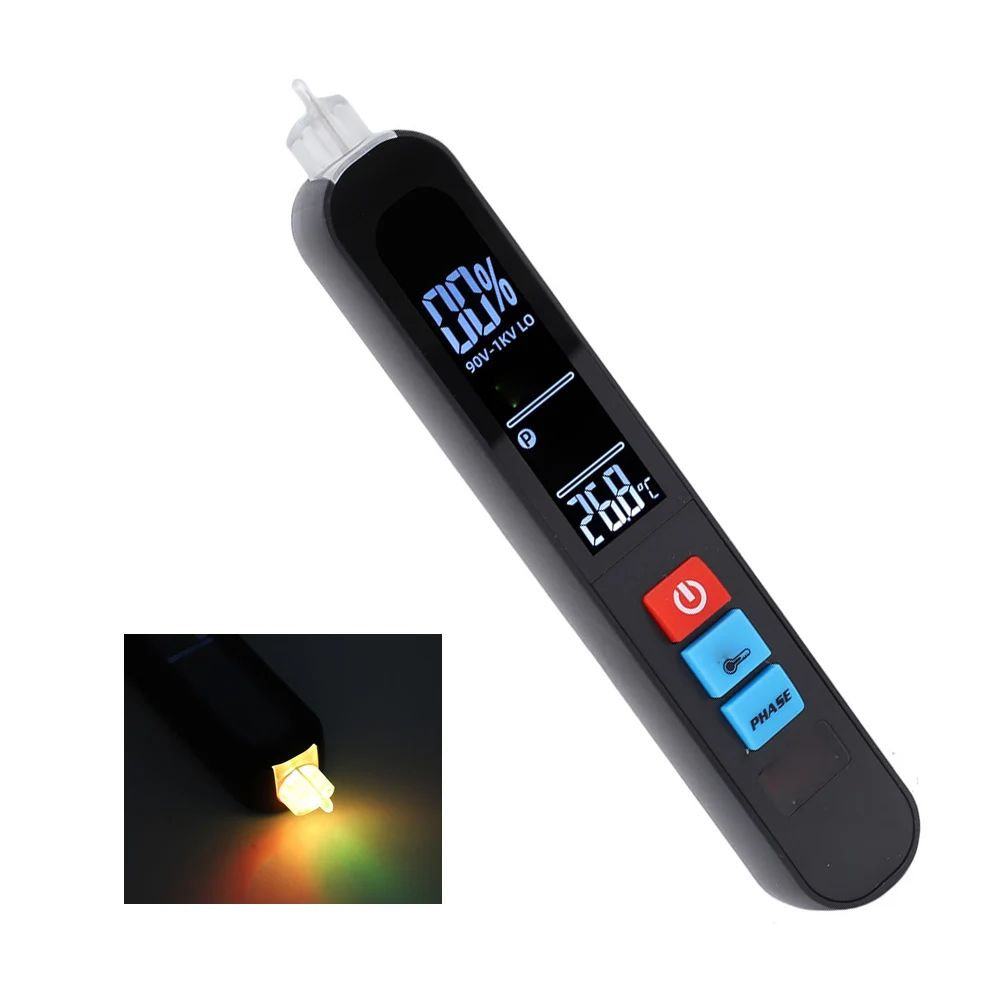

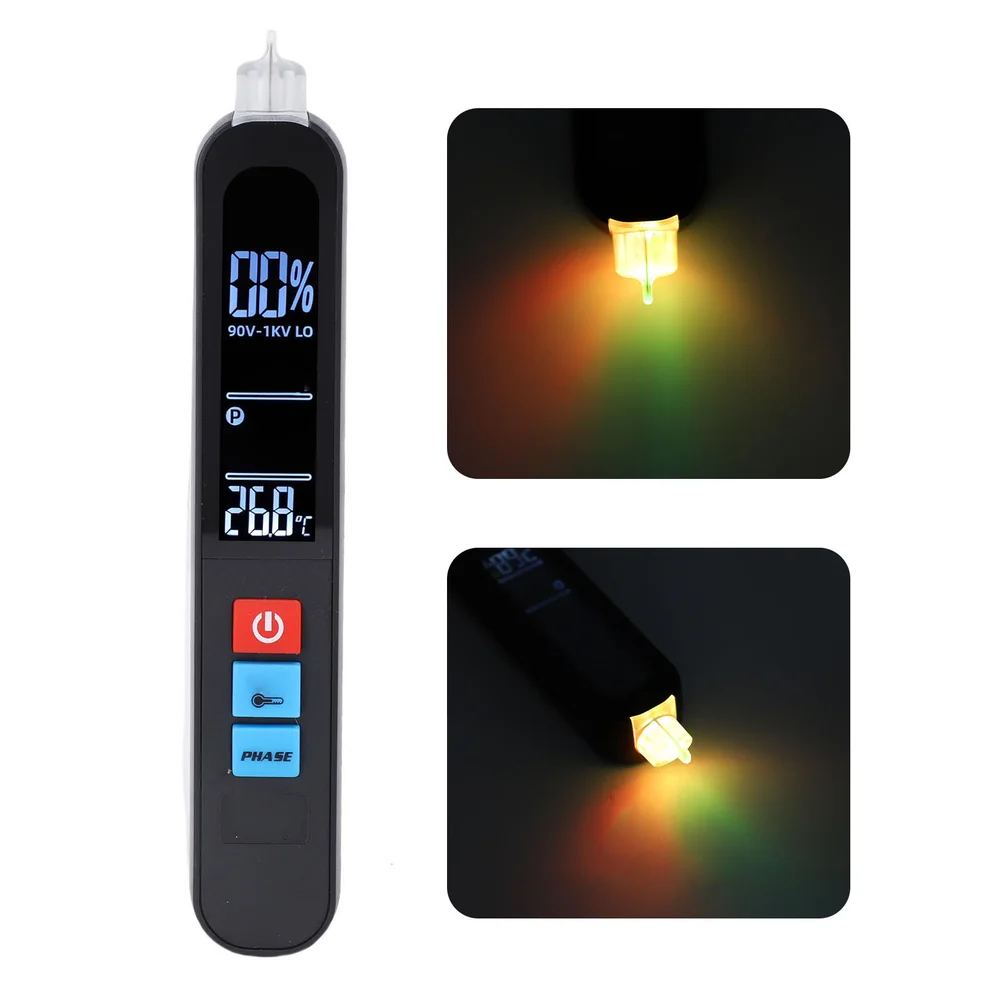

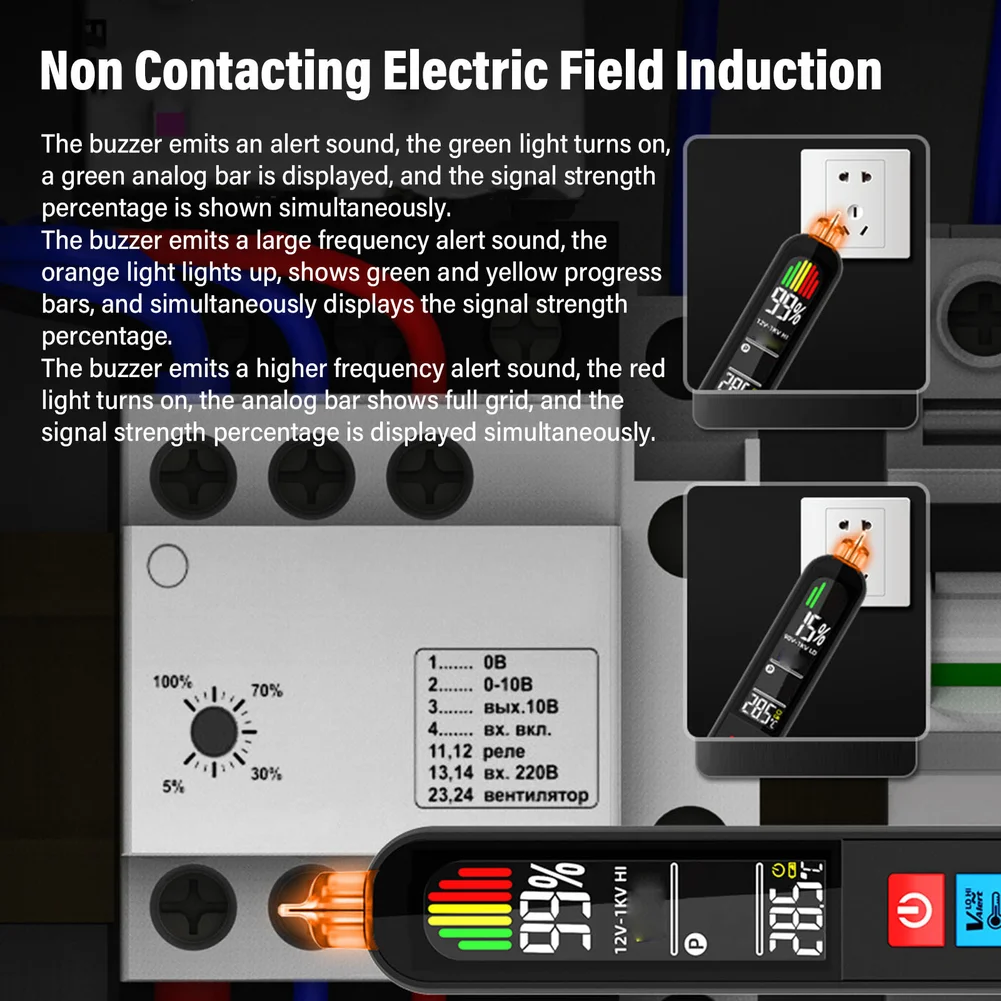

5. Three alarm modes: When different voltage levels are detected, the tester displays the signal percentage and analog bar, illuminates indicator lights of different colors, and emits a buzzer alarm at different frequencies.
Specifications:

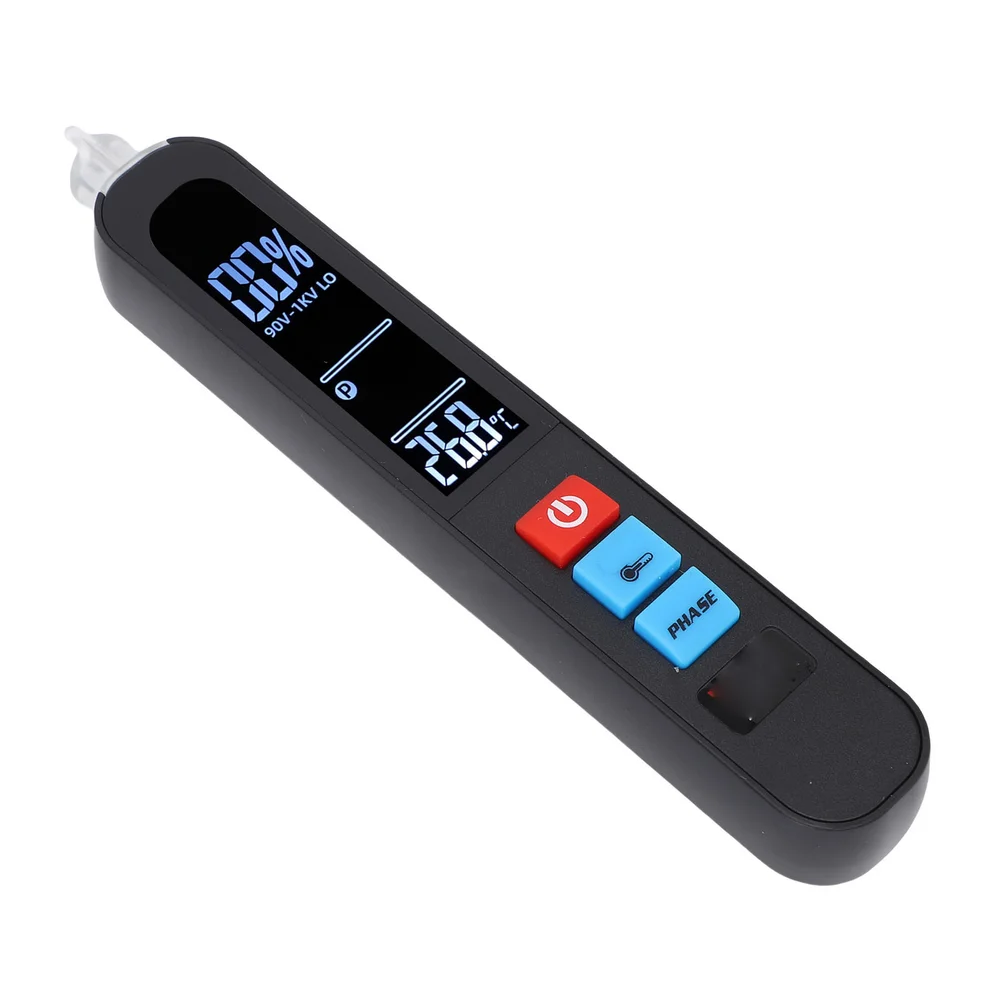

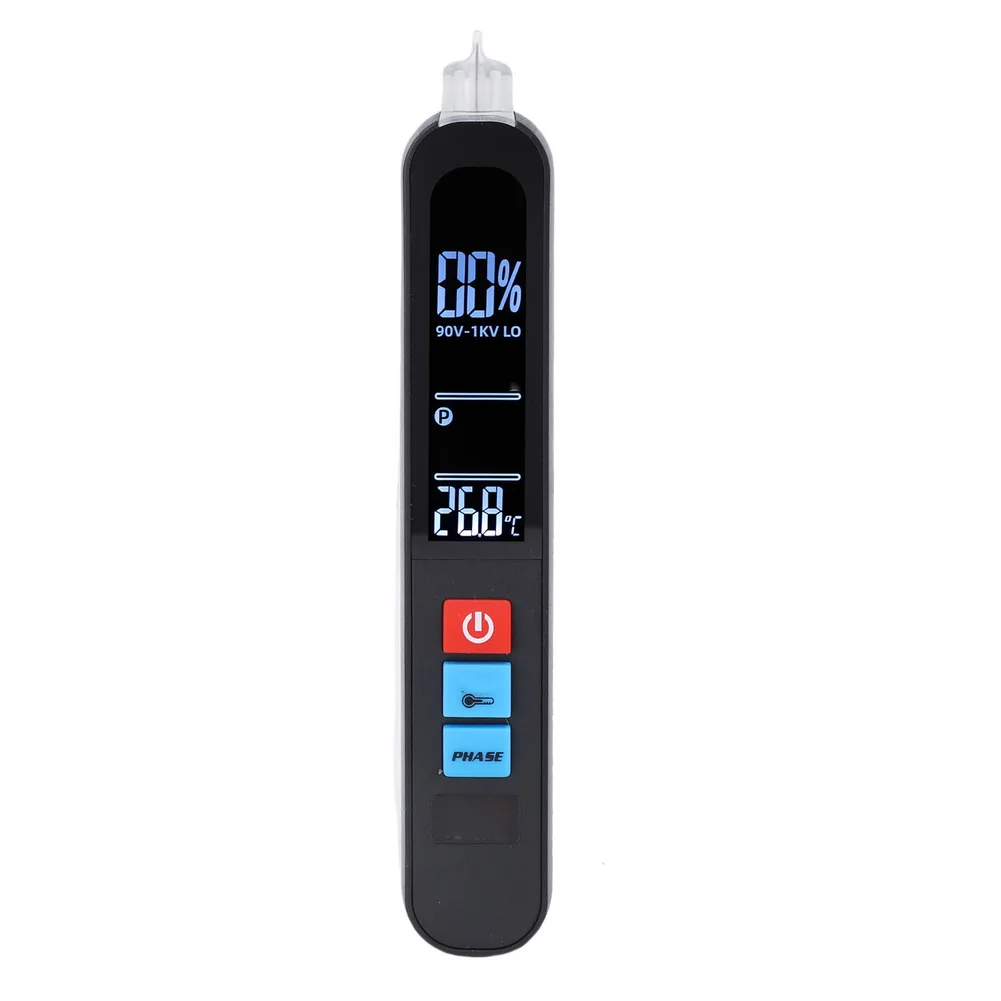

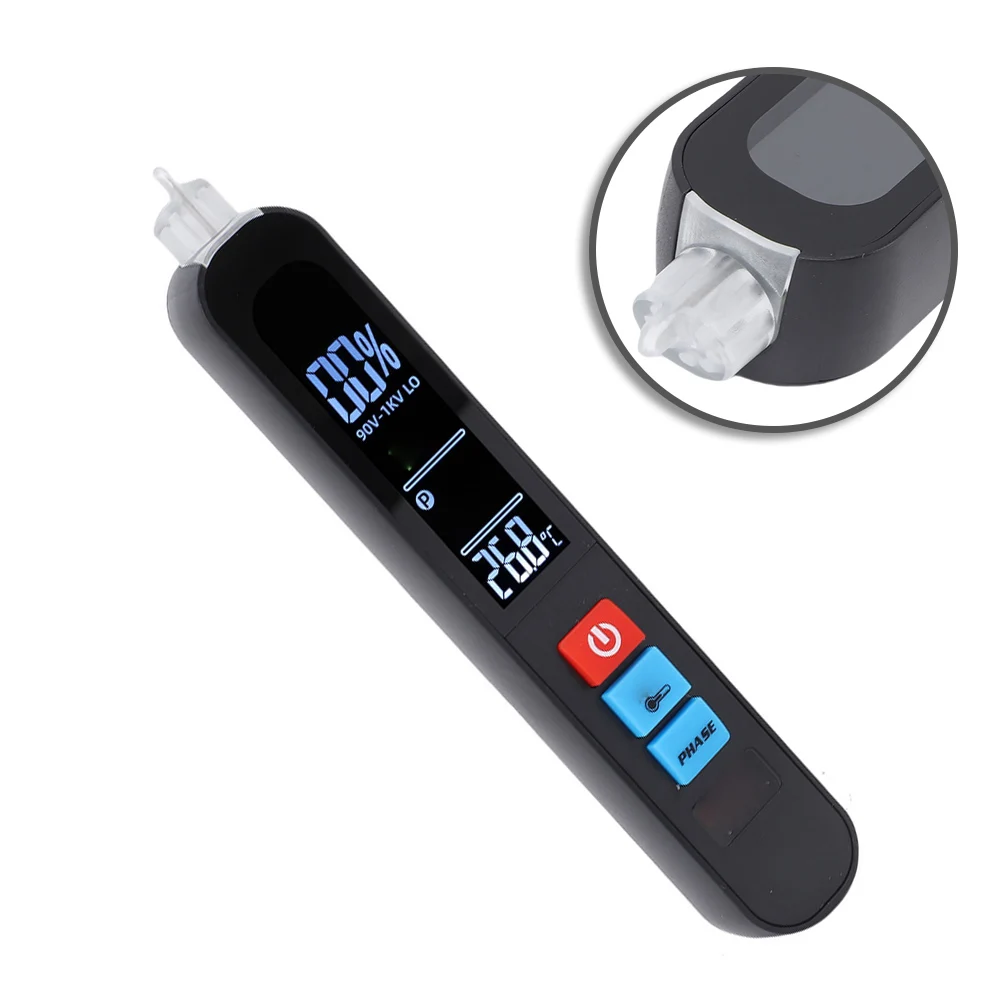

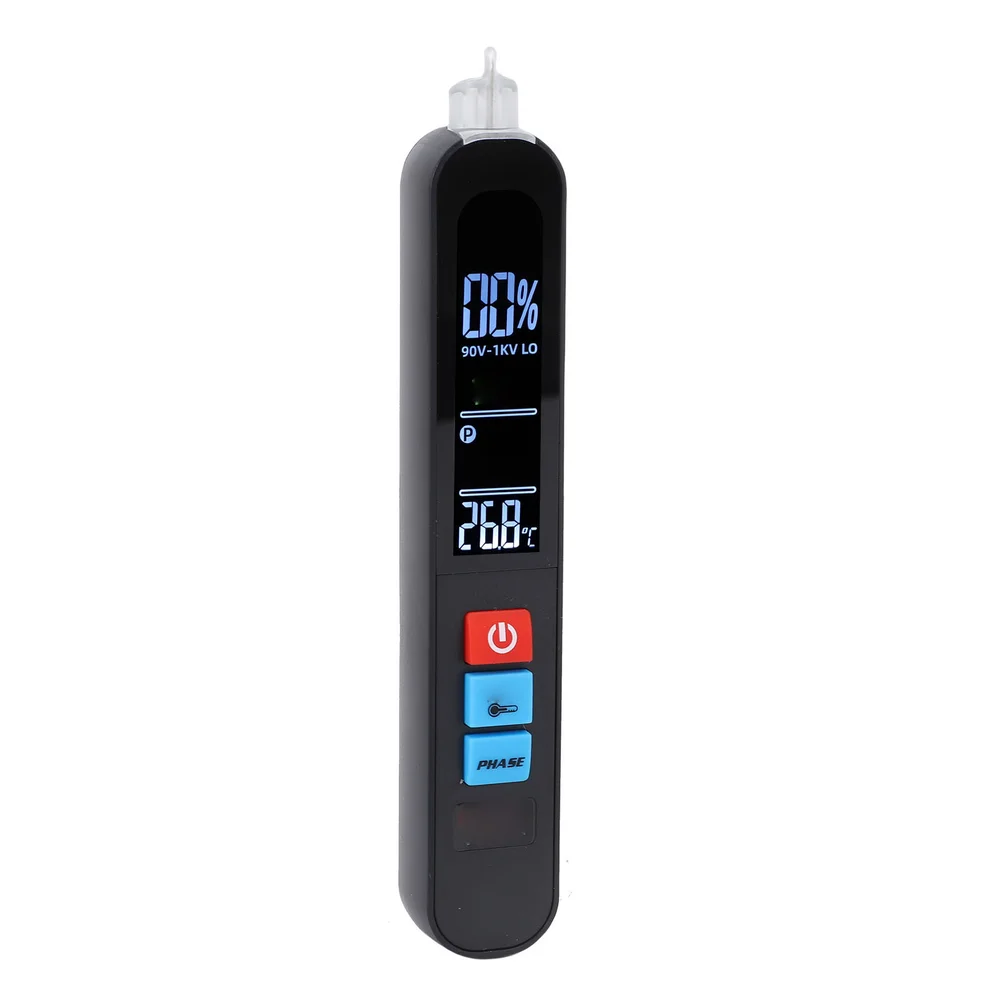

Part Name: AVX1 Voltage Tester
Material: ABS
Color: Black

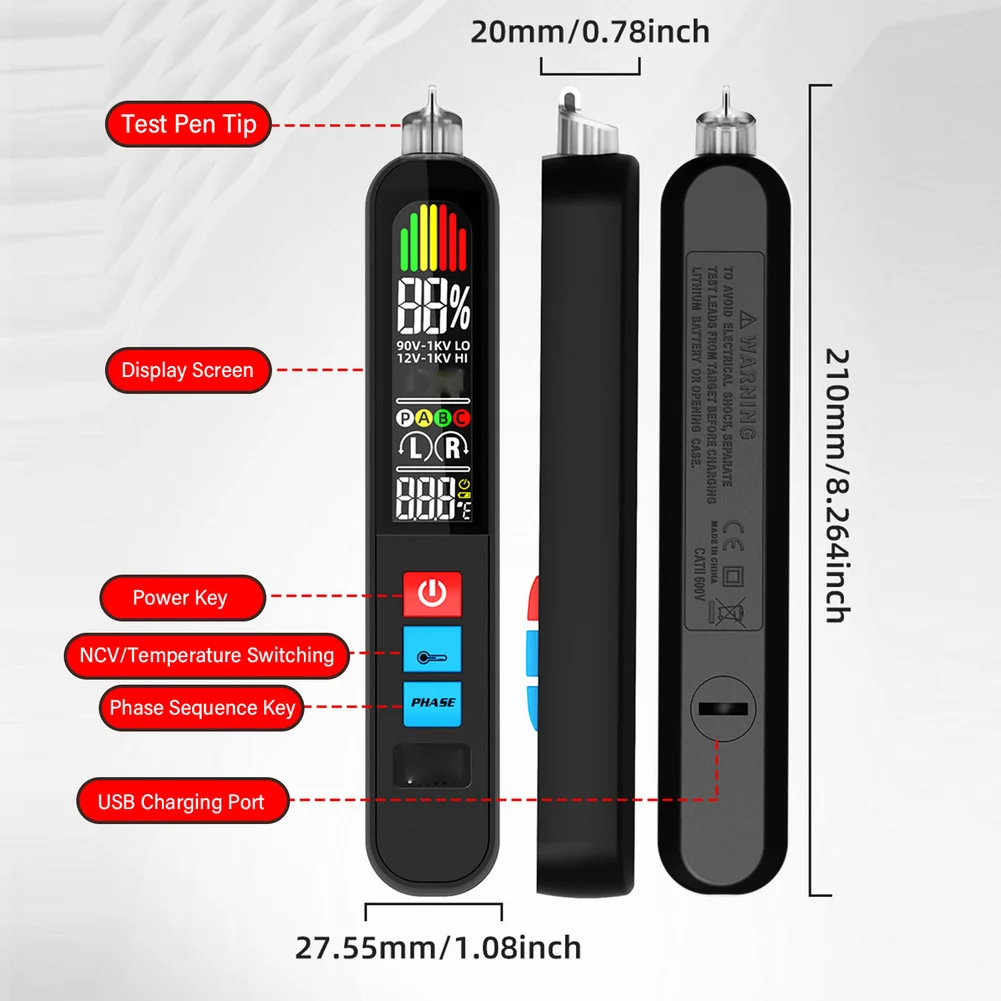

Size: 210*27.55*20mm
Sampling Rate: Approx. 3 times/second
Auto-Shutdown Time: 3 minutes
Battery Low Voltage Indicator: LCD display symbol
Operating Temperature and Humidity: 0-40℃, 0-80%RH
Storage Temperature and Humidity: -10-60℃, 0-70%RH
Battery: 1 x 400mAh Lithium-ion Battery (Built-in)
Operating Altitude: Approx. 2000 meters / 6561.7 feet
Low-Level Mode Voltage Range: 90V-1KV
High-Level Mode Voltage Range: 12V-1KV

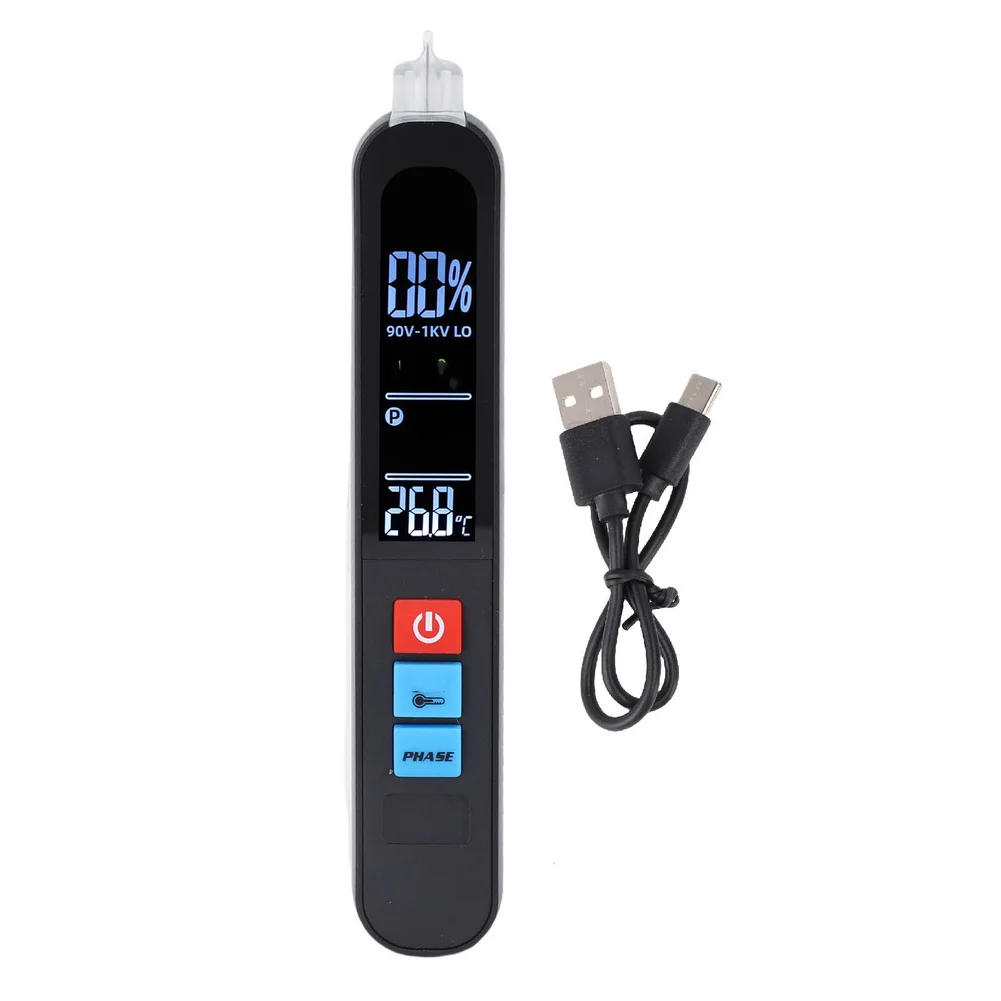

Package Contents:
1*Voltage Tester
1*Charging Cable
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
