Description
AR3126 Voltage Insulation Tester Megohmmeter Resistance Tester 500~5000V / 0M~1000Gohm
Introduction:
Insulation Tester AR3126, it is safe, fast and simple in use. it is professional tester and with multi-function. What`s more, it is easy to operate.
A brand-new, unused, unopened, undamaged item in its original packaging. Our products have been exported to more than 40 countries over the world.
We believe that during the days of economic and cultural globalization, the key point for running business successfully both at home and abroad is to be considerate, passionate, committed and industrious.
Features:
Insulation resistance tester, is usually called ZhaoOuBiao or high resistance plan, they are widely used for measuring generators, motors, power transformers, wiring, electrical and other electrical device (as of control, signal, communication and power cable) insulation resistance.
They tend to be used for routine maintenance program to instructions in the months or years motor insulation resistance changes. Insulation resistance big changes in its may indicate potential failure.
So, they need to ZhaoOuBiao regularly to ensure that the instrument calibration, itself is not the change over time.
|
SPECIFICATIONS |
|
| Rated Voltage |
500V/1000V/2500V/5000V |
| Testing Range |
500V:0.0~999MΩ 1000V:0.0~1.99GΩ 2500V:0.0~99.9GΩ 5000V:0.0~1000GΩ |
| Accuracy | ±5%rdg±5dgt |
| DC/AC Voltage Test | 30~600V |
| Resolution |
1.0V |
| Overload Protect | AC 1200V/10sec |
| Withstand Voltage | AC 8320V/5 sec |
| Insulated Impedance | 1000MΩ |
| Max. Short Circuit Current | 1.4mA |
| Polarization Index | √ |
| External DC Adapter | √ |
| DAR | √ |
| PACKING INFORMATION | |

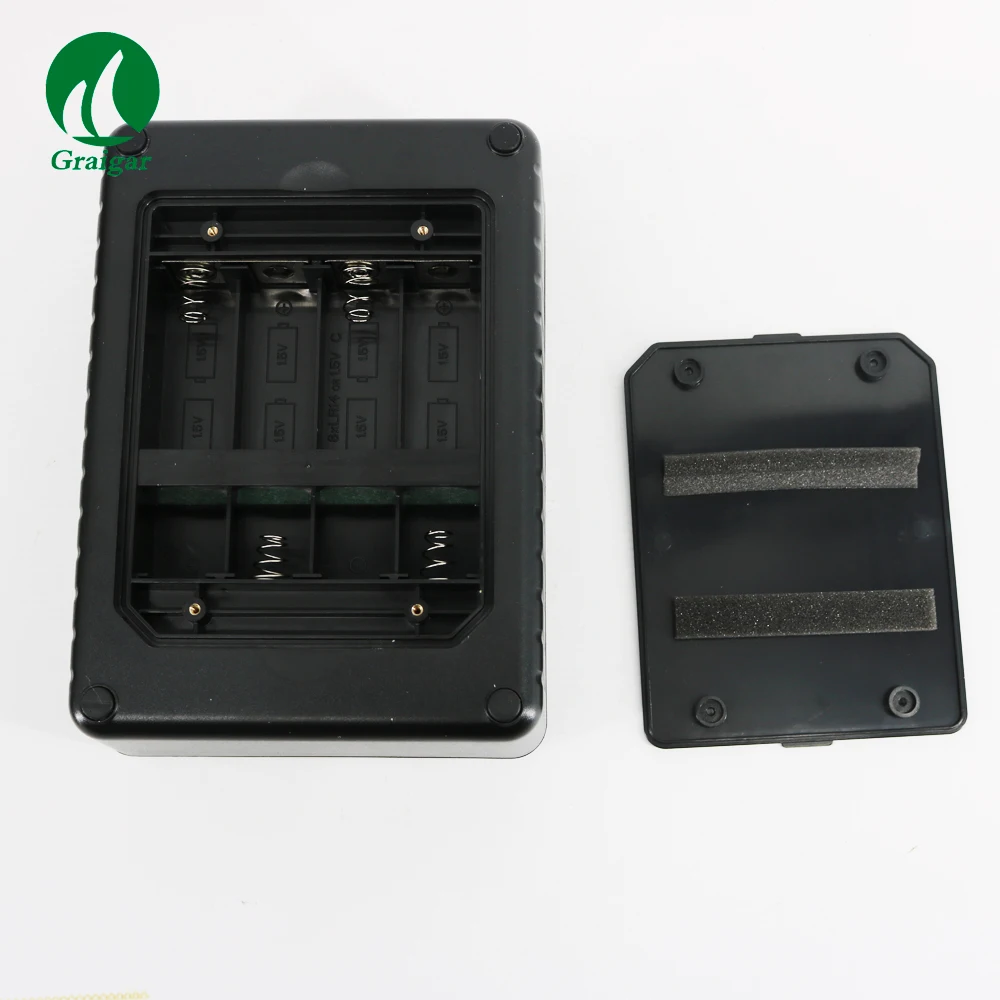

| Power | C*8 battery |
| Product Net Weight | 1027g |
| Product Size | 153*213*95mm |

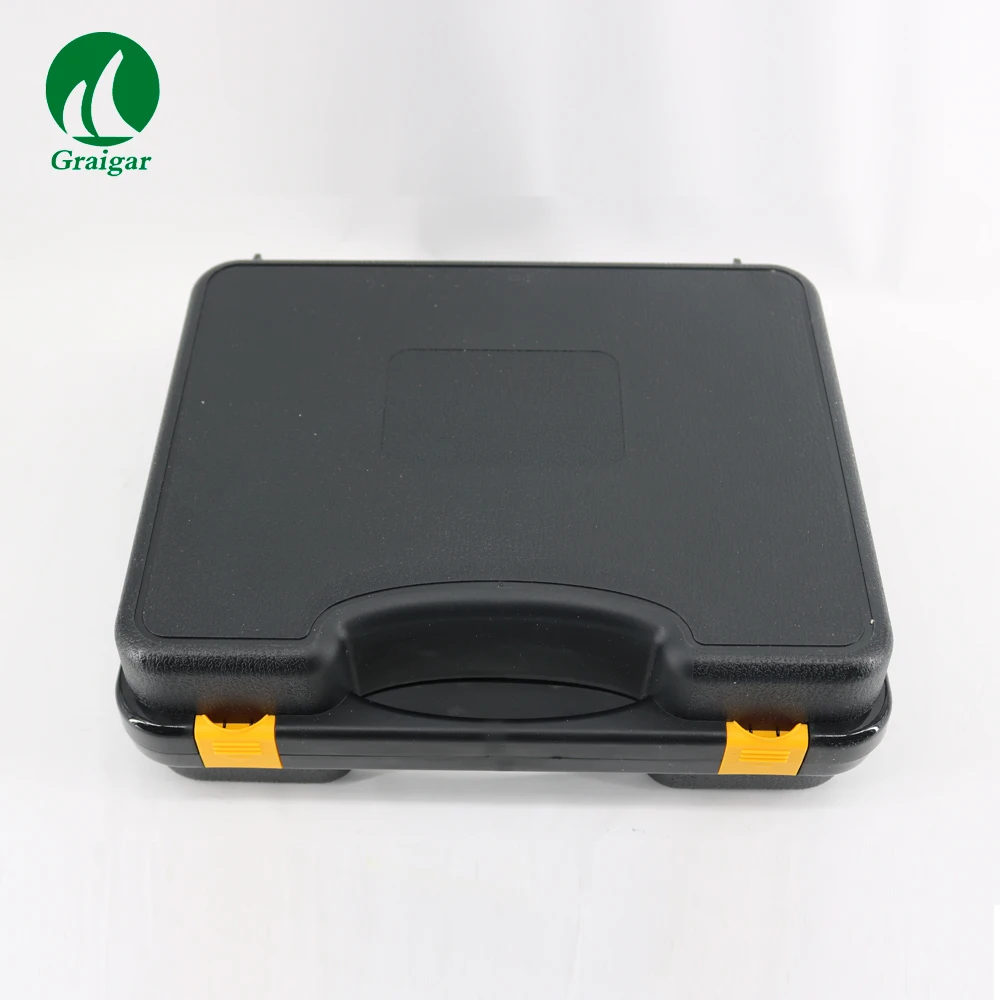

| Packing | knapsack |
| Standard Quantity Per Carton | 3PCS |
| Standard Carton Size | 44.5*33*28.5cm |
| Standard Carton Gross Weight | 6KG |

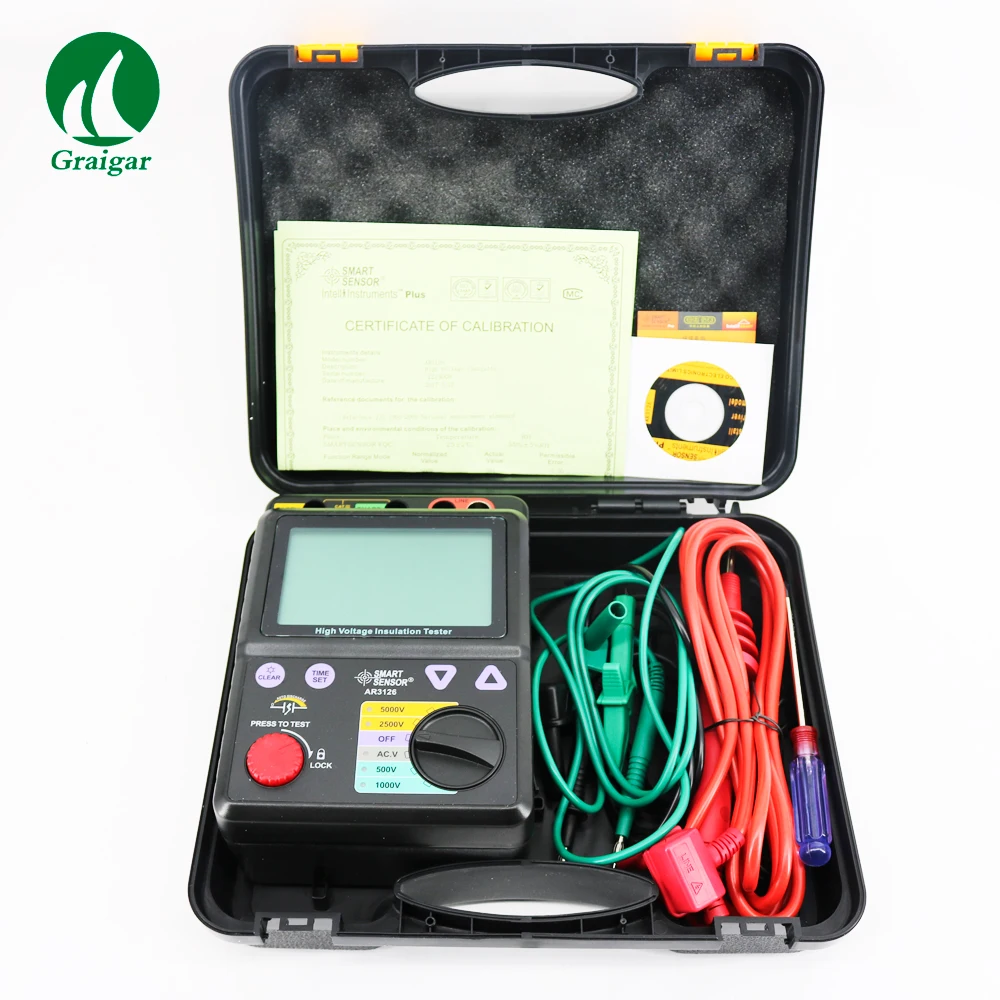

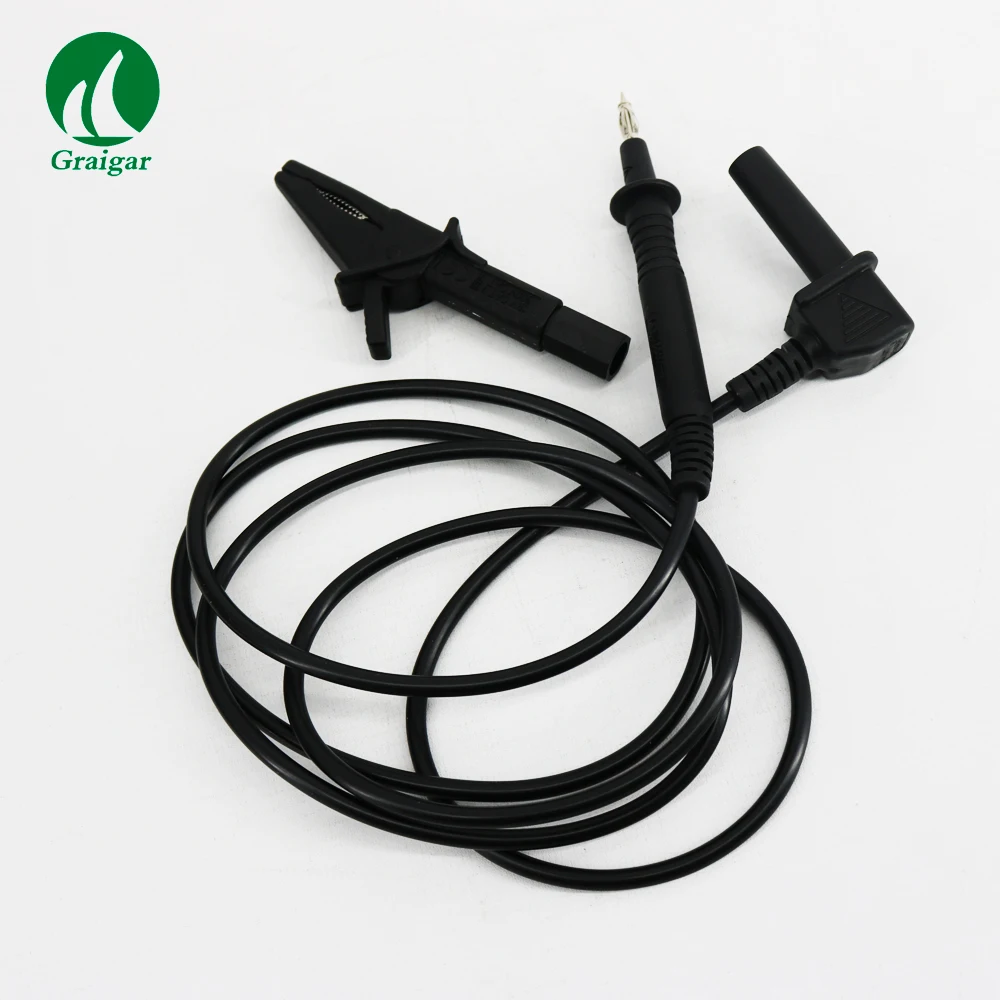

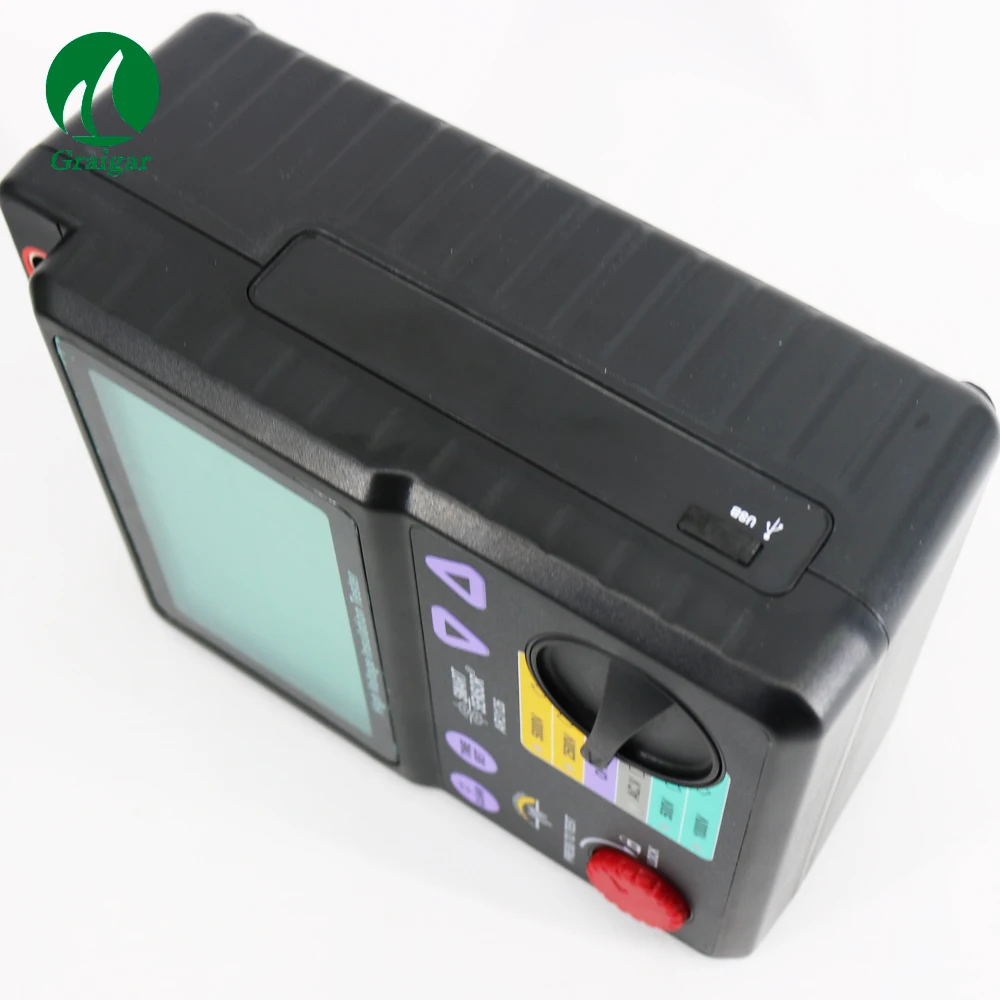

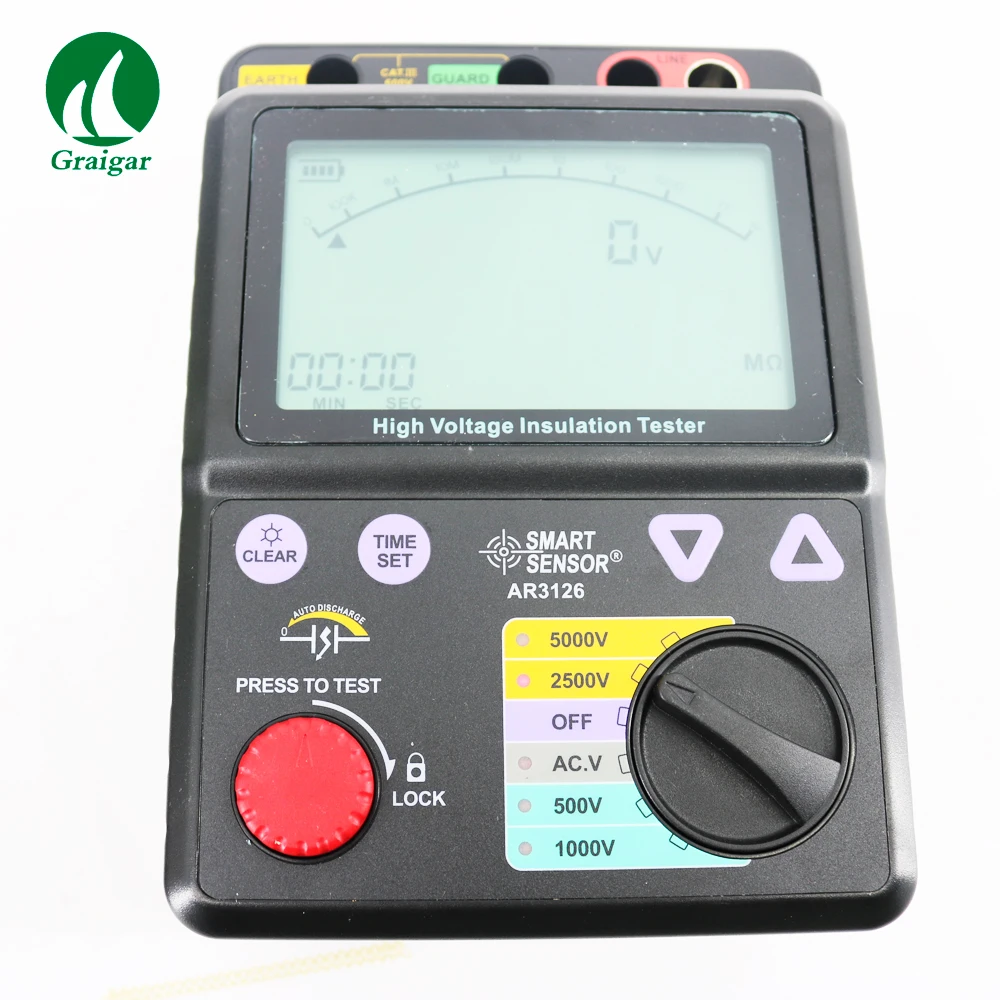

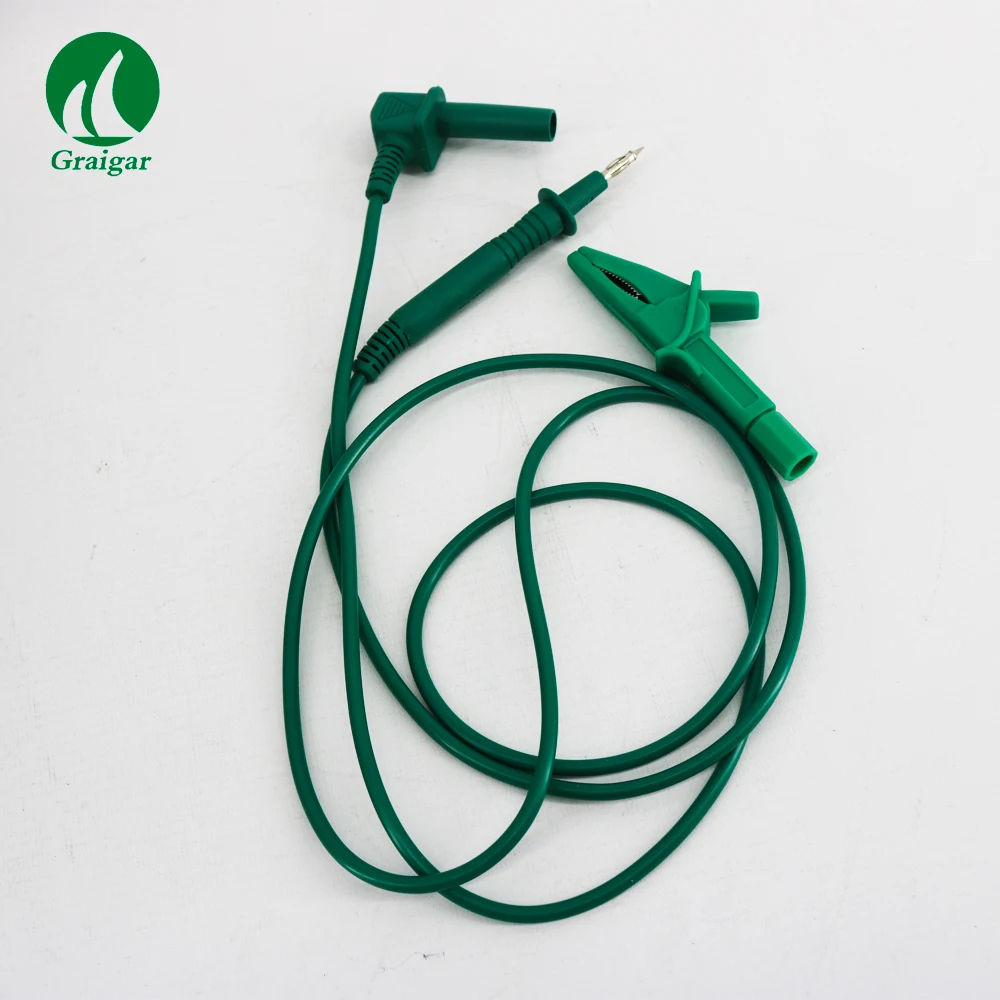

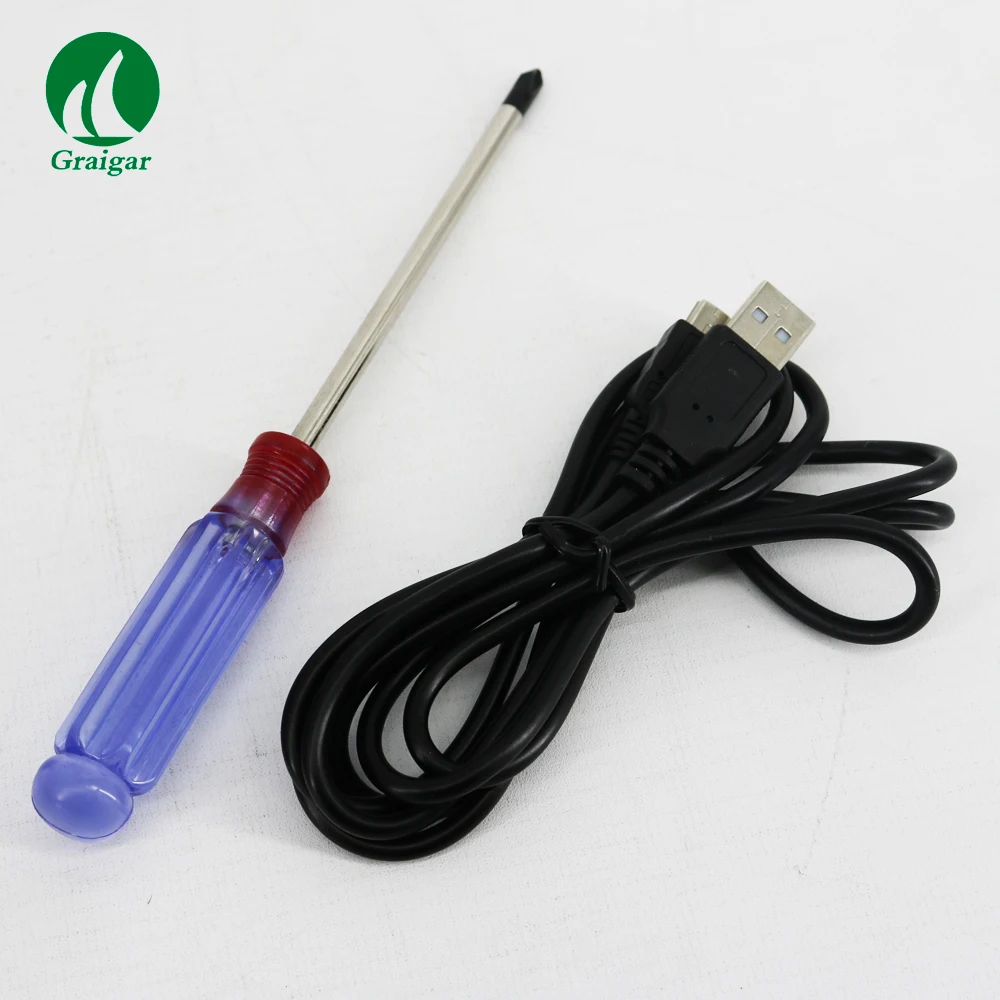

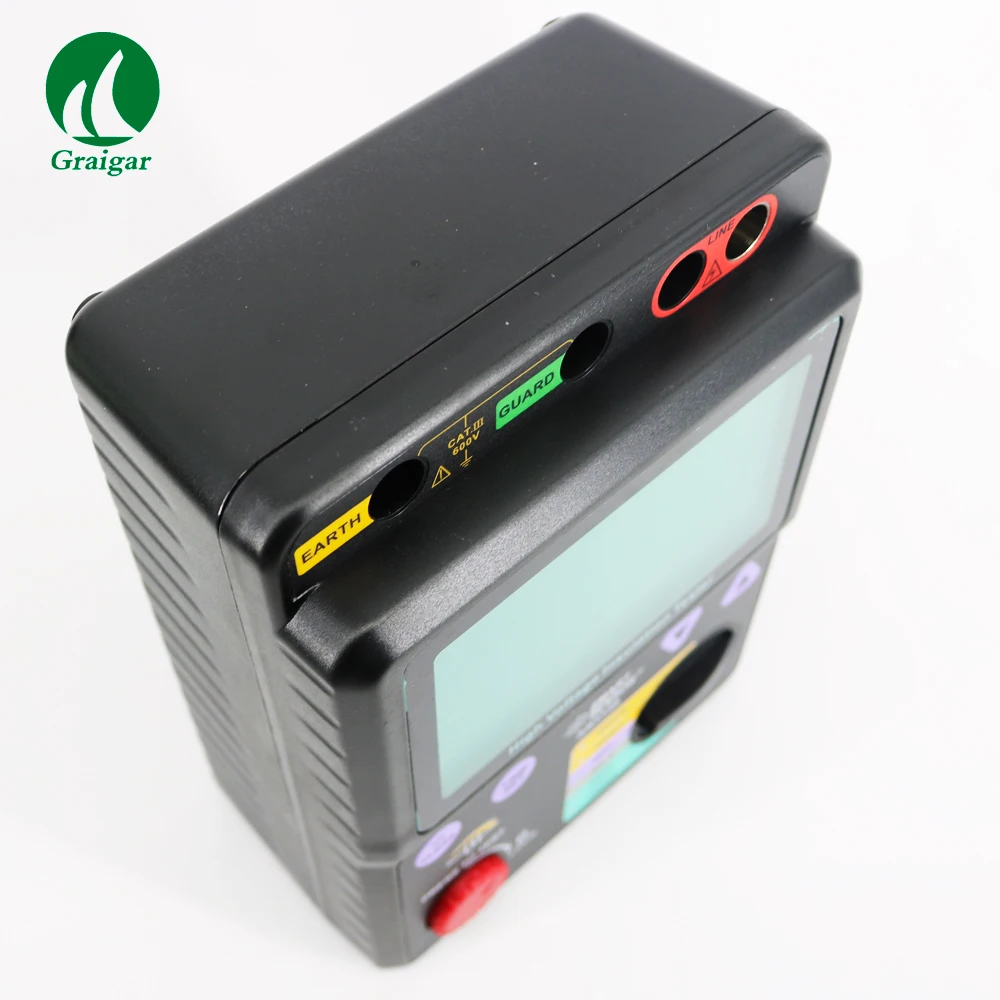

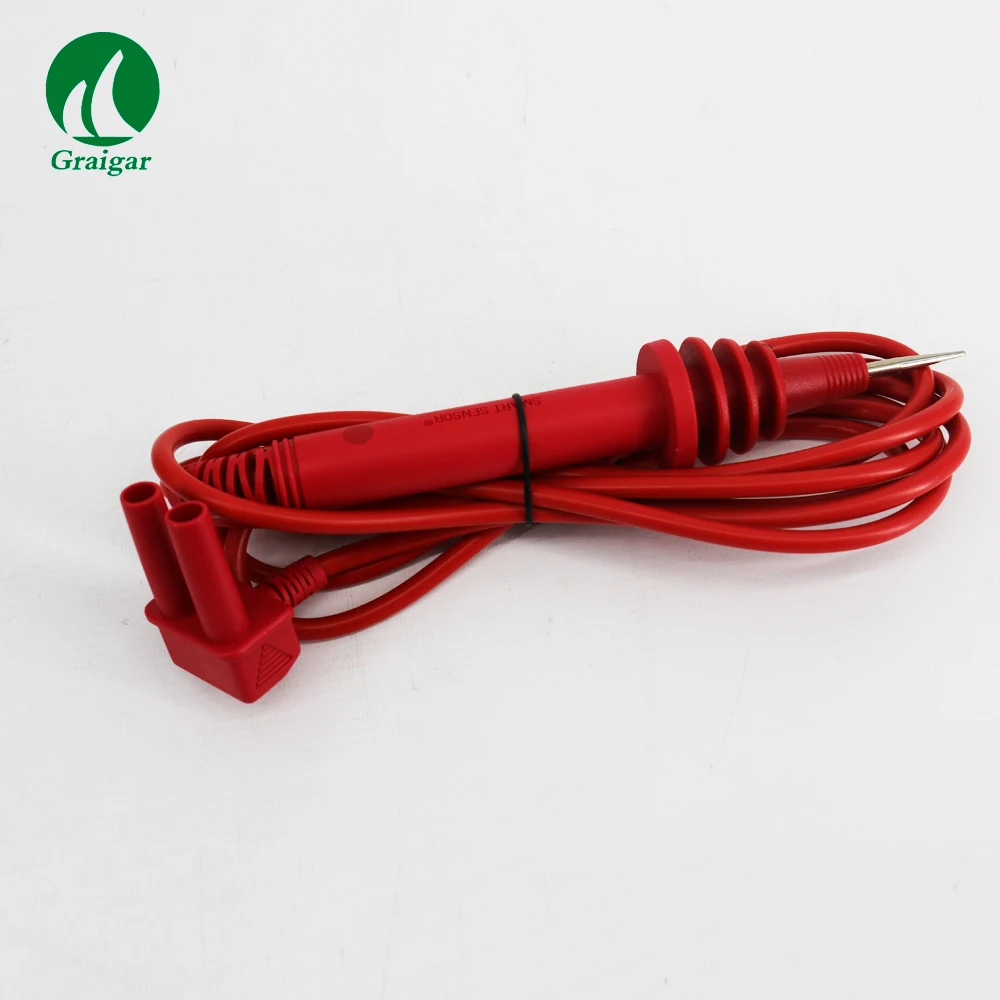

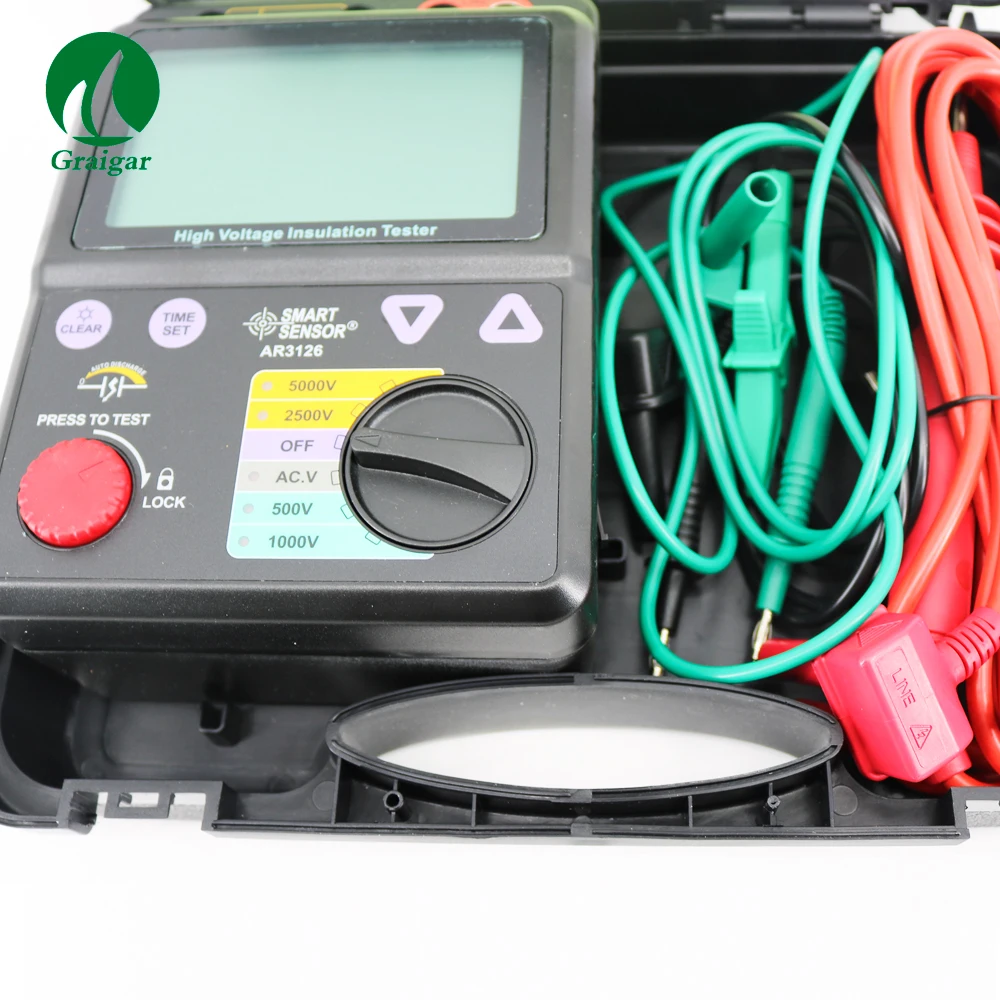

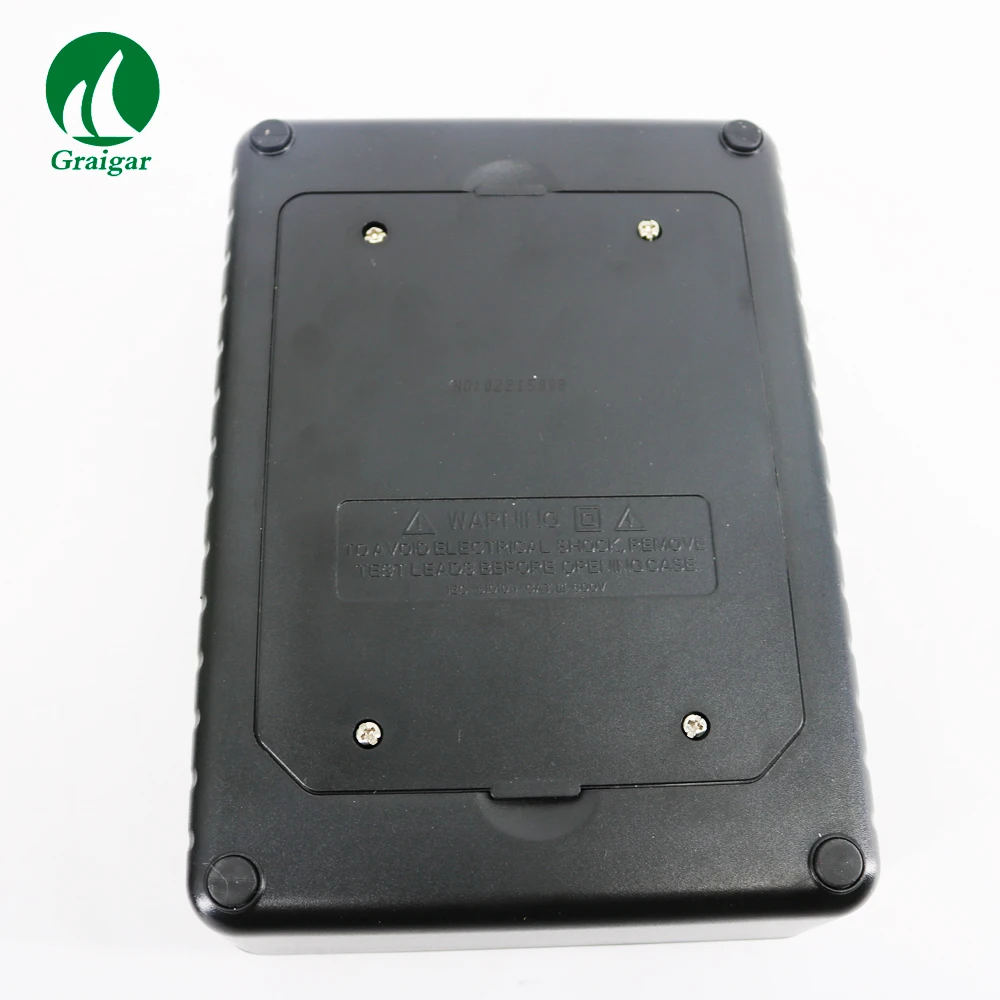

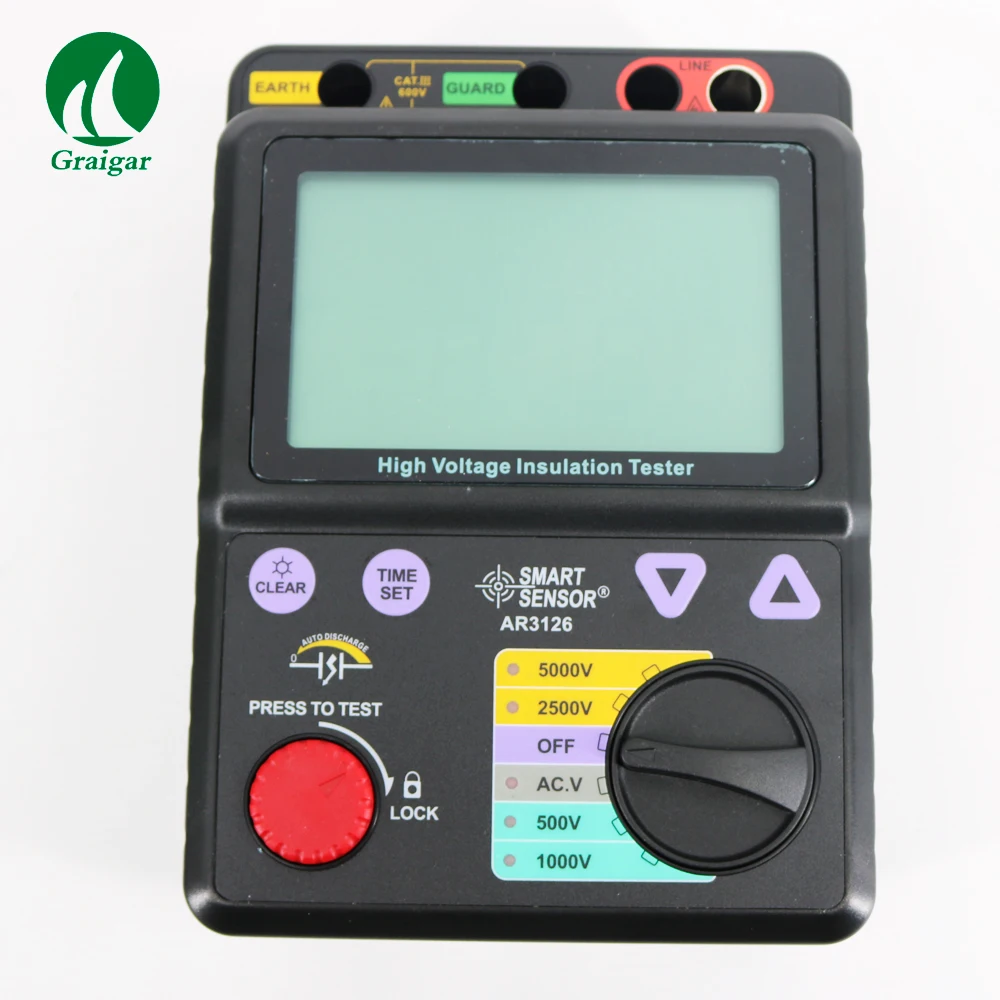

Product Images:
