Product Description
Product DescriptionANDUUK China wholesale GT GT100 tool milling vice CNC precision modular machine vise for milling machine
| Product Name | CNC precision modular machine vise |

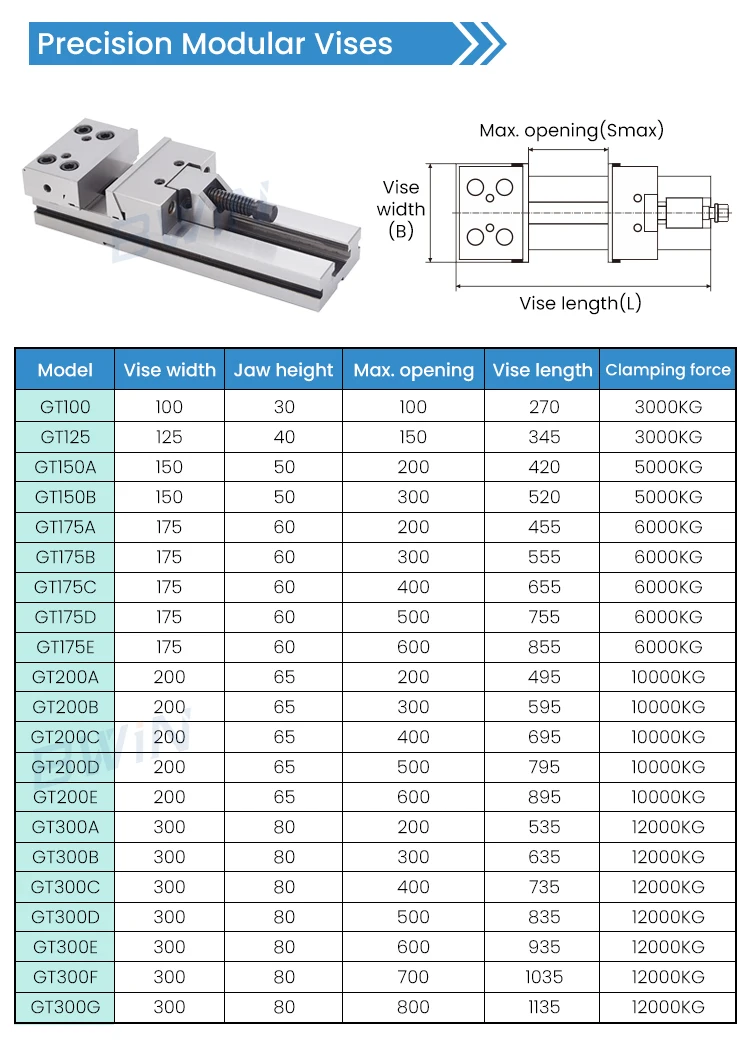

| Models | GT100/G125/GT150/GT200/GT300 Inspection 100% |
| Parallelism | 0.005mm/100mm |
| Squareness | 0.005mm |
| Material | 20CrMnTi |
| Hardness | HRC58~62 |
| Inspection | 100% |
| Advantage | Clamp quickly and long work life |

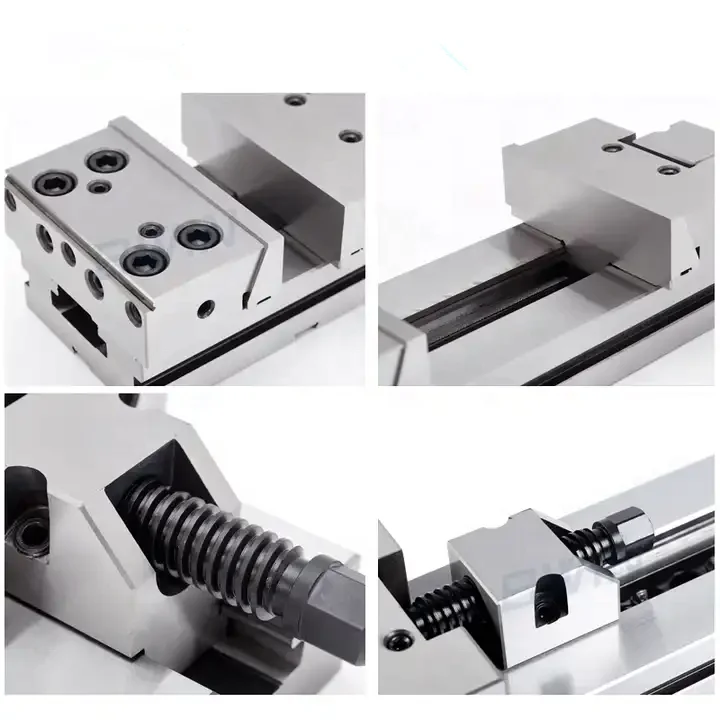

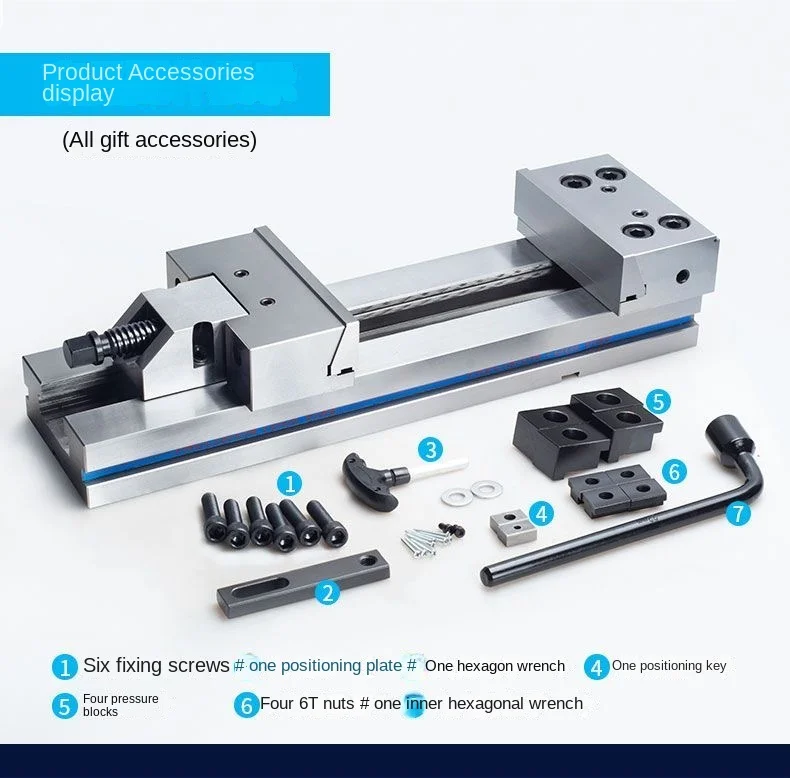

Products Show

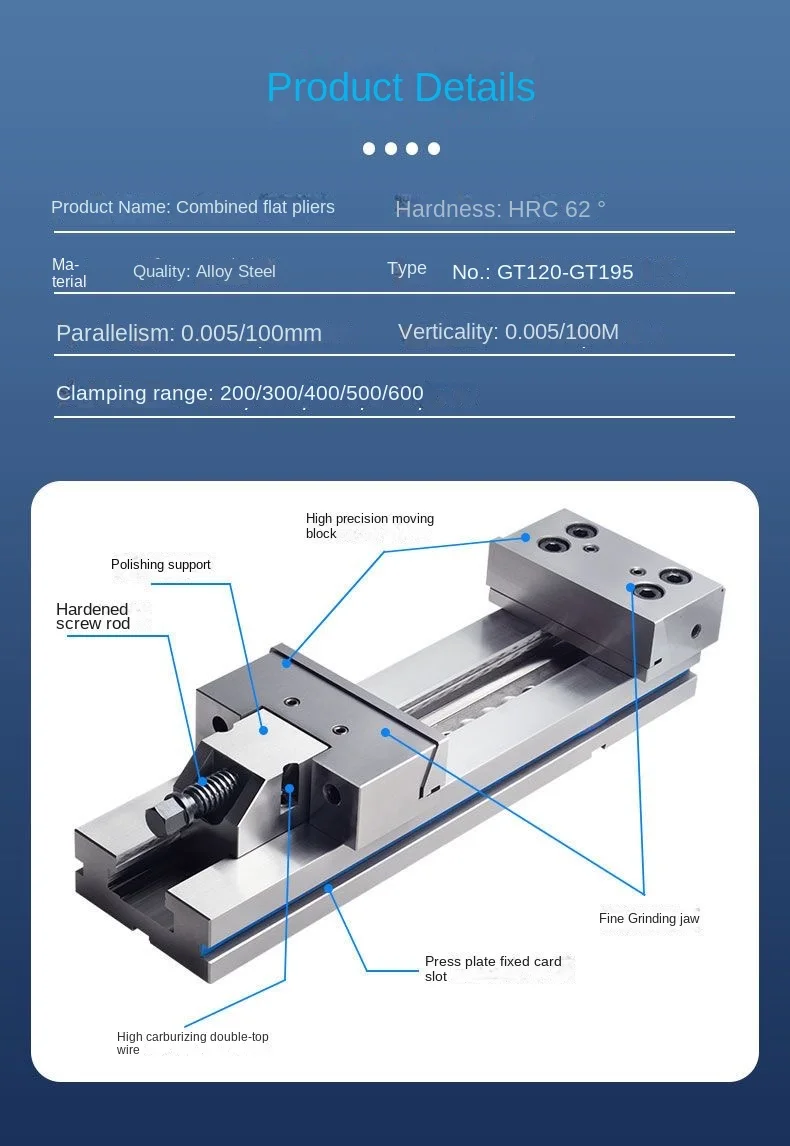

This unit is made from best quality alloy steel. Work surface is hardened with fine roughness. With changeable base, fixed jaw, live jaw, it facilitates the operation with high accuracy of clamping, and is widely used in CNC and other machines. How to : 1. Fist choose proper vise according to work-piece and locate it on the table. 2.Then let rack(03) free by loosing hex head socket set screw(04) in it. 3.Move rack(03) to have the steel ball(01) down in the set hole of the body in proper clamping position due to the size of work pieces. 4.And then drive the hex head socket set screw(04) to tighten, the steel ball(01) and hold the rack(03). 5.Put the work-piece on, turn lead screw(02) to move live jaw(08) to realize the clamping.
