Description
Package List:
1 x Air Cylinder
Specification:

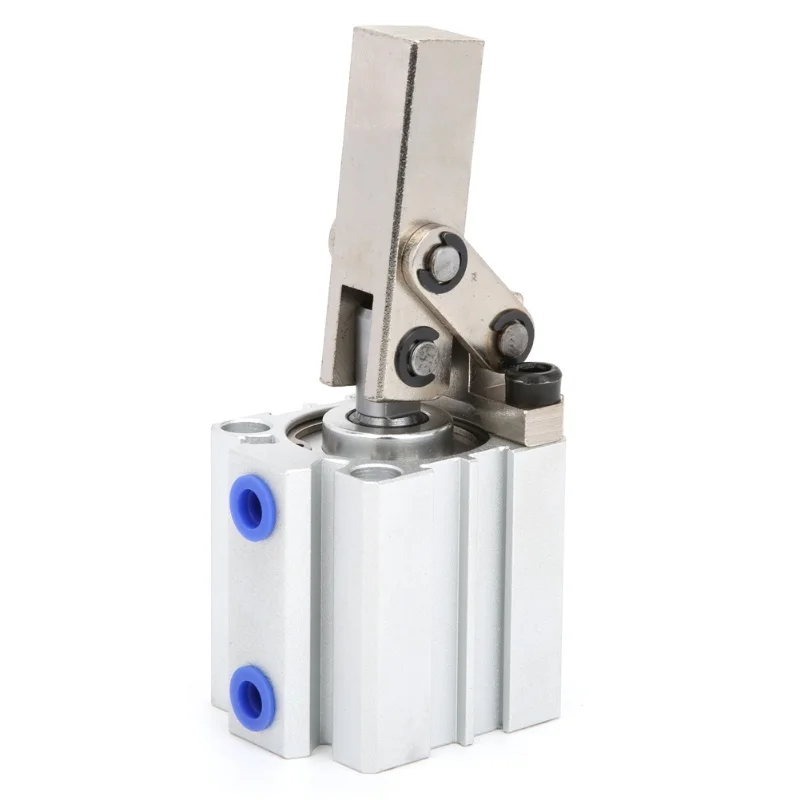

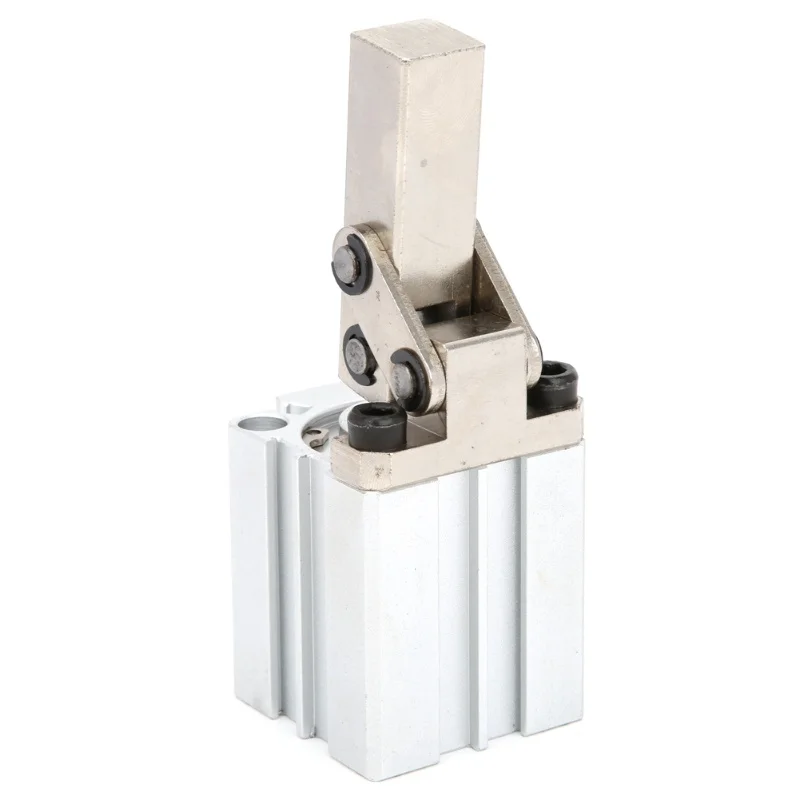

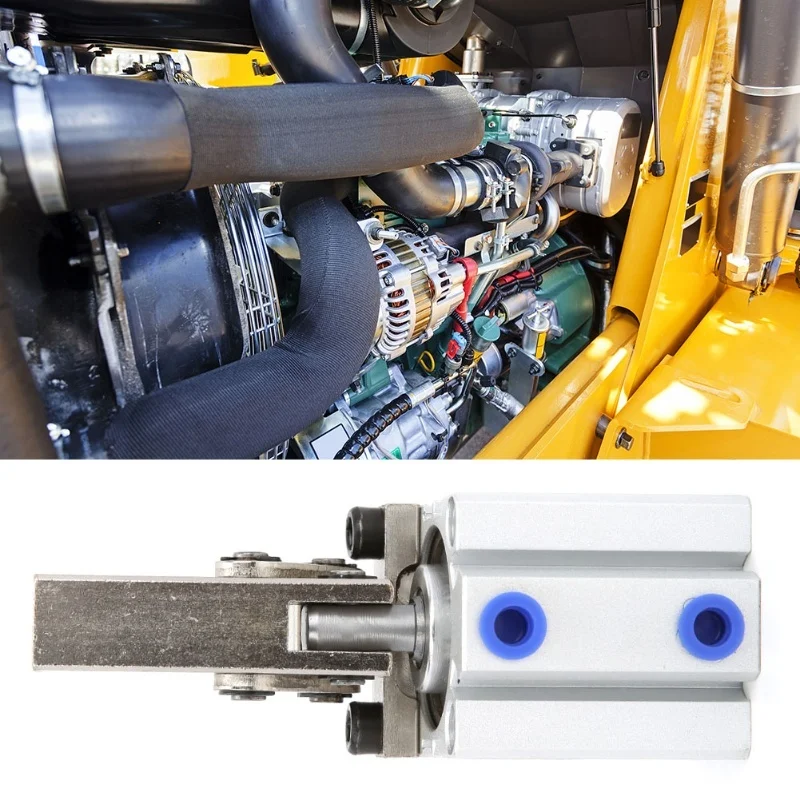

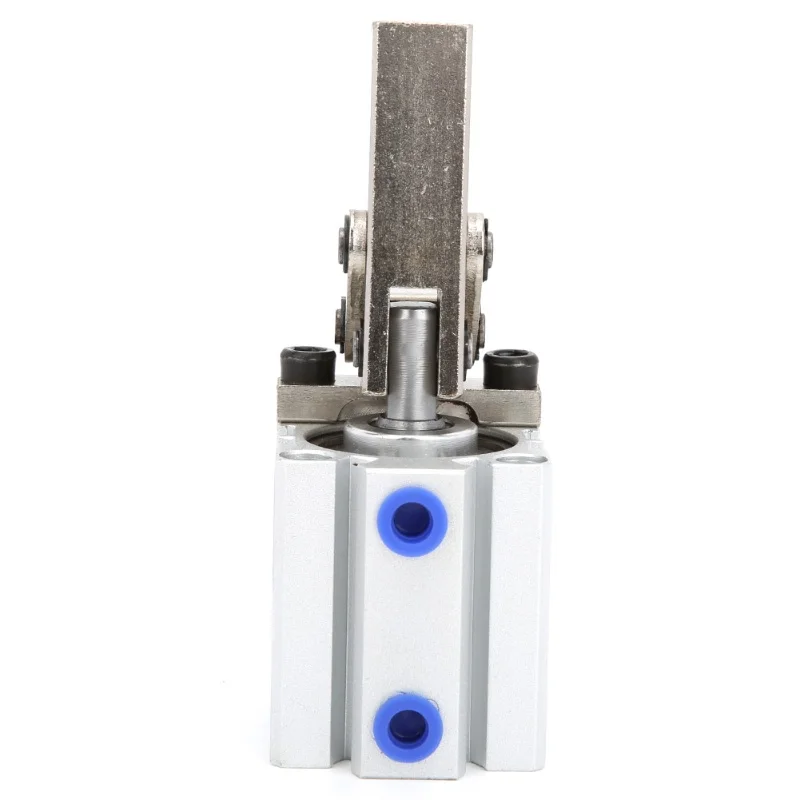

Item Type: Air Cylinder

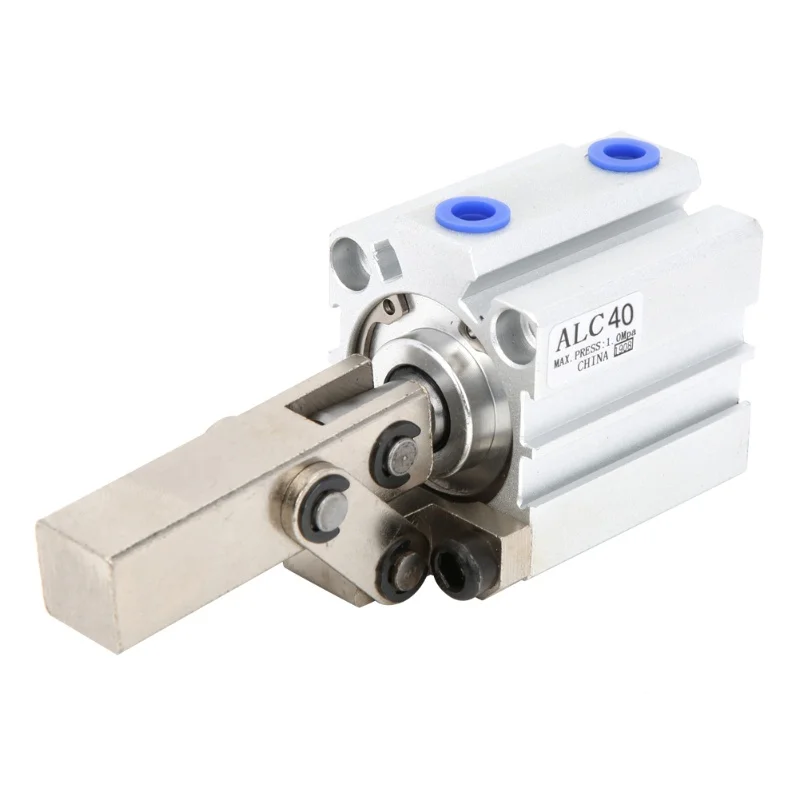

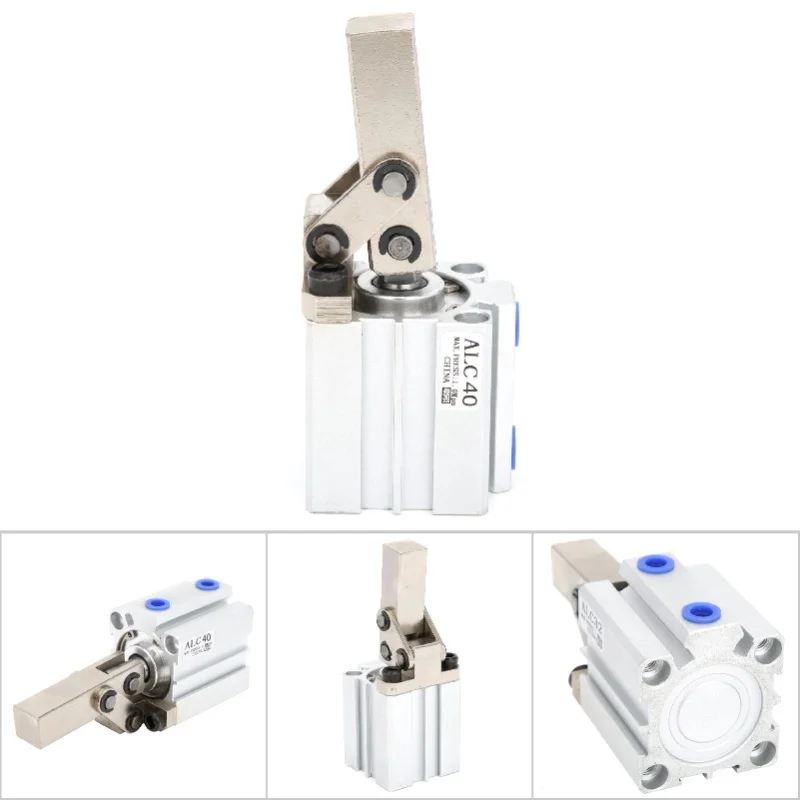

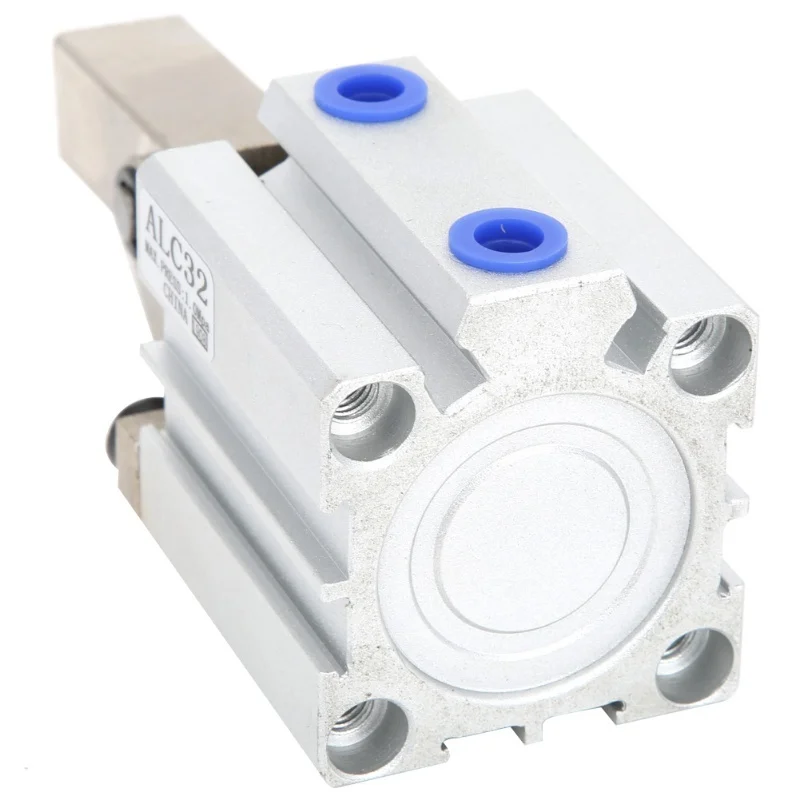

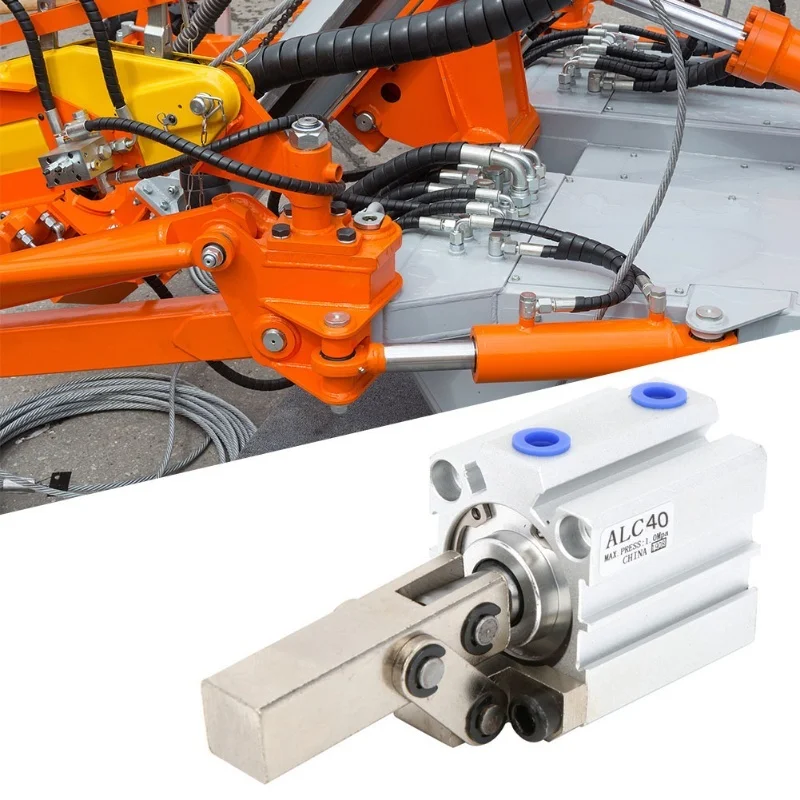

Optional Model: ALC25, ALC32, ALC40, ALC50
Bore Diameter x Inlet Hole Thread x Stroke(mm) x Holding Force(Kgf) x Clamp Arm Opening Angle
25 x M5×0.8 x 20 x 15 x 15 x 82°
32 x 1/8 x 20 x 25 x 73°
40 x 1/8 x 25 x 45 x 62°
50 x 1/4 x 30 x 70 x 80°
Action Form: Double Action Type
Use Fluid: Compressed Air
Operating Pressure Range MPa (kgf/cm²): 0.15-1.0 (1.5~10.2)
Environment and Fluid Temperature: -10~70 (less than icing)
Lubricating Oil: No need
Buffer: None
Travel Tolerance (mm): b + 1.4
Connection Pipe Diameter: M5x0.8, 1/8in, 1/4in
Features:
1.Double-acting operation method, strong power.
2.High precision piston rod, stable and durable.
3.Smooth cross-section, smooth work, strong corrosion resistance.
4.Precision fitting, no lubrication required, good use effect.
5.Made of high-quality metal material, the inner wall surface is smooth, wear-resistant, long service life.
