Description
1. KPa, mmHg, InHg, Psi, Mbar, Bar, Ozin⊃2;, Kgcm⊃2;, InH₂O, FtH₂O, CmH₂O are available in multiple units, which can meet the needs of different industries in different countries.
2. It is suitable for measurement and on‑site inspection of ventilation and air conditioning systems, clean room, or troubleshooting of any gas pressure system.
3. Large screen with backlight, easy to measure in dark environment, easy operation and clear reading value, easy to carry.
4. It is an indispensable measuring tool for HVAC technicians, operation and maintenance engineers and scientific researchers.
5. Can measure the maximum, minimum, average, and deviation values, with data retention, it is a good helper for measuring pressure. Item Type: Digital Manometer
Measuring Range: ±103.42KPa
Accuracy: ±1% Maximum error 1.04KPa
Maximum Pressure Limit: 206.7KPa
Repeatability: ±0.25%
Response Time: 0.5S
Pressure Connection: 1/8inch (3.18mm) quick connector
Working Temperature and Humidity: 0℃-40℃ 10%-80%RH
Storage Temperature and Humidity: -10℃-60℃, 10%-90%RH
Over-Range Prompt: Err1 or Err2
Power Supply: 3 x 1.5V AAA (not included)
Reference
Measuring range and resolution
Unit Range Resolution
KPa ±103.42 0.01
mmHg ±775.7 0.1
InHg ±30,540 0.001
Psi ±15,000 0.001
Mbar ±1034.2 0.1
Bar ±1.034 0.001
Ozin⊃2; ±240.00 0.01
Kgcm⊃2; ±1.055 0.001
InH₂O ±415.20 0.01
FtH₂O ±34,600 0.001
CmH₂O ±1054.6 0.1
How to Use
1: Install the battery (3×1.5V AAA dry battery is not included in this product).
2: the power button.
3: Connect the hose to the adapter and port, and connect the adapter to the place where the air pressure needs to be tested.
4: According to the unit needs of different regions, the UNIT unit conversion, DLF difference, recording mode, etc., the button according to the demand.
Color: As Shown
Material: plastic Package Contents:
1 x Digital Manometer(3xAAA Battery Not Included,You need to prepare yourself)
4 x Plastic Hose
2 x Quick Connector
1 x Bag
Air Pressure Tester Gauge

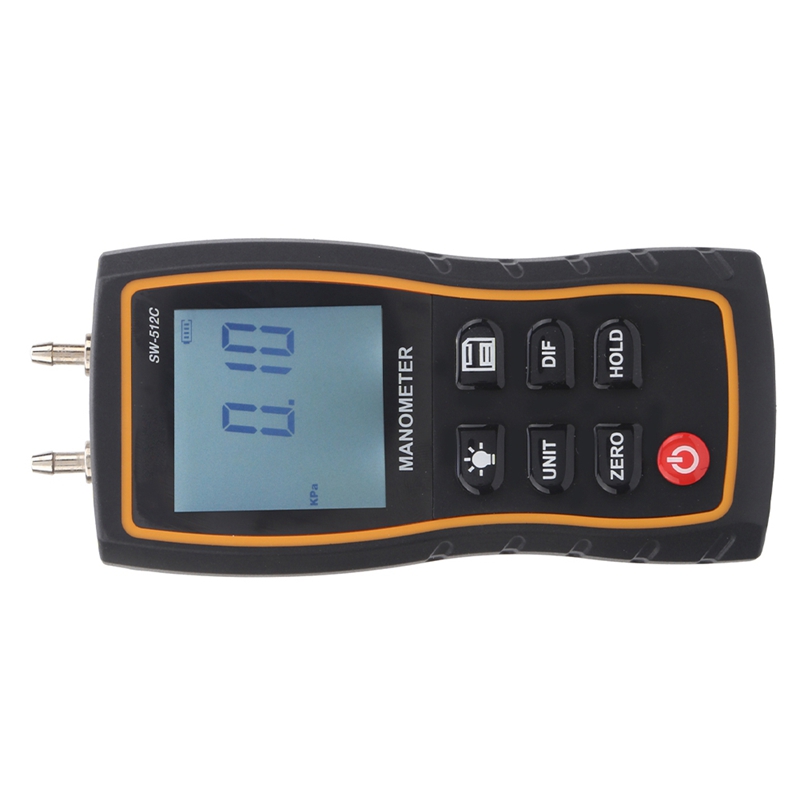

SW‑512C Digital Manometer
HVAC Air Pressure Meter
Air Pressure Tester
