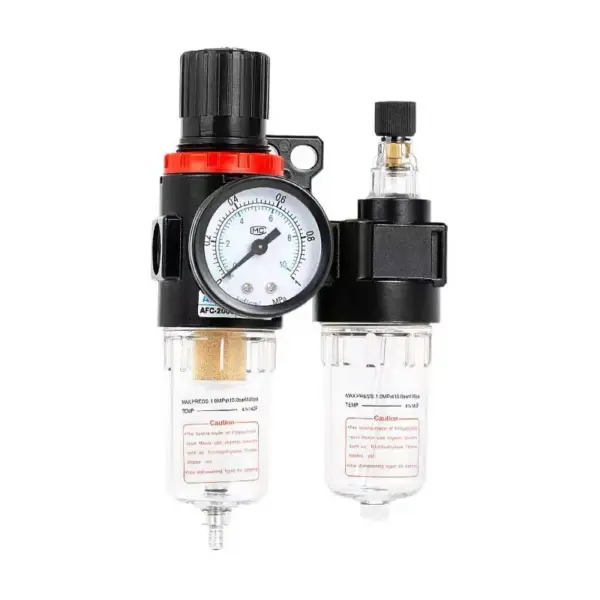

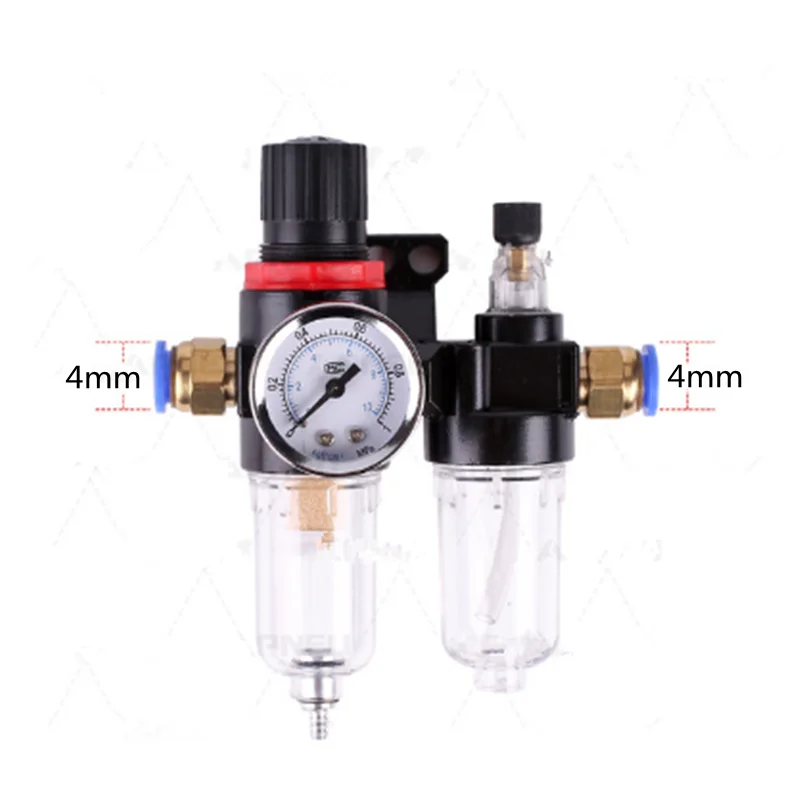

AFR2000 + AL2000 G1 / 4 "AFC2000 air compressor oil water separator filter regulator trap

Parameter

Features:

Product Name: Air Source Treatment Filter

Model :AFC2000

Material Metal,: Plastic

Working Medium :Air

Max. Pressure :0.95Mpa / 9.5kgf

Adjustable Pressure Range :0.15-0.85MPa / 1.5-8.5Bar

Joint Pipe Thread Diamter :11.8mm

Joint Pipe Size :1/4 PT

Gauge Range 0-1MPa / 0-10kgf/cm2

Gauge Connector Dia 9.1mm

Mounting Hole Diameter :7,5mm

Gauge Size :42 x 24mm/ 1.6" x 1"(D * H)

Total Size :90 x 53 x 155mm / 3.5" x 2.2" x 6"(L*W*H)

Package Content

1 x Air Source Treatment Filter

1 x Pressure Gauge
