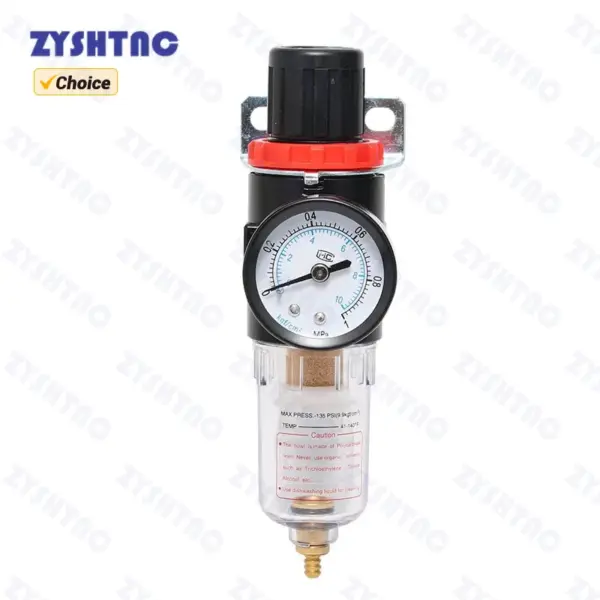

AFR-2000 1/4 Pneumatic Filters AFR2000 Pneumat Filter For Air Compressor Moisture Separator Pressure Regulator Oil Water

Package Included:

• 1pc Filter regulator(please choose you need )

Features:

• AFR2000 air filter regulator is that adjust The main channel of air pressure to a pressure value what the control device required after filtration through decompression.

• No matter the size of the inlet pressure and flow fluctuations, always maintain a stable outlet pressure

• Light weight, small size, easy installation and maintenance

• Can filter small particles, keep the air clean

• If the output pressure is higher than the set pressure, the discharge pressure of the atmosphere to maintain a stable output

• Application:air compressors, pneumatic tools and other gas connection installation, effectively filter the air moisture.

Specifications:

• Model: AFR2000 (AFR is the model, 2000 refers to the port size)

• Material: body (aluminum die-casting products), Yung cup (polycarbonate)

• Fluid: Air

• Port size: G1 / 4

• Filtration precision: 5μm

• Operating pressure range: 0 ~ 1.0MPa (manual drain: 0-9.5kgf / cm2, differential pressure discharge: 1.5-9.5kgf / cm2)

• Temperature: 5 ~ 60 °

• Gauge caliber: G1 / 8

• Treatment cup capacity: 15CM3

• Length: appox 15cm

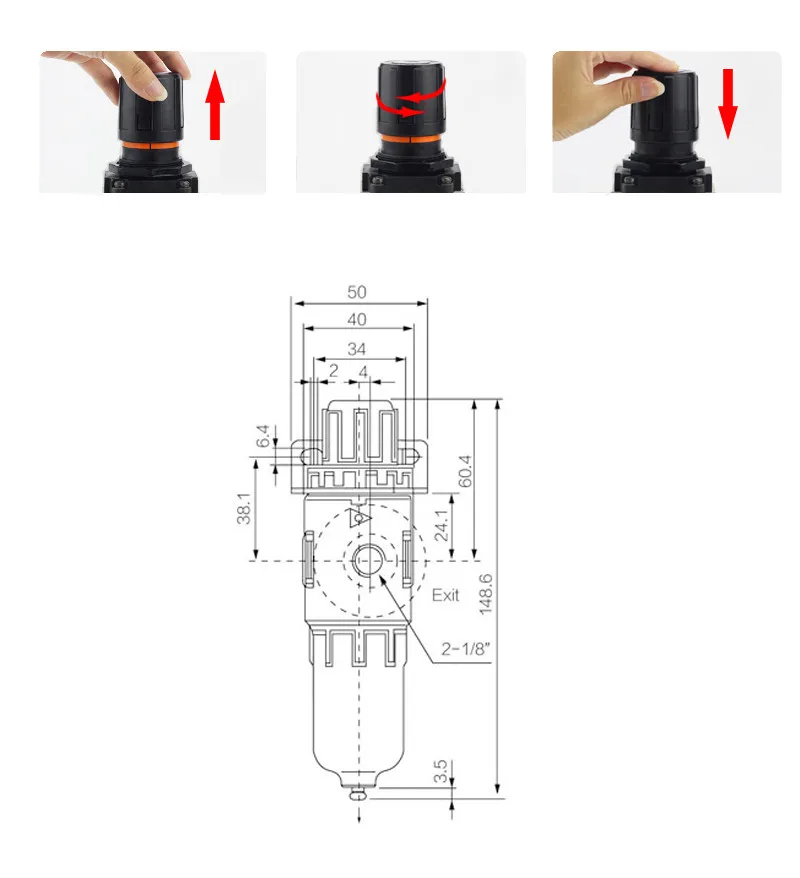

• Installation and Use :
  The direction shown by the arrow on the valve body is installed, which is the direction of the gas flow direction.
