Description
Video for Laser Module
Machine Compatibility

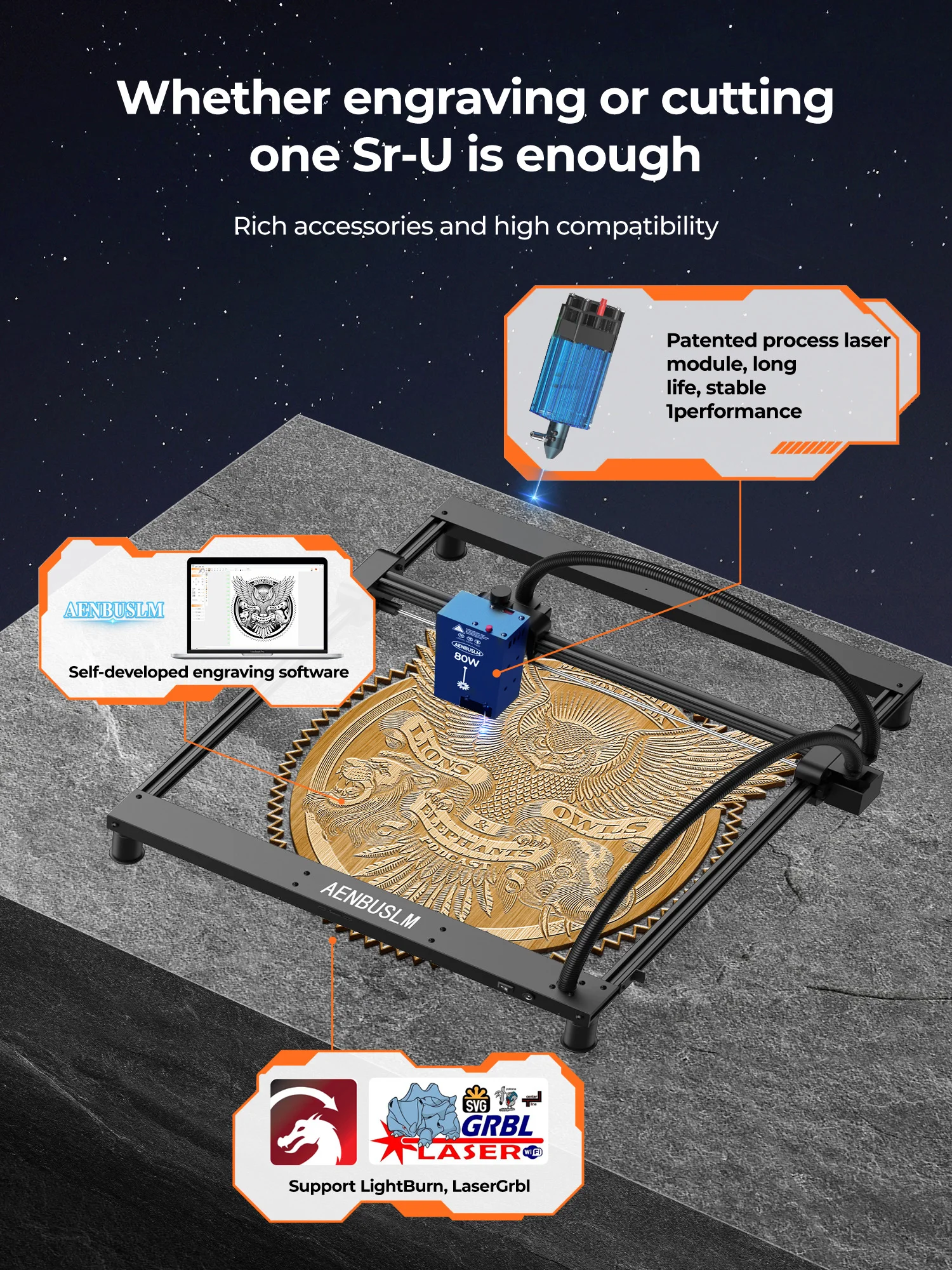

Wide Compatibility: Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Machine Parameters:
Brand: AENBUSLM
Model: T1
Material: Alumium Alloy+Plastic
Power input: DC 12V
Laser type: Semiconductor Laser

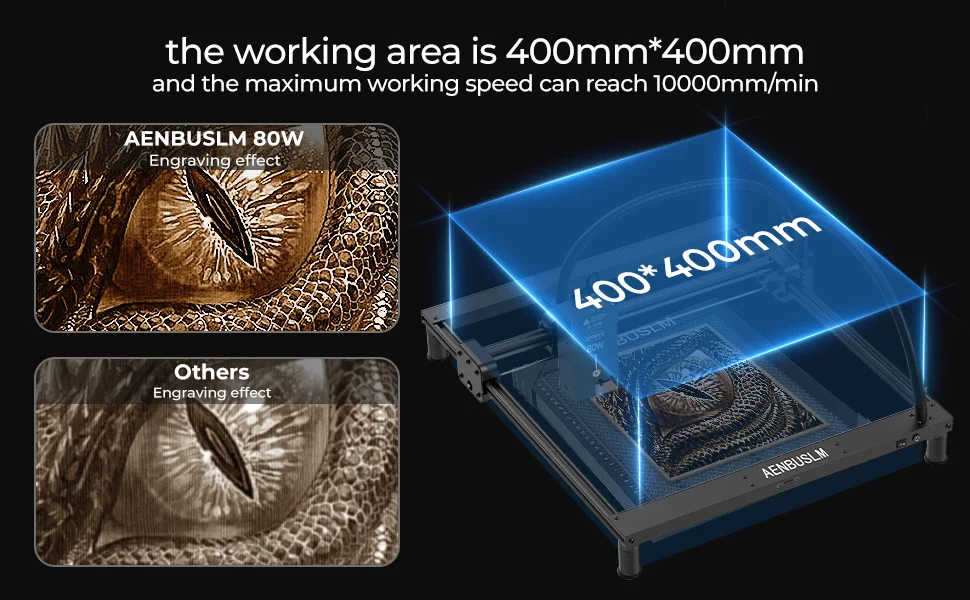

Working area: 400*400mm
Laser life: 2000 hours
Wavelenth: 450nm

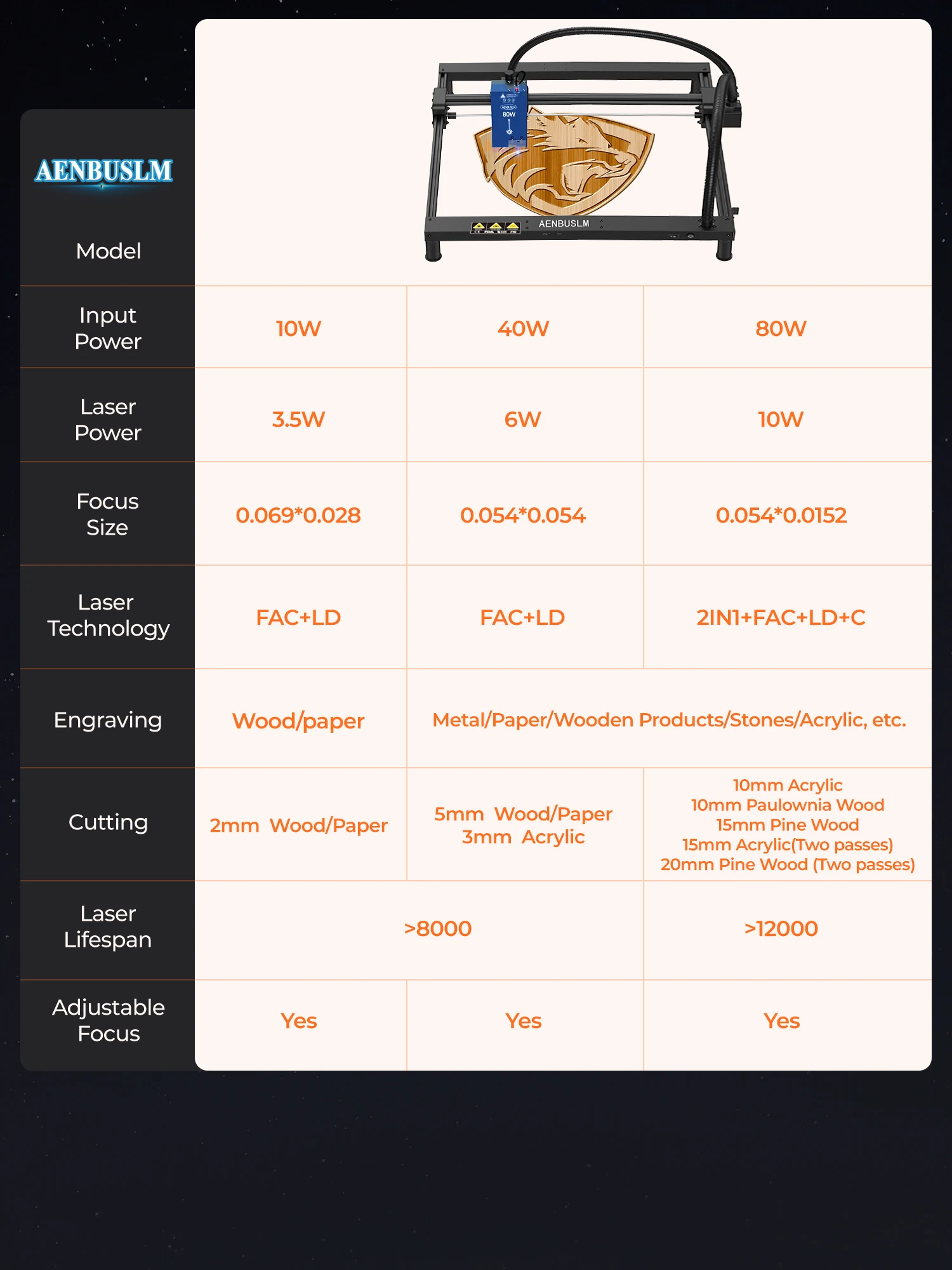

Focus accuracy: 0.069*0.028 / 0.054*0.054 / 0.054*0.0152
Laser focus distance: 400mm
Connection method: WiFi / USB
Applicable materials: Wood products, matal paint, leather, plastic, paper products, bamboo, stone
Support system: WIN7, WIN8, WIN10, Android, MAC, iOS
Picture format: JEPG/BMP/TIF/GIF/SVG
The Best Cutting Speed
The following is the optimal speed setting, not the fastest speed of the engraving machine.
The speed depends on the program and can be set through the program. Not the faster the speed, the better the cutting effect.
Basswood board 5mm: 3.5W (110mm/min)
Basswood board 6mm: 40W (110mm/min)
Basswood board 10mm: 40W/80W (110mm/min)
The Best Engraving Speed
The following is the optimal speed setting, not the fastest speed of the engraving machine.
The speed depends on the program and can be set through the program. Not the faster the speed, the better the carving effect.
Stainless Steel Engraving:
80W(5000mm/min)
40W(1000-1200mm/min)
Stone Carving:
80W(2000-3000mm/min)
40W(500-2000mm/min)

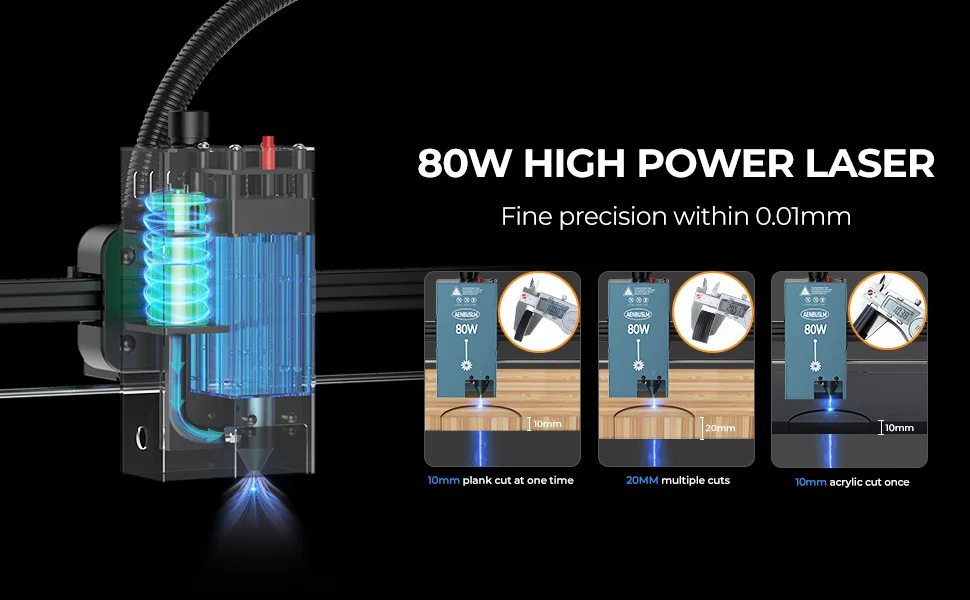

For Laser Engraving Head

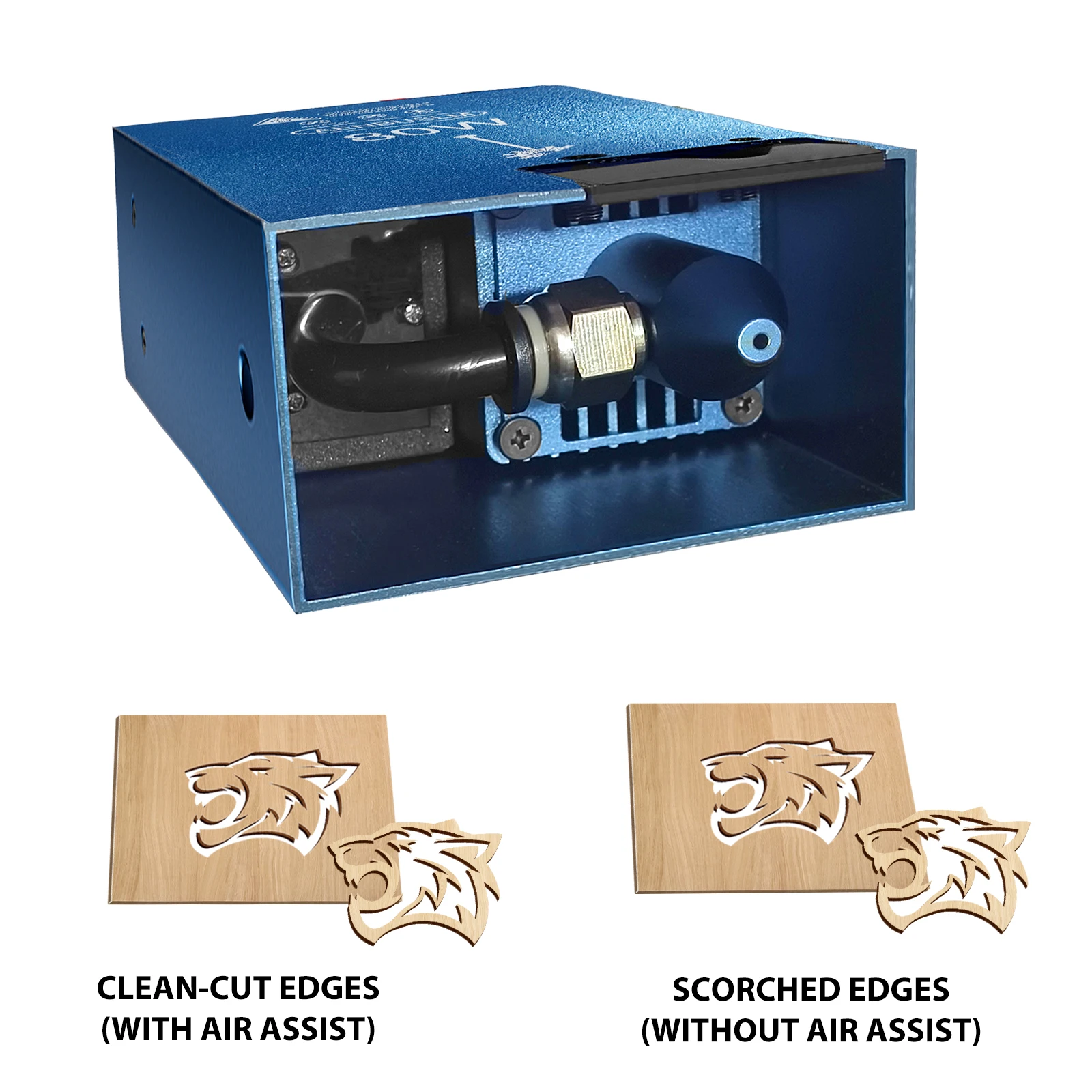

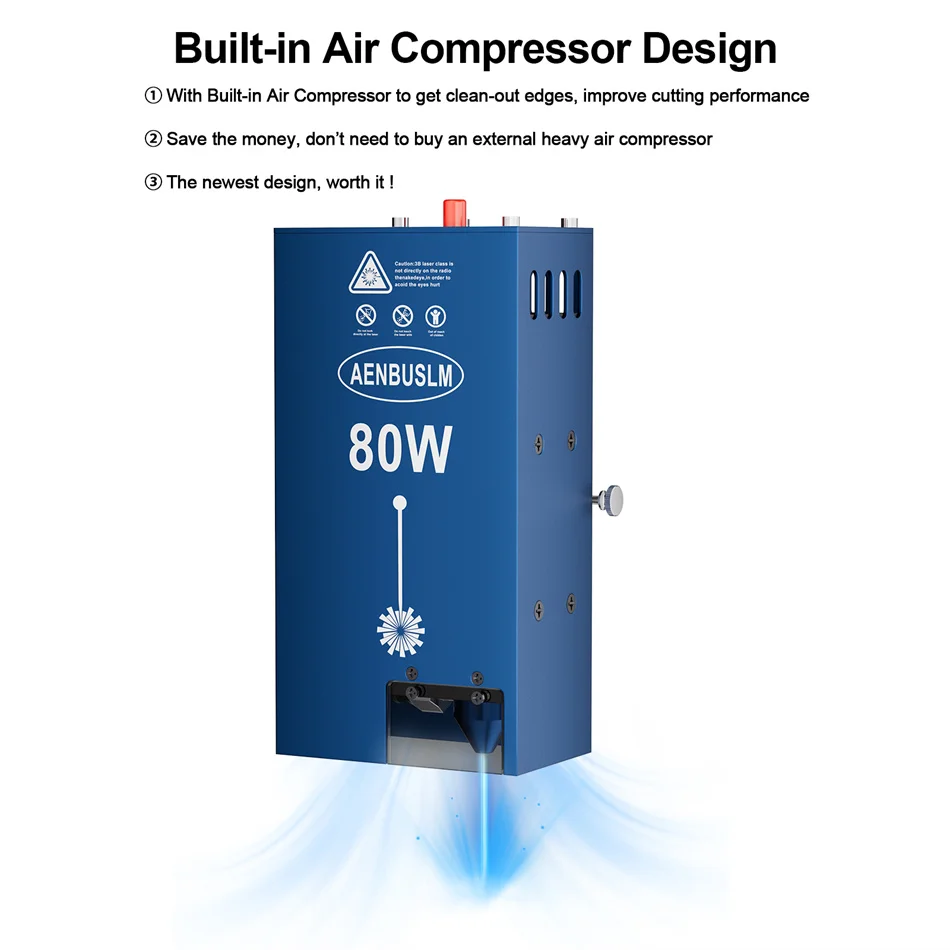

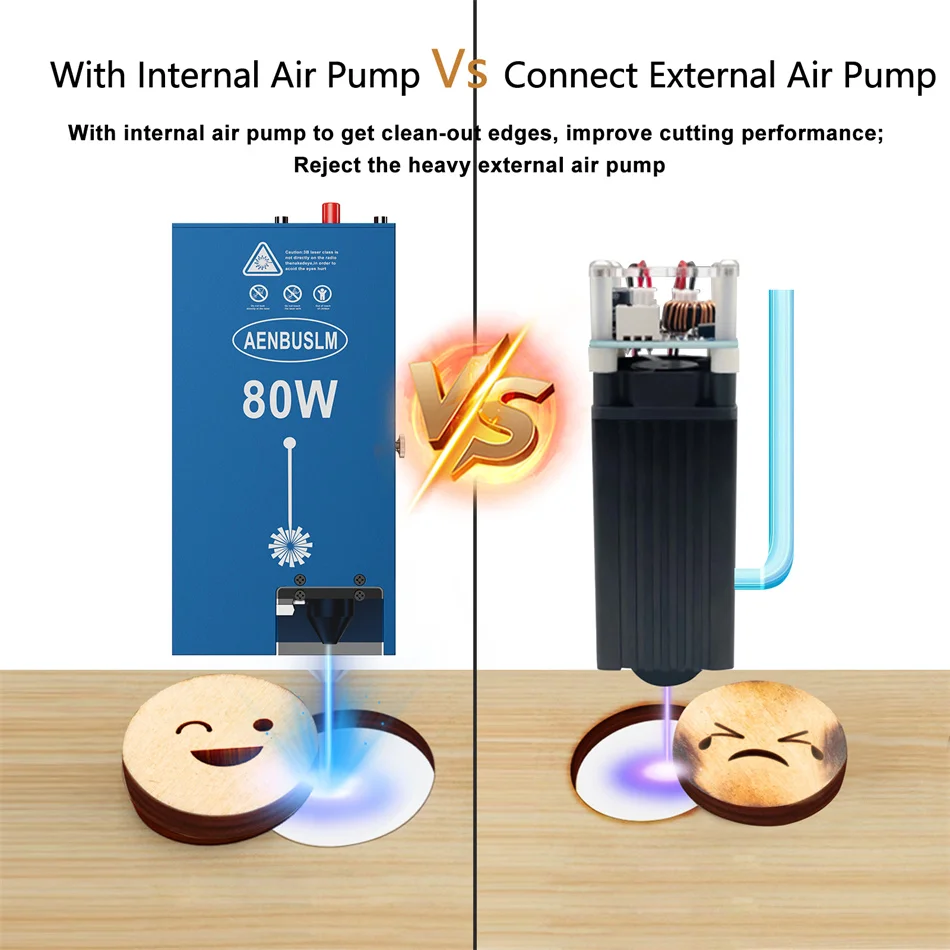

1. With Internal Air Pump:with internal air pump to get clean-out edges, improve cutting performance; Reject the heavy external air pump;
2. High Quality Materials:laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;
3. Work Efficiently:easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;
4. Strong Skills:able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);

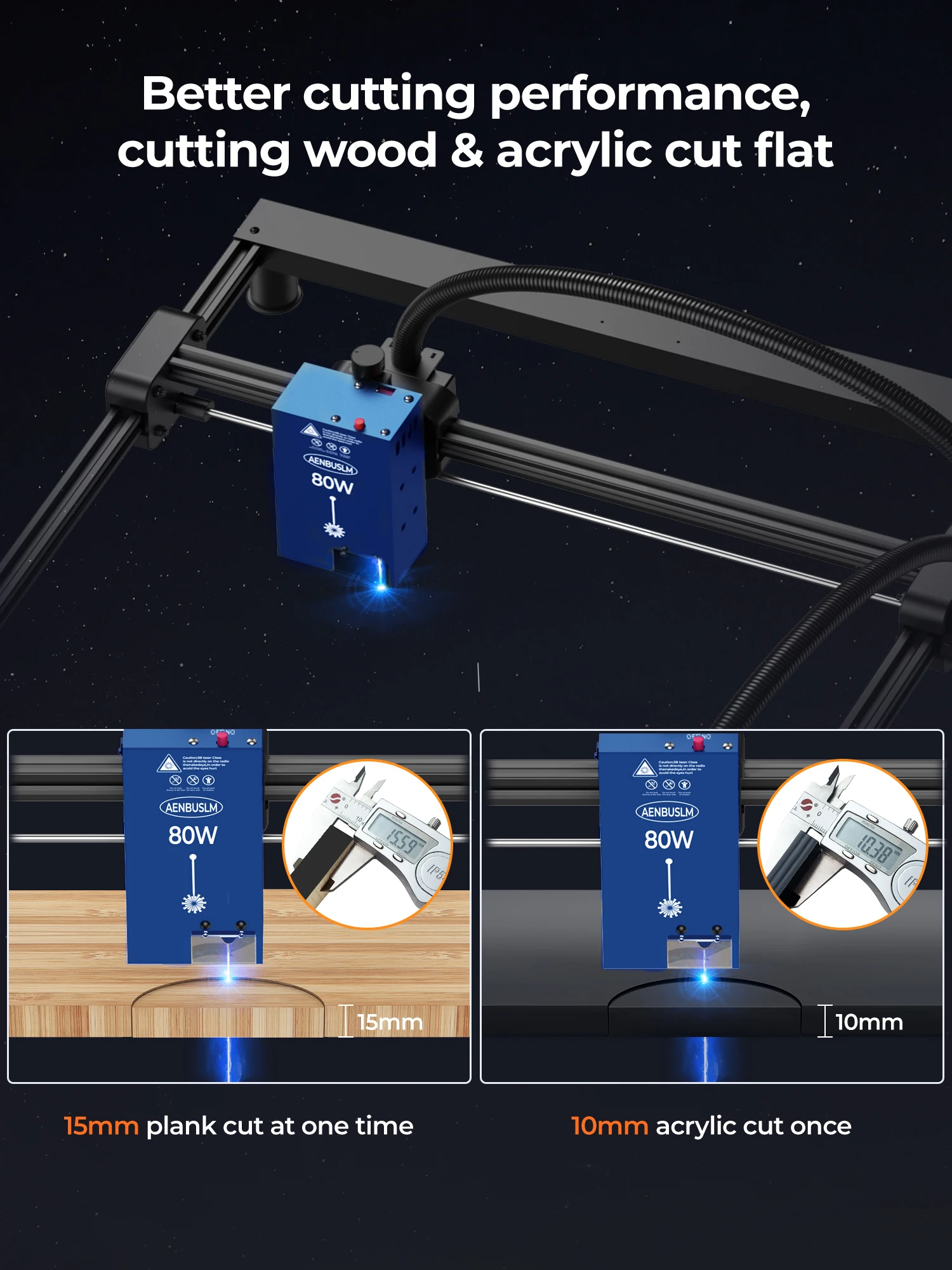

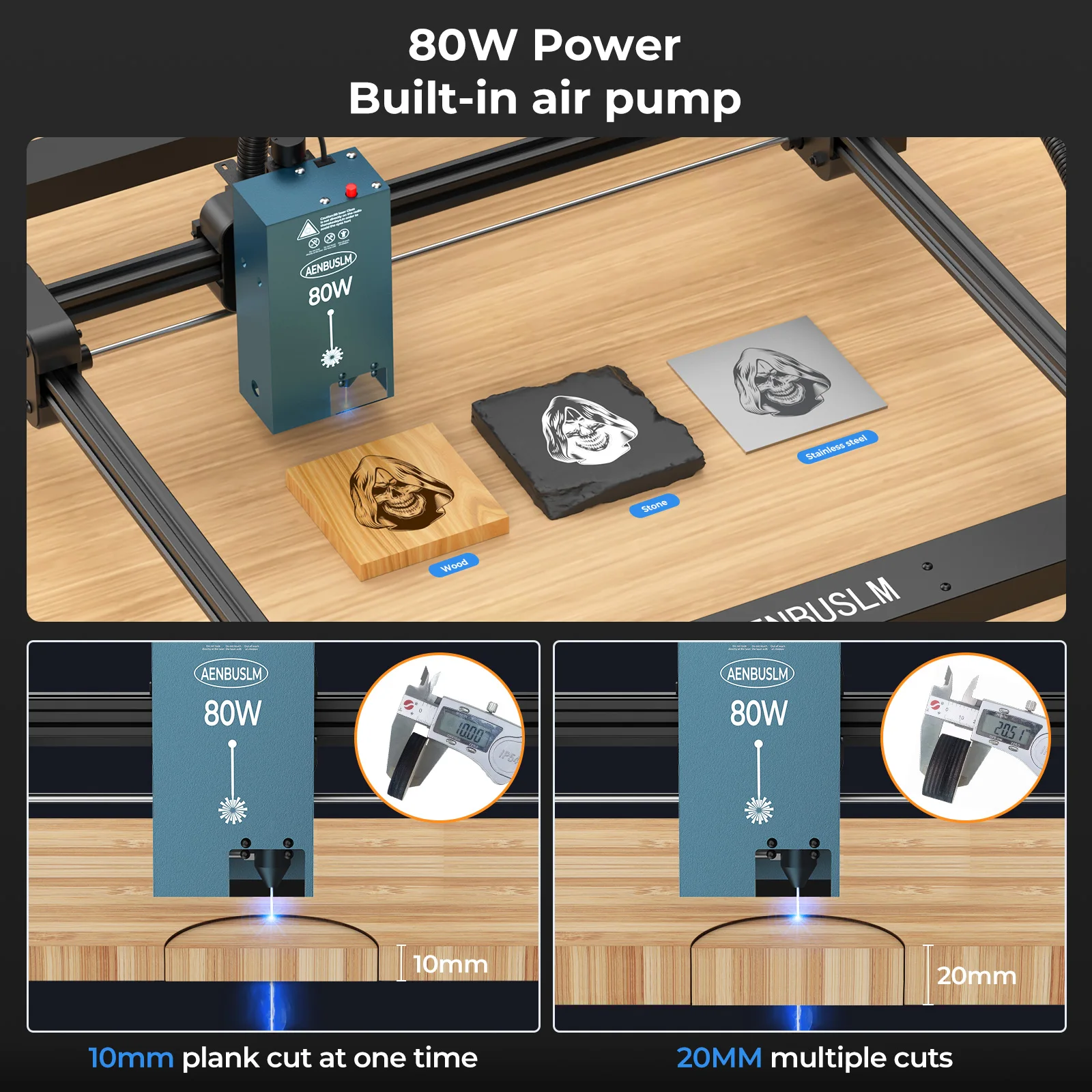

5. Super Cutting Ability:pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);
6. Protective Cover Design:with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;
7. Wide Application Range:used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;
8. Easy to Assemble:small, compact, cable length is 28 cm, convenient and easy to install.
Laser Engraving Head Parameter:
1. Laser Effect Power: 80W
2. Laser Optical Power: 10W

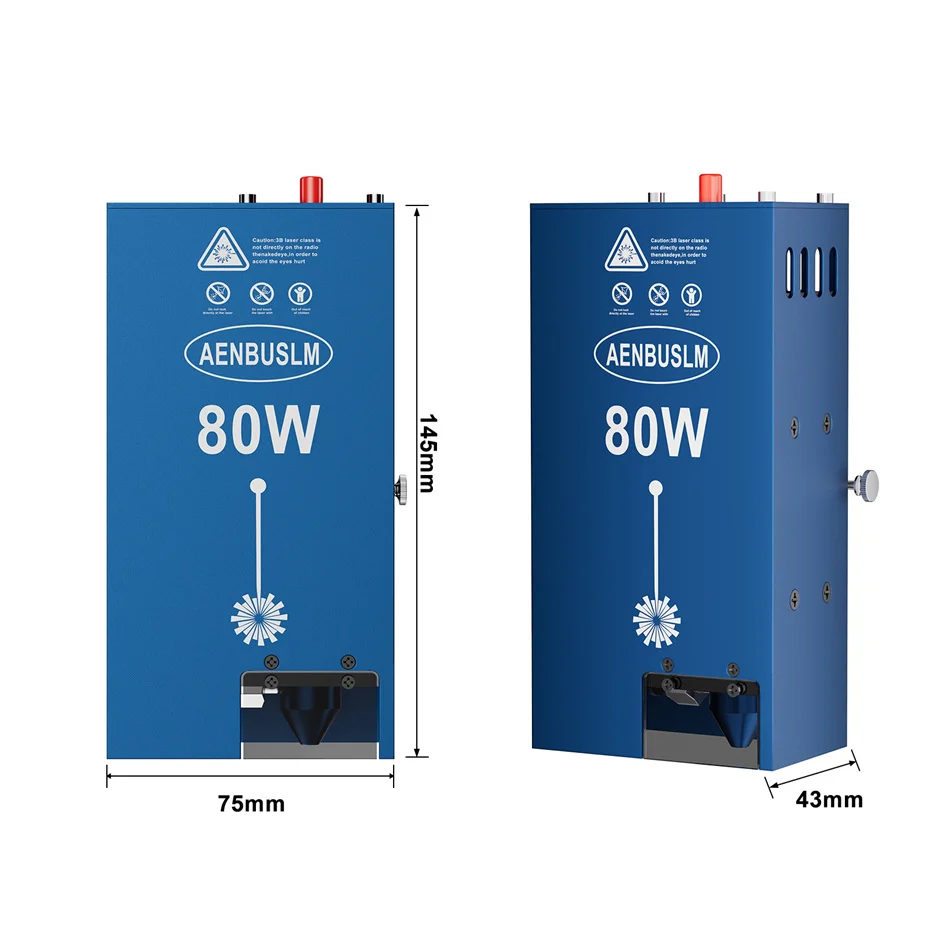

3. Size: 75*43*145mm
4. Wavelength: 450nm
5. Input Voltage: 12V
6. Power Supply Current: 4A
7. Working Life: 20000 hours
8. Power Control: PWM/TTL (0-5V signal control)
9. Interface Specification: 3pin 2.54/4pin 2.54
10. Light Color: Semiconductor blue light
11. Material: Aluminum Alloy + Plastic + Copper

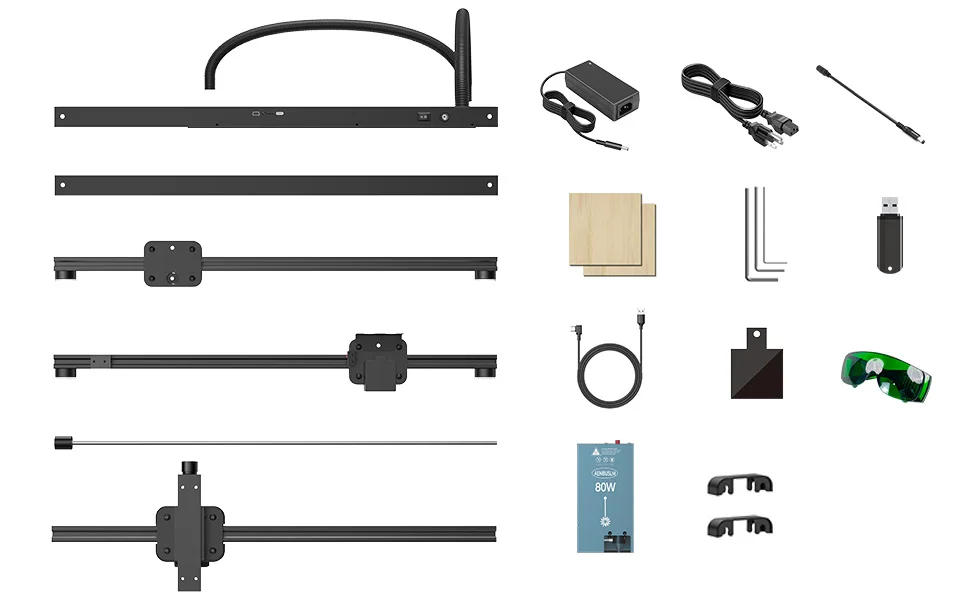

Package List:
1: Laser Module
2: Front Cover
3: Back Cover
4: Left plate
5: Right plate
6: Shaft
7: Middle plate
8: Power Supply
9: Power Cable
10: Data line
11: Filter glasses
12: wheel cover
13: Board X4
14: Screwdriver Tool
15: U Disk
16: Manual
17: 3pcs line
18: External power cord
19: External power cord
20: Focus fixing plate
21: Lens replacement tool
22: Replaceable protective lens
23: Product User Manual
