Advanced Technology Of Lateral Pipe Inspection Sewer Camera Drain Robot

Product Application

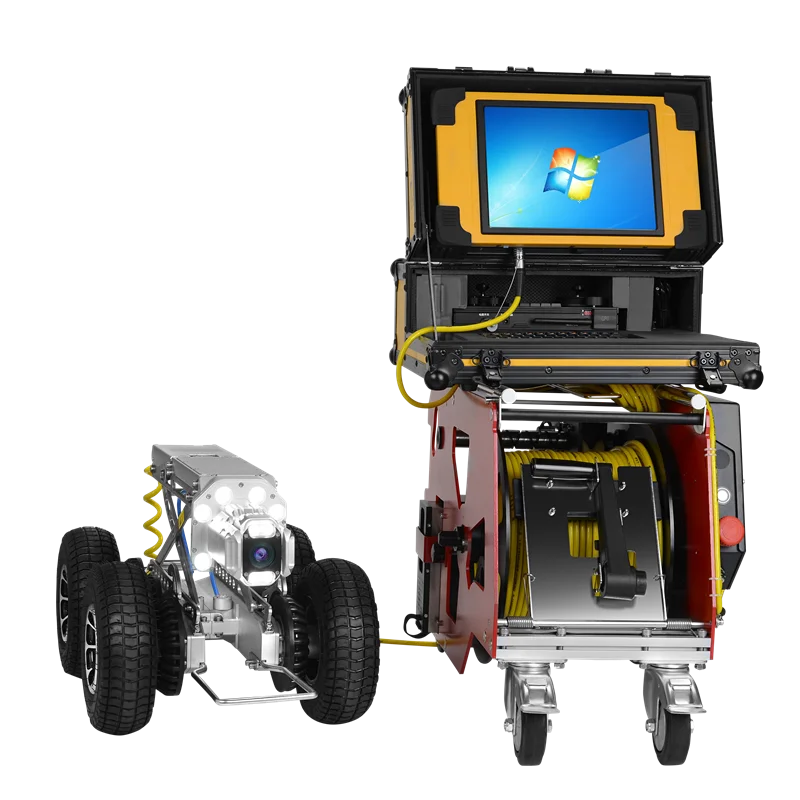

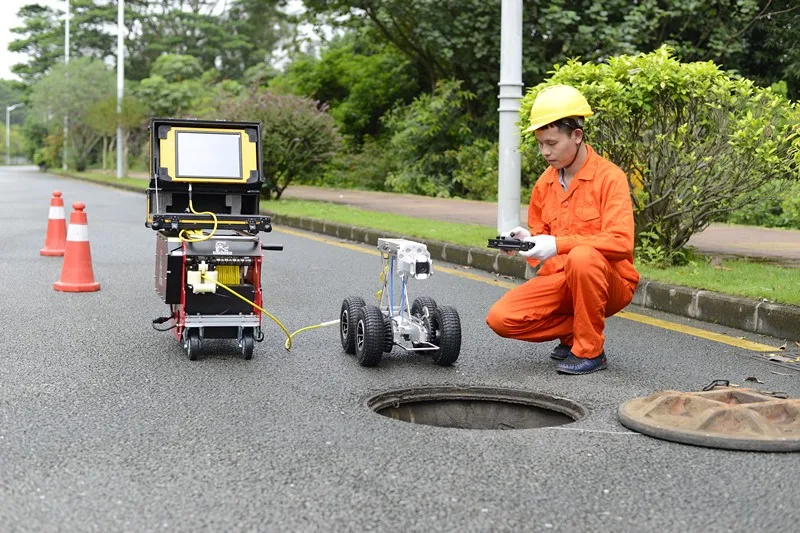

Brief introduction: CCTV Pipe Inspection Robot is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.

The S300 robotic crawler is widely used for various industrial pipes diameter between 300mm-2000mm.

Warranty

1) The limited warranty for the product extends for the first twelve (12) months beginning on the date of purchase of the product.
2)The limited warranty extends only to the original parts.
3)No charge will be made to the consumer for either parts or labor in repairing or replacing the product. The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms.
4)Repaired product will be warranted for the balance of the original period or ninety (90) days from the date of repair, whichever is longer.
5)Transportation, delivery and handling charges incurred in the transport of the product will be borne by the consumer.
6)The consumer shall have no coverage or benefits under this limited warranty under any of the conditions:
a.The product has been subject to: abnormal use, abnormal condition,improper storage, unauthorized modifications, unauthorized connections, unauthorized repair including but not limited to use of unauthorized spare in repairs, misuse, neglect, abuse, accident, alteration, improper installation, acts of Goods and maladjustment of customer controls.
b. Not notified of the alleged defect or malfunction of the product during the applicable limited warranty period.
7) Manufacturer or agents of the product shall not be liable for incidental or consequential damages or a loss of anticipated benefits or profits, work stoppage or loss arising out of the use or inability to use the Product.
8) All warranty information, product features and specifications are subject to change without notice.

Machine Parts

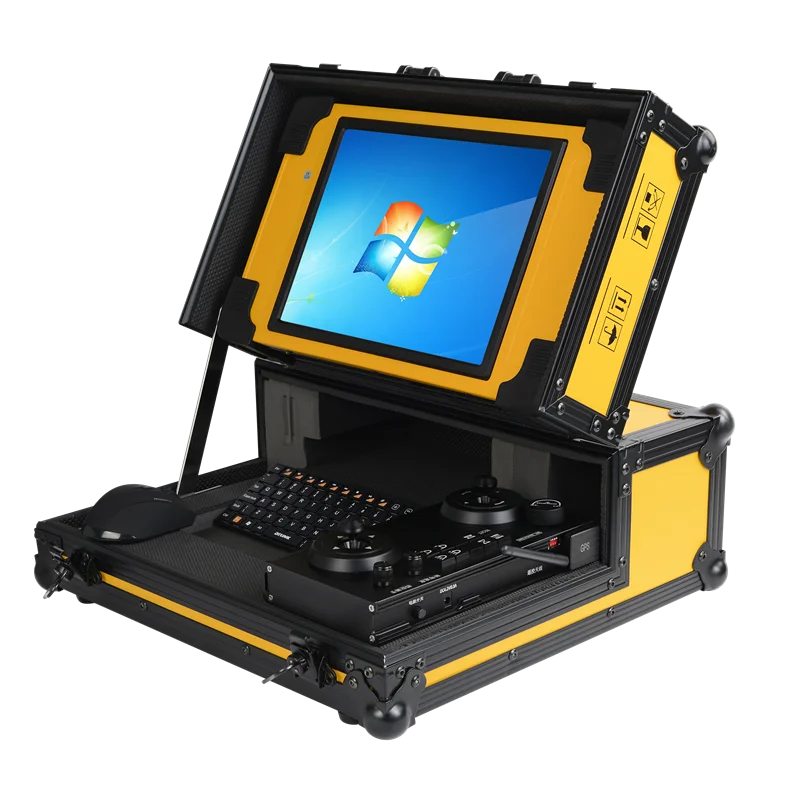

Name: 12.1”Central Control system

Pixel: 1024*768;

Management function: user password input, modify;

Memory: parallel port, 64 G hard disk;

HDMI port,real time display on other TV devices;

Measurements(l*w*h): 465mm*266mm*68mm.

Main Parts

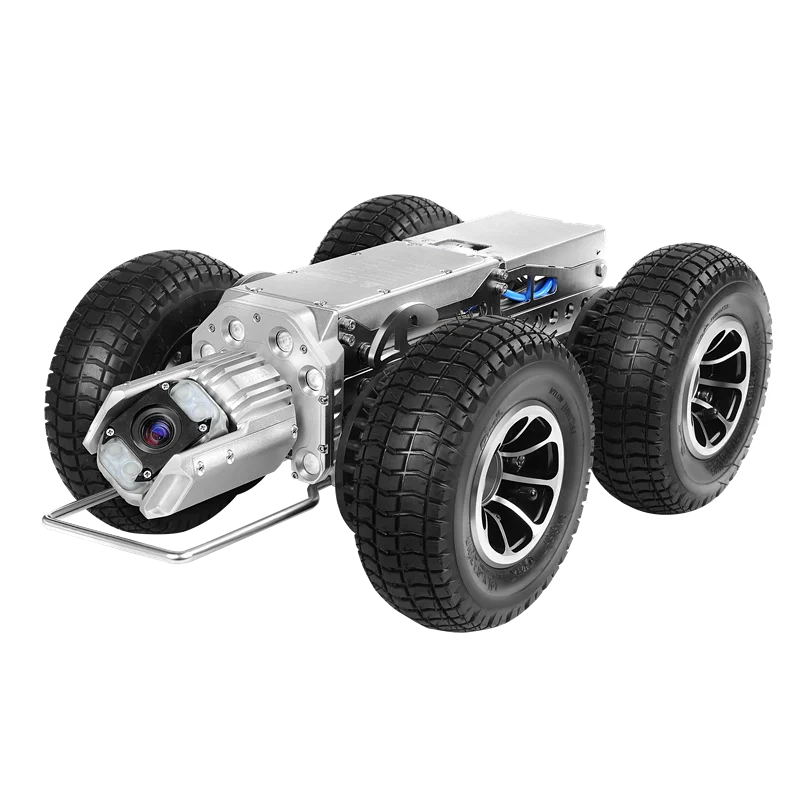

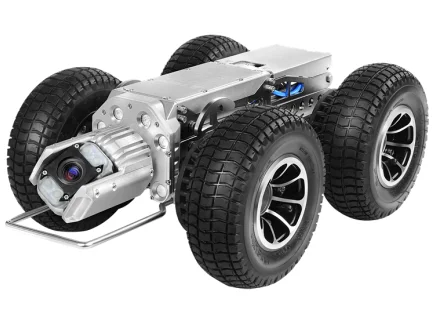

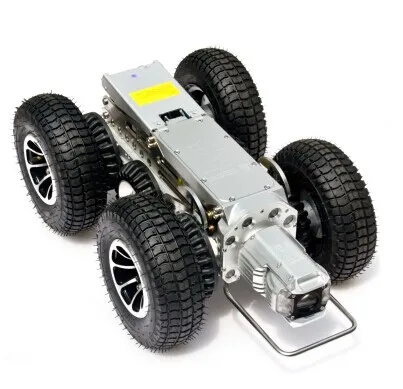

Name: S300 Crawler System
Moving speed: 0-18m/minute, two-wheeled drive, Swiss motor 2*80W;
Working voltage: 48V,max output power 80W;
Injected with 12PSI pure air/inert gas, workable underwater 10 meters,IP68 waterproof level;

Machine Parts

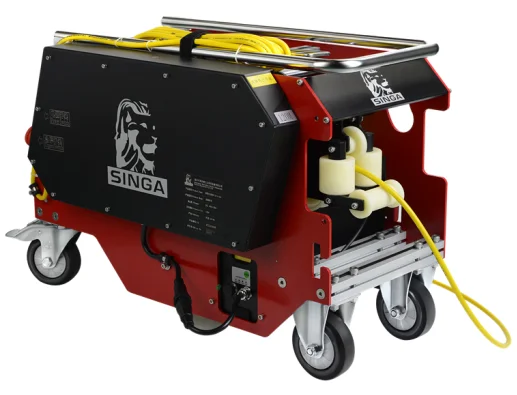

Name: Manual/Auto Cable reel
The cable rolls in and rolls out manually/automatically
Size: 70cm*44cm*48cm
Protection level: IP53
Material: Aviation aluminum and high strength PC
Cable measure: meter counter, the distance can be displayed on the monitor screen; accurately positioning; distance measurement accuracy within 10cm

Main Parts

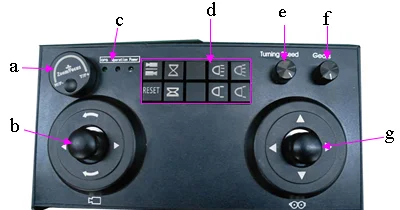

Name: Wireless control system(control box)
Push-button encoder control image zoom in and out more precisely;
Joystick controls the front camera motion crawling movement offer more flexible and convenient operation;
Working within 10 meters between the 12.1” central monitor.
GPS module to capture the real time position
