Description
–>
–>
Features：
Streamlined design, highly portable.
Overrange protection on all ranges.
After calibration, the unit has a one-year shelf life at an operating temperature of 18 to 28 degrees Fahrenheit and 75% relative humidity.
Contains 7 functions and 25 ranges.
Maximum voltage between terminals and ground: 600V DC or 500V AC.

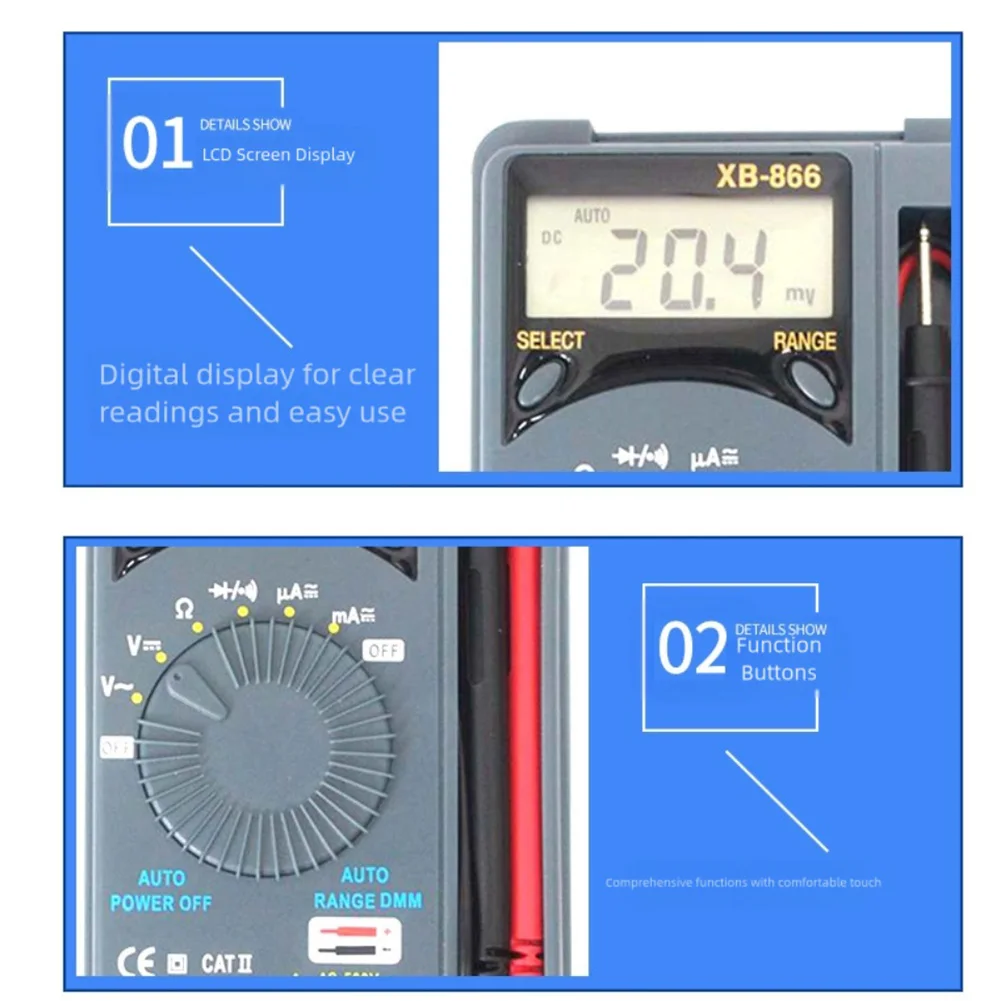

Display: LCD.
Maximum display value: Up to 1999 counts. Polarity indicator: "-" indicates negative polarity.
Overrange indication: Displays "OL" or "-OL."
Sampling time: Approximately 0.4 seconds until the function and capacitance are displayed.
Specifications：

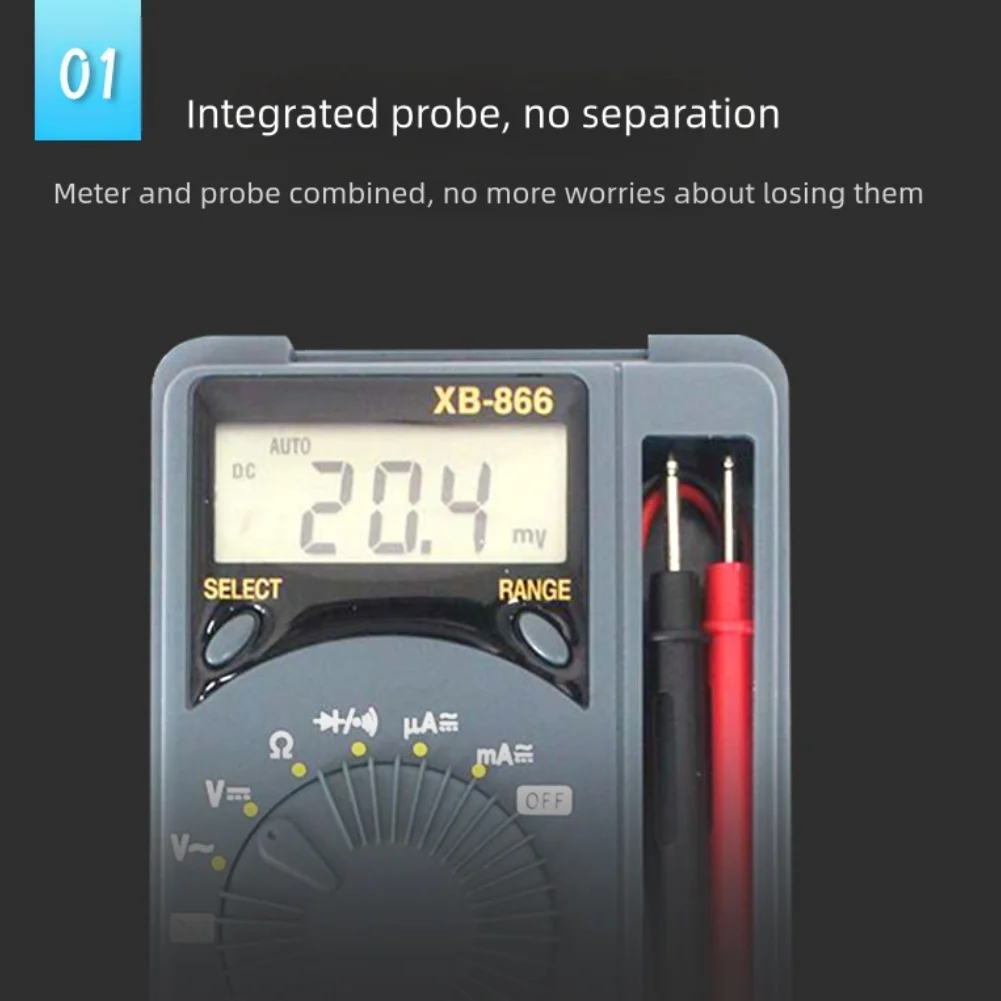

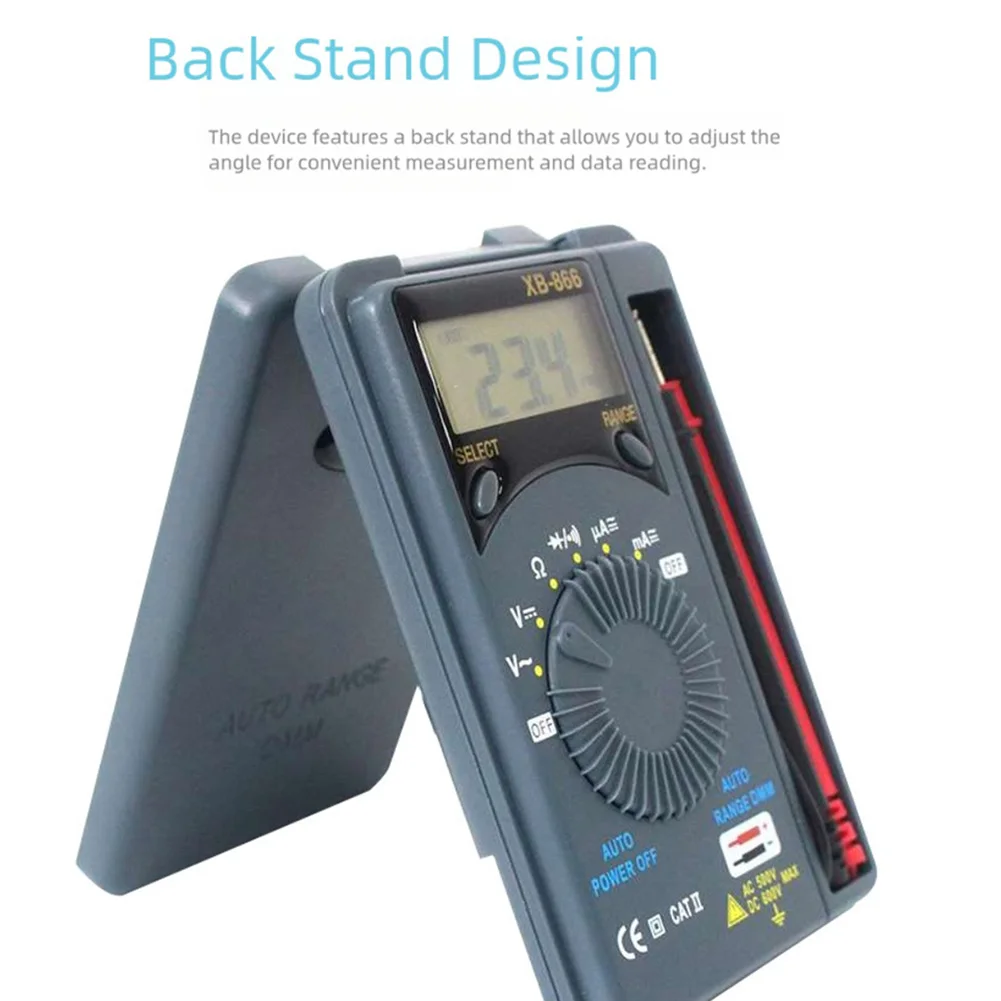

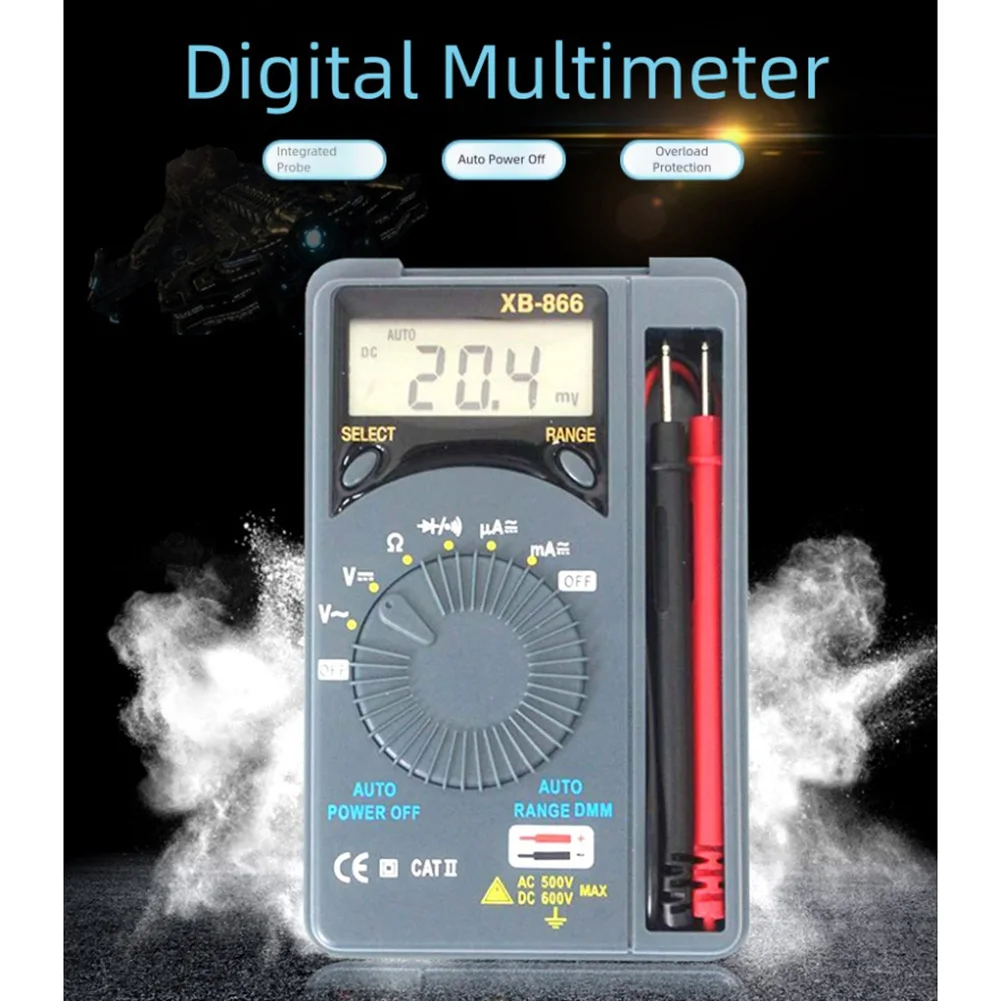

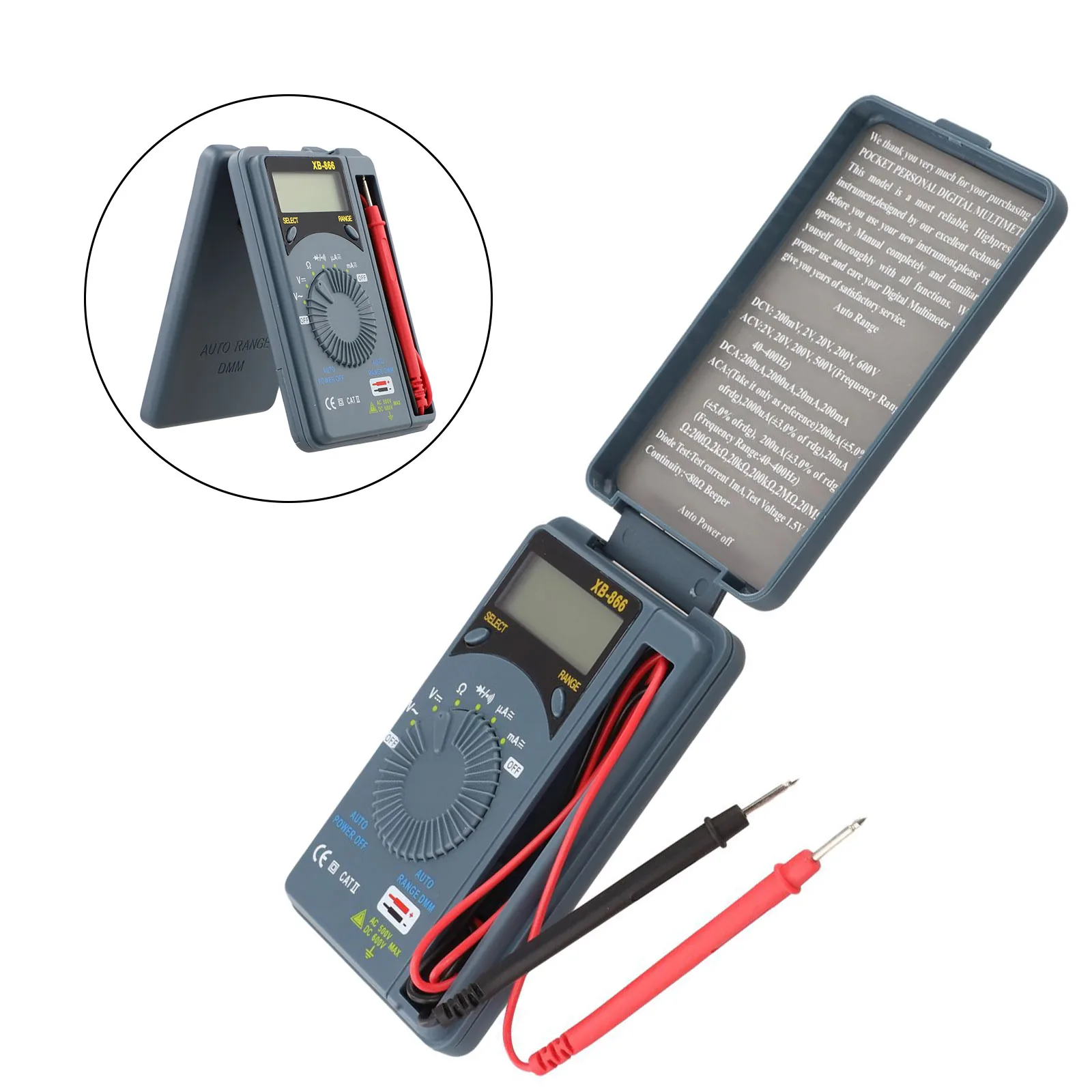

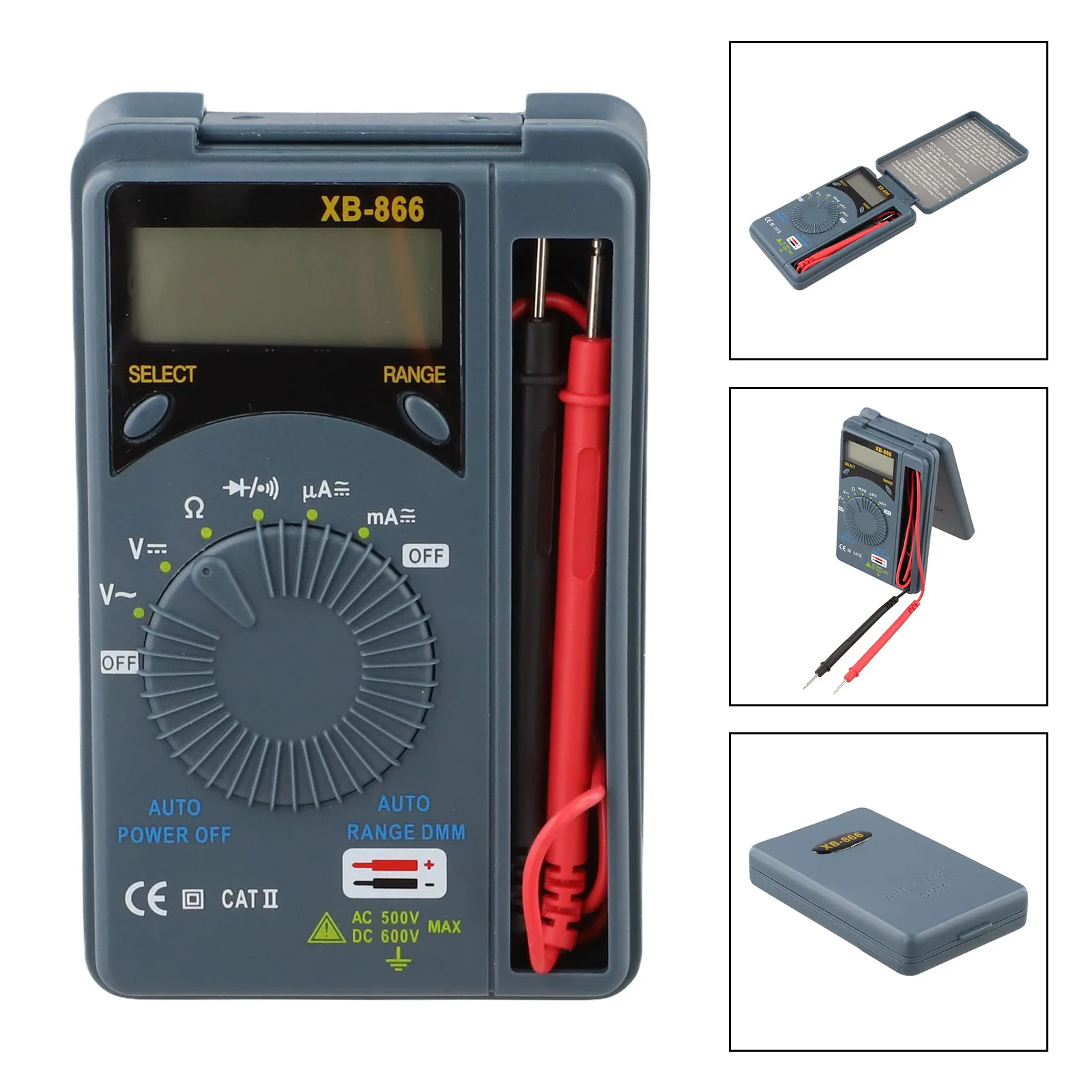

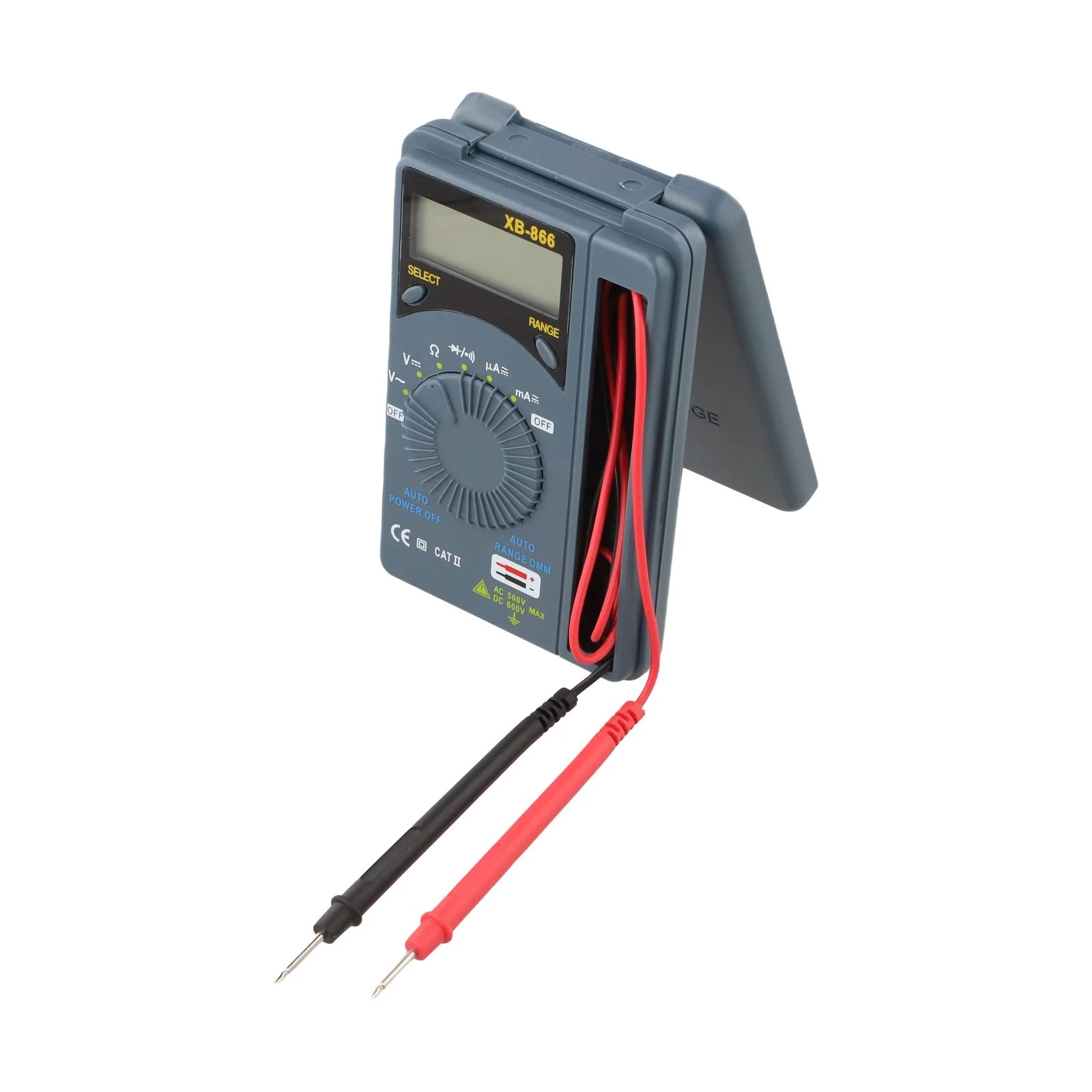

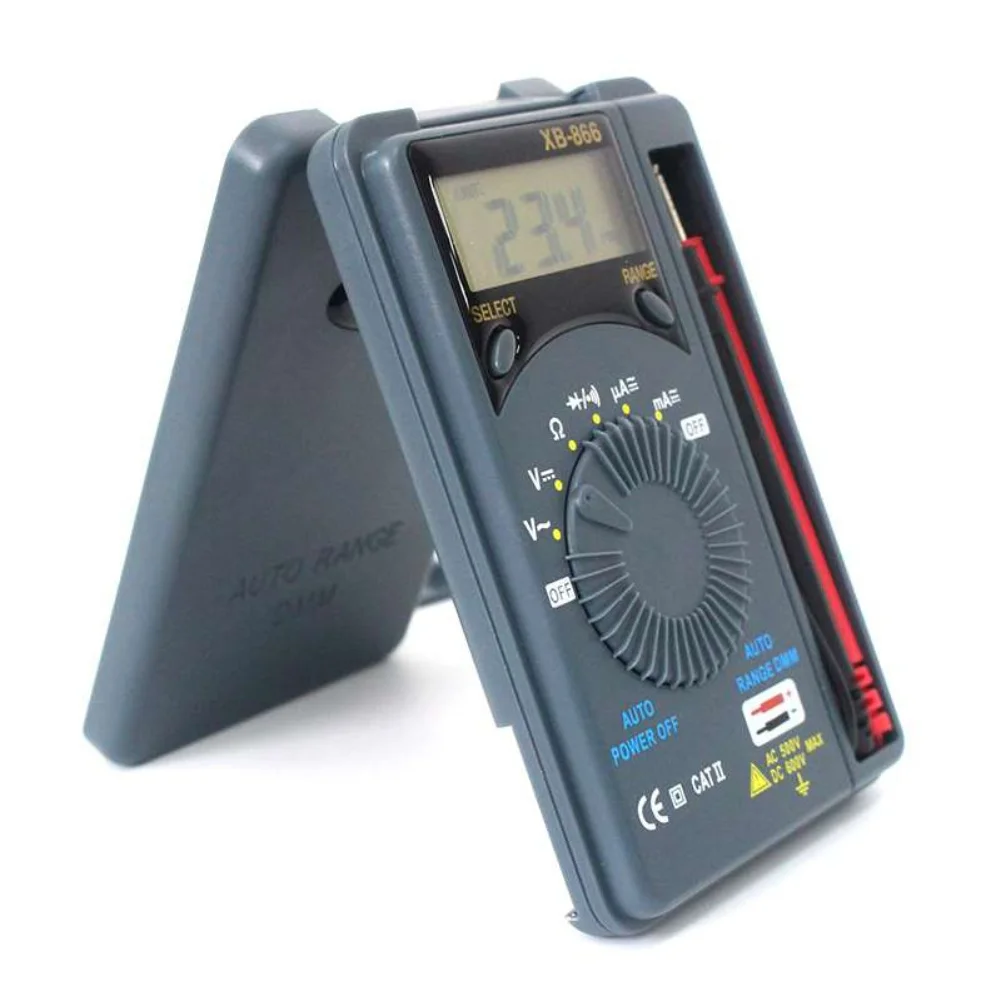

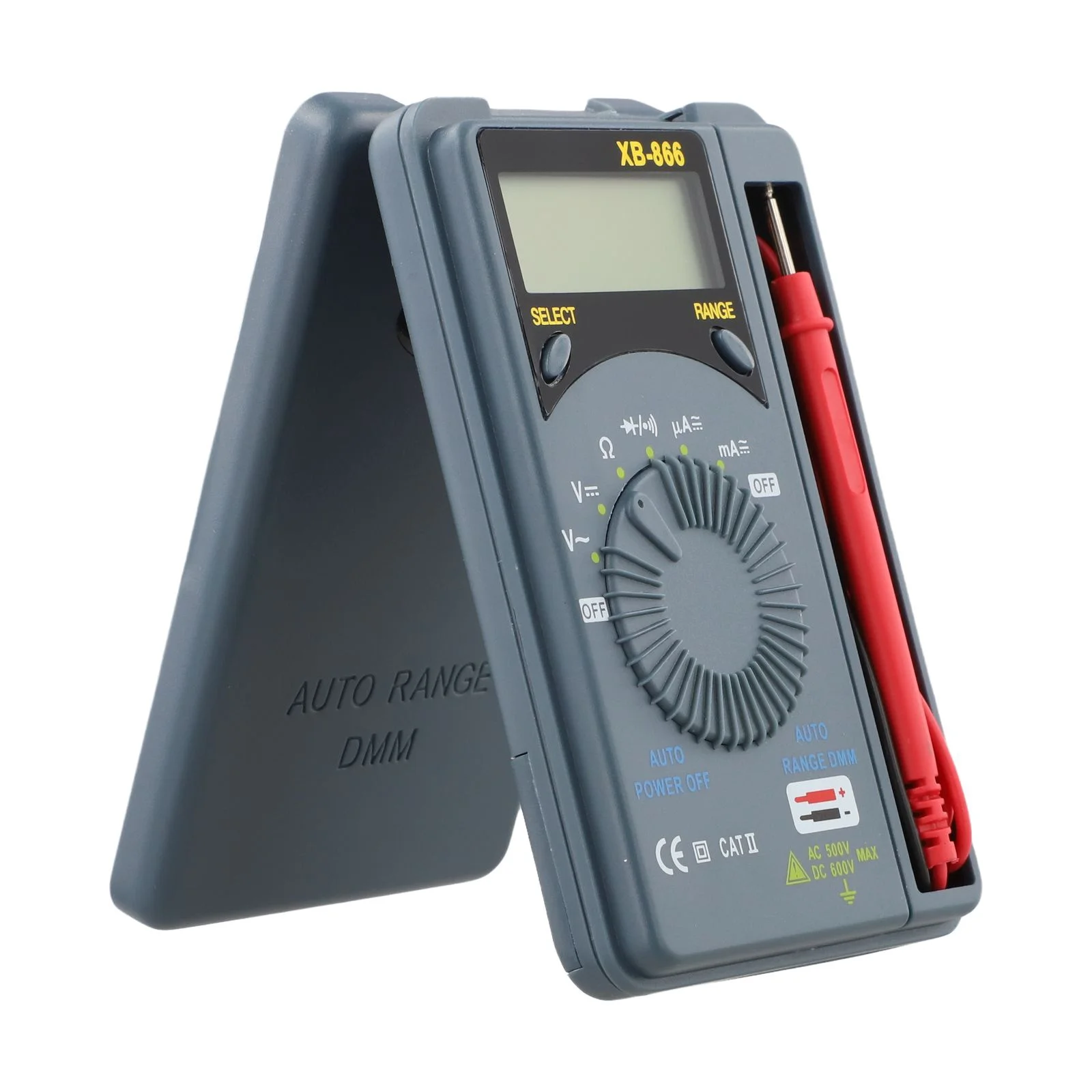

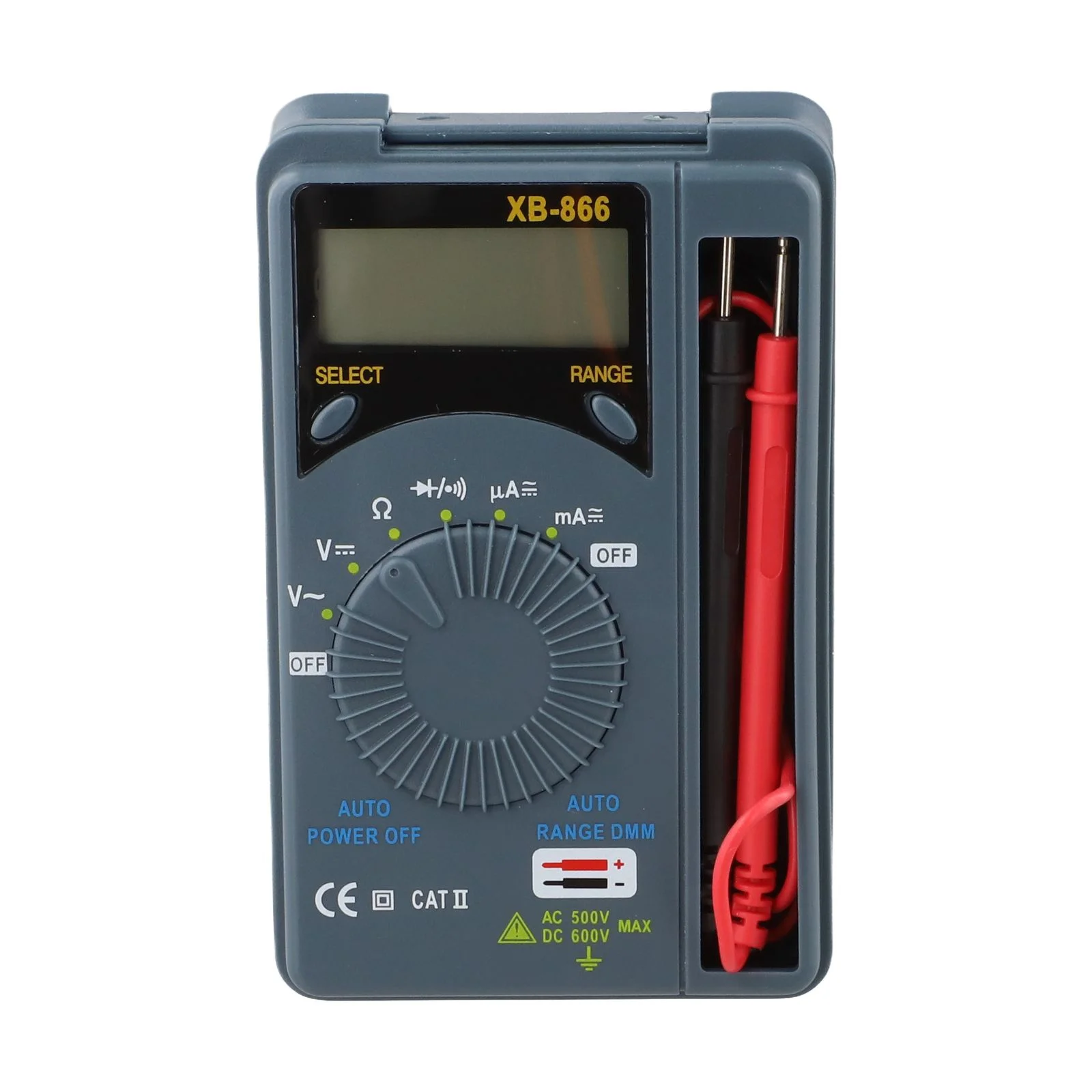

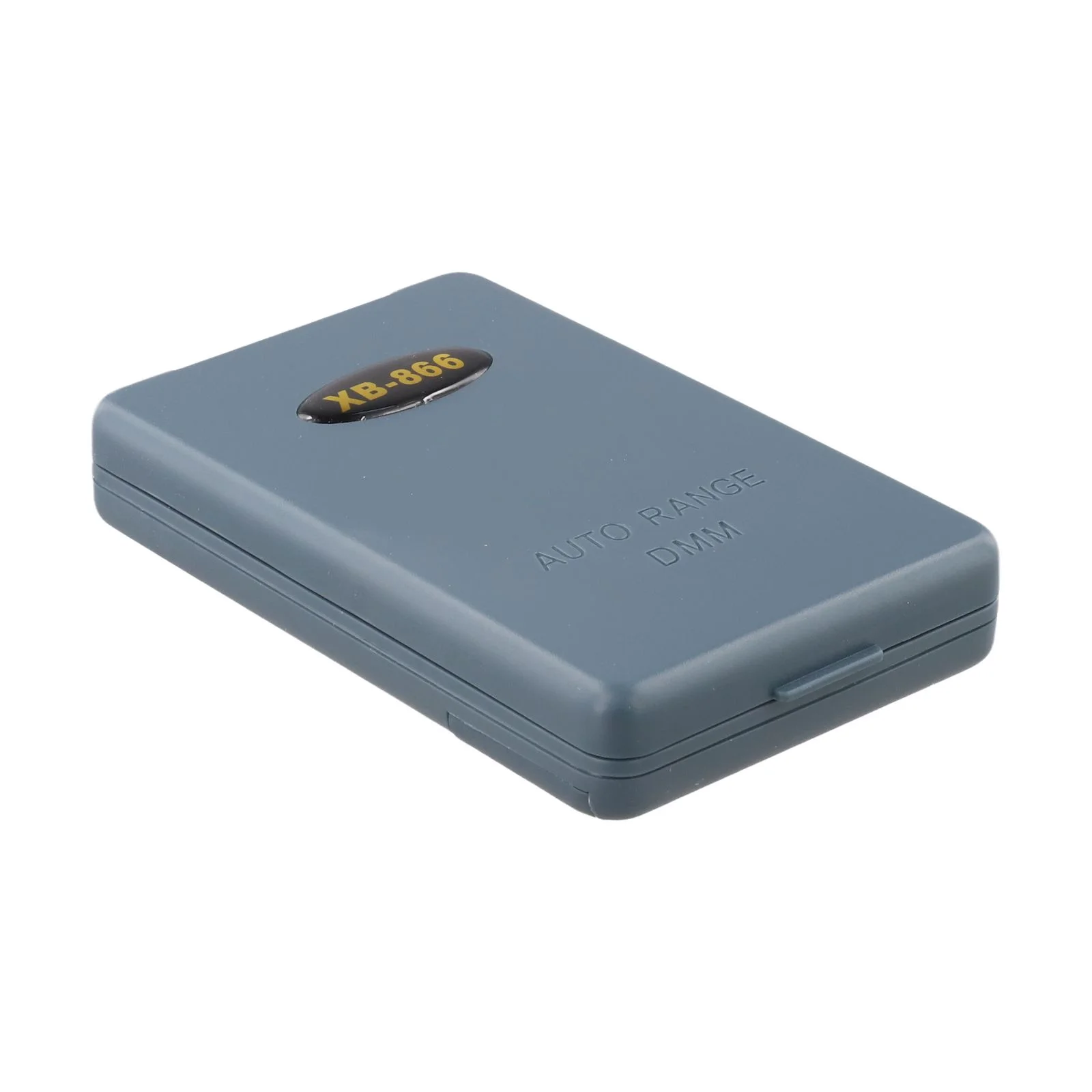

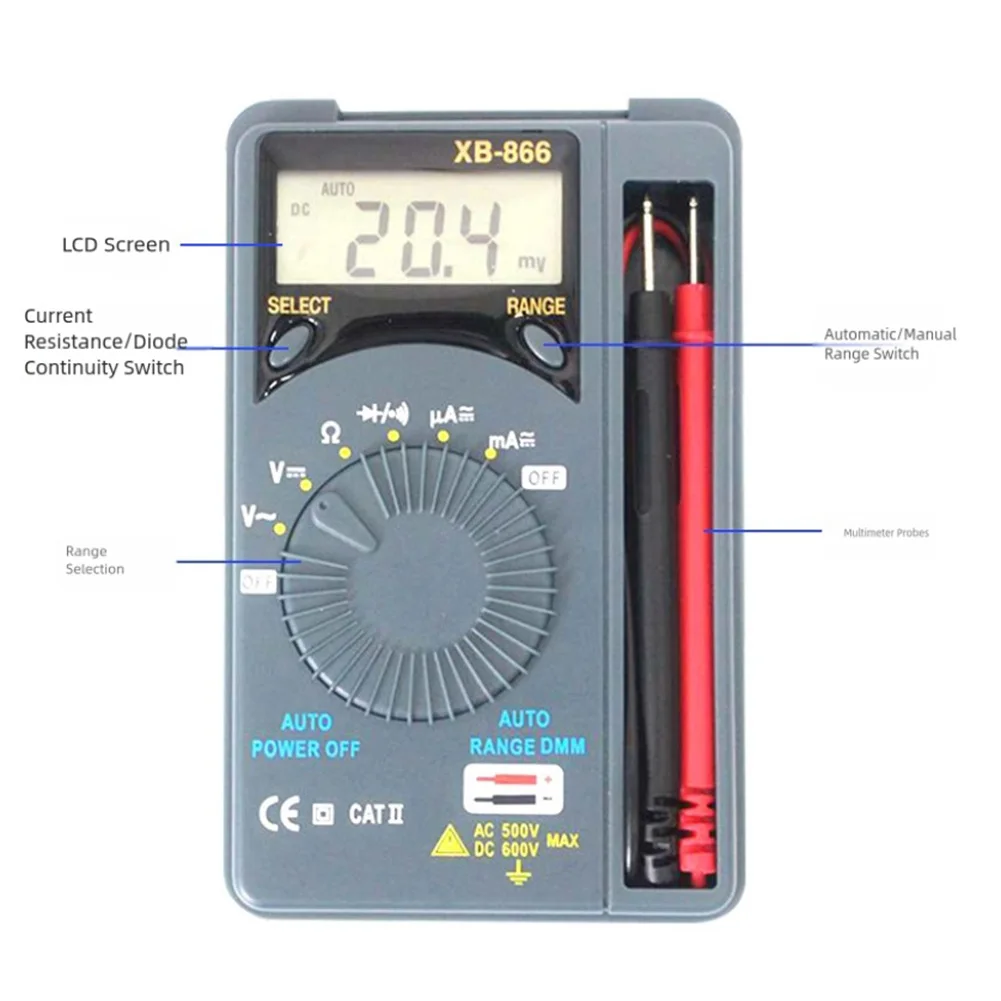

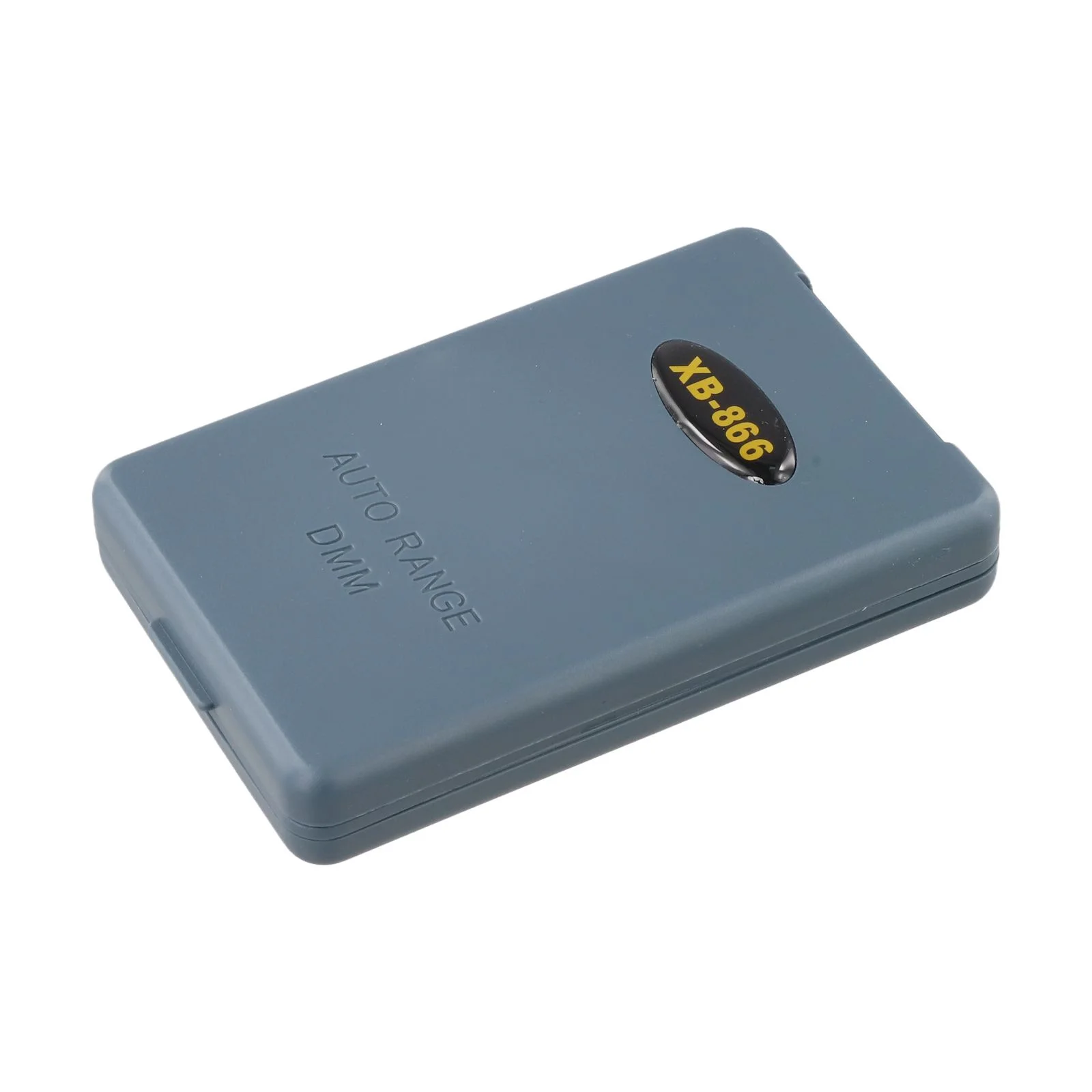

Name: XB866 Multimeter
Material: ABS

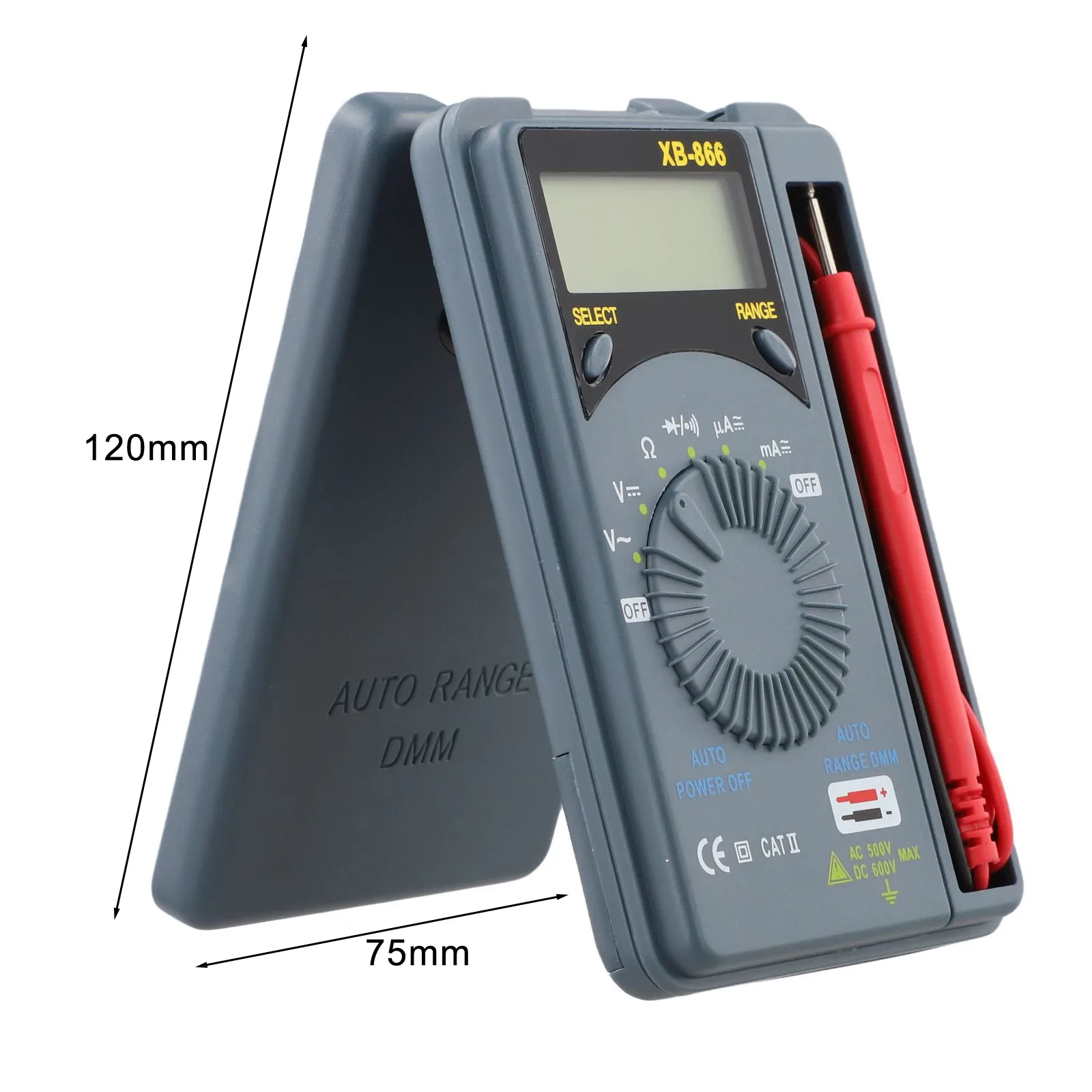

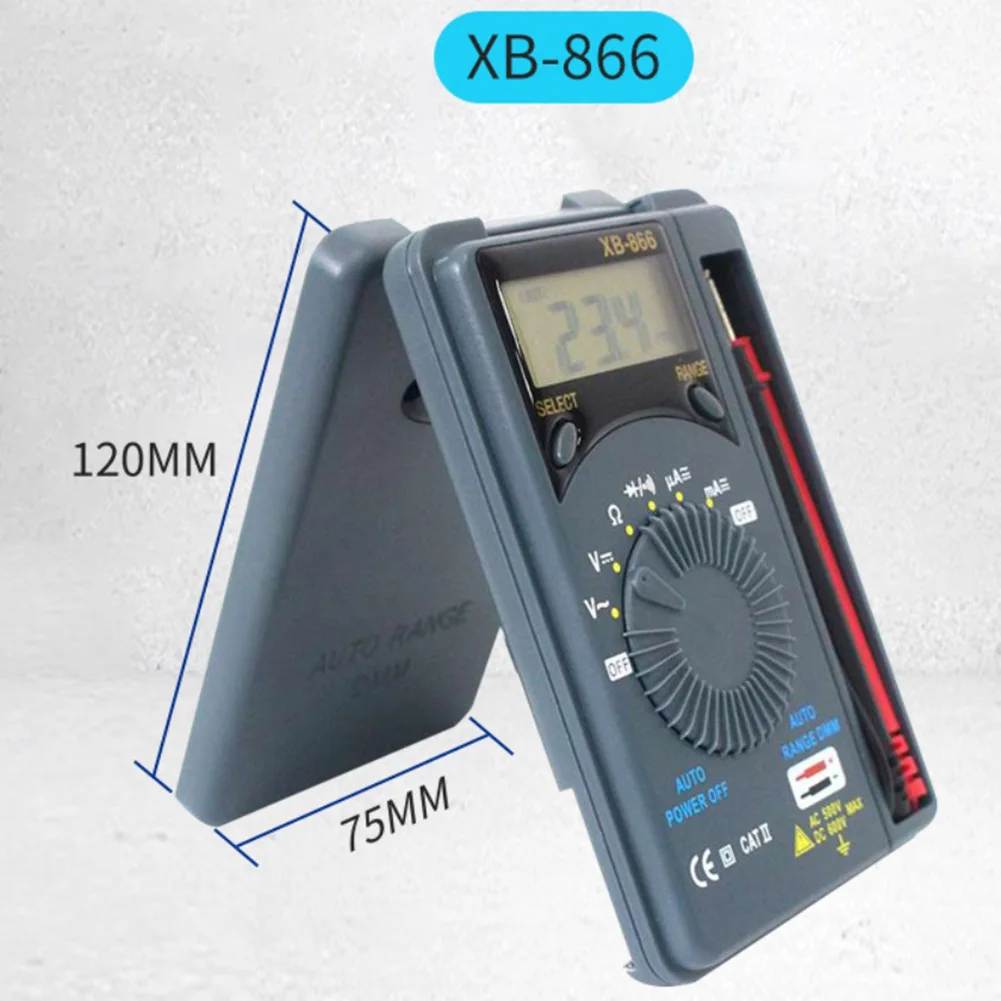

size: 115 70 x 20 mm
Color: Gray
Auto Power On: 15 minutes

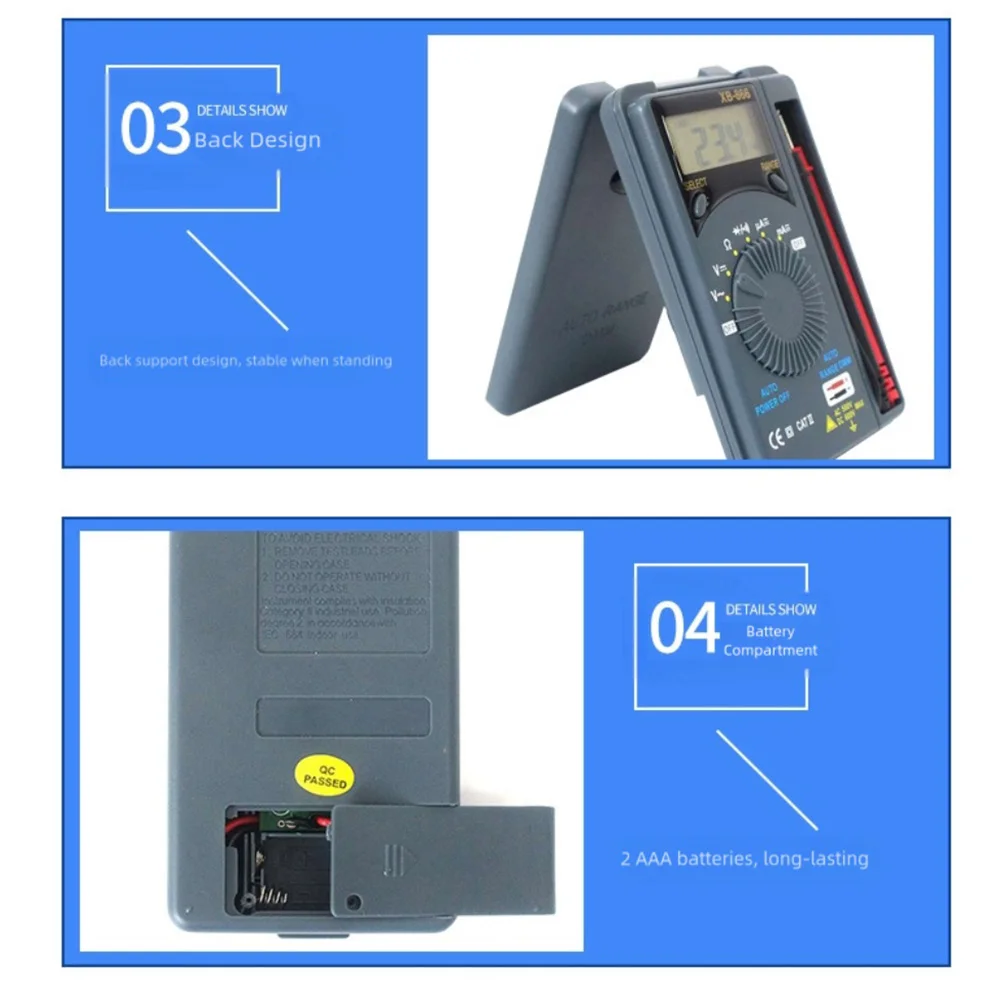

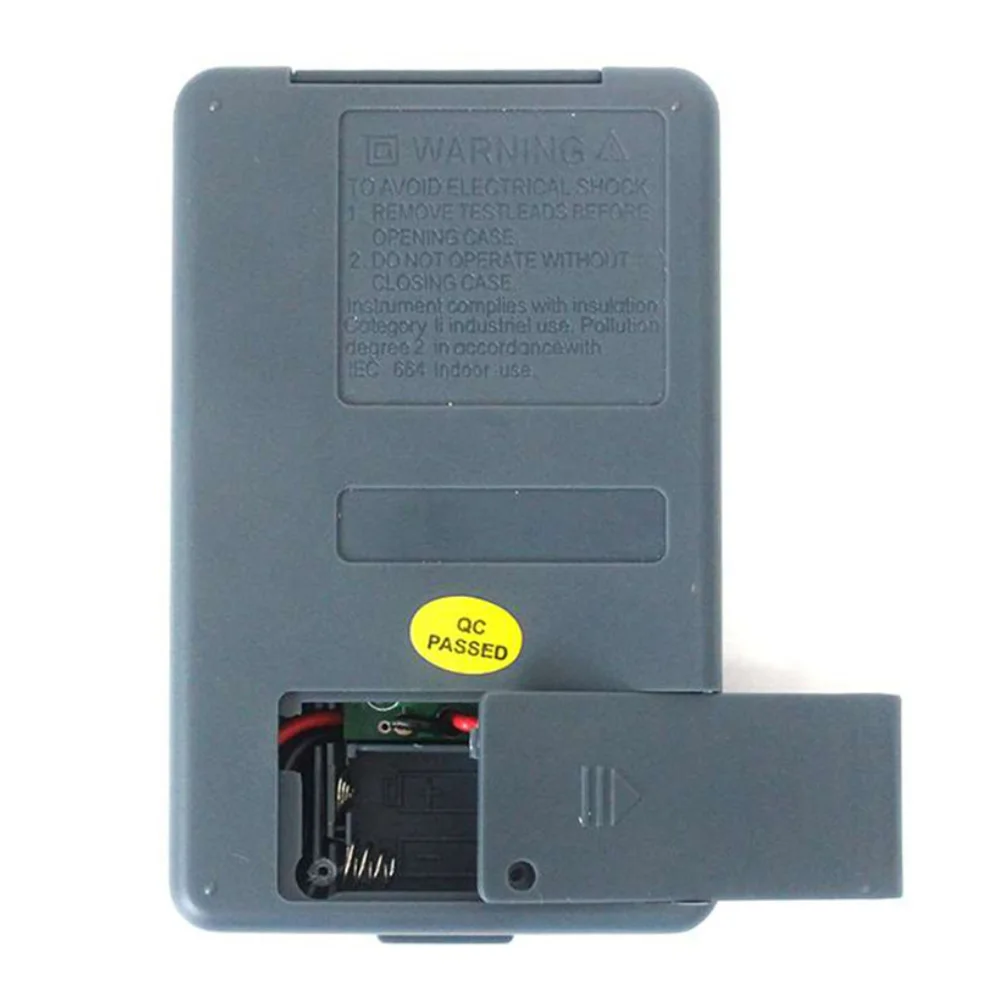

Power Supply: 2 x 1.5V (not included)
Temperature, factor <0.1 * accuracy/degree
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: 0°C to 50°C (10°F to 122°F)
Ambient Temperature: 23°C ± 5°C Relative Humidity: <70%
Auto-Ranging:
DC Voltage: 200mV, 2V, 20V, 200V, 600V
AC Voltage: 2V, 20V, 200V, 500V (Frequency Range: 40-400Hz)
DC Current: 200uA, 2000uA, 20mA, 200mA
AC Current: (For reference only) 200uA (±5% of reading), 2000uA (±3% of reading),
20mA (±5% rdg), 200mA (±3% rdg) (Frequency Range: 40-400Hz)
Resistance: 200kΩ, 20kΩ, 20kΩ, 2MΩ, 20MΩ
Diode Test: Test Current 1mA, Test Voltage 1.5V DC
Continuity: <80 beeps

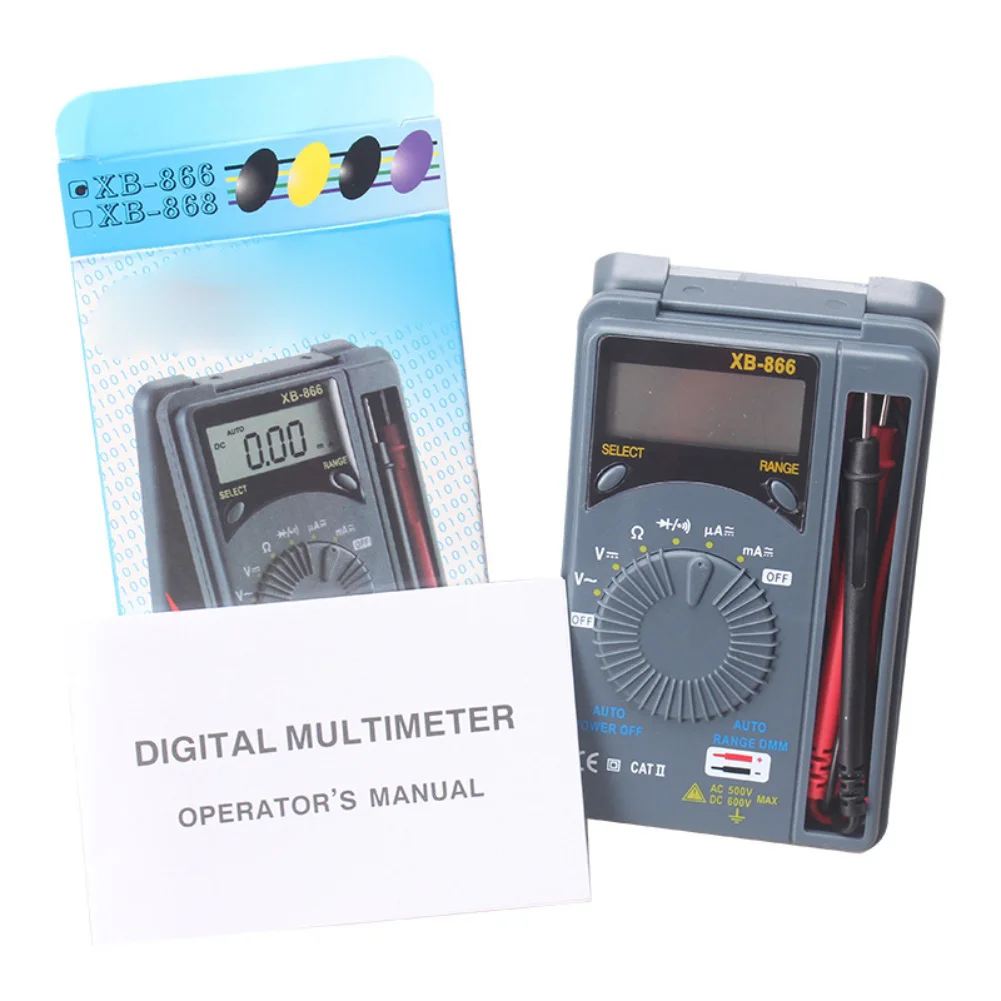

Package Contents:
1 *XB866 Multimeter
Note:
Due to manual measurement, please allow 1-3 mm for discrepancies. Please this is acceptable before placing your order.
Due to differences between monitors, the image may not reflect the actual color of the item.
–>
–>
