Description

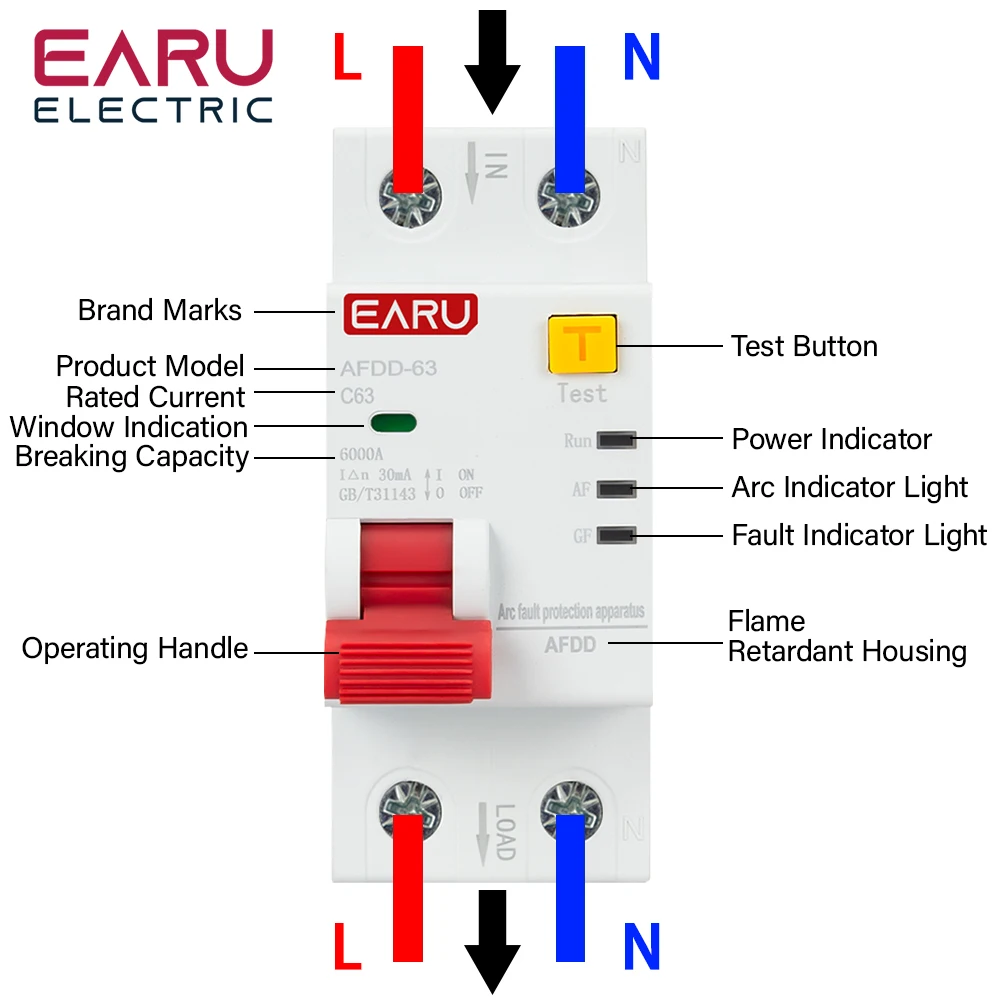

AFDD arc fault circuit breaker is an intelligent circuit protector with an integrated design of MCB and RCCB, which can detect and identify fault arcs and normal working arcs in the line. Prevent fire hazards caused by fault arcs such as poor contact and poor insulation in the circuit. It integrates fault arc protection, overload protection, short circuit protection, overvoltage protection, surge suppression, and leakage protection.

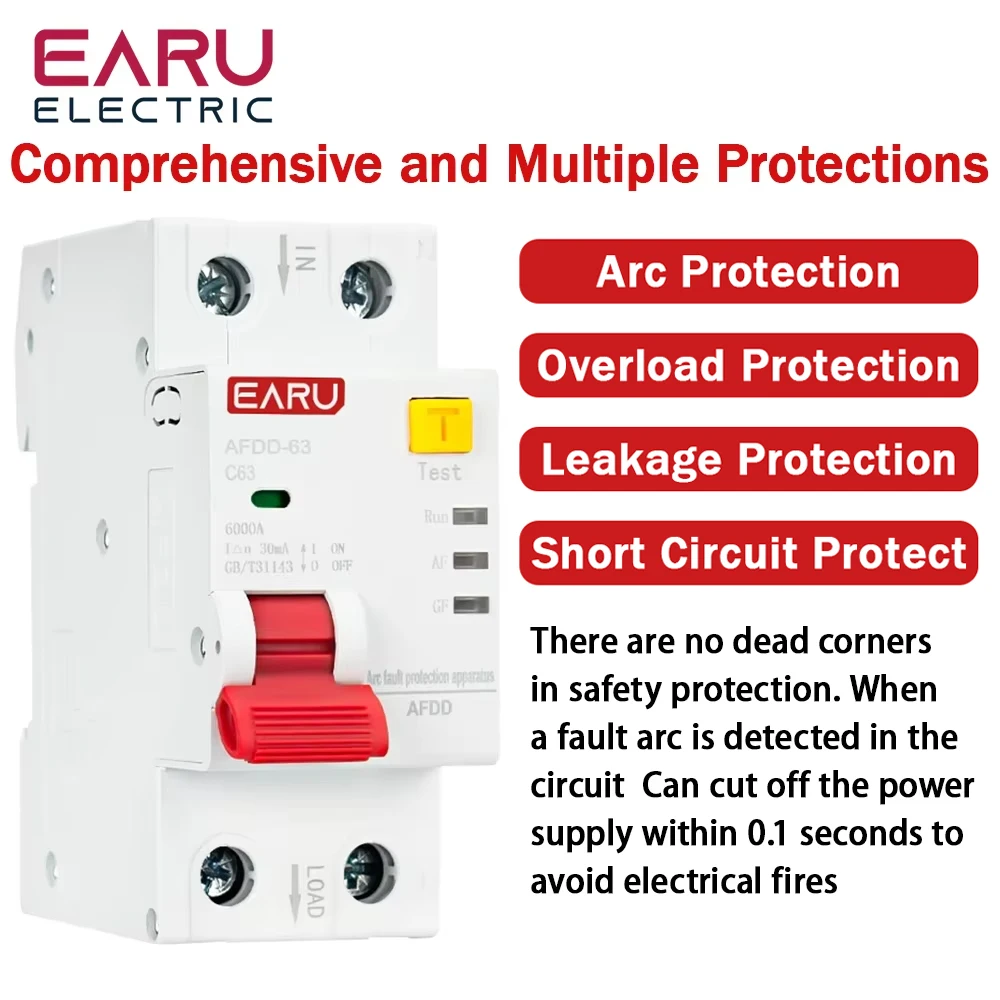

Feature：
1.Arc Protection
2.Overload Protection
3.Leakage Protection
4.Short Circuit Protection

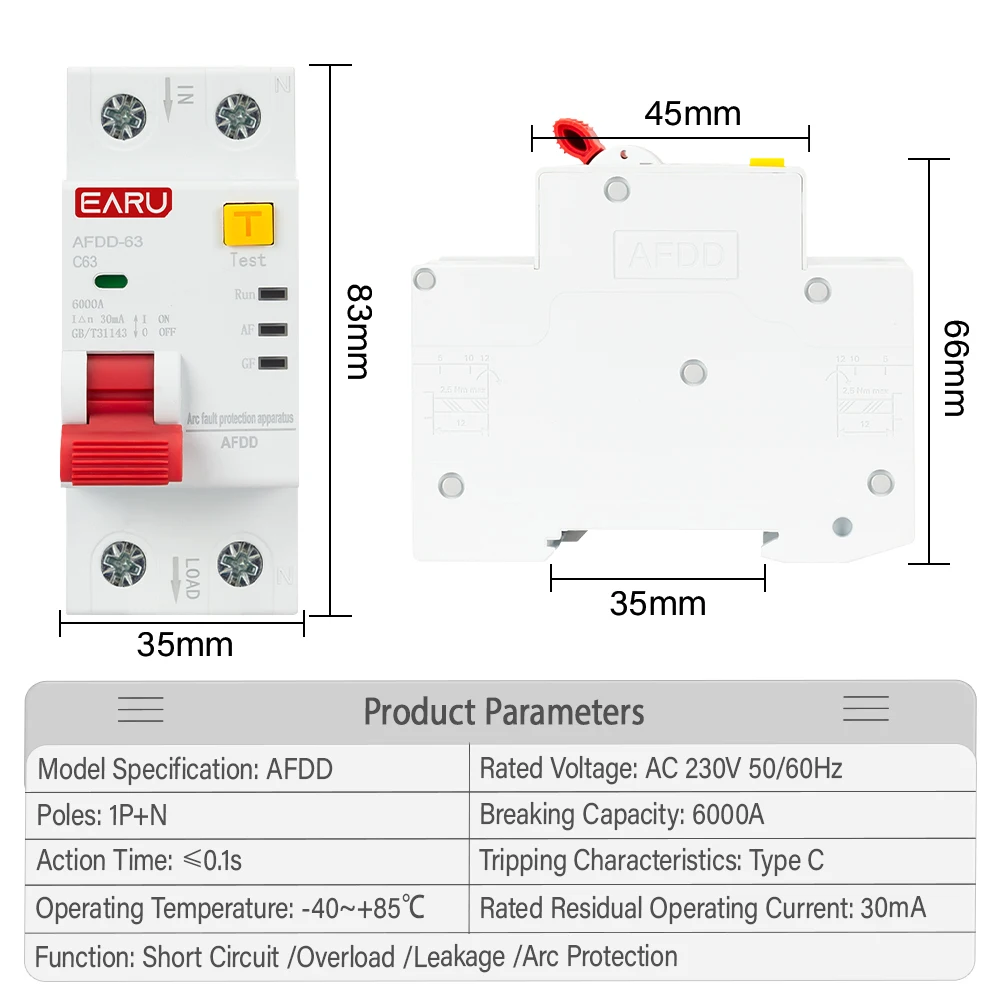

Product Specification
Rated voltage: AC 230V. 50/60Hz
Rated current: 10/16/20/25/32/40/50/63A
Poles: 1P+N
Segmentation capacity: 6kA
Rated residual operating current: 30mA
Action time: ≤0.1S
Operating temperature:-40~+85℃
Relative humidity (at 25℃): ≤95%
Tripping characteristics: Type C (universal)
