A76K Supply Variable Buck Boost Converter Variable Voltage Regulator DC Power CC CV 0.6-36V Bench Power Module

The input voltage range is DC 6-36V; the output voltage range is DC 0.6-36V, Boost and Buck can be adjusted arbitrarily; the maximum output current is 5A and the output power is 80W. With constant voltage and constant current function.

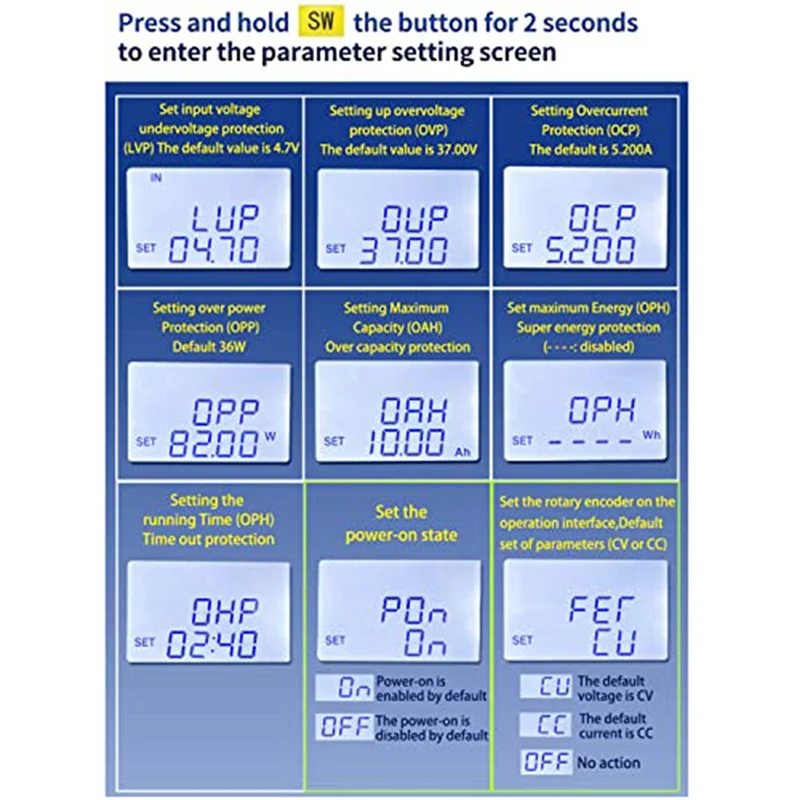

For your convenience, we have provided a PDF version of the brochure. And it has various protection mechanisms such as anti-reverse connection protection, over-temperature protection, over-capacity protection, and time-out protection.

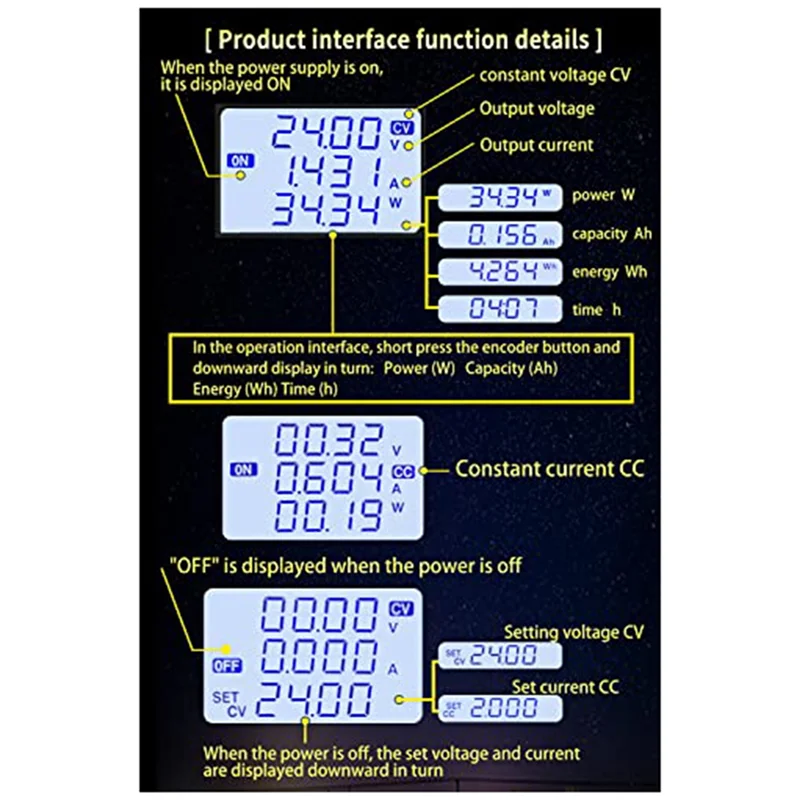

Multi-function LCD display, voltage, ampere, power, capacity, energy watt-hour, time hour.

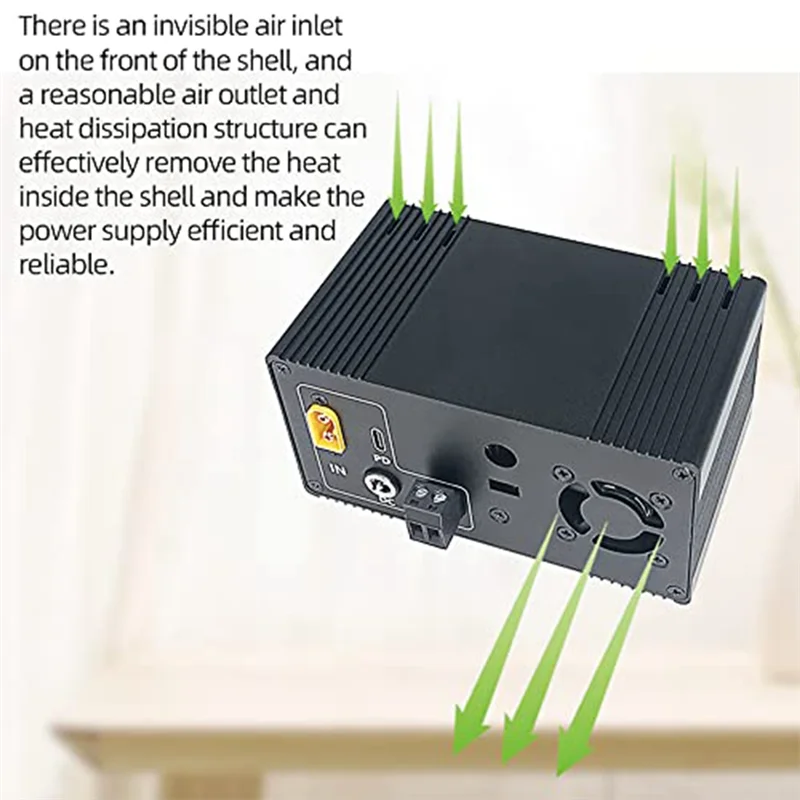

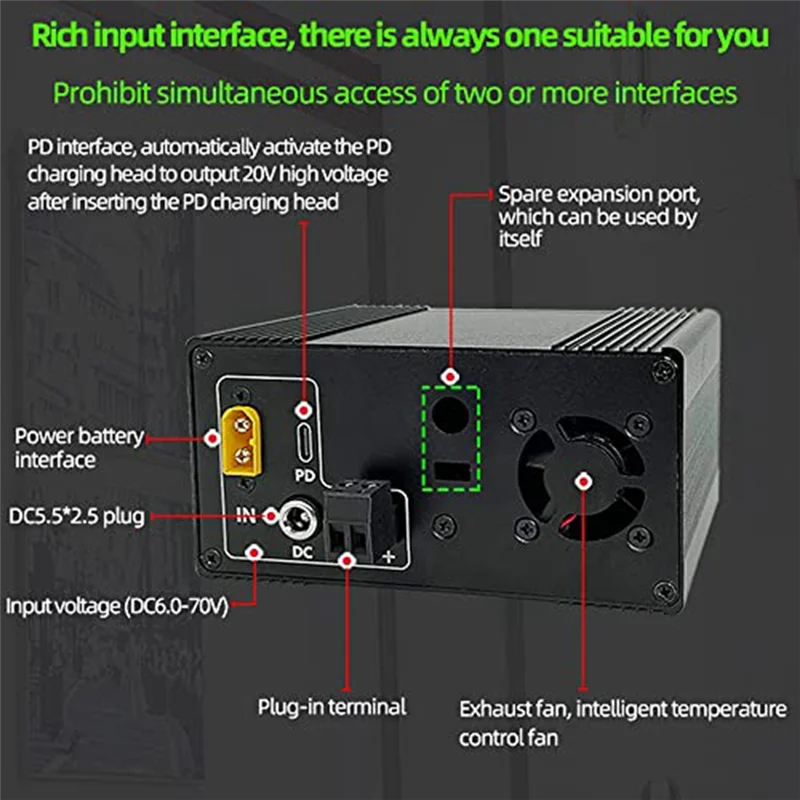

It adopts aluminum alloy casing and has multiple input interfaces. Fan cooling can work for a long time.

High precision voltage 0.01V, current 0.001A. Various applications such as school lab experiments, mobile phone repair and troubleshooting, electronic production assurance specifications, and laboratory measurements

Color: As Shown

Material: plastic

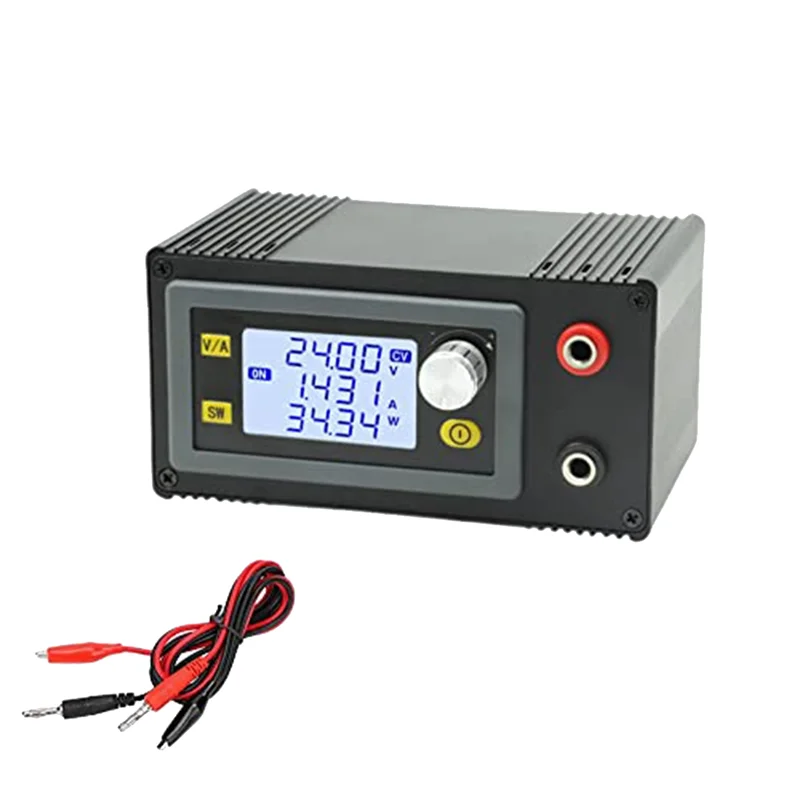

Package Contents:

1 x voltage regulator

1 x wire

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
