Description
Support dropshipping and wholesaling.
100% Original and with free after-sale warranty.
Ground Terminal Blocks Connectors The grounding terminal blocks provide an easy-to-identify, convenient, neatly organized grounding bus that is mounted on the DIN rail.The protective terminal blocks has strong clamps to ensure tight fixation on DIN rails to achieve the PE function.
35MM DIN Rail Mounting rails and brackets to enhance configuration and installation. Guide rails can be used to install circuit breakers, contactors, surge protectors, modular jacks, motor soft starters, PLC, relays, terminals and other electrical appliances.
Terminal Insertion Bridge, End Stopper Bracket, End Cover The insertion bridge can be insert at the top clamp space of UK terminal blocks, potential distribution can be contact quickly using those bridges. UK series End Stopper Clamps are fastened using screws or simply snapped onto the DIN rail. End Cover Usage: Connection by screw tighten
End Stopper Bracket:Terminal fixed component mark clamp and marl strip could be blocked onto it to mark it, additionally, it could be used as fixed component to terminal row’s termination.External Bridge Copper Jumpers:Cut them down to customize electrical ganging of blocks!End Cover:Usage: Connection by screw tighten, for a clean professional look!
Terminal Blocks UK2.5B:
It can connect two conductors with ease, even large conductor cross sections are not a problem. Can be used on DIN Rail 35mm, steel or aluminum.
Rated voltage: 600V, IEC 690V. Rated current: 20A, IEC 32A.
Conductor cross-section, solid (AWG): 24-12 conductor cross-section, flexible (AWG): 24-12.
Ground Terminal Blocks Connectors:
Type: USLKG2.5 Ground Earth Screw Type Terminal Blocks Wire Connector
Application:Conduct Electricity, Transmission of Electrical Signals
Rated voltage: 600V, IEC 690V; Rated current: 20A, IEC 34A. Large wire funnel entry, Solid Wire (AWG/mm⊃2;): 24-12, IEC 0.2-4, flexible(AWG/mm⊃2;): 24-12, IEC 0.2-2.5
DIN Rail:
Can be installed in all types of terminal boxes, distribution boxes, control cabinets, switchgear, complete sets of equipment, machinery and equipment.
colour:Black + gray + red
Material:Plastic + metal
size:Thickness : 1.2mm/ 0.047 inch
Height : 7.5mm/ 0.29 inch
Length : 200mm/ 7.87 inch
Width : 35mm/ 1.38 inch

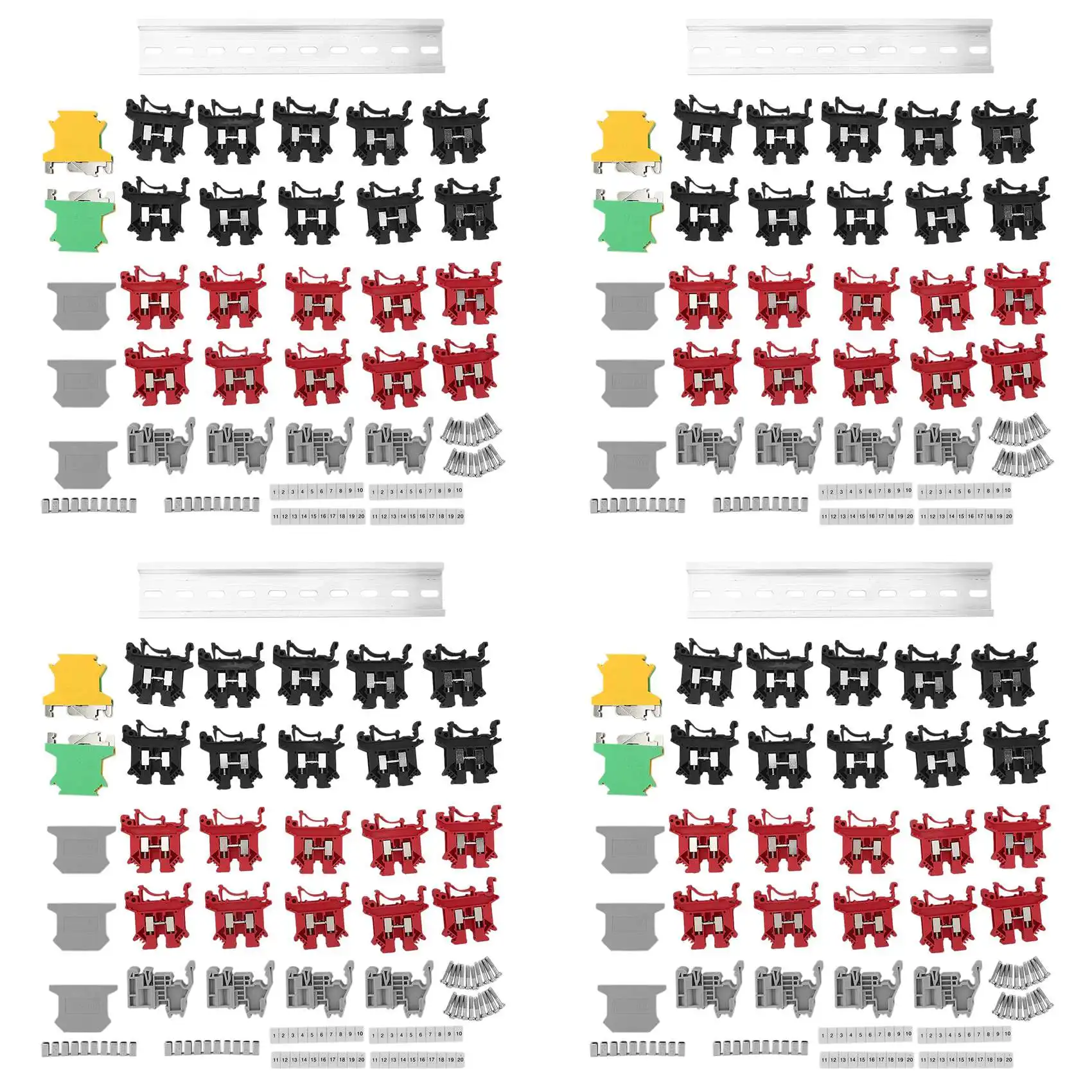

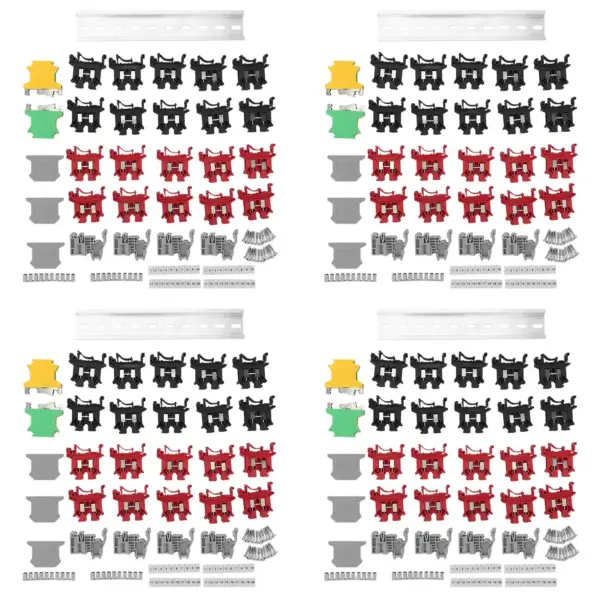

Package Contents:
80 * terminal blocks
8 * ground blocks
8 * jumpers
16 * E/UK end brackets
16 * UK-2.5BG end covers
4 * 8 inch aluminum RoHS Rail
16 * marker strip
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
