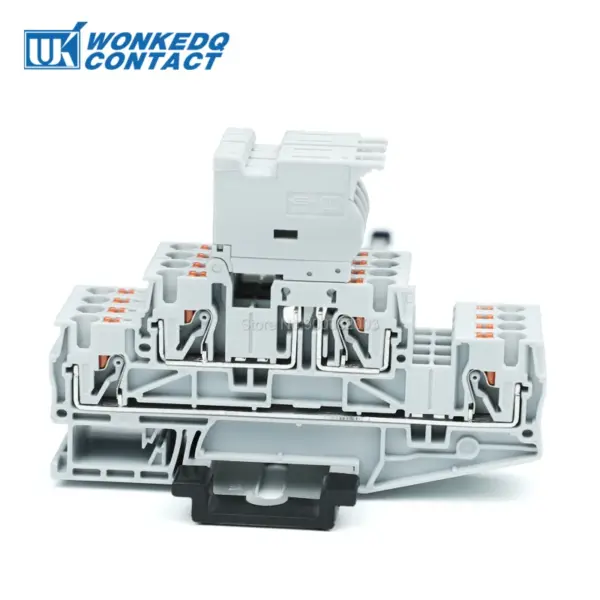

Name: 5Pcs PTTB4-HESI Double Level Fuse Holder Terminal Block Din Rail 4mm² 4 Wires Connector PTTB 4-HESILED 5*20mm Fuse 24V/220V LED
Brand: Toolsindo.id
SKU: 1005007435237771
Price: 689100 IDR
Availability: InStock

Description

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


END COVER D-ST4	JUMPERS BRIDGE FBS 2/3/4/5/10-6	MARKER STRIPS ZBFM 6	END STOP E-UK

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	FUSE 5X20 mm

Technical Parameters

Type No.	Details	Accessories
PT 4-HESI	500V/6.3A 0.2-6mm²/0.25-4mm² L56/H64.8/W6.2 mm	End cover: D-ST4
		Plug-in bridge: FBS2-6 , FBS3-6, FBS4-6, FBS5-6, FBS10-6
		Insertion bridge: NONE
		Marker strip: ZBFM 6

Model Number	PT 4-HESI
Color	Grey, Black, other color can be customized
Length/Wide/Height (mm)	L56/H64.8/W6.2 mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	500V/6.3A
Cross section, solid/soft Cable	0.2-6mm²/0.25-4mm²
Conductor Size	24-10 AWG, 24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Certification	CE/RoHS/CQC/ISO 9001

Additional information

Color	Gray-With 24V LED, Gray-With 220V LED, Gray-Without LED
Pins	With 6A Fuse, Without Fuse, With 4A Fuse, With 2A Fuse, With 10A Fuse, With 1A Fuse, With 5A Fuse, With 3A Fuse, With 8A Fuse
