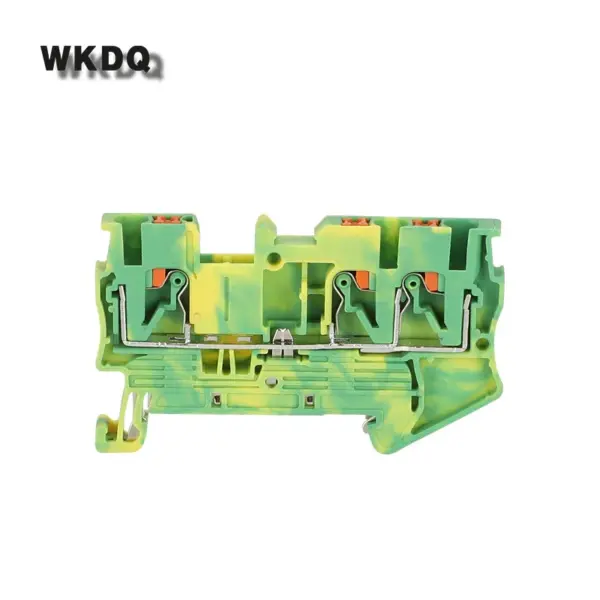

5Pcs PT2.5-TW-PE Push-In Ground 3-Conductor Earth PT 2.5 Twin Wire Electrical Connector Din Rail Terminal Block PT 2.5-TW-PE

1. DESCRIPTION

The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.

Made from engineering flame retardants nylon PA66 with brass screw metal.

• Made from engineering flame retardants nylon PA66 with brass screw metal.

• The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

• The compact design and front connection enable wiring in a confined space.

• In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.

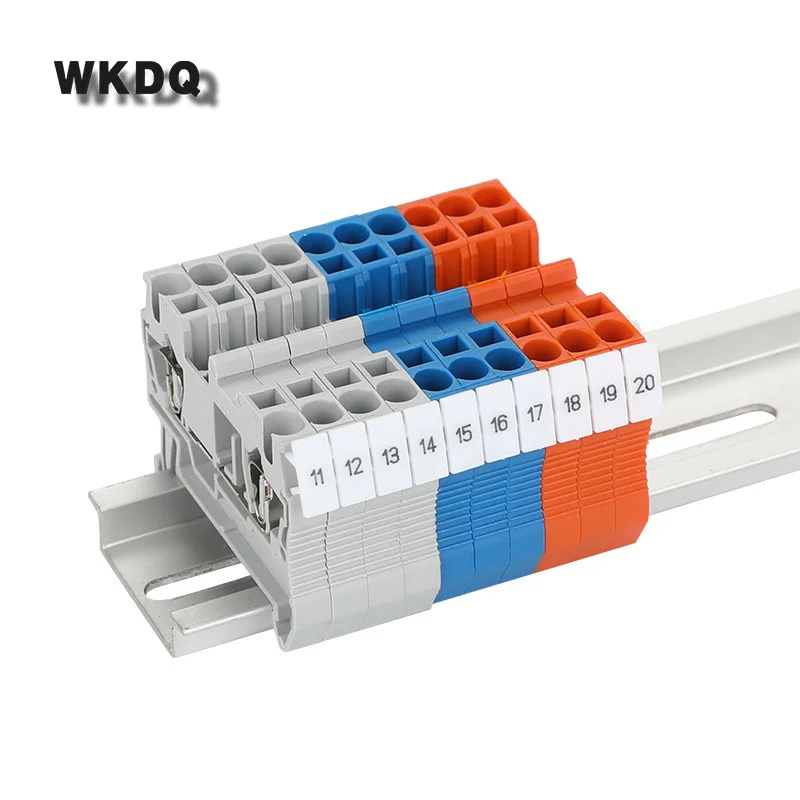

• With a single click, PT series ground modular terminal blocks can simply snap onto the DIN rail to create the PE connection.

• It can connect two conductors with ease, even large conductor cross sections are not a problem.

• Electric potential distribution can use fixed bridges in the terminal center.

• l Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space.

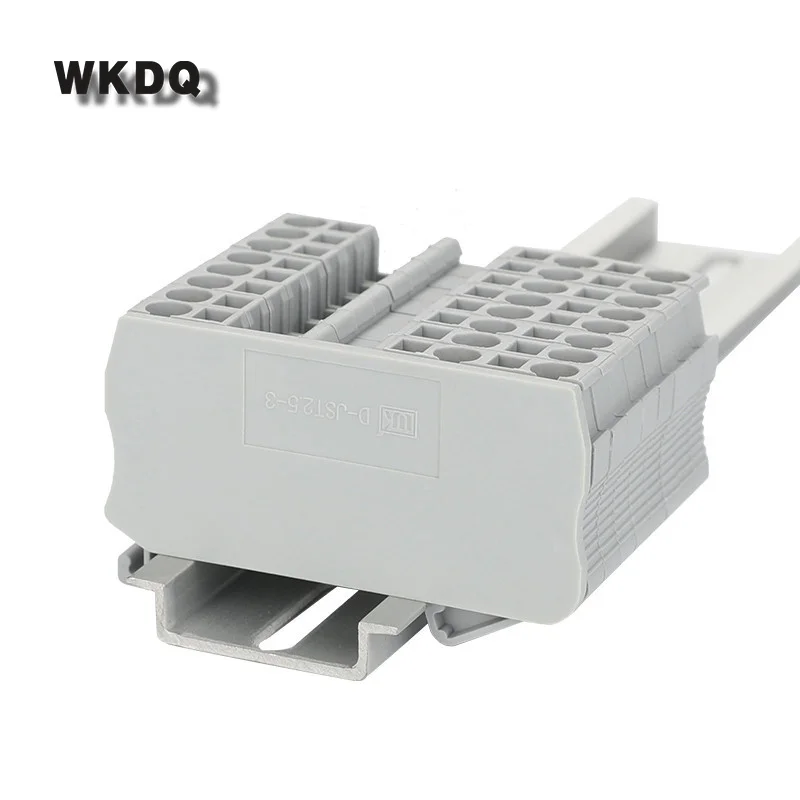

• All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertionbridge, etc.

ACCESSORIES ( Click the pictures to the links)

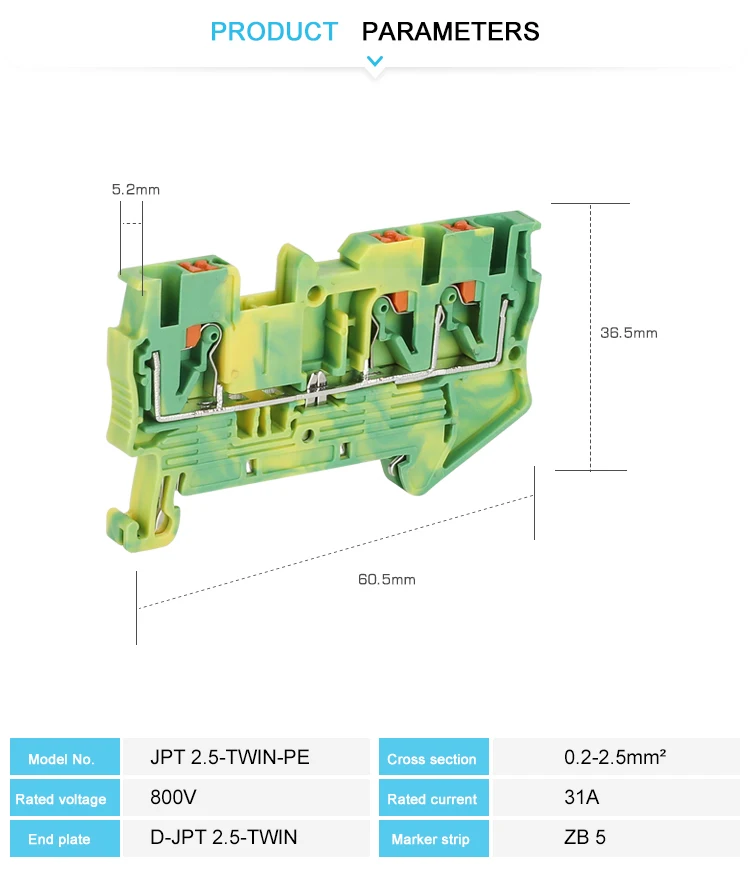

2.TECHNICAL PARAMETERS
