5Pcs PT1.5/S-3L Three Level Push In Terminal For 1.5 mm2 3 Layer Wire Connectors Electric Din Rail Terminal Block PT 1.5-3L – toolsindo.id

Detail Produk

Rp196.300

5Pcs PT1.5/S-3L Three Level Push In Terminal For 1.5 mm2 3 Layer Wire Connectors Electric Din Rail Terminal Block PT 1.5-3L

Name: 5Pcs PT1.5/S-3L Three Level Push In Terminal For 1.5 mm2 3 Layer Wire Connectors Electric Din Rail Terminal Block PT 1.5-3L
Brand: Toolsindo.id
SKU: 1005005210400208
Price: 196300 IDR
Availability: InStock

43 terjual

SKU: 1005005210400208 Categories: Electrical Equipment & Supplies, Home Improvement

Terjual: 43+ | Toko: WONKEDQ Official Store

🕐 Pre-Order · Estimasi 30 Hari

Color

Pins

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

5Pcs PT 1.5-3L Triple-Level Push In Din Rail Terminal Block

DESCRIPTION
ACCESSORIES ( Click the pictures to the links)


END COVER D-PT 1.5-3L	JUMPERS BRIDGE FBS 10-3.5	MARKER STRIPS ZBFM 3.5	END STOP WKF 35

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PT 1.5

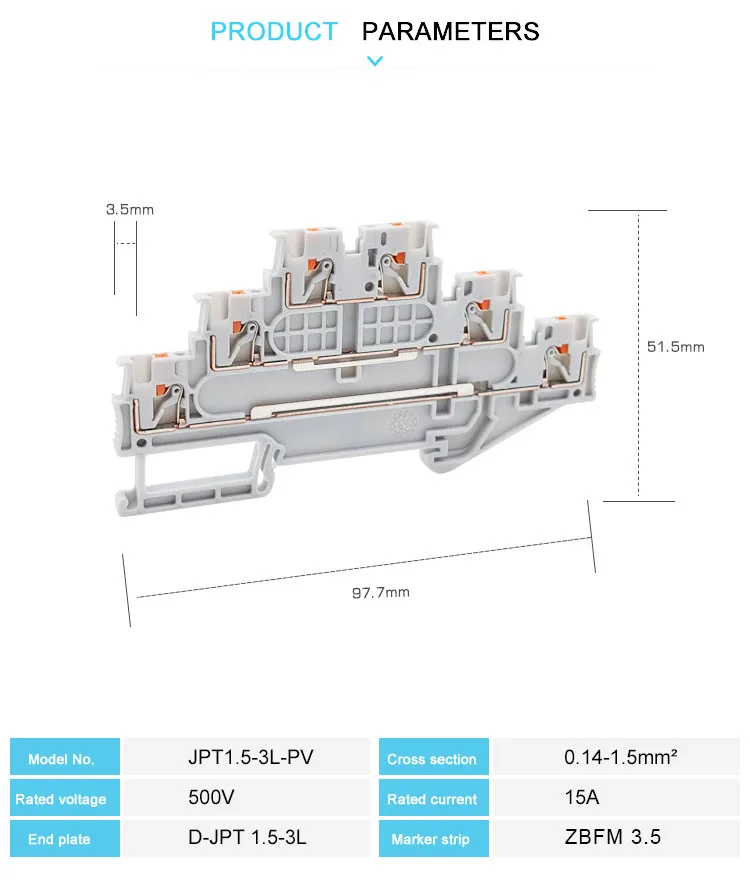

Technical Parameters

Type No.	Details	Accessories
PT 1.5-3L	500V/15A 0.14-1.5mm²/0.14-1.5mm² L97.7/H51.5/W3.5mm	End cover: D-PT 1.5-3L
		Plug-in bridge: FBS 2-3.5, 3-3.5, 4-3.5, 5-3.5, 10-3.5
		Marker strip: ZBFM 3.5

Model Number	PT 1.5-3L
Color	Grey, other color can be customized
Length/Wide/Height (mm)	L97.7/H51.5/W3.5mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	500V/15A
Cross section, solid/soft Cable	0.14-1.5mm²/0.14-1.5mm²
Conductor Size	26-16 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WONKEDQ , Customized logo are supported
Certification	CE/RoHS/CQC/ISO 9001
