Description
【 High quality Material 】: This car maintenance shielded, solderless, waterproof, and heat shrinkable wire terminal is made of plastic and tin alloy, which is durable and corrosion-resistant. Plastic has good insulation properties, while tin alloy ensures excellent conductivity.

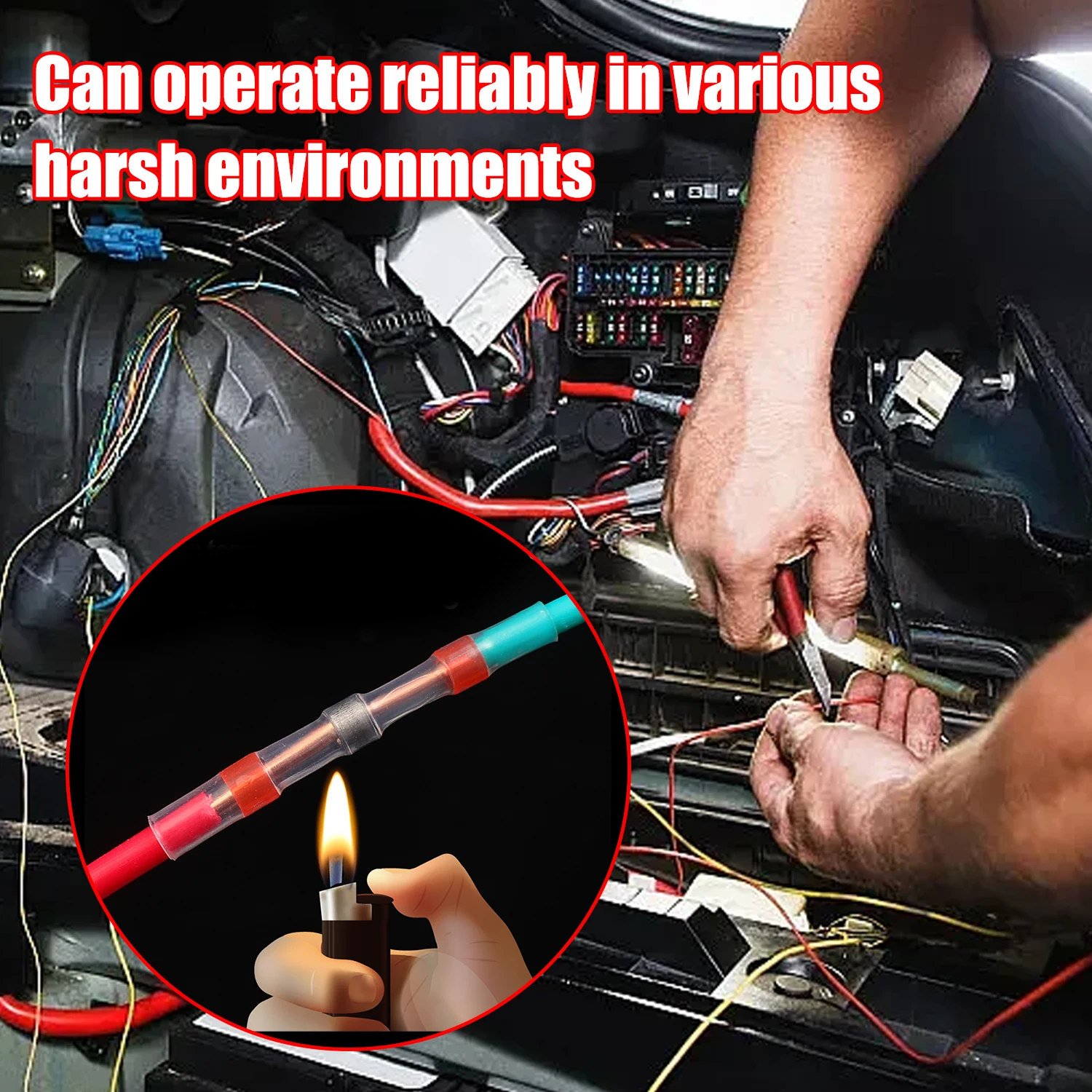

【Wide temperature range】: The working temperature range is -55 ° C to 125 ° C, and it can operate reliably in various harsh environments. The heat shrink temperature is 80 ° C, and the solder begins to dissolve at 138 ° C and completely dissolves at 160 ° C to ensure a firm connection.

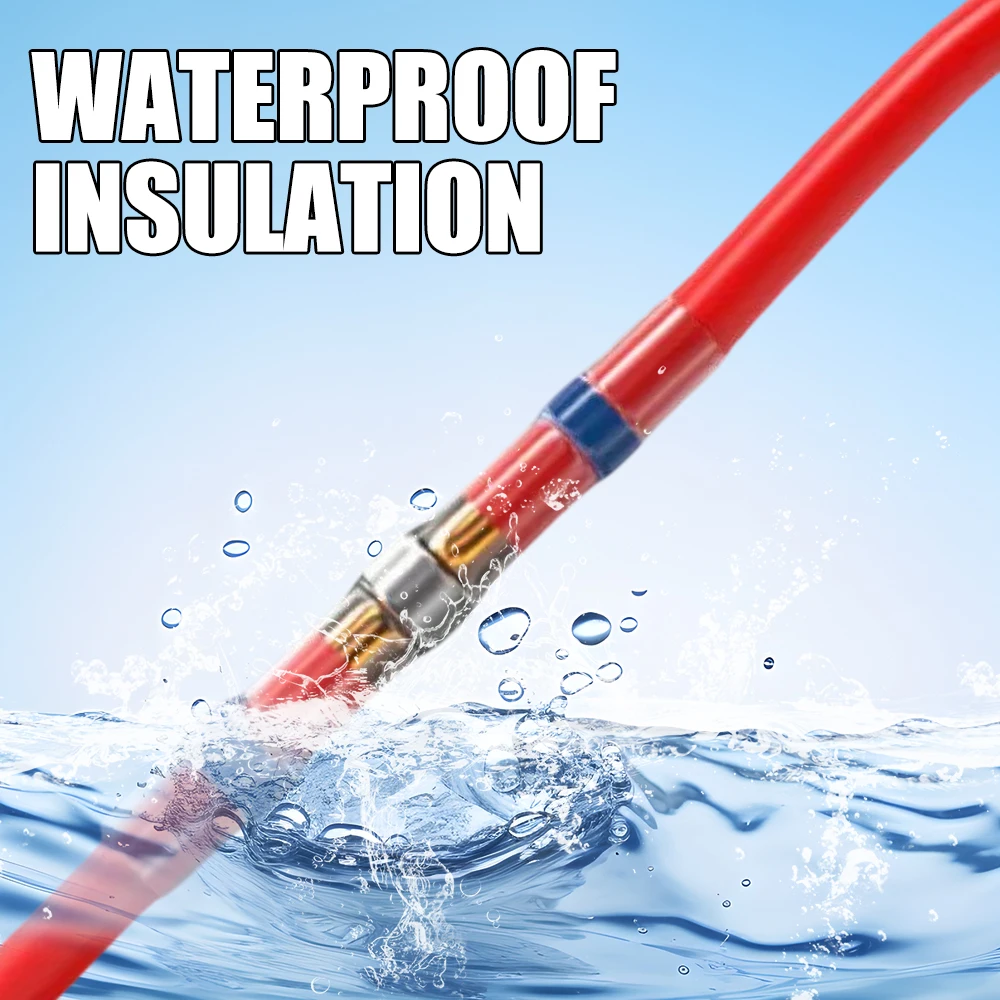

【Easy to use】: No need for welding. Just insert the wire into the terminal and heat it up with a hot air gun. The terminal will tightly shrink and wrap around the wire, forming a waterproof and insulated connection in a short period of time.
【Good insulation performance】: These terminals have a dielectric strength of up to 1KV, which can effectively prevent leakage and enhance the safety of vehicle electrical systems.
Product Details

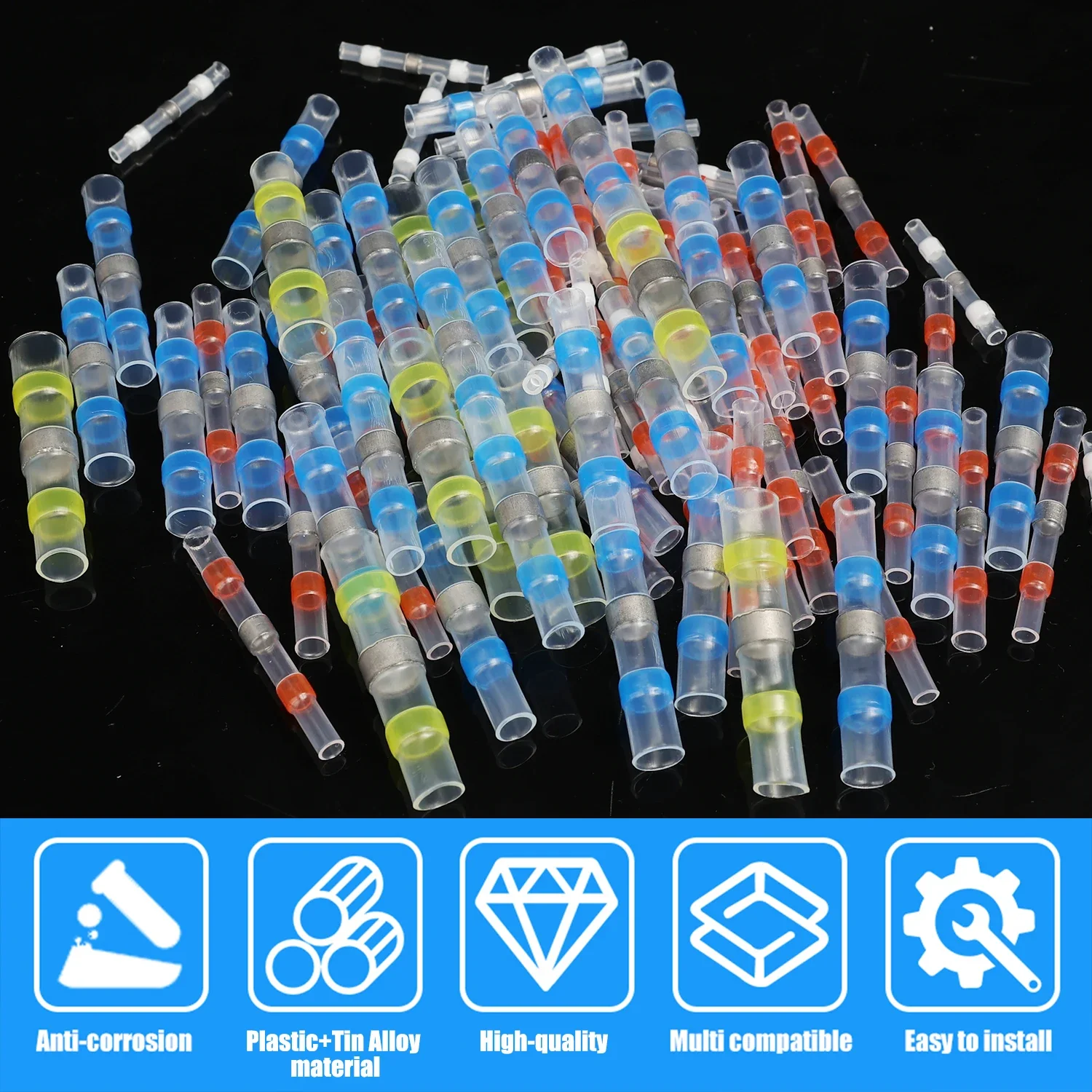

Material: Plastic+Tin Alloy

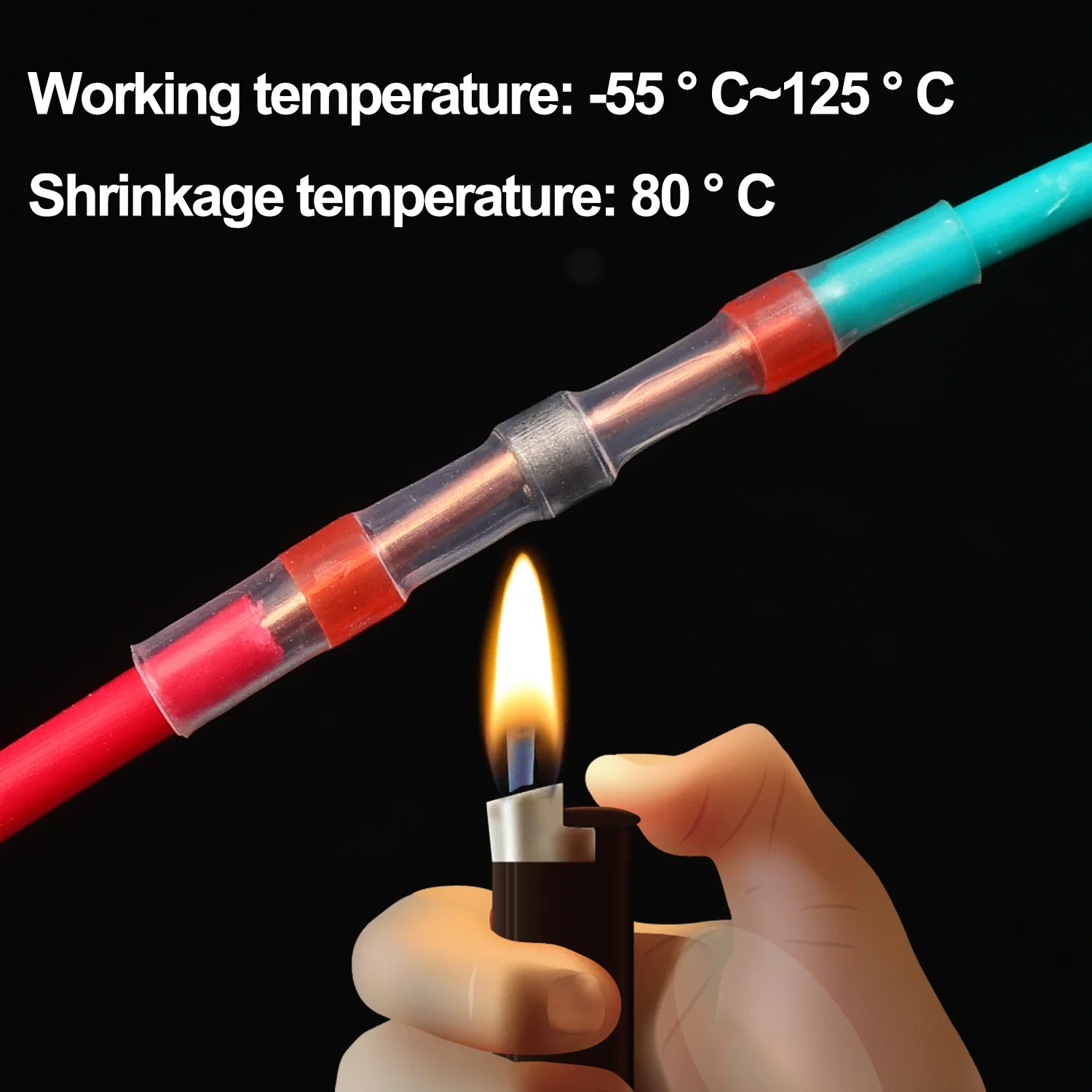

Working temperature: -55 ° C~125 ° C
Shrinkage temperature: 80 ° C
Melting point of solder: Initial melting point 138 ° C, complete melting temperature 160 ° C
Dielectric strength: 1KV

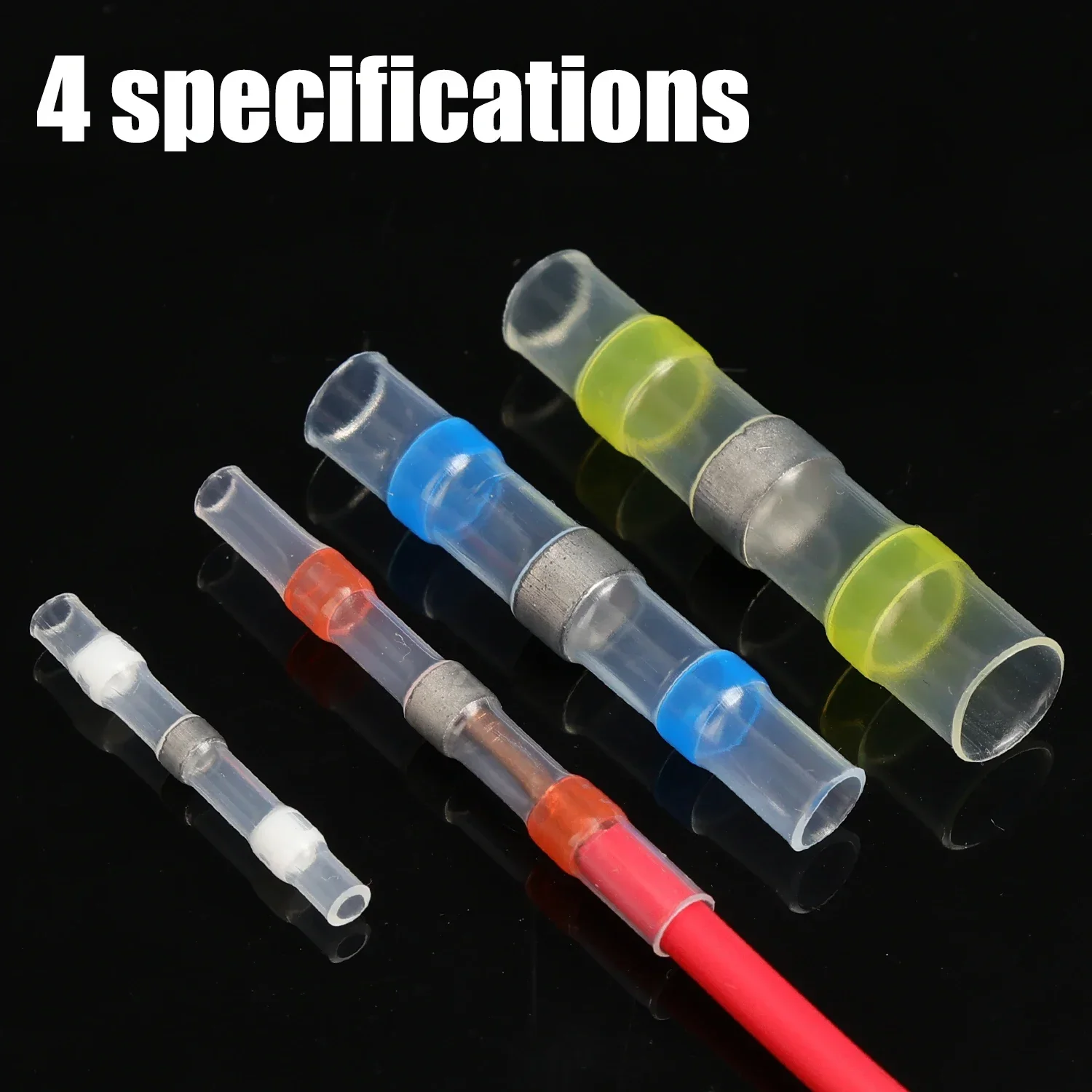

Wire range:
Red: 0.5-1.5 square millimeters
Yellow: 4-6 square millimeters
White: 0.25-0.34 square mm
Blue: 1.5-2.5 square millimeters
Size: 12.8*7*2.1cm
Quantity

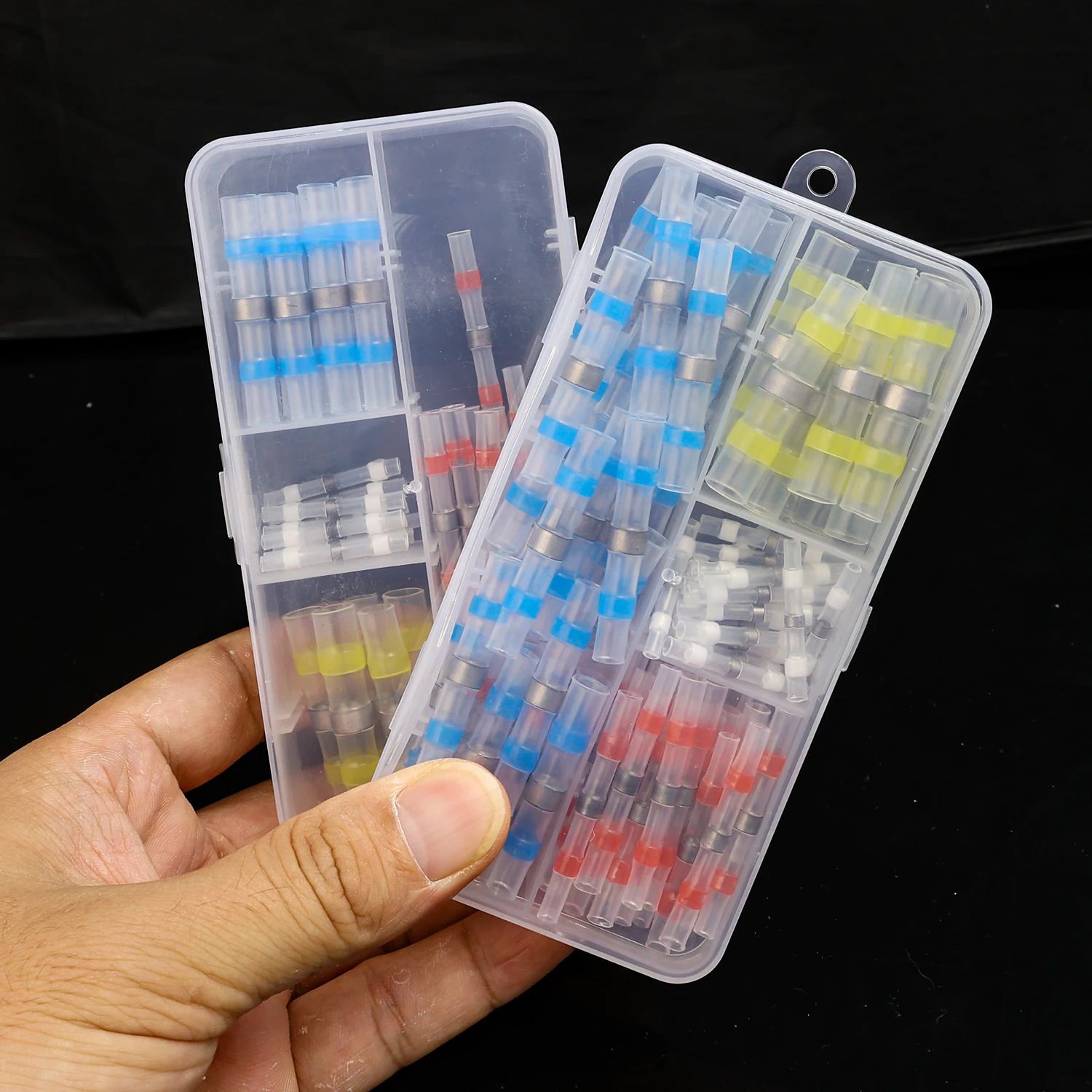

50pcs: 10 white+5 yellow+12 blue+23 red

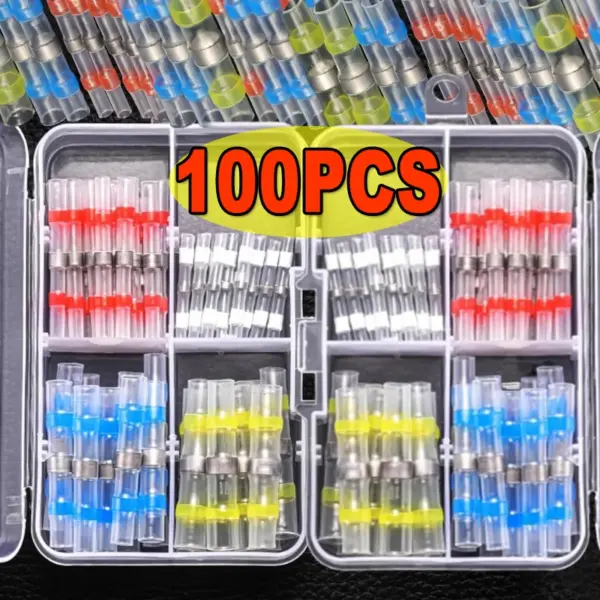

100pcs: 25 white+10 yellow+30 blue+35 red
Package includes: 1 set of * heat shrink terminal blocks
