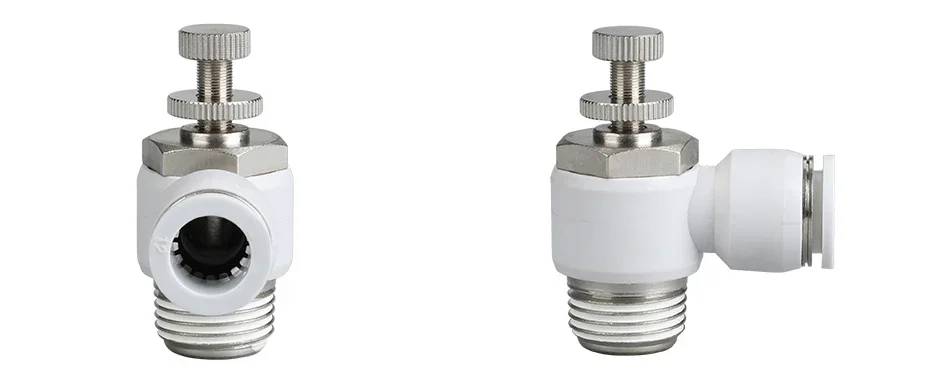

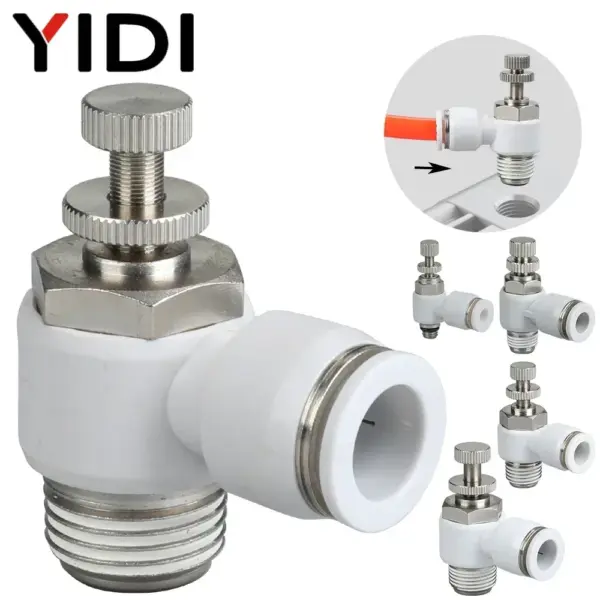

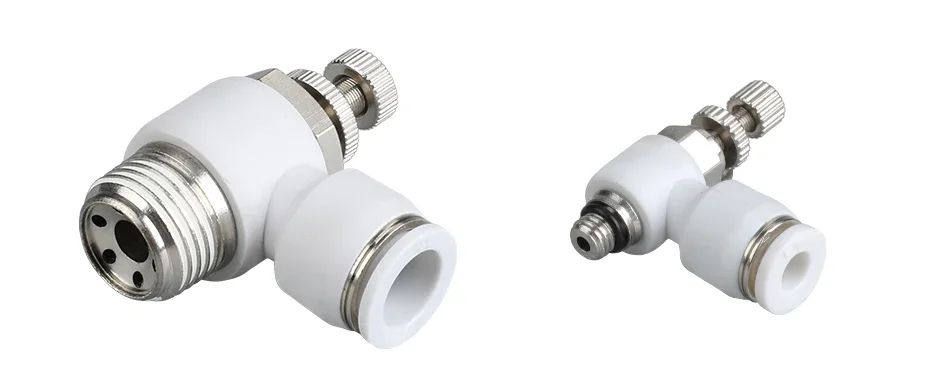

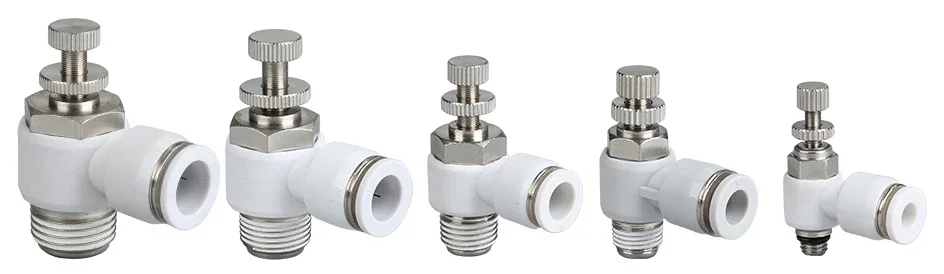

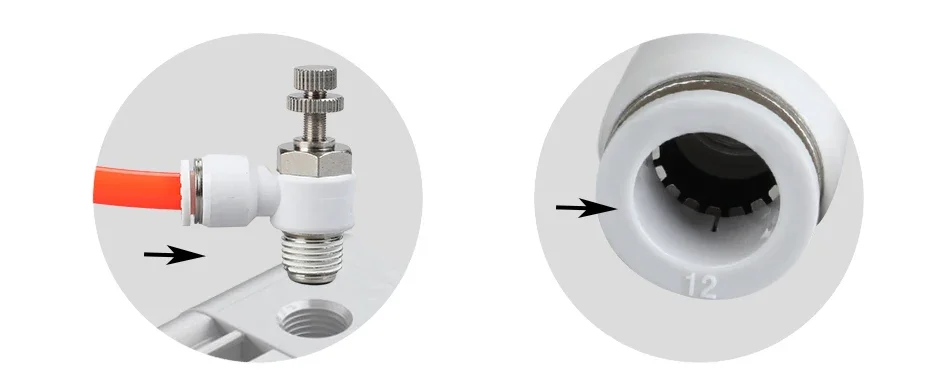

5/10pcs Pneumatic Air Control Valve Quick Push in Swivel Elbow fitting Controller SL 1/2 1/4 3/8 1/8 4mm 6mm 8mm 10mm 4 6 8 10

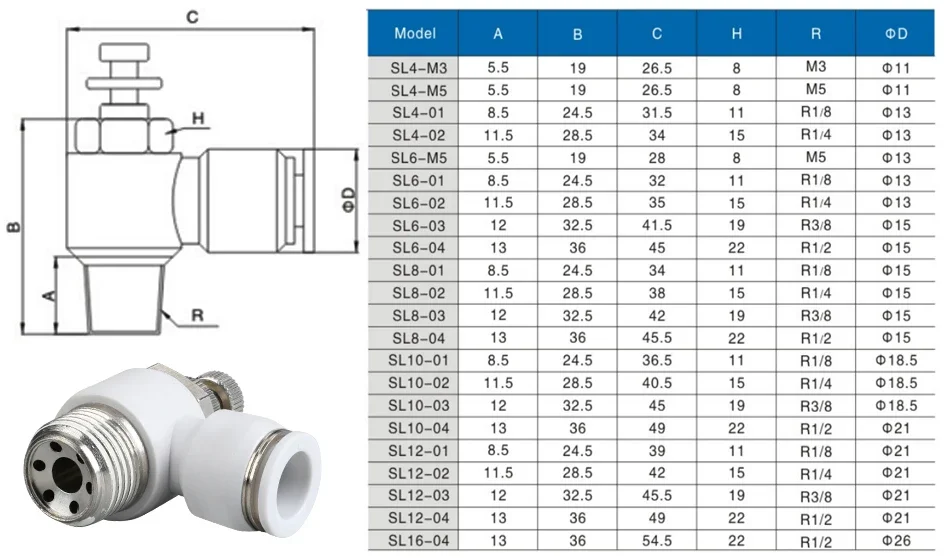

Type

M5
METRI
M5*0.8

01
BSP (R)
1/8″

02
BSP (R)
1/4″

03
BSP (R)
3/8″

04
BSP (R)
1/2″

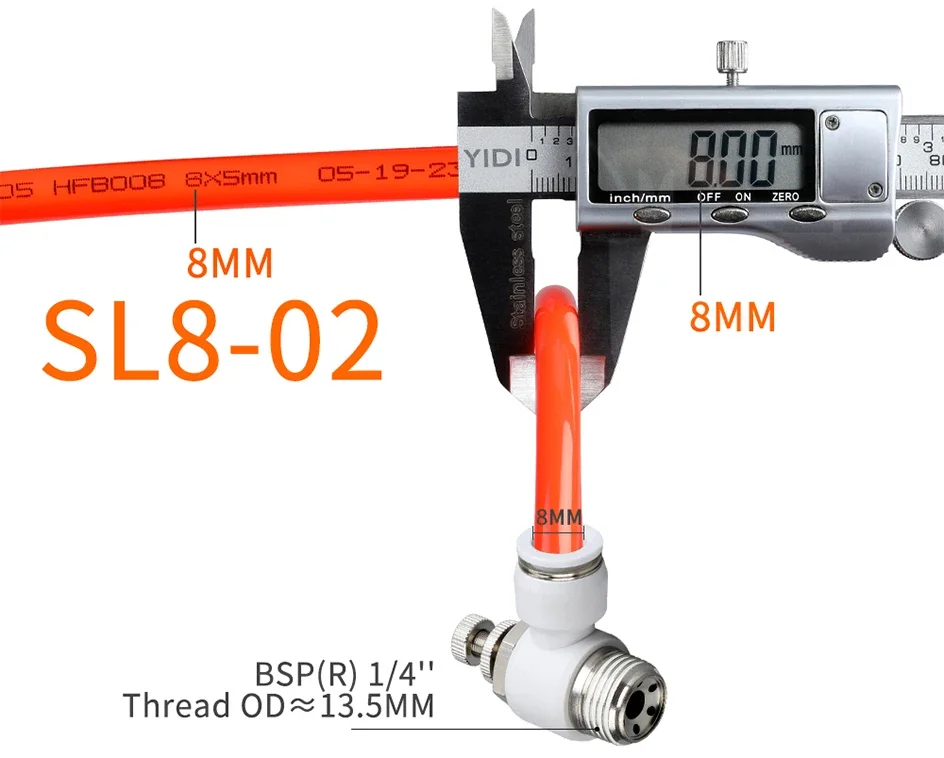

4
(Hose O.D. 4MM)

√

√

√

√

×

6
(Hose O.D.6MM)

√

√

√

√

√

8
(Hose O.D.8MM)

√

√

√

√

√

10
(Hose O.D.10MM)

×

√

√

√

√

12
(Hose O.D.12MM)

×

√

√

√

√

Cautions:
1. Cleaning: Clean the piping before connection to remove debris.

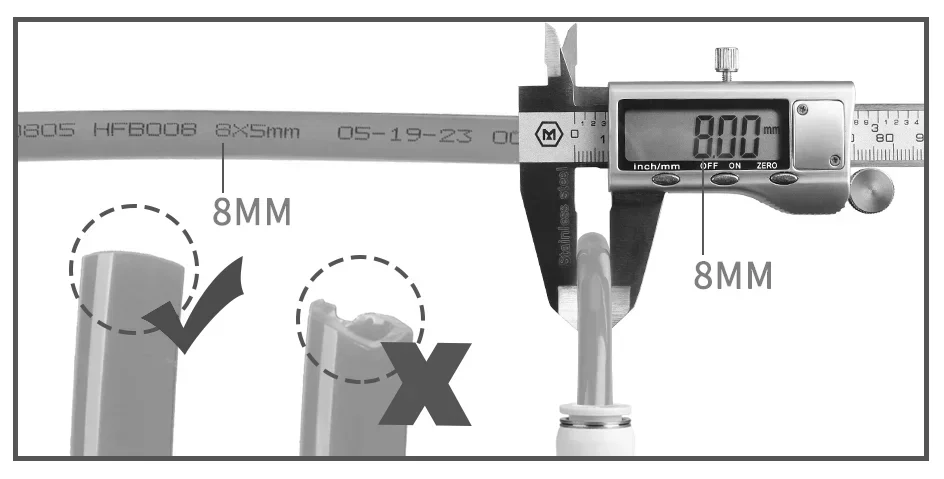

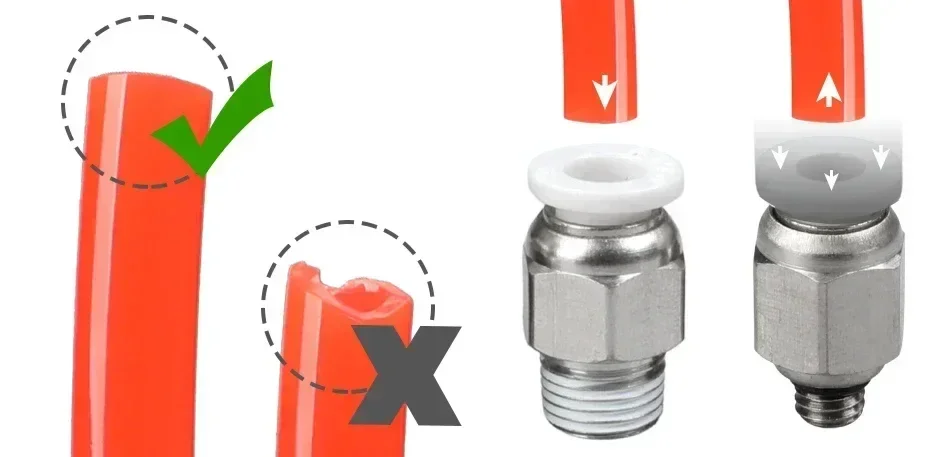

2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing’s outer diameter.
3. Pipe Length: Avoid excessive bending; select a proper pipe length.
4. Connection: After connecting, pull the tubing gently to check its seal.
5. Release: Push evenly on the release button flange for proper tubing withdrawal.
6. Removal: Avoid rotating the tubing fully during removal.
7. Assembly: Ensure no debris enters when screwing pipes and fittings together.

Safety Instructions:

1. Pressure: Ensure zero pressure in the tubing before removal.
2. Spatter Zones: Avoid standard fittings in spatter-producing areas.
3. Monitor Conditions: Stay within specified pressure and temperature ranges.
4. Environment: Avoid corrosive gases, chemicals, and extreme conditions.
5. Placement: Avoid areas with heavy vibrations or shocks.
6. Direction: Install tubing in the correct one-way direction.
