Description

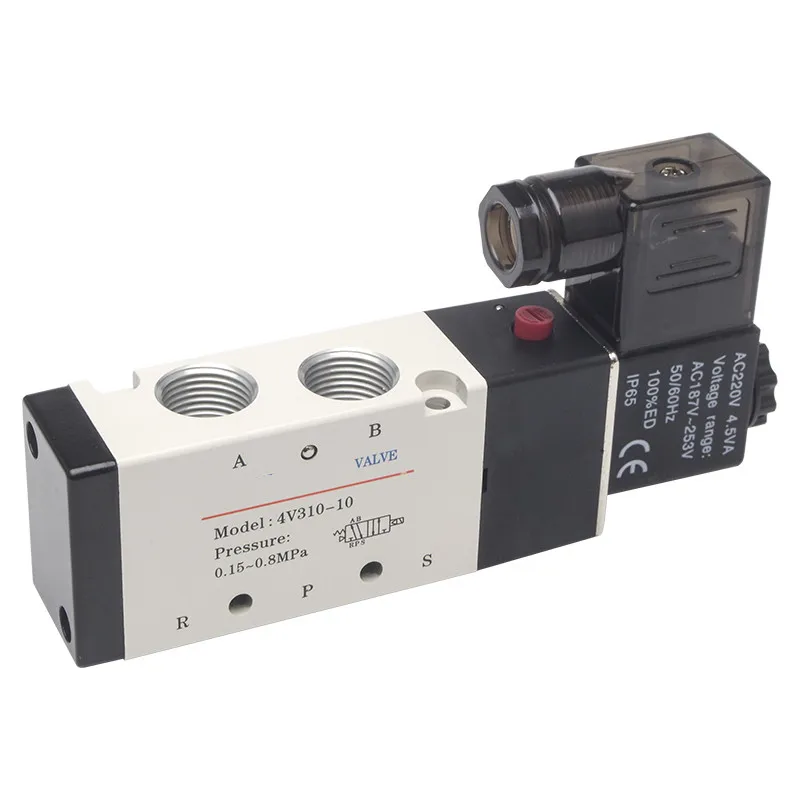

Type: 5/2 Way Internally Piloted Acting Type Single Solenoid Valve
Model: 4V310-10
Coil: DC12v DC24v AC110v AC220v LED Light
Port Size: Air Inlet=Air Outlet=3/8" BSPT
Effective area: 30mm2
Operating temperature range:-5~55°
CV Value: 1.68
Coil power: 3VA
Working pressure range: 1.5~8(kgf/cm2)
Proof pressure: 10.5(kgf/cm2)
Voltage range: ±10%
Power consumption: AC:4.5W DC:3W
Insulation and protection: Class F.IP65
Wiring method: Lead and box
Frequency: 5/S
Response time: 50ms
Weight: 0.31kg
