Description

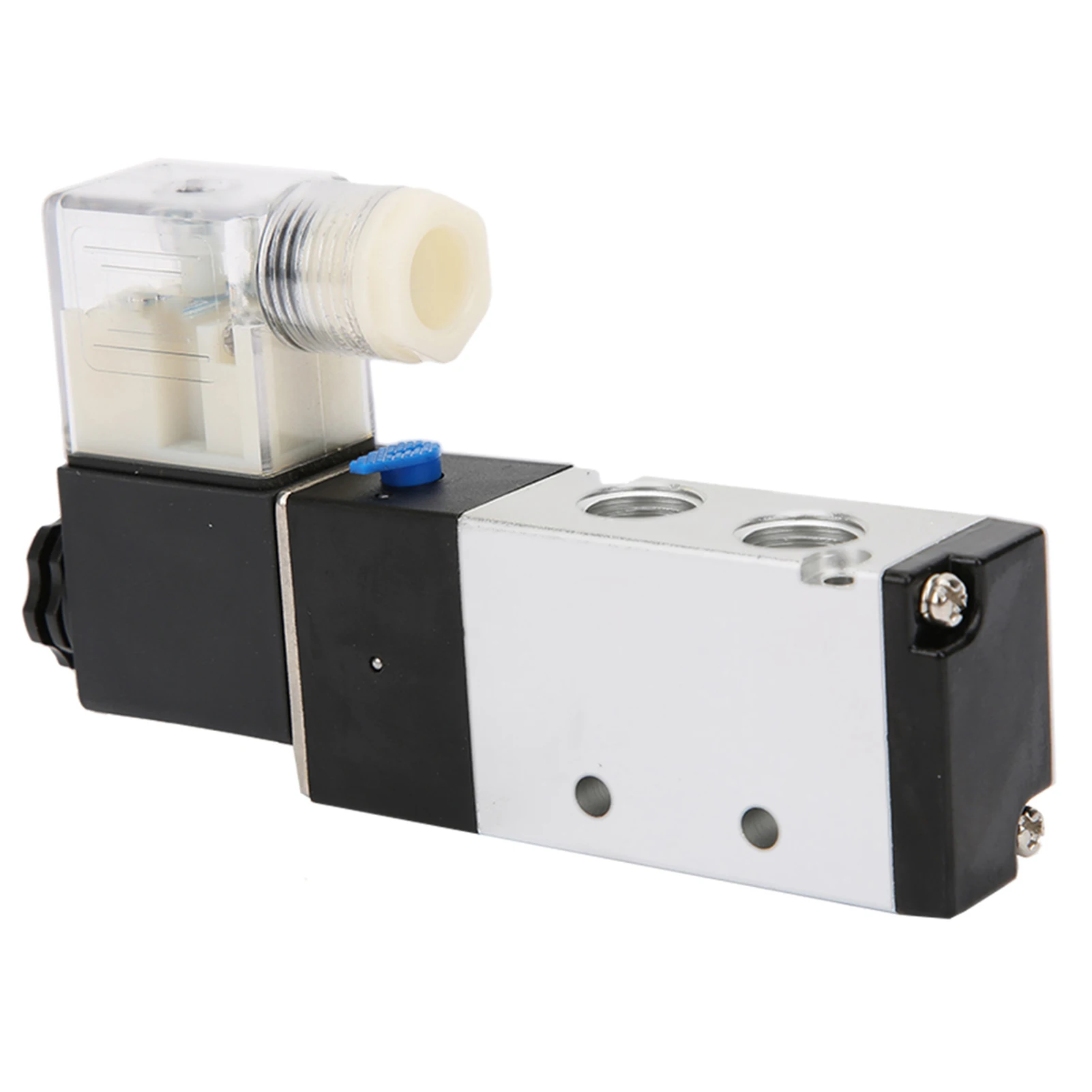

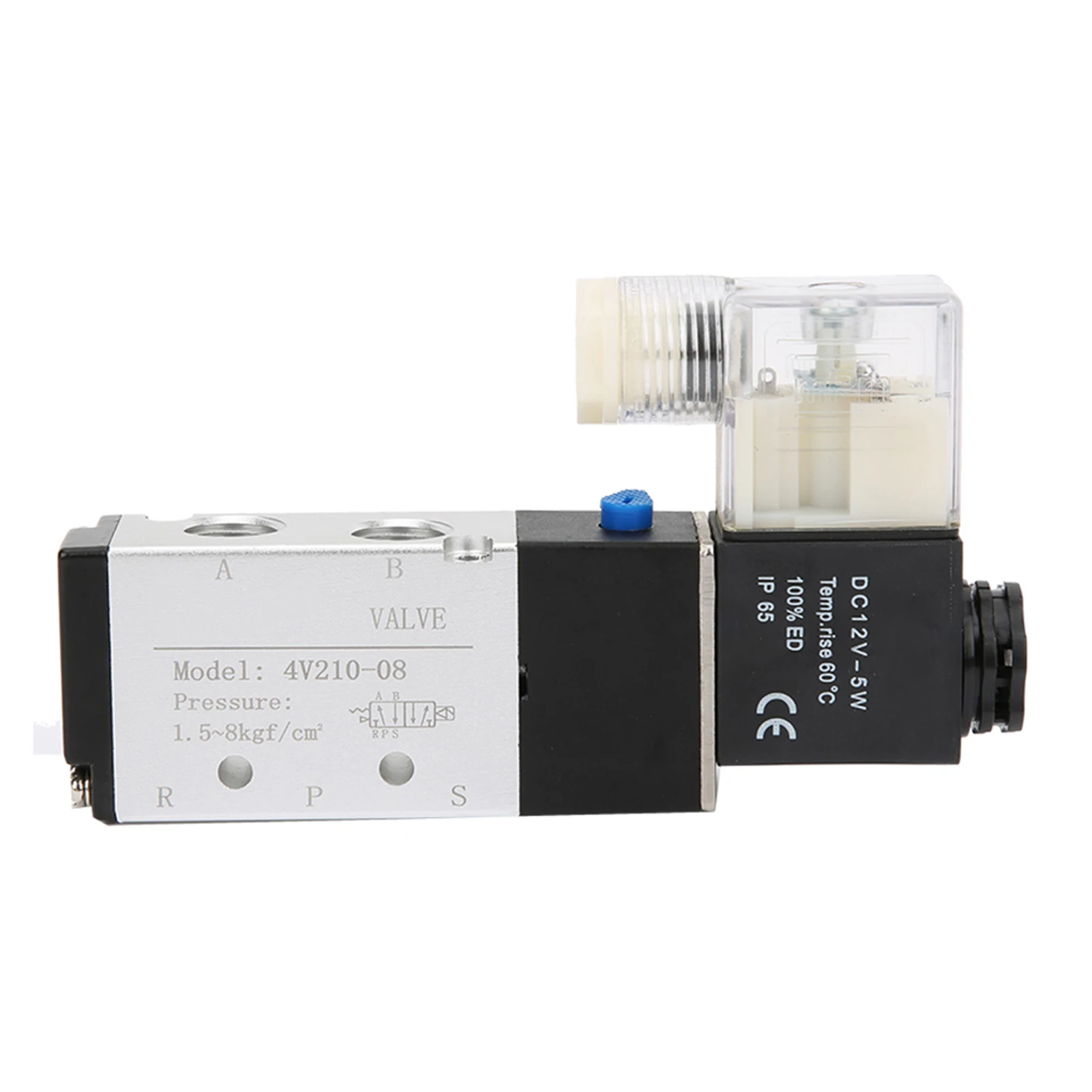

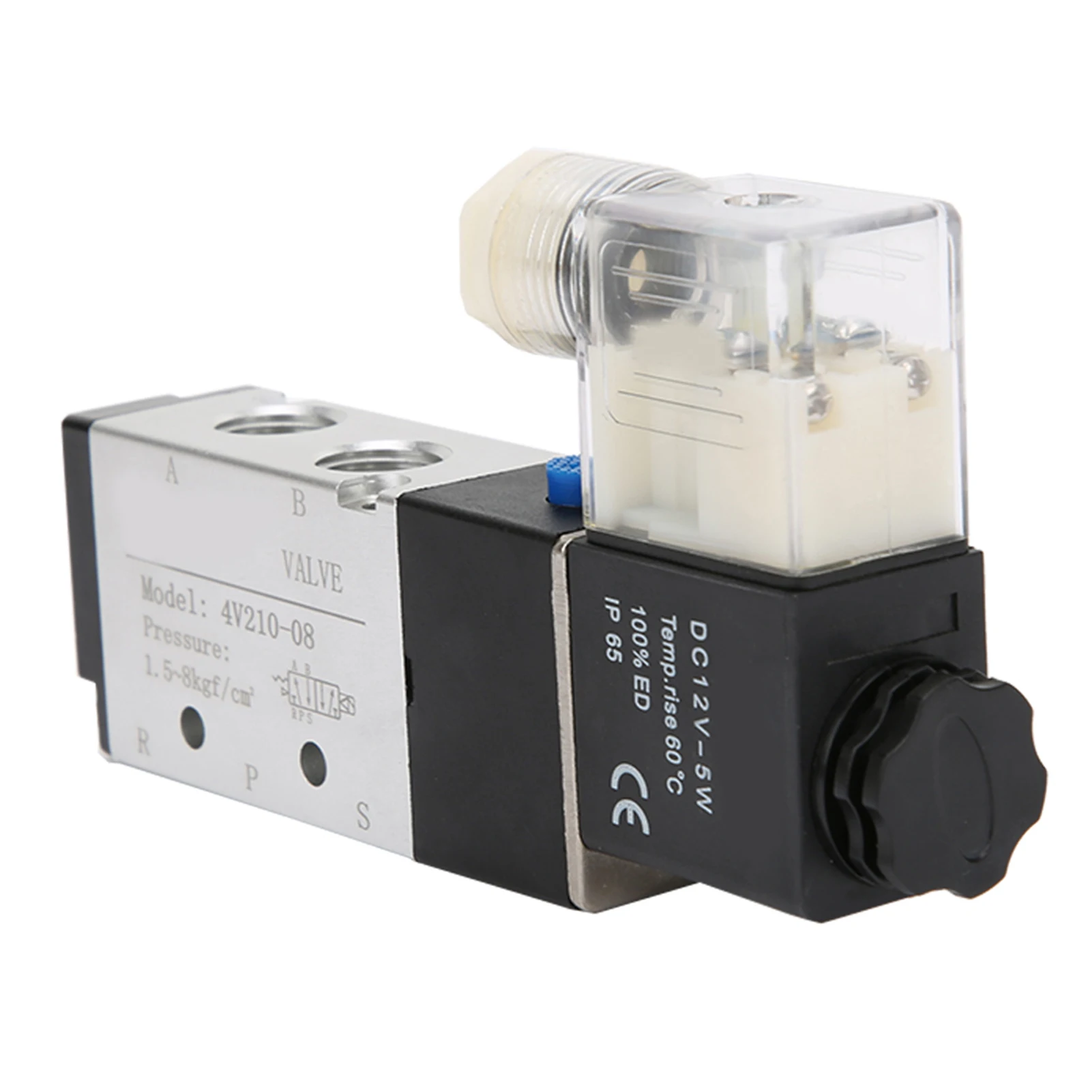

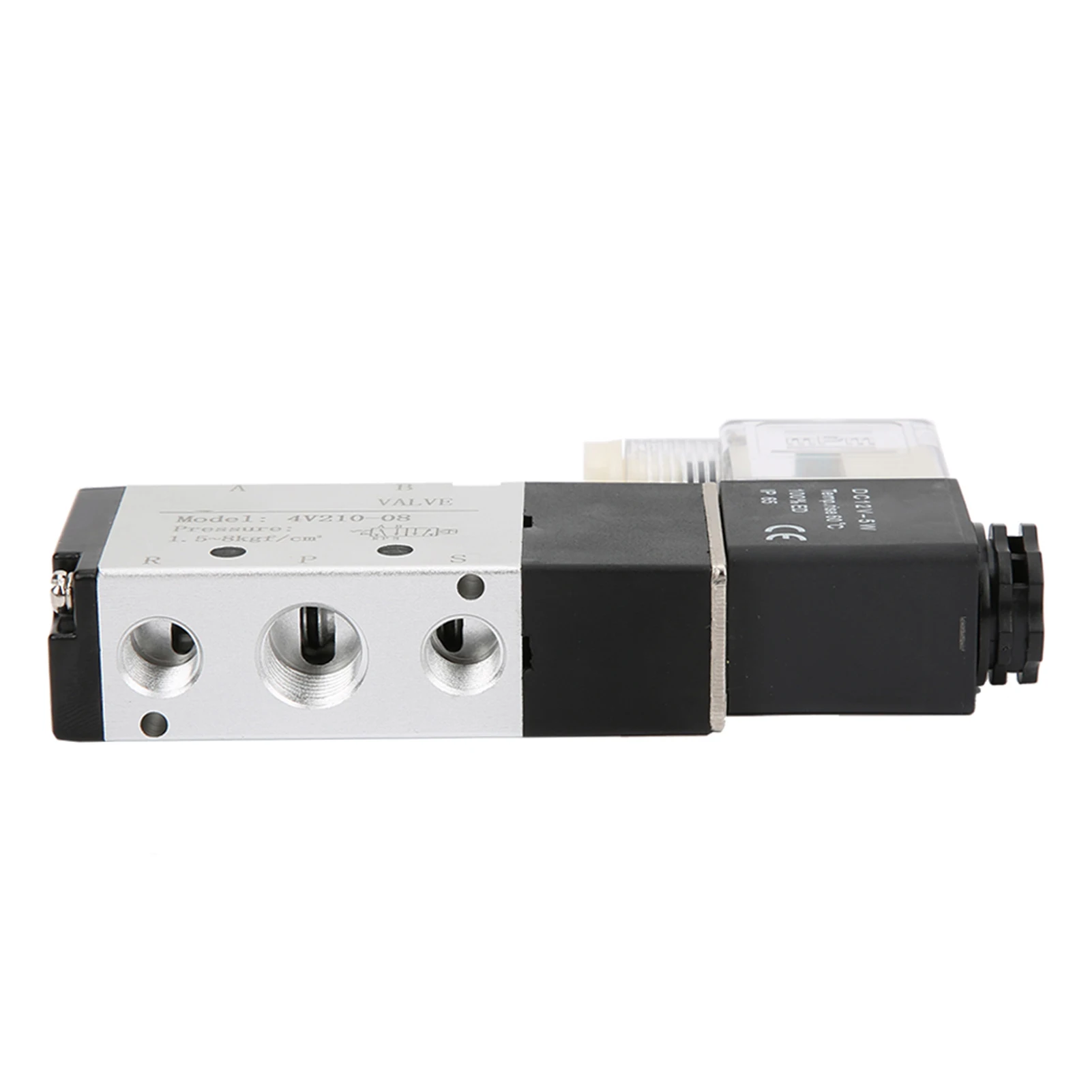

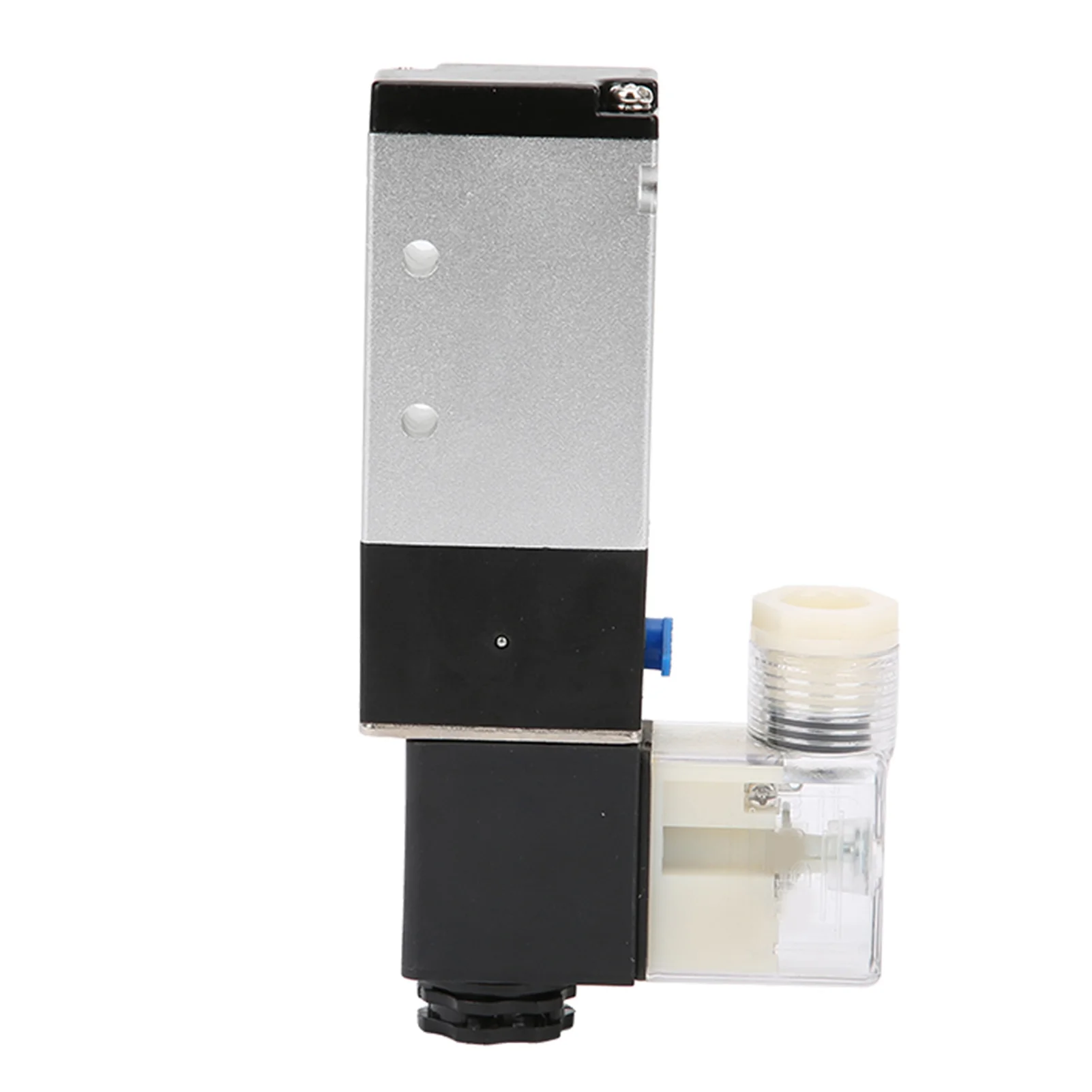

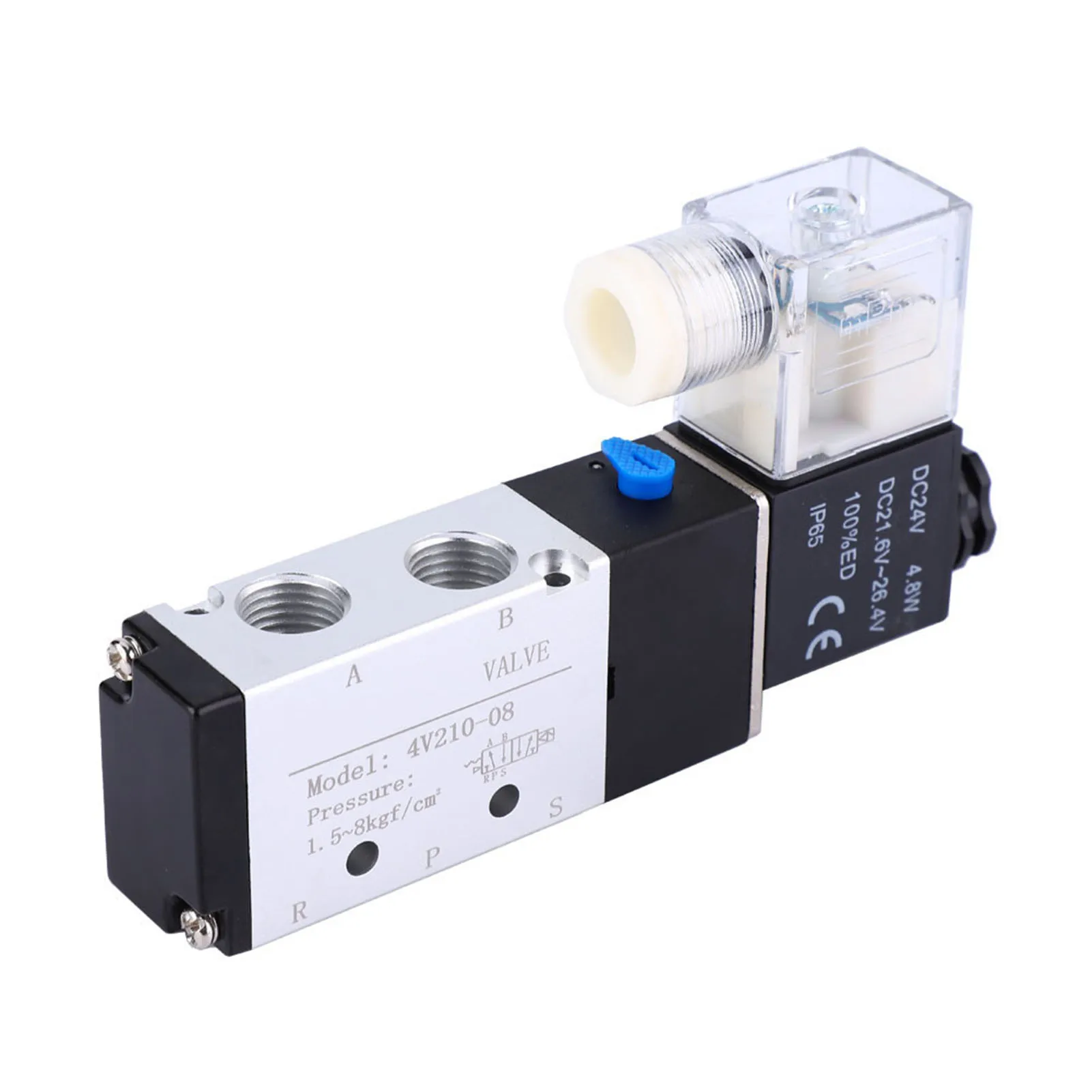

4V210-08 Solenoid Air Valve 2 Position 5 Port Pneumatic Control Valve
Specification:
Features:
100% brand new and high quality.
2 Position 5 Port Solenoid Air Valve.
Good seal, safe and reliable to use.
Compact size, easy to assemble and disassemble.
Stable performance, long service life.
Specification:
Model: 4V210-08
Use fluid: Air (filtered through 40 micron screen)
Actuating mode: Internal guide mode
Lubrication: No need
Use pressure: 1.5-8.0kgf/cm2
Maximum pressure: 10.5kgf/cm2
Working temperature: 5~50℃
Voltage range: +15% -25%
Power consumption: AC: 5.4VA, DC: 2.5W
Insulation: F CLASS
Service life: About 10 million times under normal use
Maximum actuating time: 0.05sec
Protection class: IP65 (DIN40050)
Voltage: DC 12V/24V (Optional)
Instructions:
1. Check the components before use, whether they are damaged during transportation, then install and use them.
2. When installing, please pay attention to the direction of gas flow and whether the nozzle is correct.
3. When iInstalling, pay special attention to whether the voltage meets the requirements, the whole machine debugging, it is recommended to use manual device debugging, and then power-on debugging.
4. Please pay attention to dust prevention and suggest installing muffler at the exhaust port.
5. When connecting the pipeline, pay attention to the winding of the stop strip not to exceed the tooth end surface, and pay attention to the elimination of pipe joints, metal particles in the pipe, dust and oil pollution.
Package List:
1 x Solenoid Air Valve
Note:

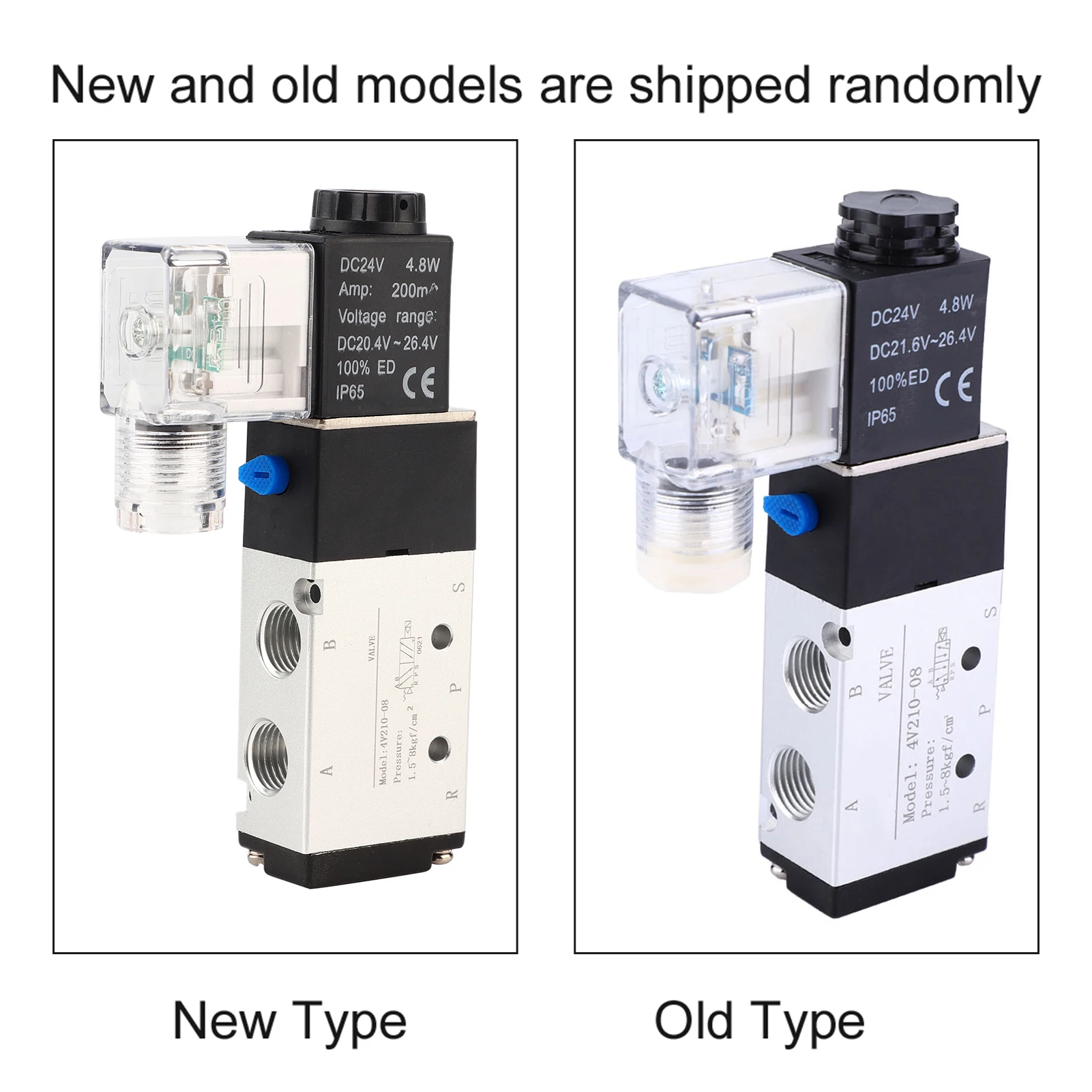

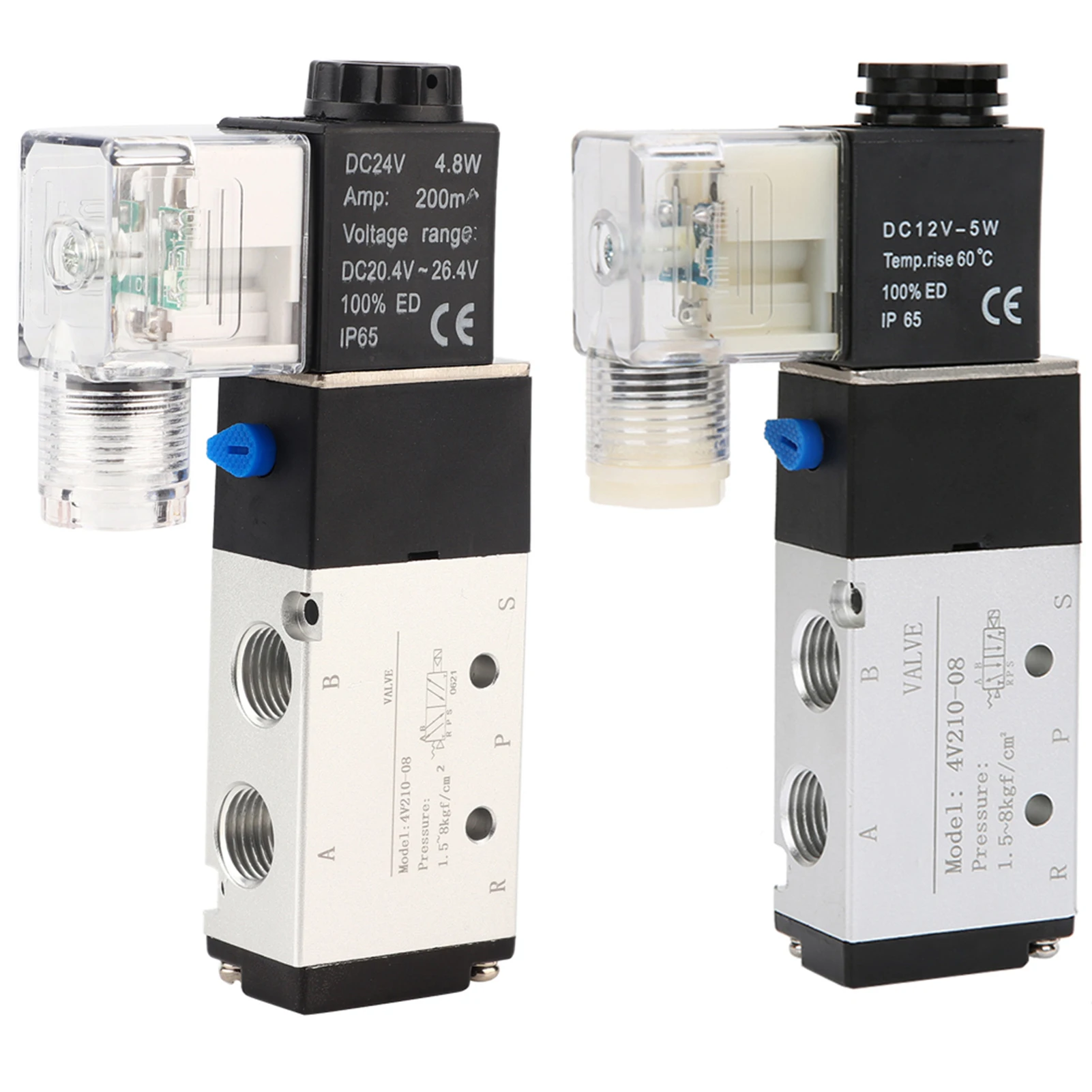

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
