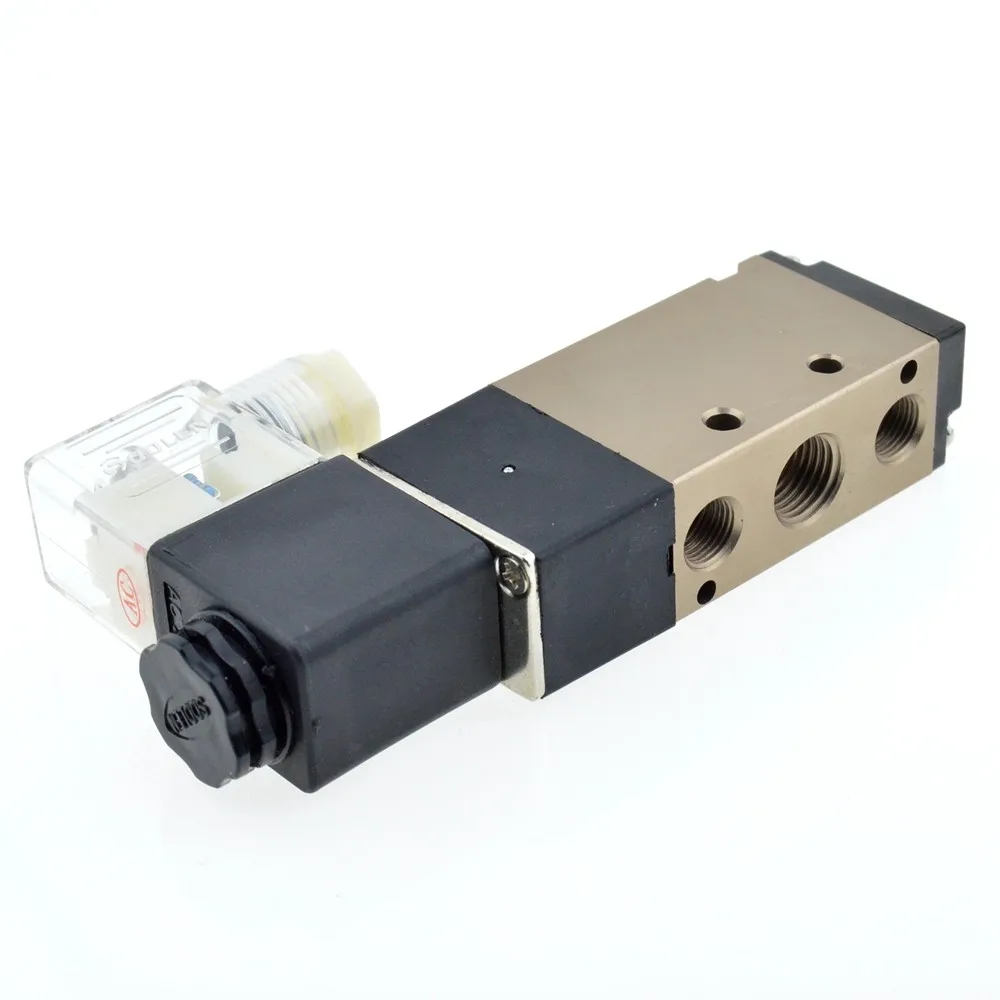

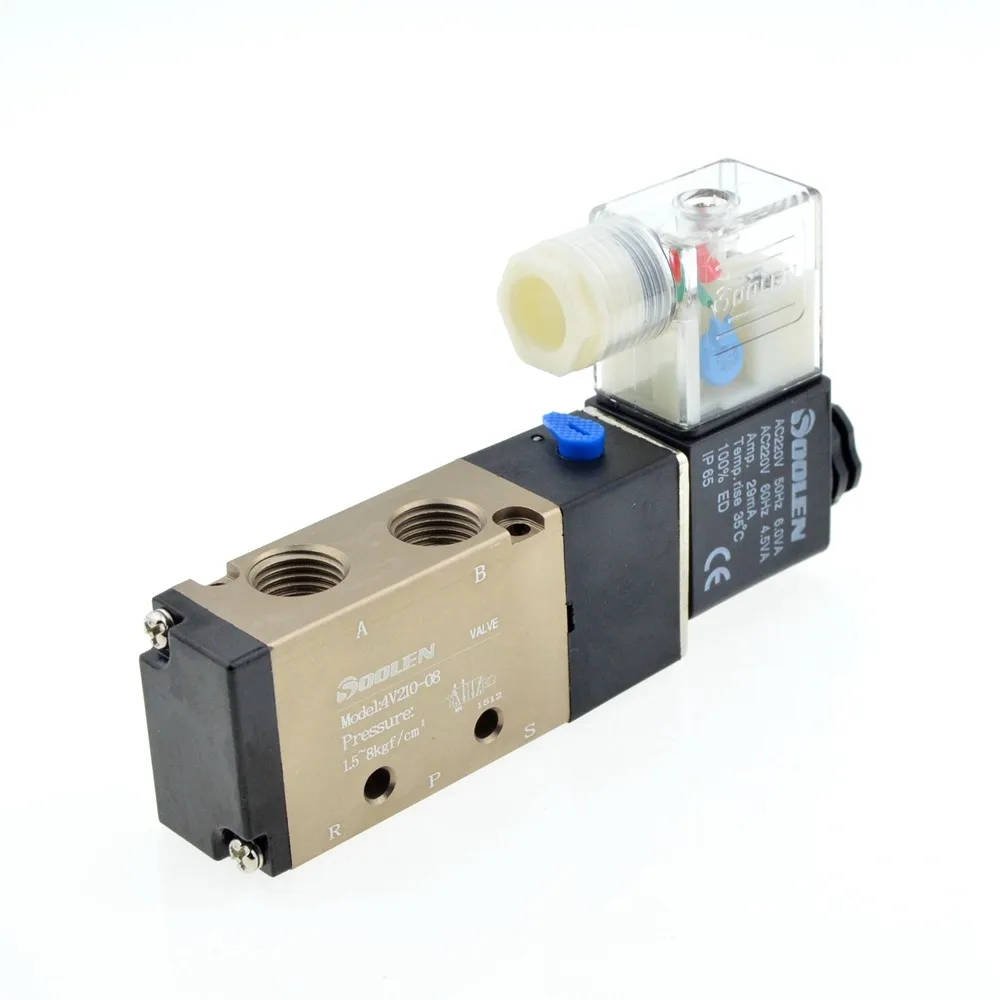

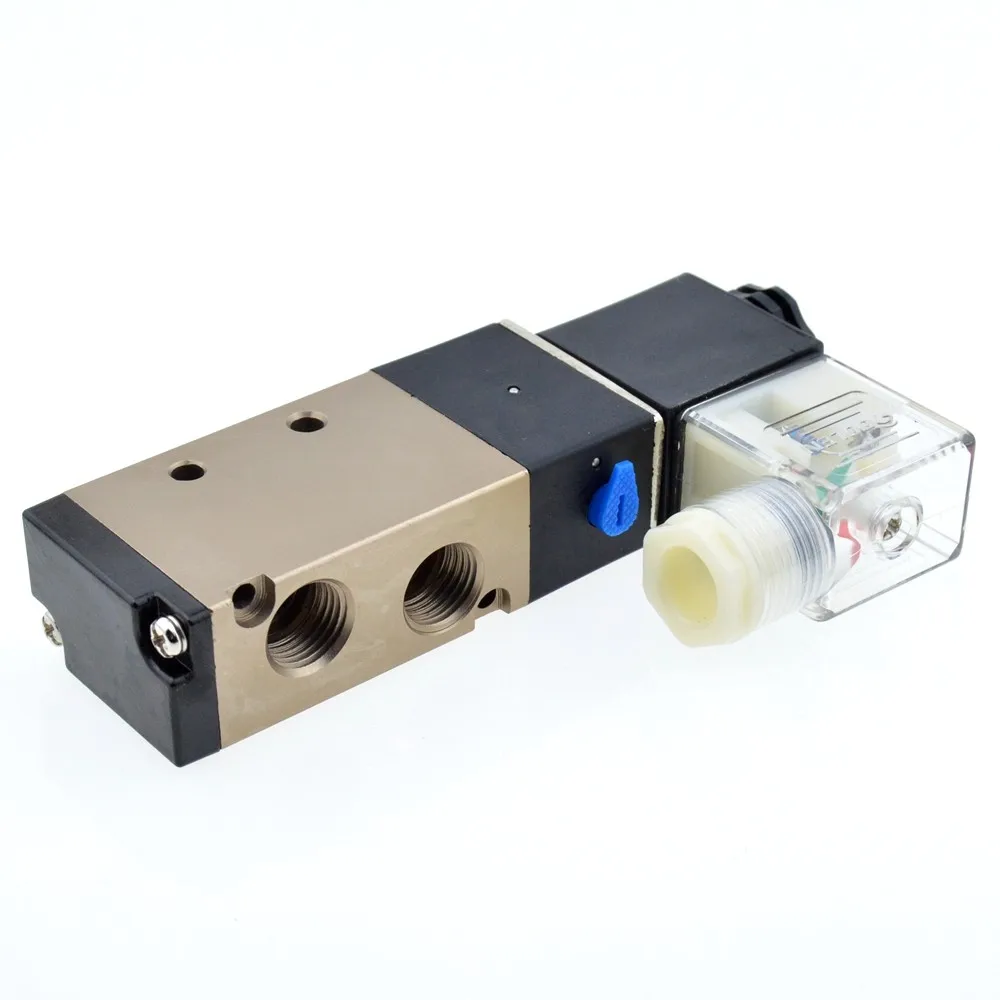

4V210-08 AC220V 110V DC 12V 24V 2 Position 5 Port / Way Single Coil Pneumatic Air Control Solenoid Valve

Model:

4V210-08

Fluid:

Air( to be filtered by 40μm filter element)

Acting:

Internal pilot

Port Thread Hole size:

Inlet=Outlet=1/4"BSPT, Exhaust=1/8"BSPT

Valve type:

5 Port 2 position (5 Ways 2 Positions)

Female Thread Port Diameter:

11.5mm/0.45" , 8.5mm/0.33"

Power Consumption:

AC 220V,110V;DC 12V,24V

Current:

29mA

Lubrication:

Not required

Operation pressure:

1.5 – 8kgf/cm^2 (21-114psi)

Proof pressure:

1.5MPa (215psi)

Protection:

IP65

Temperature:

5-50 C

Orifice size:

16.0mm2 (Cv=0.8)

Material of body:

Aluminum alloy

Max. frequency:

5 cycle / sec

Description:

* With solenoid operated for control appropriate flow and direction, provide great performance.
* Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.

Please note: If you need other coil voltage, Please click on "Buy Now" into the buy link.

Standard coil voltage

12VDC

24VDC

110VAC

220VAC

Please click on "Buy Now"

into the buy link.
