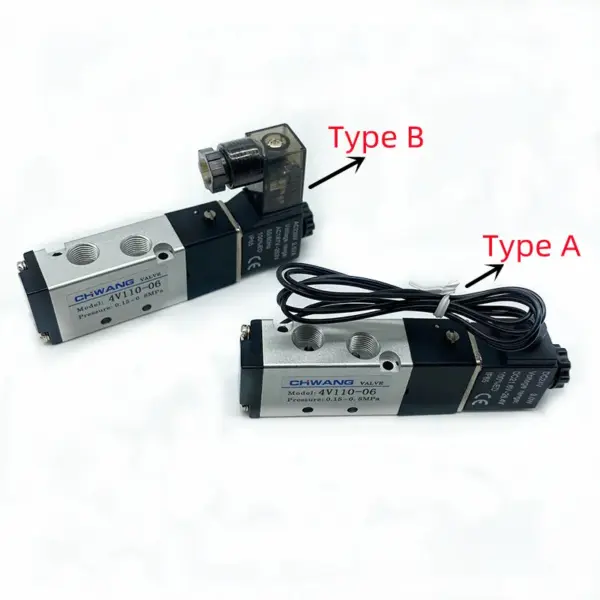

4V110-06 12V/24V/220V Solenoid Air Valve 5port 2position BSP

• Model: 4V110-06

• Positions: 5 ports/2 positions

• Effective Section Area: 12mm² (CV=0.67)

• Port Size: Air Inlet=Air Outlet=Exhaust=1/8"BSP

• Working Media/Fluld: 40 Micron Filtered Air

• Motion Pattern: Inner Guide Type

• Operating Pressure: 0.15-0.8 MPa / 22-116 PSI
• Max. Pressure Resistance: 1.2MPa / 174 PSI
• Operating Tempe: -5 to + 50°C / 41-122°F
• Allowable Voltage Fluctuation:  ±10% of Rated Voltage
• Power Consumption: AC:2.5VA / DC2.5W
• Insulation and Protection Class: F Class / IP65
• Wiring Form: Lead Wire or Connector Type
• Highest Action Frequency: 5/s
• Shortest Excitation Time: 0.05 second
