Description
-

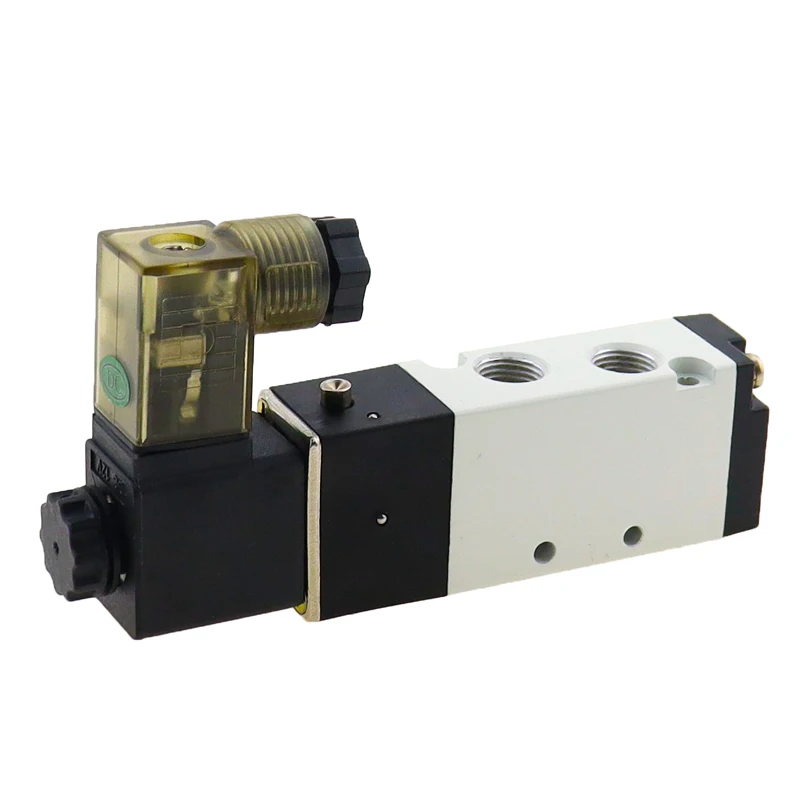

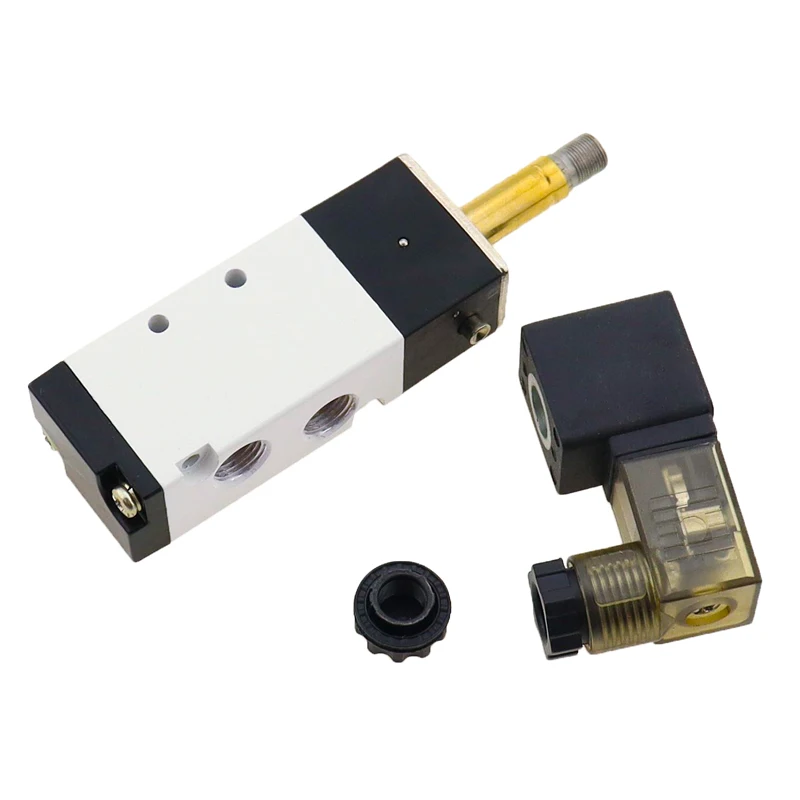

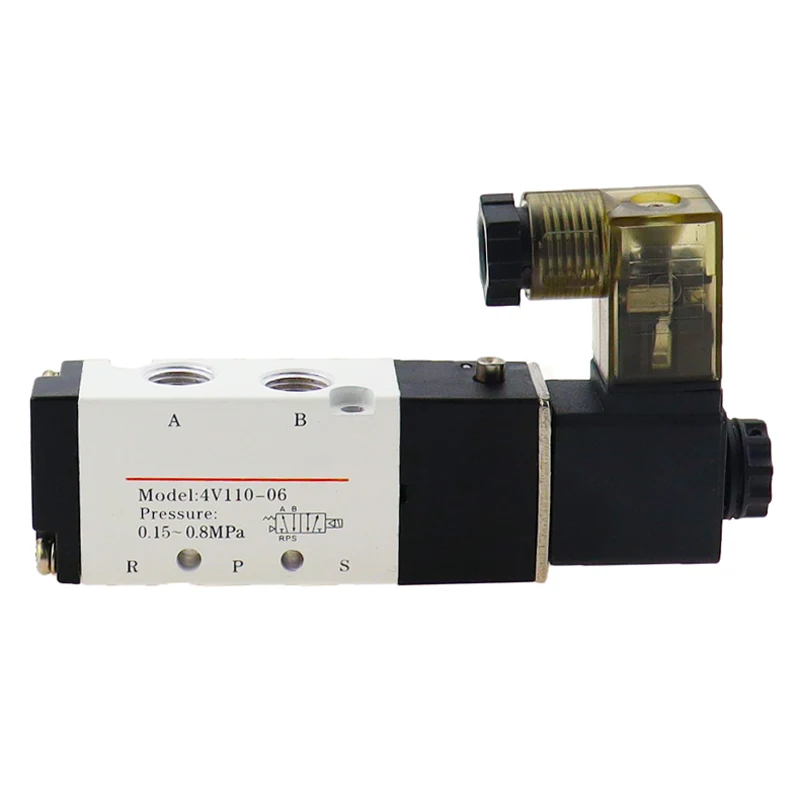

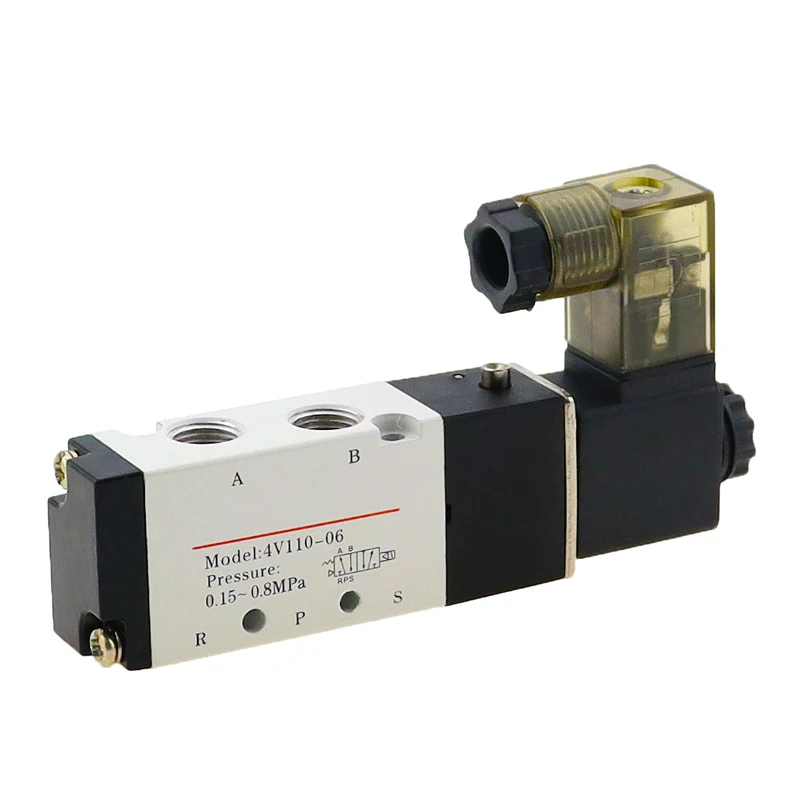

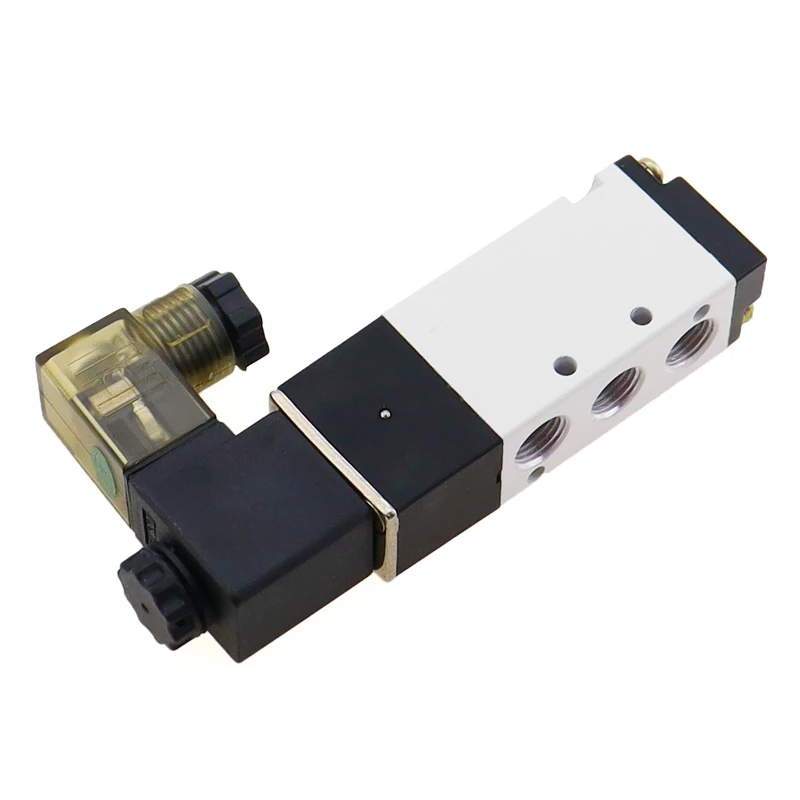

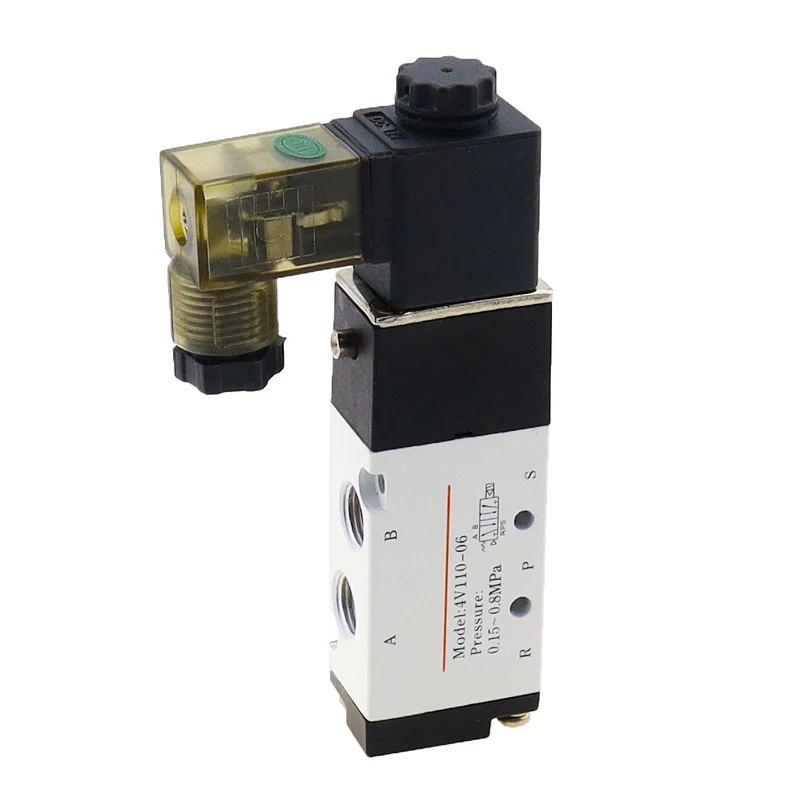

Model:4V110-06
-
Positions: 5 ports/2 positions
-
Effective Section Area: 12mm² (CV=0.67)
-
Port Size: Air Inlet=Air Outlet=Exhaust=1/8"BSP
-
Working Media/Fluld: 40 Micron Filtered Air
-
Motion Pattern:Inner Guide Type
-
Operating Pressure: 0.15-0.8 MPa / 22-116 PSI
-
Max. Pressure Resistance: 1.2MPa / 174 PSI
-
Operating Tempe: -5 to + 50°C / 41-122°F
-
Allowable Voltage Fluctuation: ±10% of Rated Voltage
-
Insulation and Protection Class: F Class / IP65
-
Wiring Form: Lead Wire or Connector Type
-
Highest Action Frequency: 5/s
-
Shortest Excitation Time: 0.05 second
