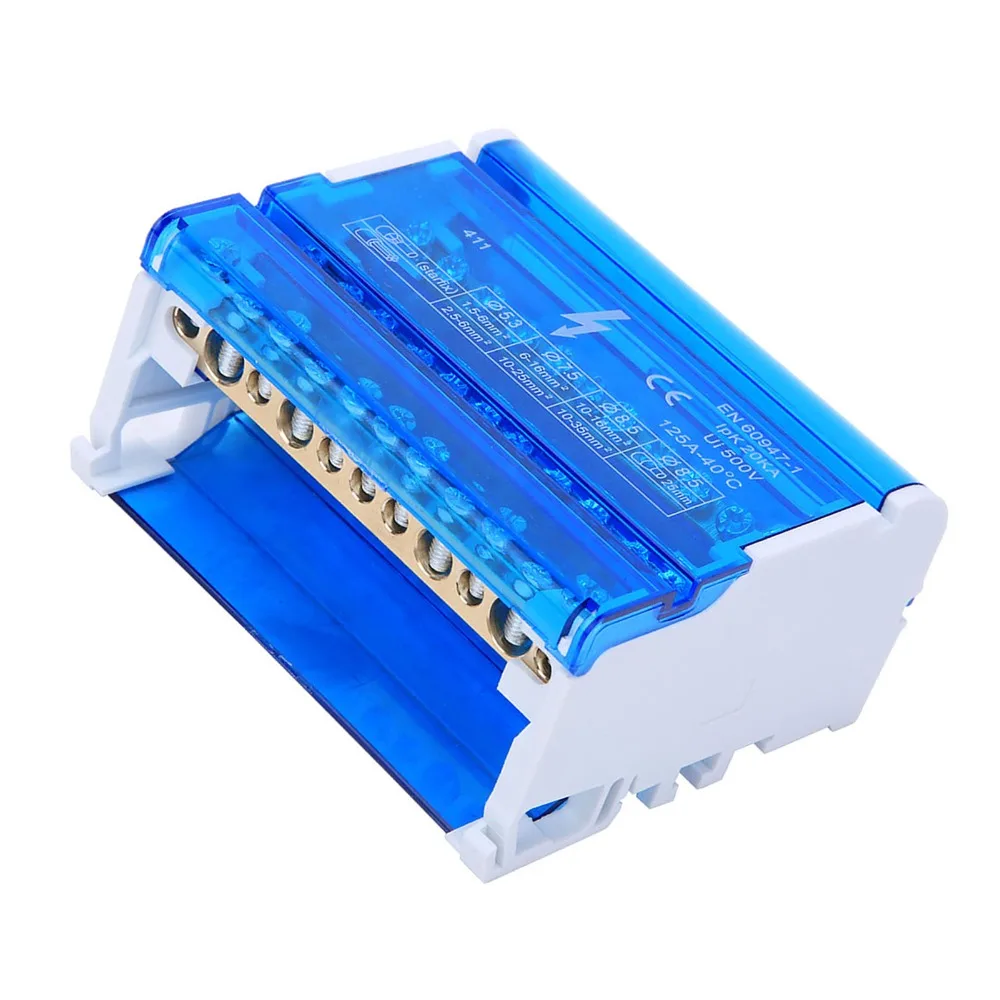

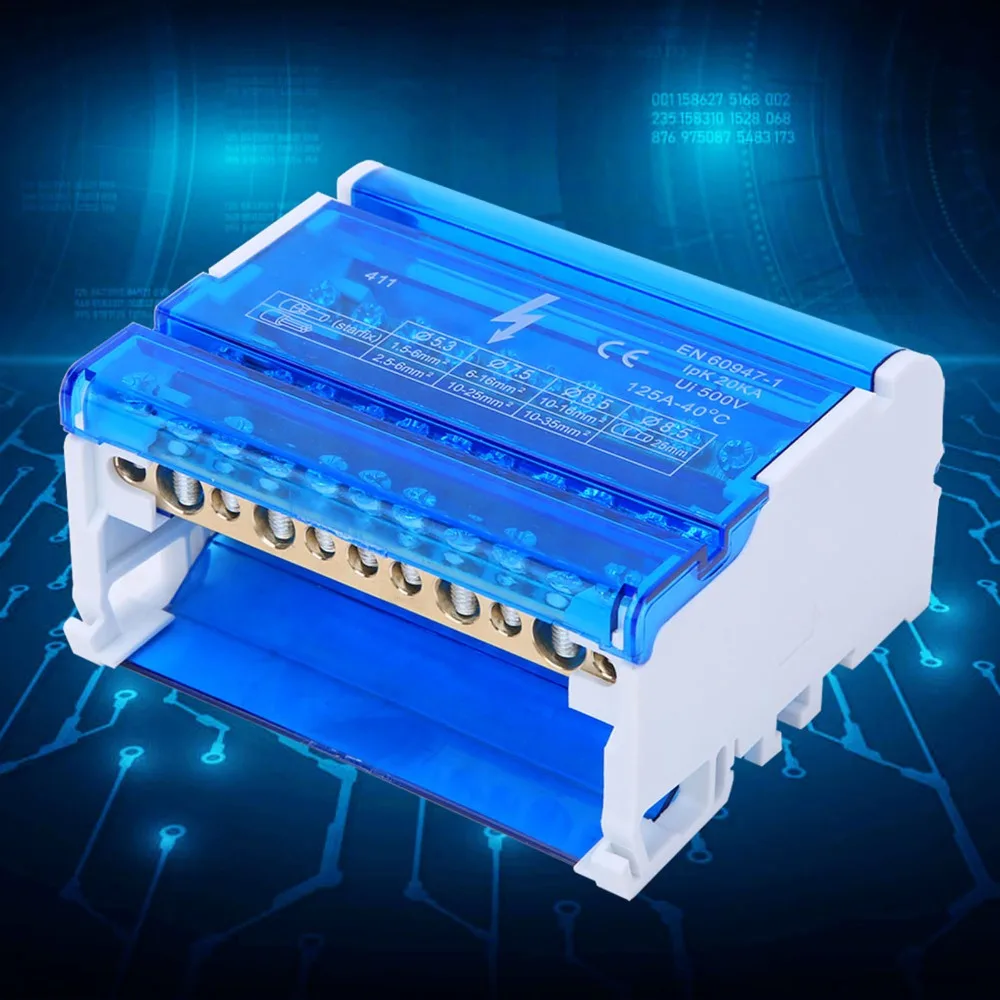

Description
The box adopt brass conductive and fire retardant housing, the maximum withstand current is 100A.

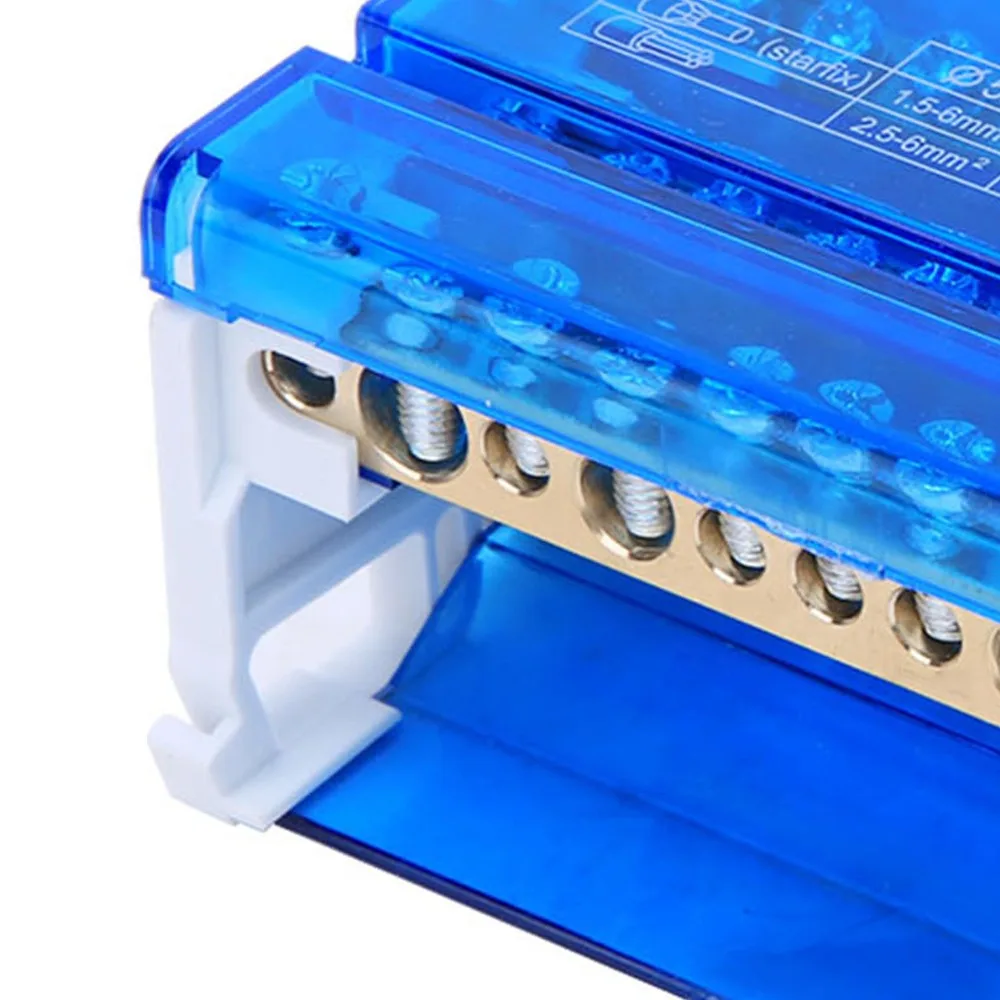

The isolation barrier between the terminal blocks can avoid touching and causing short circuit.
Small body with many splitting heads, which saves wiring space to the greatest extent.

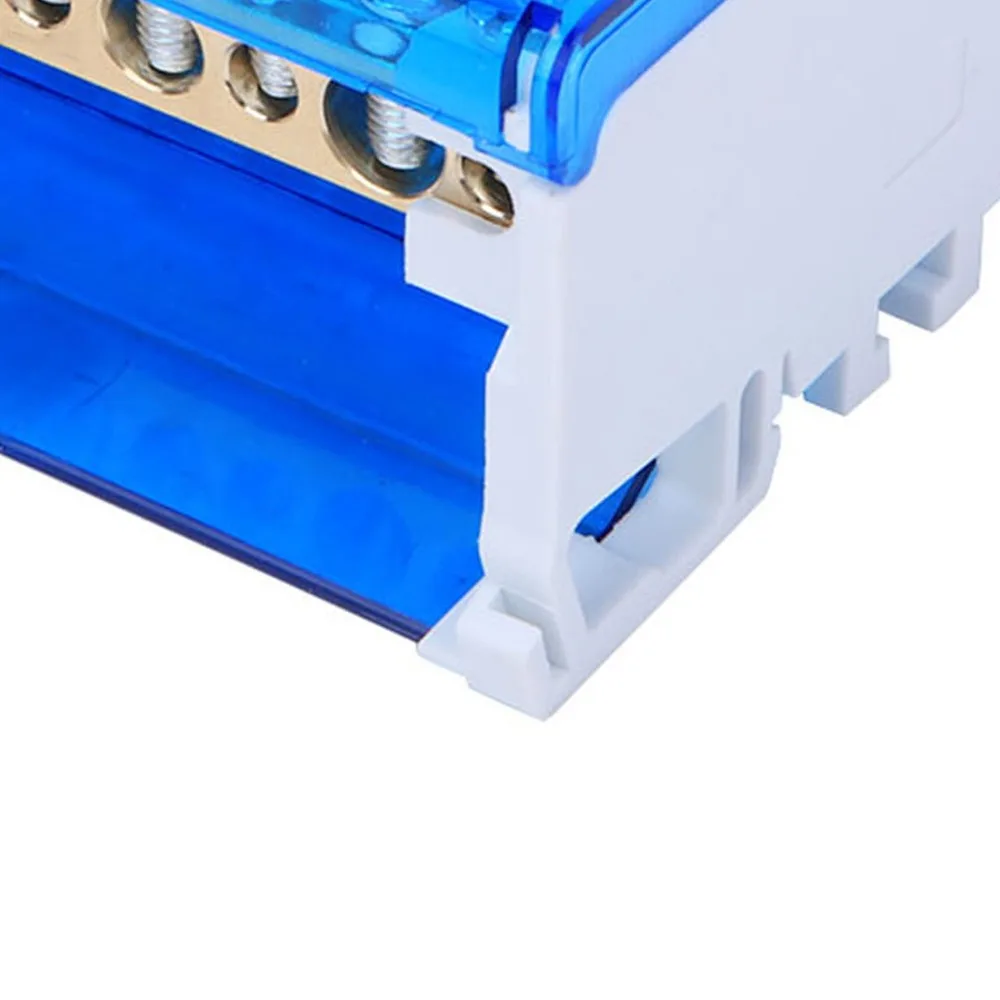

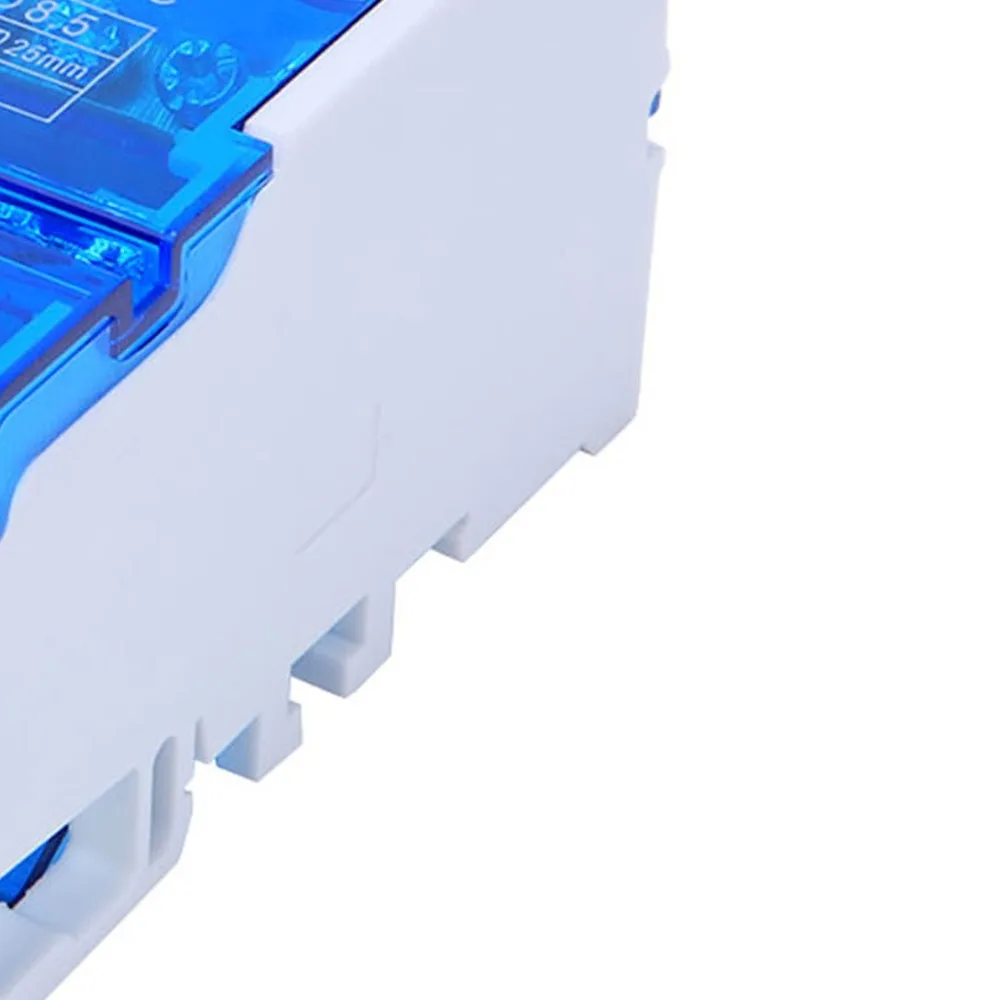

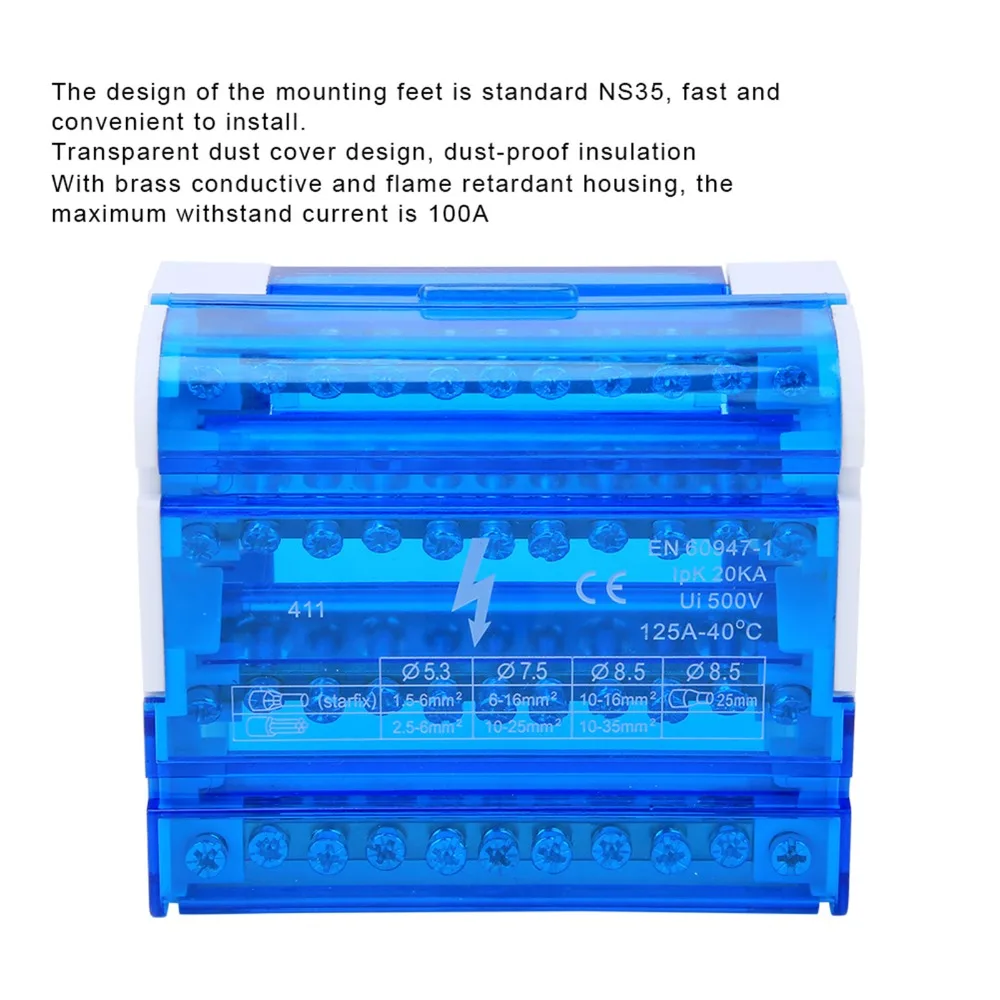

Adopt Din Rail installation method, fast and convenient to install, suitable for electrical engineering.

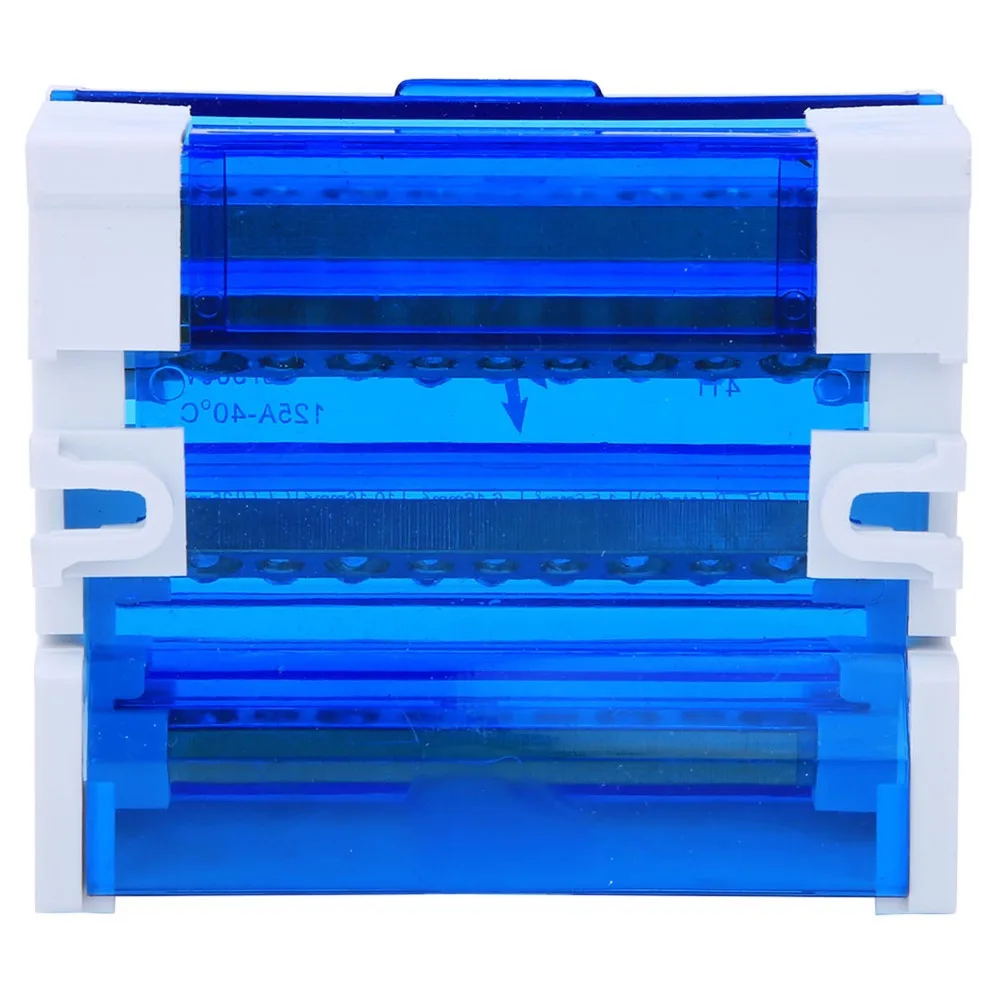

Transparent dust cover design, dust-proof insulation, you can know the internal wiring state without opening the cover.
Specification

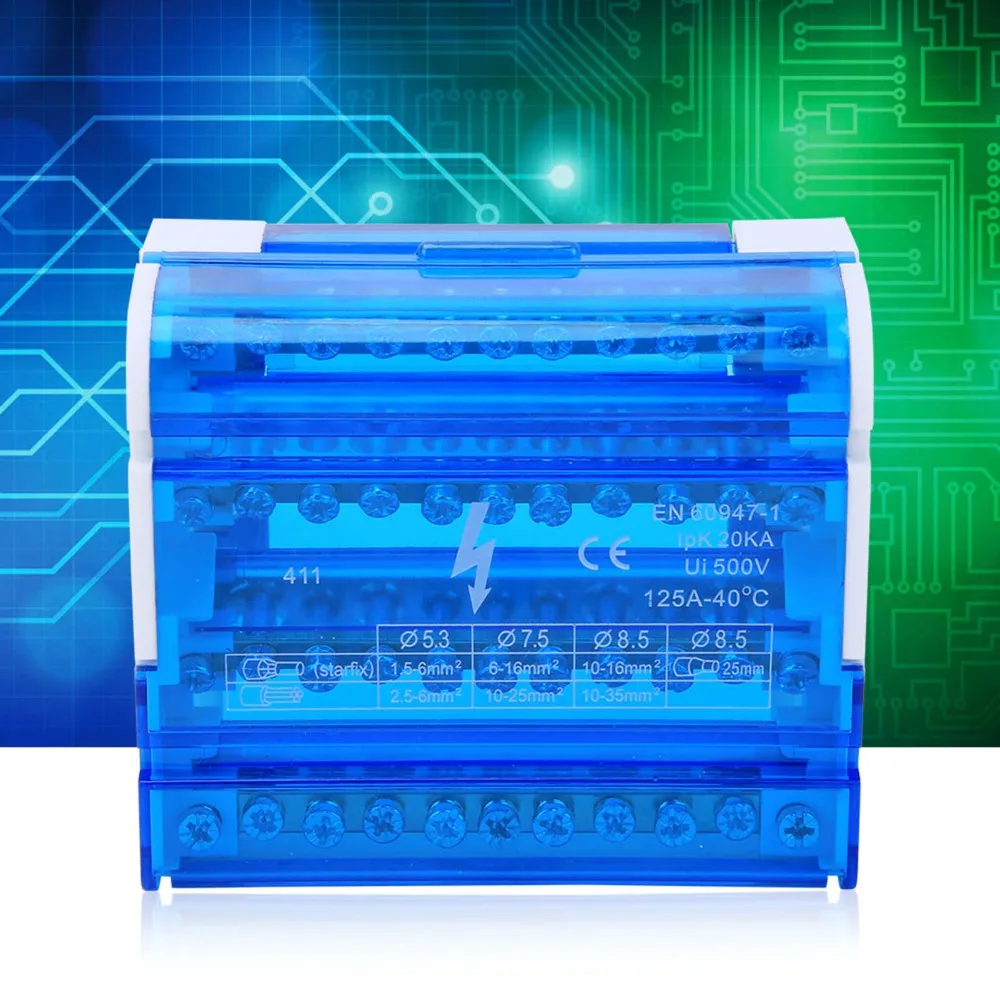

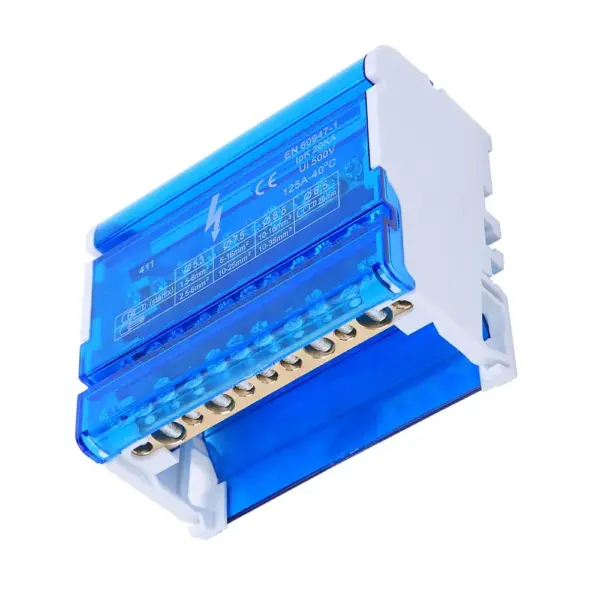

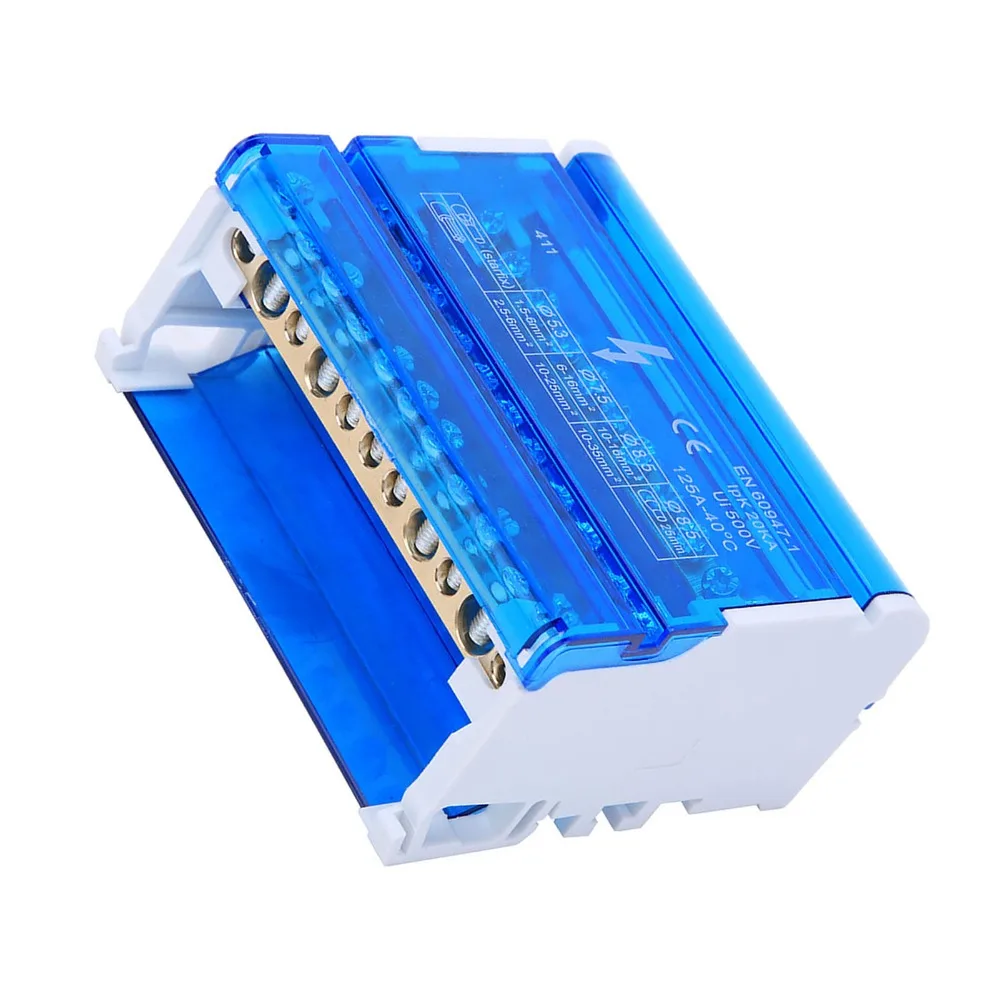

Item Type: Terminal Distribution Box
Model: 4-Level junction box 411
Rated Current: 125A
Rated Voltage: 500V
Type: Terminal block / Wiring block (strip)

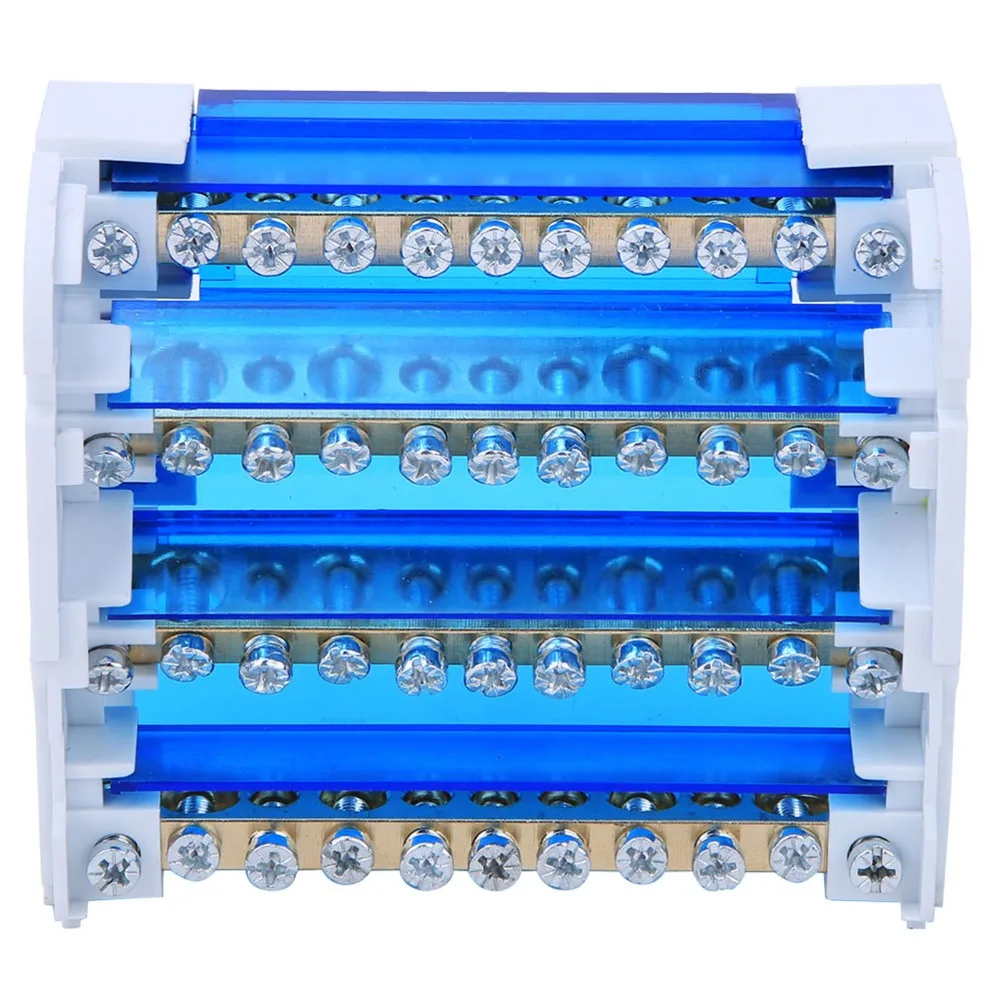

Product Outlet: 4 input 40 output
Number of Holes: 4×11
Brass Rod: 6.5 x 12mm(0.26 x 0.47in)
Color: Blue
Metal Material: Brass, primary color
Shell Material: Premium PA nylon material
Installation: Din Rail
Application: Cabinet
Application Area: Electrical Engineering
Fire Rating: 94V-2 fire retardant, solvent resistance, good impact resistance
Working Temperature: -30℃ ~ 110℃
Applicable Power Range: 250-450V

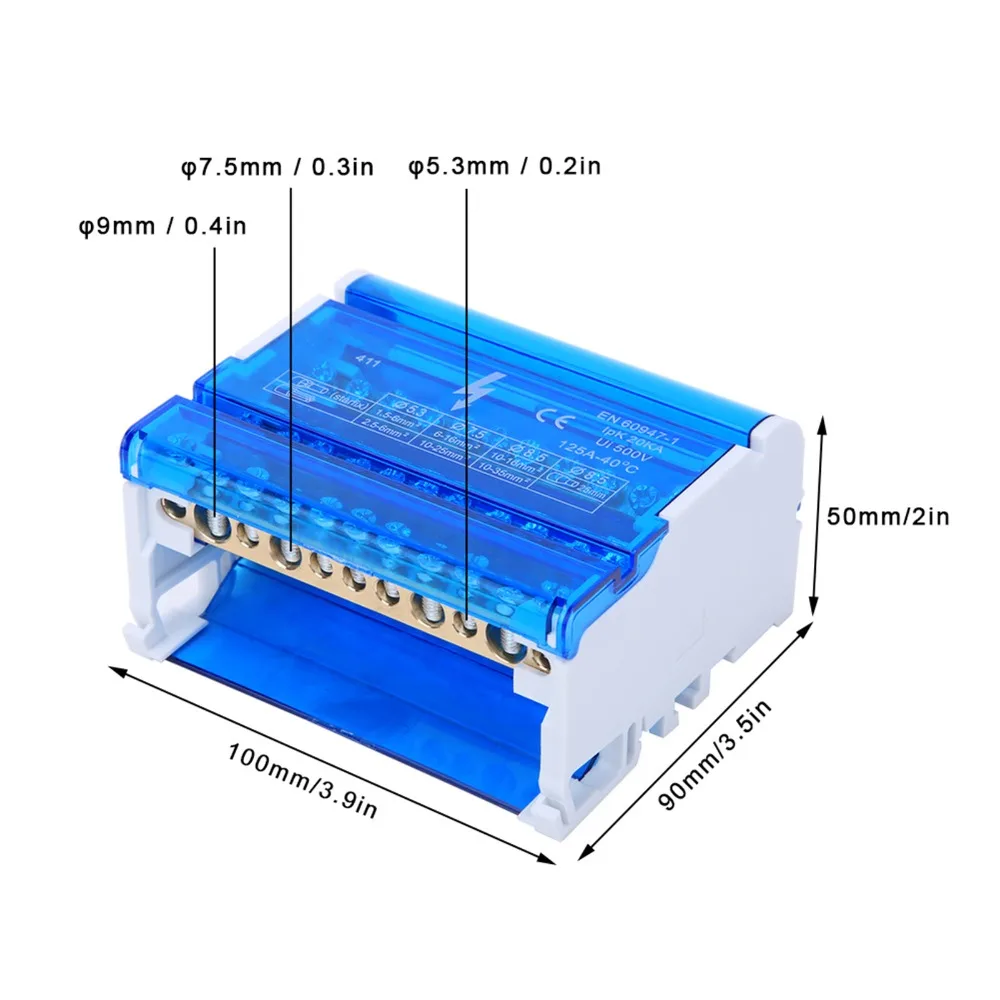

Size: Approx. 100 x 90 x 50mm(3.9 x 3.5 x 2in)
Package List
1 x Terminal Distribution Box
