40Sets M8 bolts & nuts 304 Stainless Steel T Screw Stronger Antioxidant Activity Sturdy and Durable for PV Solar Mounting Rails

Highlight description:

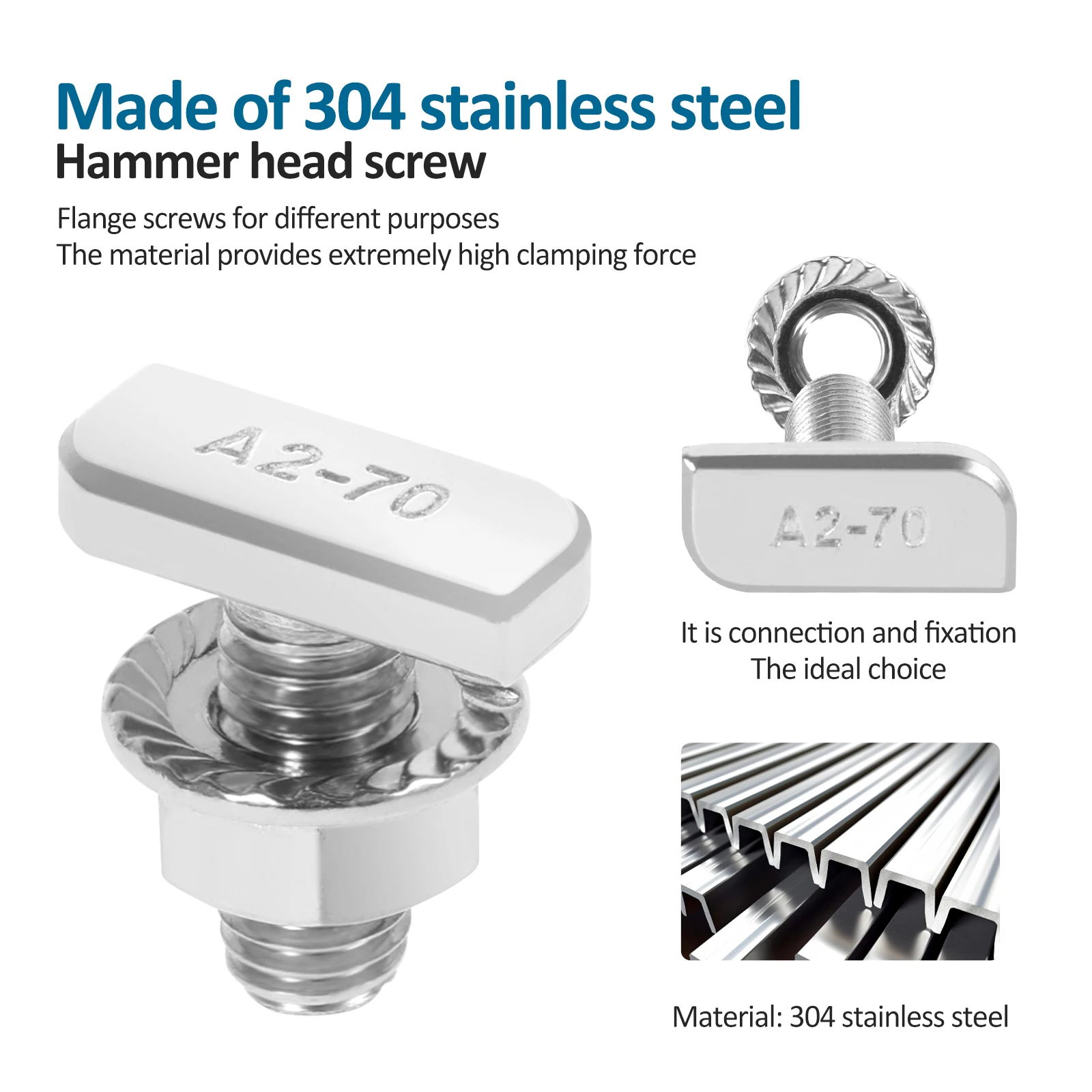

• Material

    The hammer head screws are made of 304 stainless steel , which is sturdy and has excellent rust resistance . The flange screws can provide high clamping force for different materials , so they are ideal choices for connection and fixation in various situations

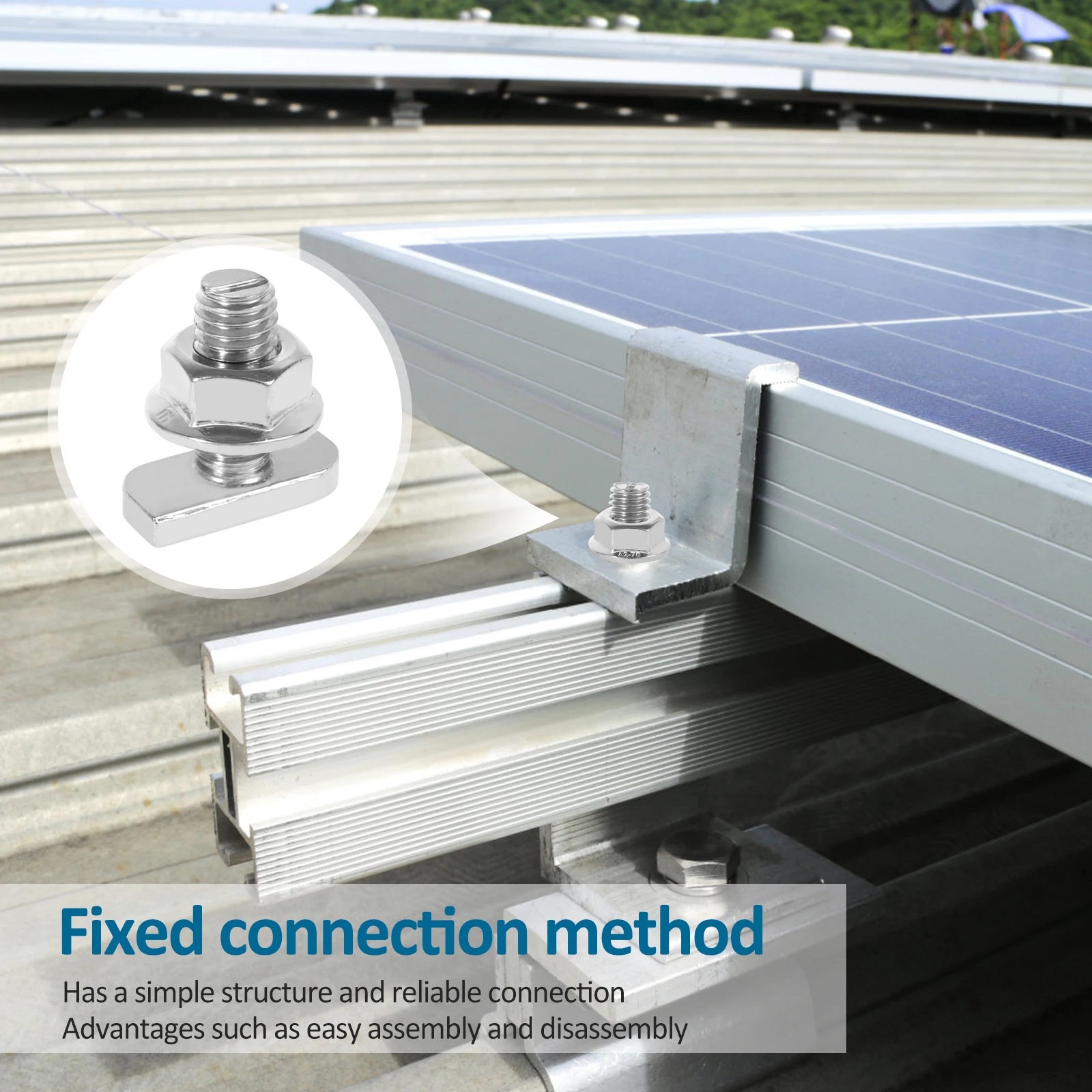

• Simple and Reliable Structure

    As a widely used fixed connection method , the threaded connection has the advantages of simple structure , reliable connection , convenient assembly and disassembly , etc. , and is suitable for various mechanical equipment and engineering fields

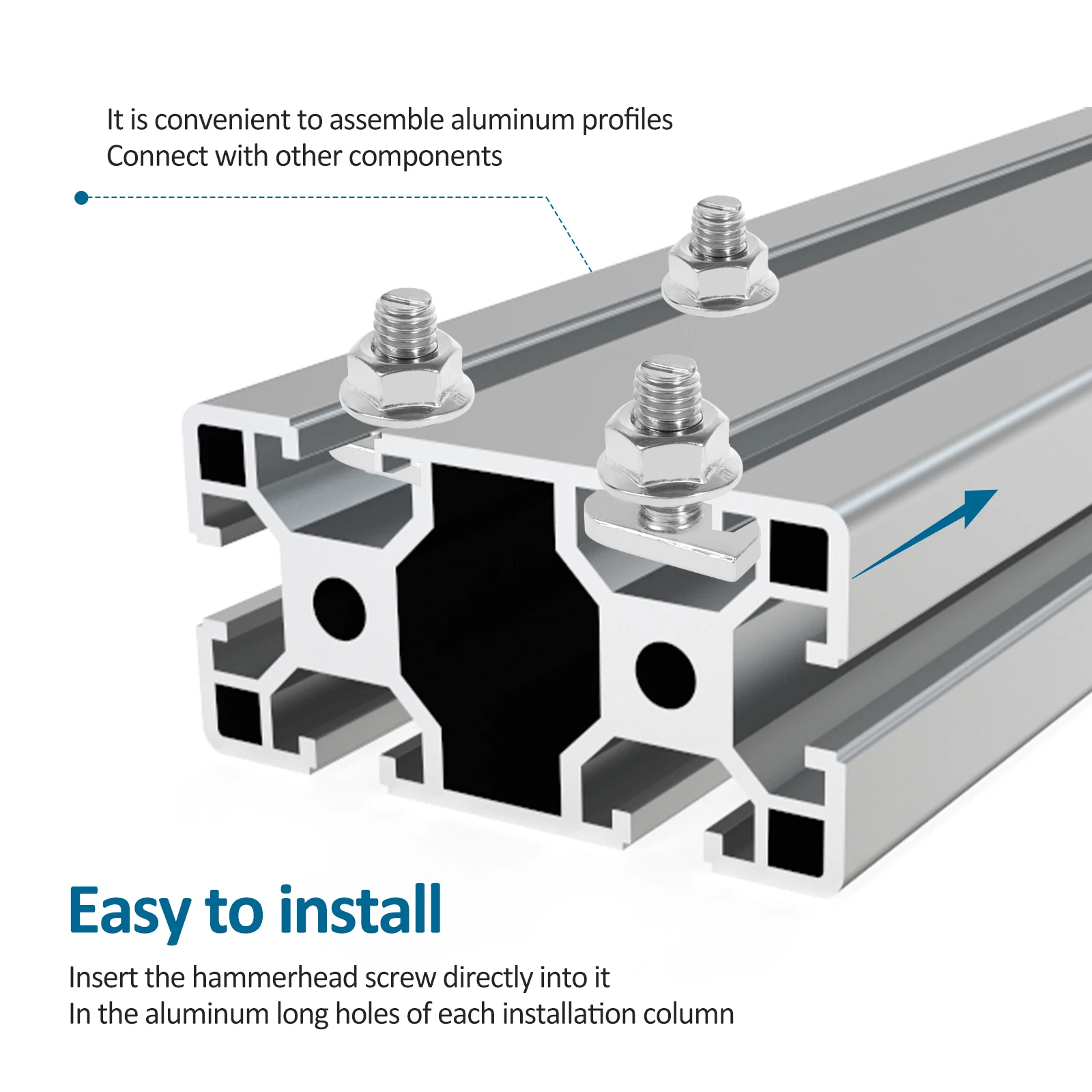

• Easy to Install

    Directly insert the hammer head screws into the aluminum long holes of each mounting column , so that the aluminum profiles can be conveniently connected with other components

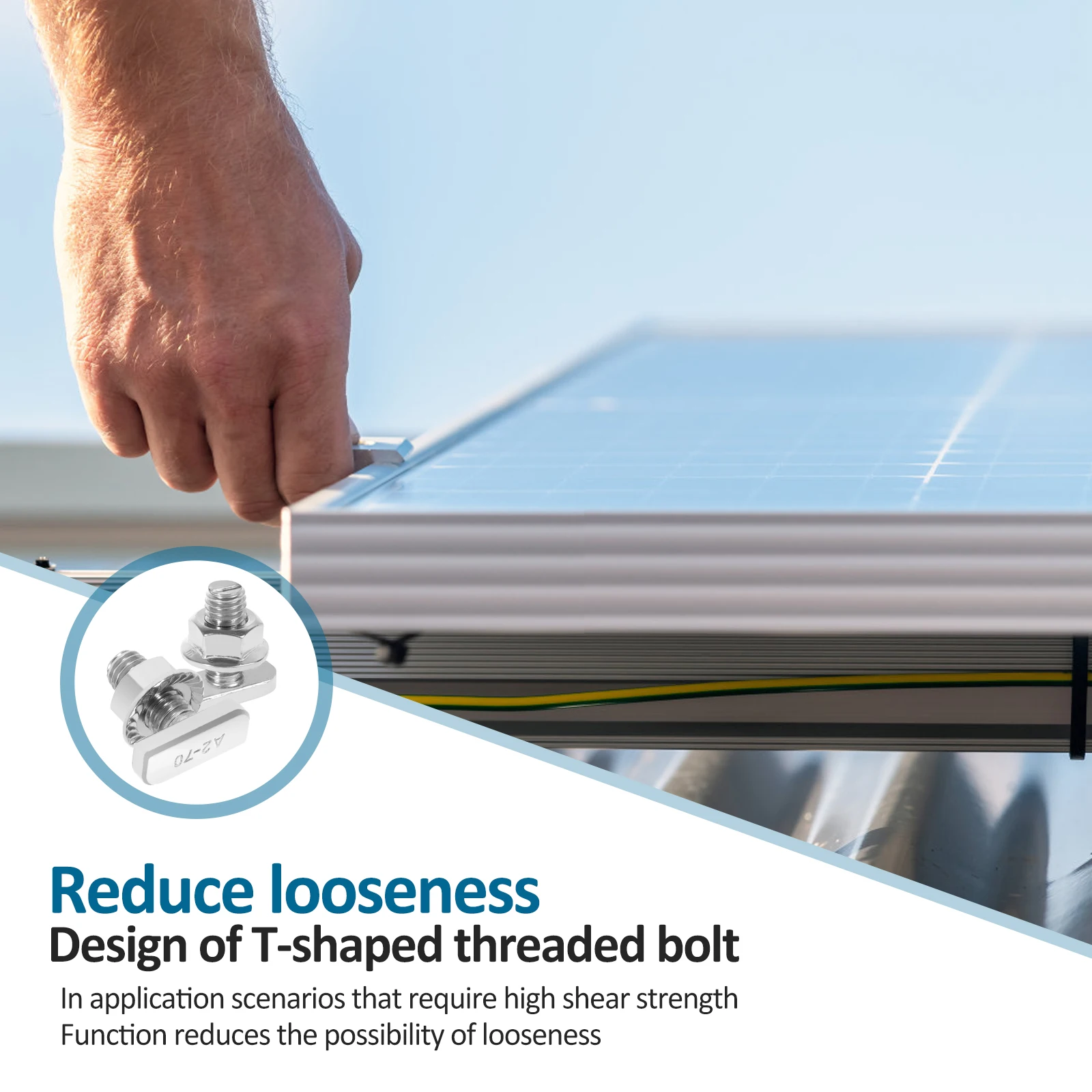

• Reduced Loosening

    In application scenarios that require high shear resistance , the T type threaded bolts are less likely to loosen due to their design features

• Wide Range of Uses

    The hammer head screws are not only suitable for flower box brackets , windowsills and greenhouse accessories , but also for installing photovoltaic aluminum profiles , photovoltaic mounting rails and solar brackets

Detailed description:

•Description :

    Made of 304 stainless steel , the hammer head screw set is sturdy , with excellent rust resistance . Its design features reduce the likelihood of loosening , meeting various needs ranging from flower box brackets and greenhouse accessories to solar brackets .

•Key Feature :

    You Will Receive : You will receive 40 M8x20mm hammer head screws and 40 M8 nuts .

•Specification :

    Product Name : Hammer Head Screw Set

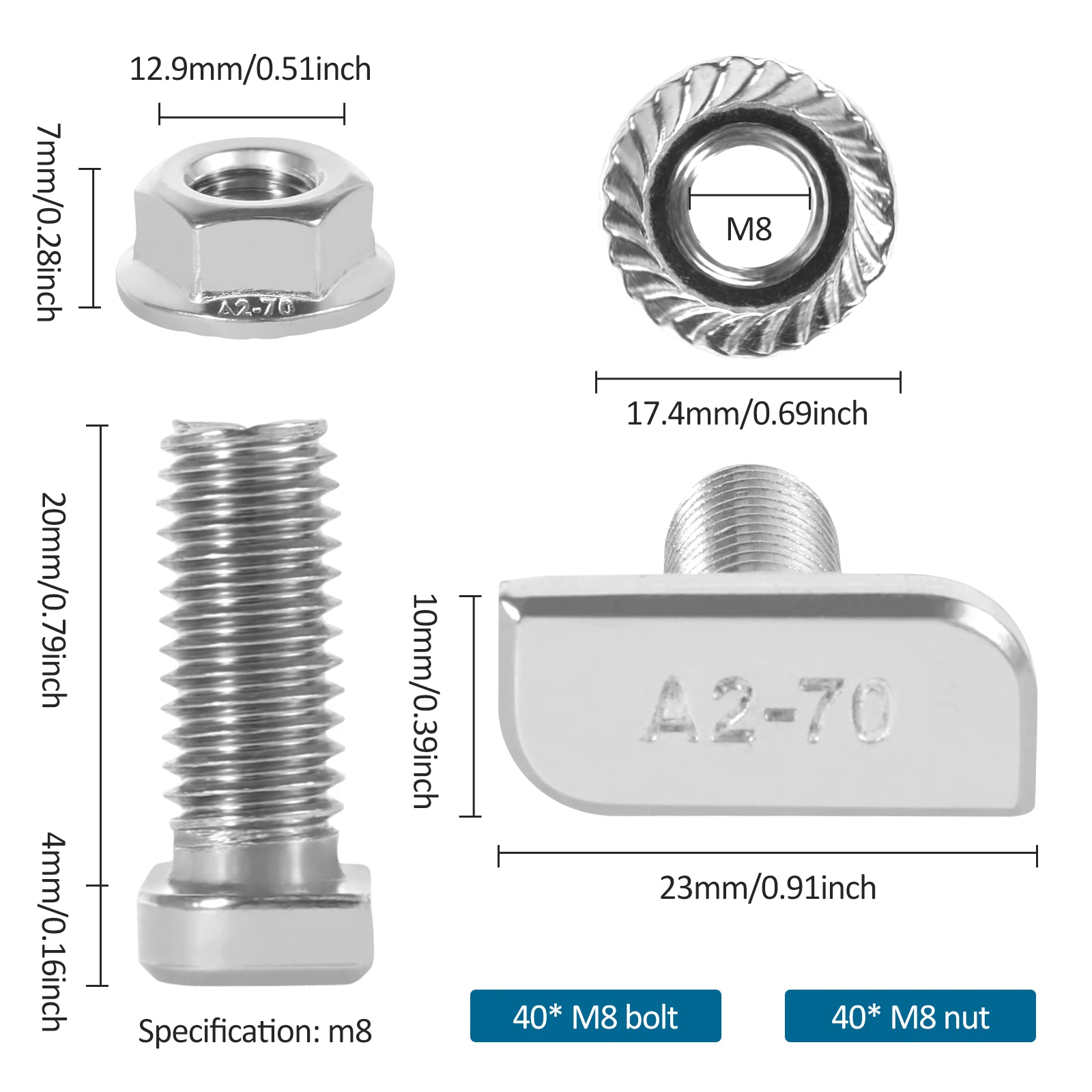

    Size :

    Bolt : bottom : 23x10x4mm , thread length : 20mm , specification : m8

    Flange Nut : bottom diameter 17.4mm , height 7mm , top diameter 12.9mm , specification : m8

    Material : 304 Stainless Steel

    Color : Silver

•Note :

1 . There may be slight differences between the picture and the actual color of the commodity . We will try our best to show you the exact color .

2 . Please allow slight dimension difference due to manual measurement .

Parts List:

40 x Hammer Head Screw M8x20 mm

40 x M8 Nut
