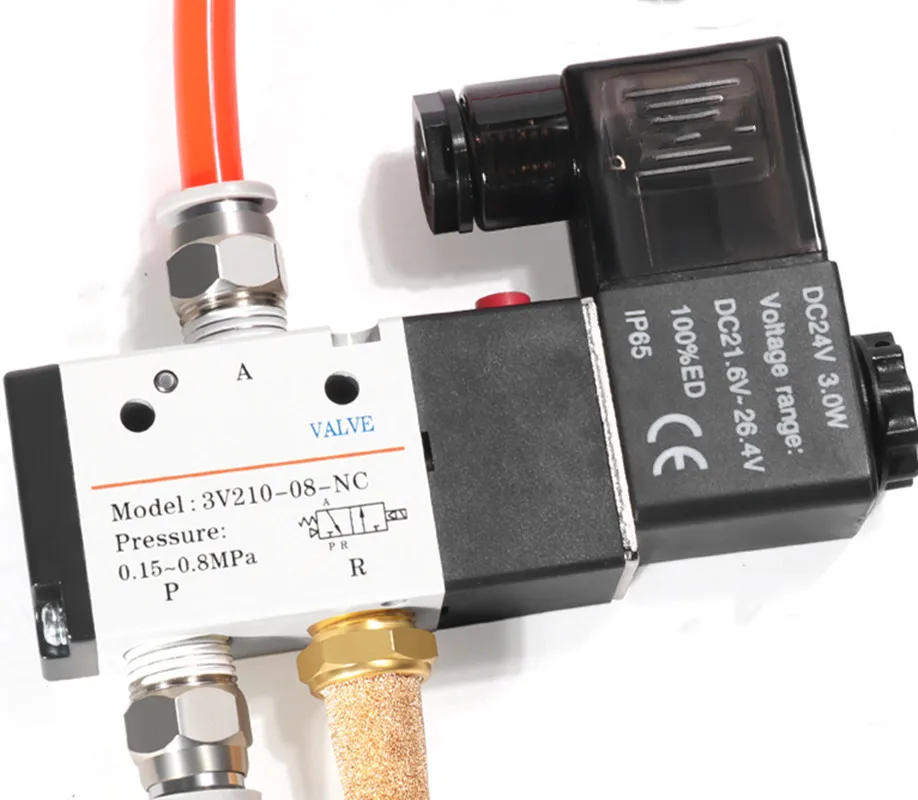

3V210-08 Pneumatic Solenoid Valve 3 Way 2 Position Air Directional Control Valve Pneumatic ValveDC12V DC24V AC110V AC220V

Description

Specifications:

Type: 3V210-08
Working Medium: Air(deameter 40mm filter net)
Motion Pattern: Internal torerunner type
Joint Pipe Bore: Lets in air=vents=PT1/4
Position Number: 3/2
Operating Temperature: -5~60°(-41~140°F)
Lubrication: No need
Working-pressure: 1.5~8.0Kgf/cm2
Power Consumption: AC110V 220V:2.0VA DC12V 24V:3.0W
Protection: IP65(DIN40050)
Wring Form: Terminal
Wiring mean: Alumnium Alloy
max.operation frequency: 3 Cycle Sec
Insulation: F grade
Voltage range: ±10%
Min. excitation time: 0.5 second
Pakage Content:1 x Solenoid Air Valve

Tip: Randomly send connector colors
