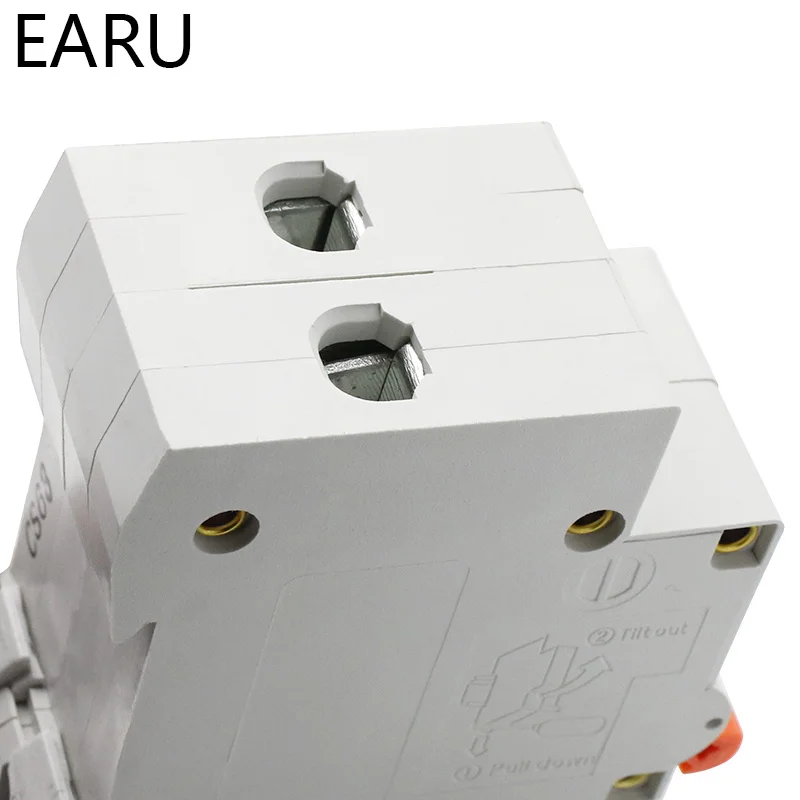

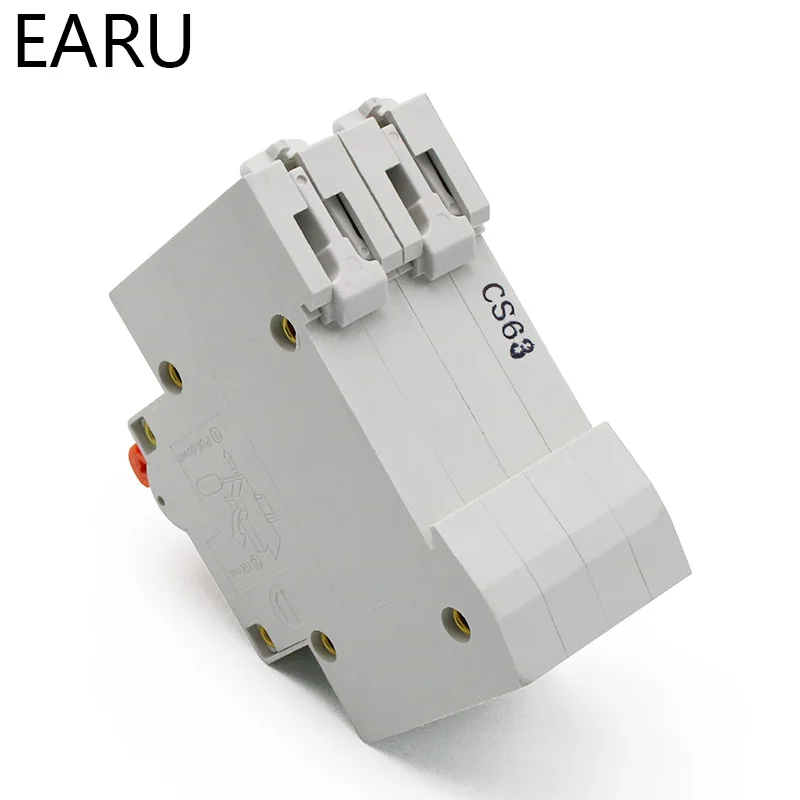

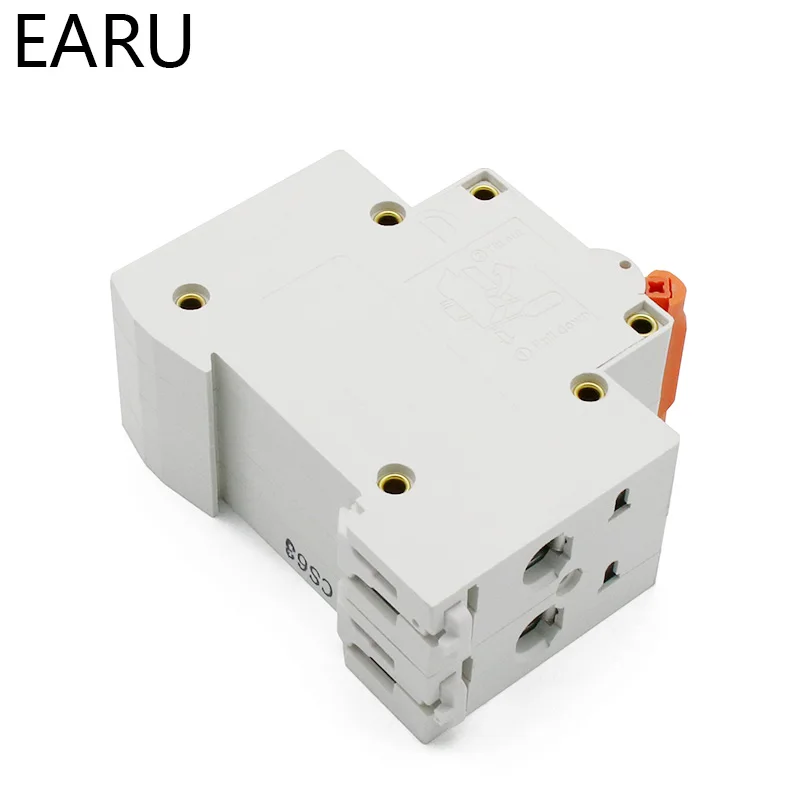

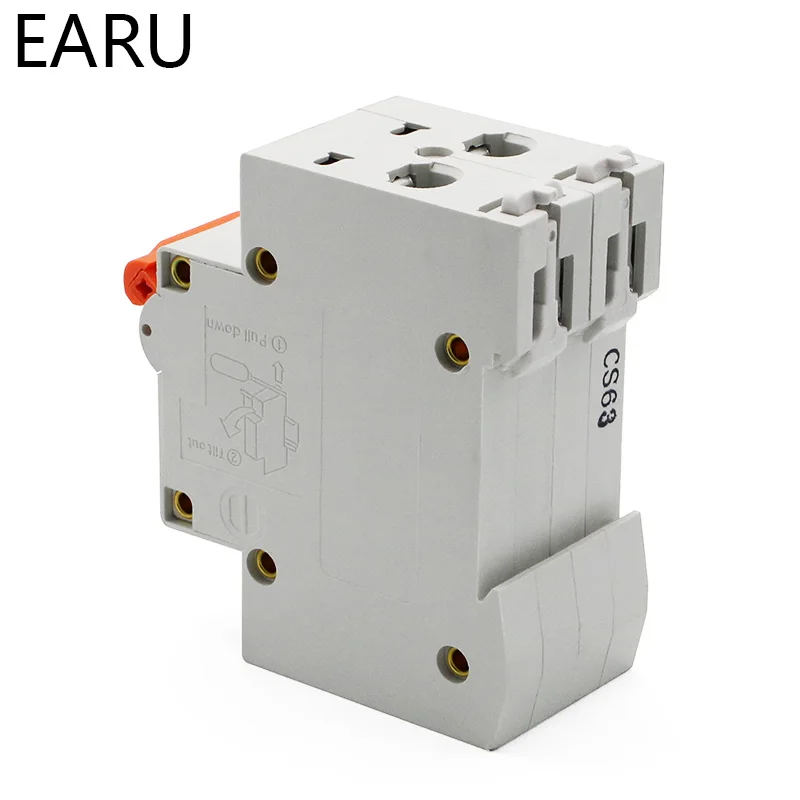

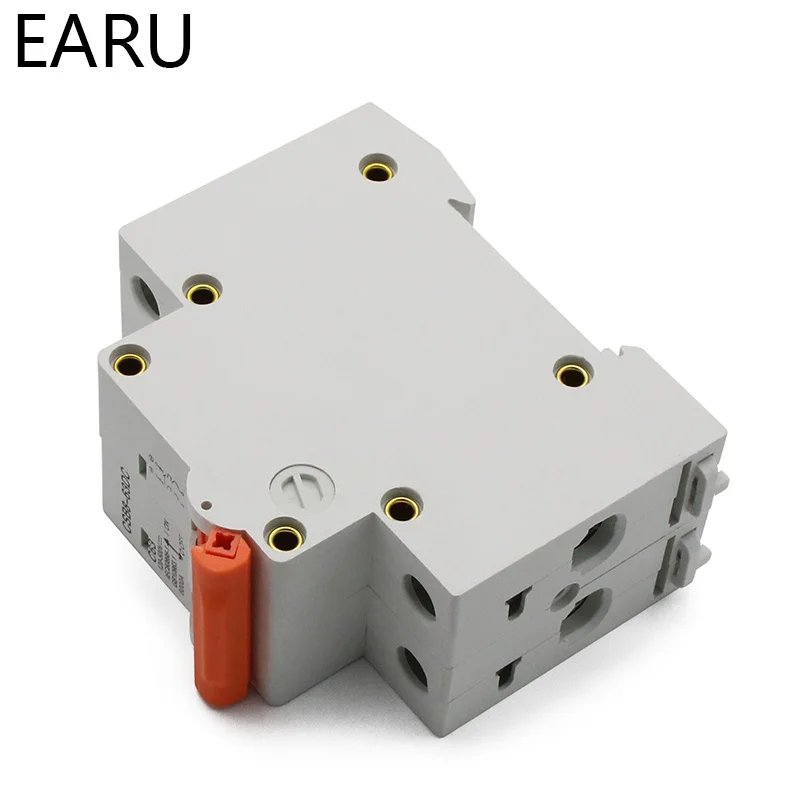

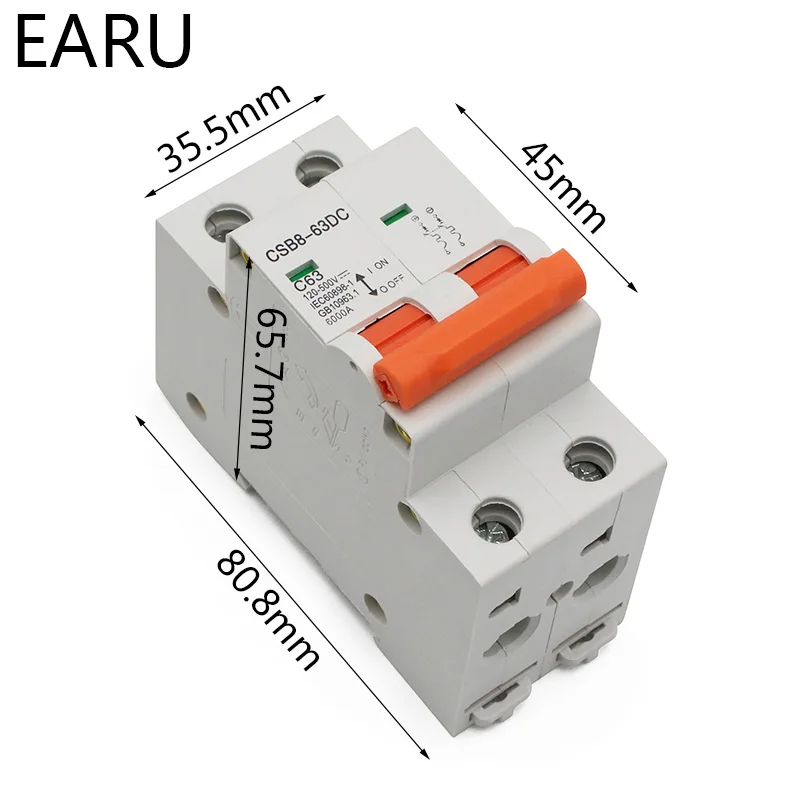

2P DC 500V Solar Mini Circuit Breaker MCB Direct-current Fuse PV System Solar Engery 1/3/6/10/16/20/25/32/40/50/63A Protector

It has protective function as shortage as overload, and are used in lighting distribution system in commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multi pole assembling, long life ect.They are mainly adapted to the circuit of AC 50Hz, 250V in single pole, 415V in double, three, four poles for protecting overload and short circuit. Mean while, they are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions.

Standard

EN60898(IEC60898) IEC60947-2

Rated current

1-63A

Rated Breaking capacity

6.0kA IEC60898(0.5~63A)
6,10,15kA IEC60947-2(0.5~63A)

Characteristic curve

B,C,D

Max. fuse that can be connected to

100AgL(>10kA)

Selective grade

3

Working ambient temperature

-5 ° ~+40°

Enclosed protective class

IP20

Electrical life

Not less than 8000 times

Mechanical life

Not less than 20000 times

Crust grade rating current Imm(A)

Pole

Rating voltage(V)

Rating current In(A)

Rated limit short circuit capability

OEM

Breaking current Icu(A)

Time (ms)

63A

1

DC ~250V

1. 2. 3. 4. 5. 6. 10. 15. 16. 20. 25. 32. 40. 50. 63

6000

10

YES

2

DC ~500V

6000

3

DC ~750V

4

DC ~1000V
