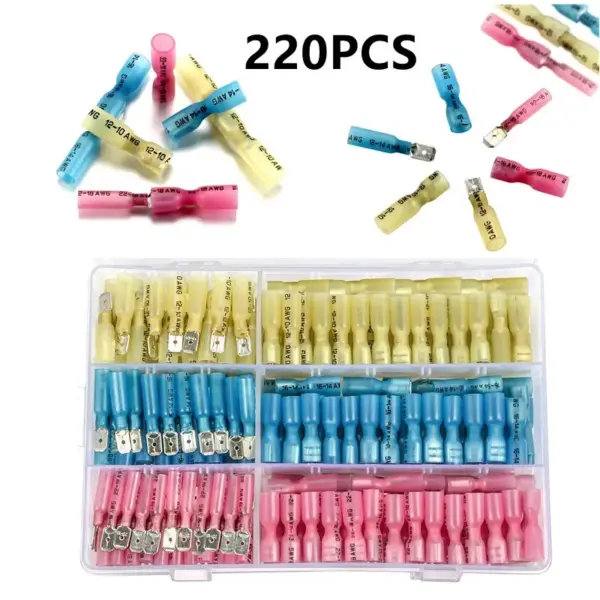

220PCS Waterproof Insulated Butt Wire Connector Heat Shrink Crimp Terminals Kit Male Female Electrical Cable Spade Terminal

Feature:

* Shrinkage ratio 3:1
* Excellent stretch and mechanical damage resistance
* Ldeally translucent provides tensile strength
* High elasticity keeps steady performance
* Operating temperature range
Operating temperature : -55℃～125℃
Minimum shrink temperature : 80℃
Fully recovery temperature : 130℃

Specification

– Color: Red/Blue/Yellow
– A.W.G.: 22-18 (Red); 14-16 (Blue); 12-10 (Yellow)
– Wire range: 0.5-1.0mm2(Red); 1.5-2.5mm2 (Blue); 4.0-6.0mm2 (Yellow)
– Rated Current: 19A(Red); 27A(Blue); 48A(Yellow);
– Rated Voltage: 600V

Detailed dimensions:

* Red (22-18AWG) Patch size:0.8 x 6.35mm
Female full spade Terminal Connector…………40Pcs
Spade Terminal Connector……………………….40Pcs
* Blue (16-14AWG)Patch size:0.8 x 6.35mm
Female full spade Terminal Connector…………40Pcs
Spade Terminal Connector……………………….40Pcs
* Yellow (12-10AWG) Patch size:0.8 x 6.35mm
Female full spade Terminal Connector…………30Pcs
Spade Terminal Connector……………………….30Pcs
