Description

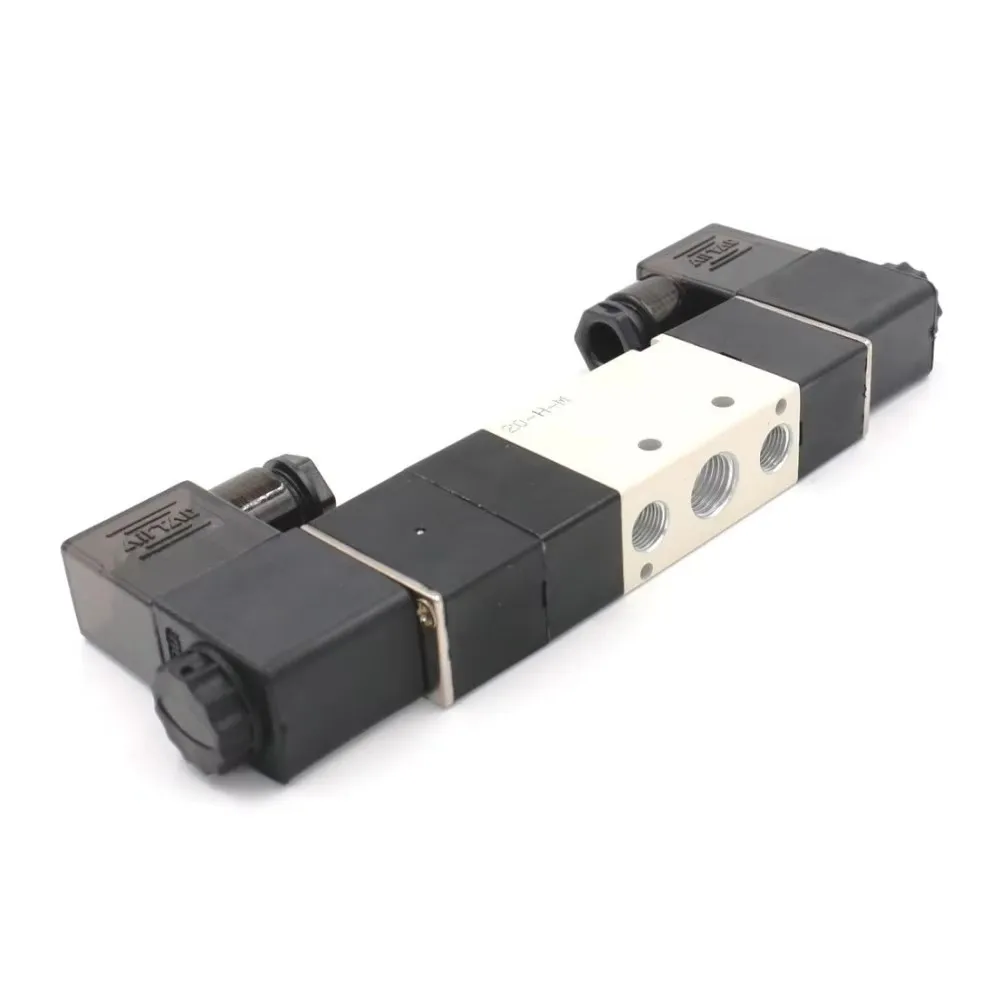

Product Name: Pneumatic Solenoid Valve

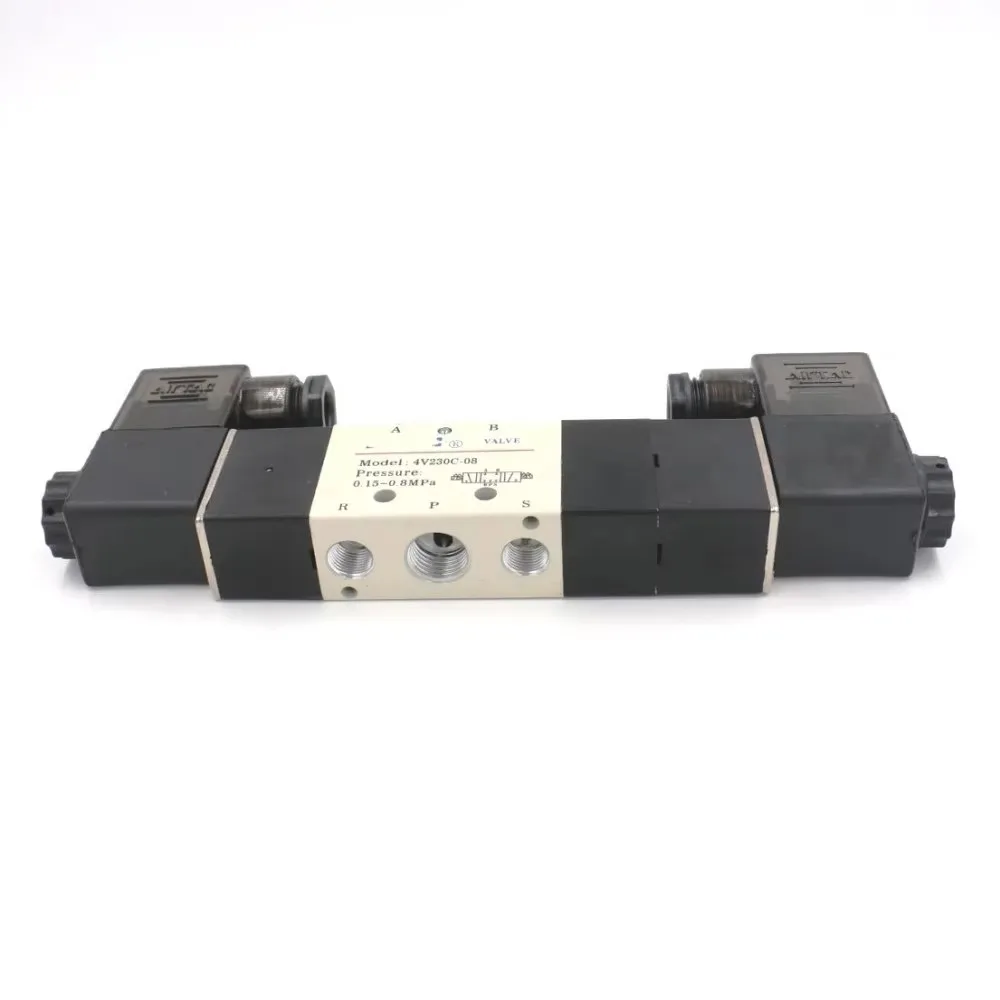

Model: 4V230C-08
1.Working Medium: 40 Micron Filtered Air
2.Motion Pattern: Inner Guide Type
3.Type:3 Position 5 Way
4.Material:Resin, Plastic
5.Working Voltage/Power: DC12V, 3W, 29mA
6.Port Connection: Air Inlet =Air Outlet=1/4"BSP, Exaust =1/8"BSP
7.Working Temperature: -5°C – 60°C
8.Operating Pressure:1.5 ~ 8kgf/cm2
9.Max Resistance Pressure: 12 kgf/cm2
10.Voltage Range:- 15% – +10%
11.AirInlet Diameter:11mm/ 0.43"
12.Air Exhaust Diameter: 8mm/ 0.31"
13.Black Pull Into Diamete:r 11mm/ 0.43"
14.Wiring Form: Direct Lead Wire or Connector
15.Total Size (Approx.)19 x 6.6 x 2.2cm/ 7.5" x 2.6" x 0.9" (L * W * T)
16.Color: White, Black
Package Content：1 x Pneumatic Solenoid Valve
With solenoid operated for control appropriate f and direction, provide great performance. Stury body have a long lifespan, perfect for electrically driven pneumatic power control.
