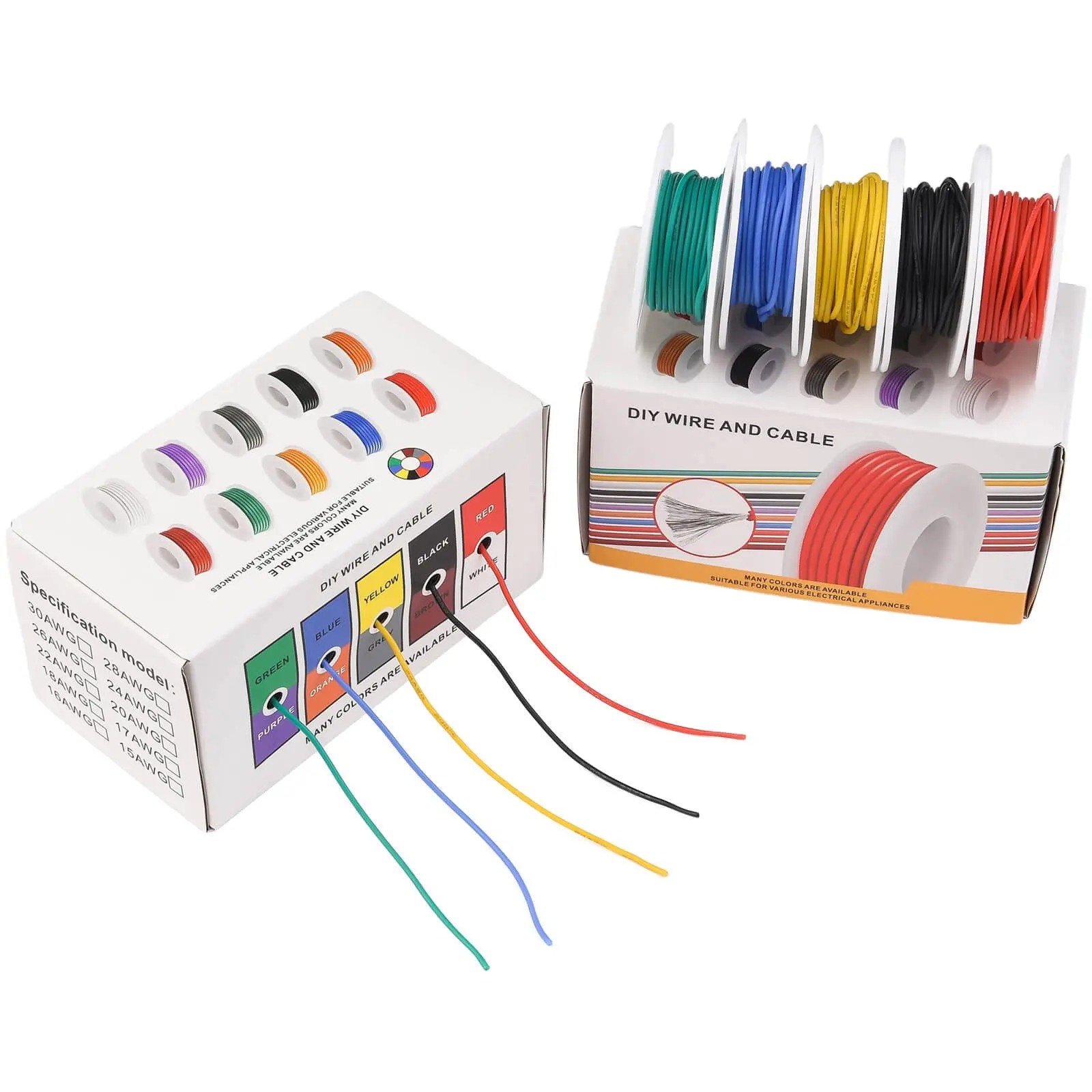

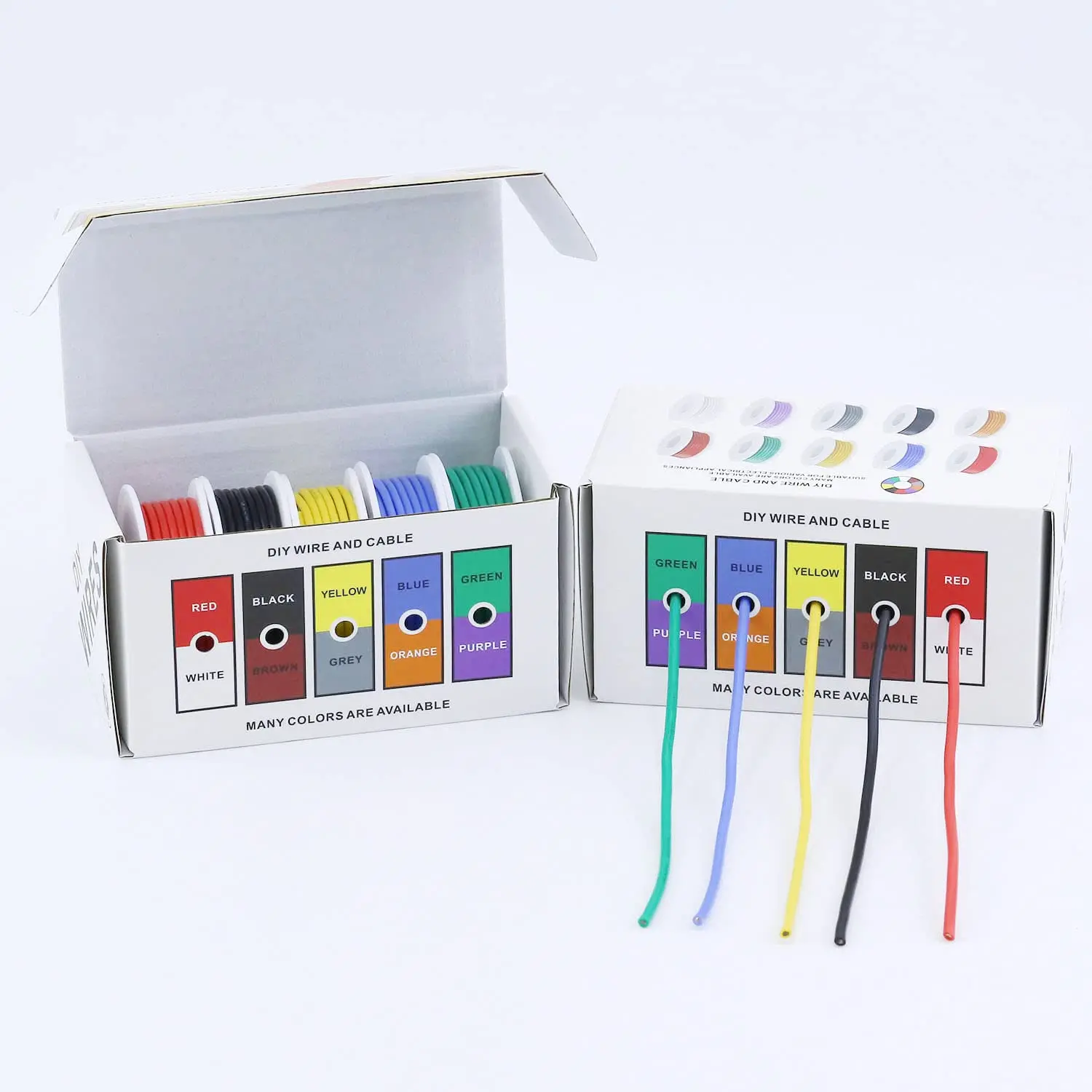

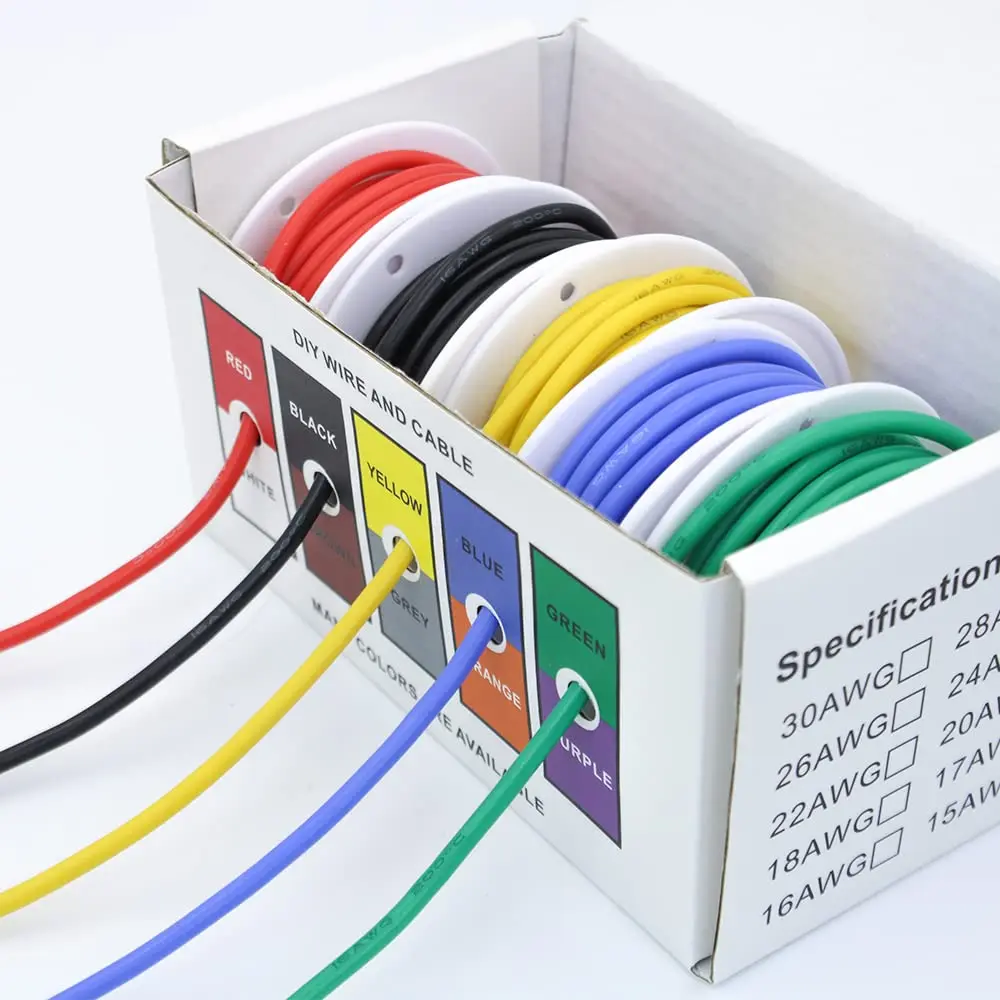

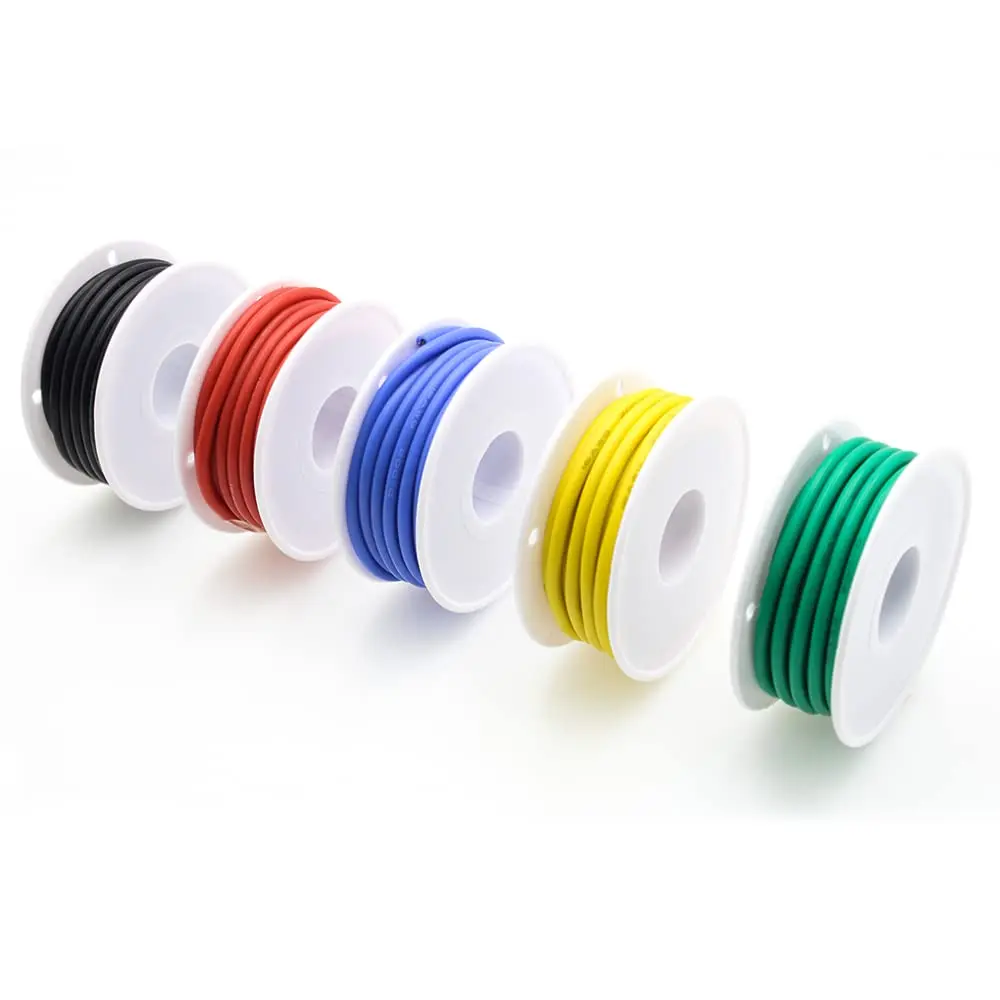

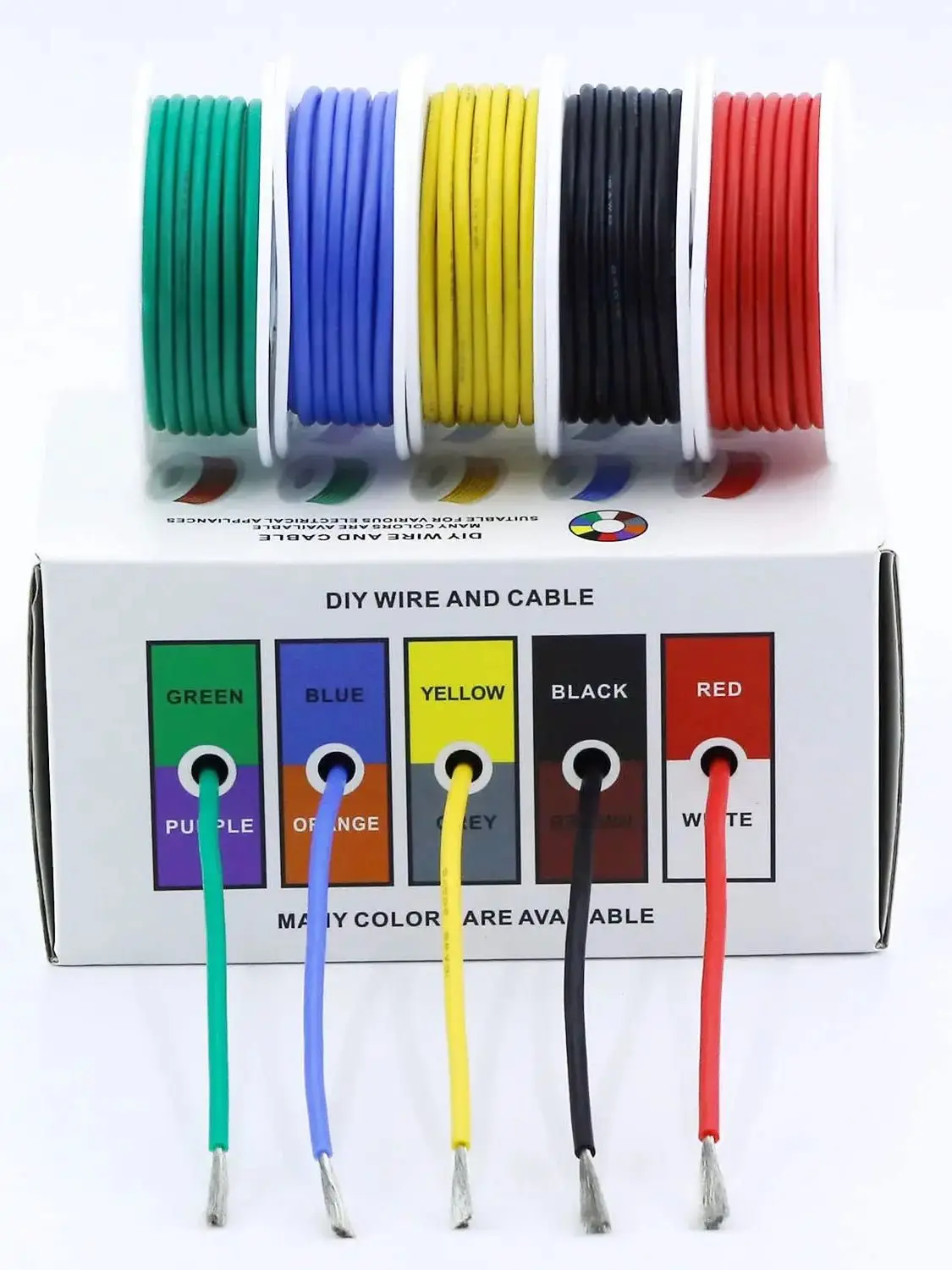

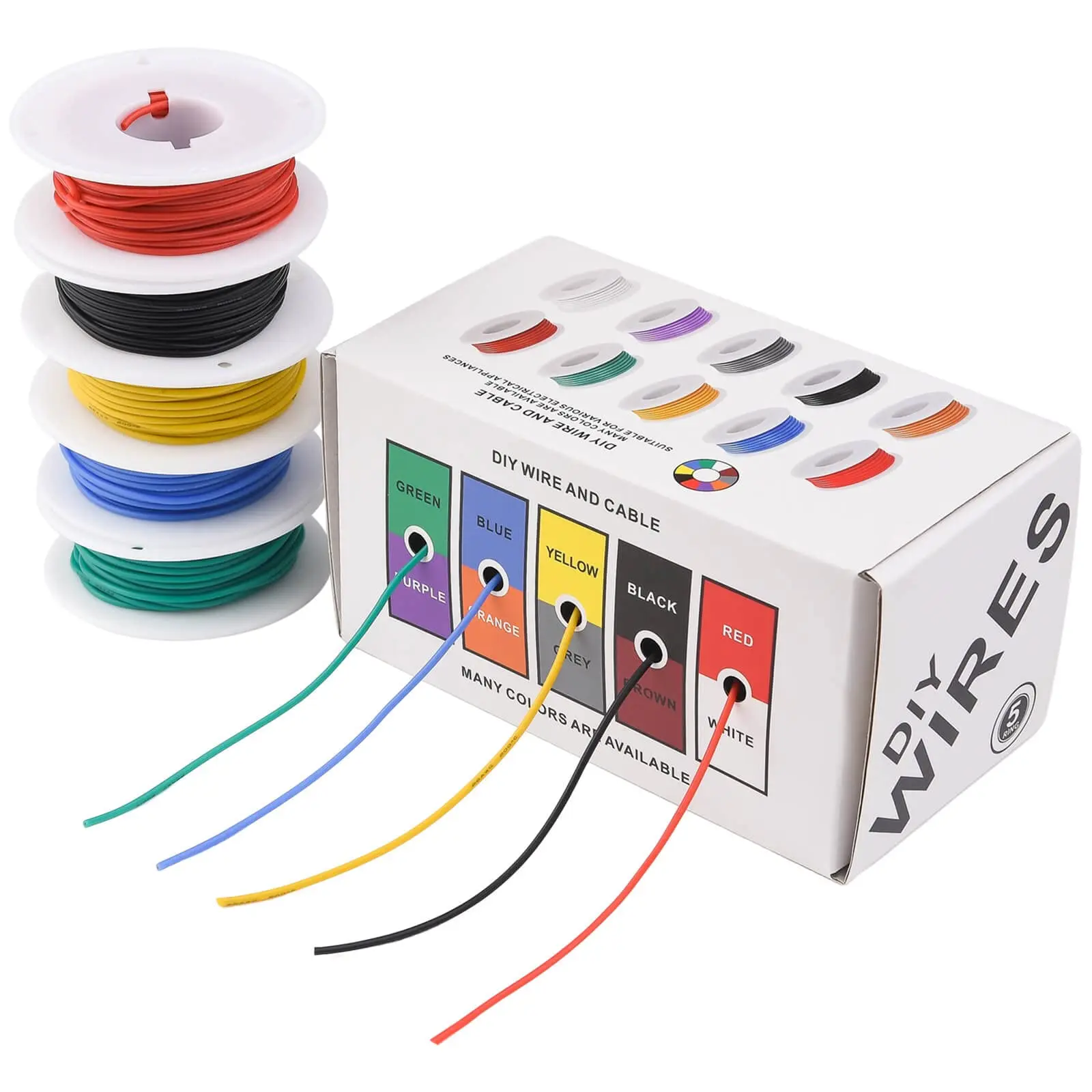

Silicone Wire
Thanks to silicone insulation and a finely stranded core, this wire is very flexible and easy to strip and solder. Ideal for applications where the wire will bend, such as test cables. Can be terminated with pins and heat shrink tubing for breadboard jumpers.
Super flexible 11-1650 strands of 0.08 mm tinned copper wire – protects against corrosion and is easy to solder.
8AWG: OD: 6.5 mm Core Diameter: 1650/ 0.08 mm, withstand current 60A
10AWG: OD: 5.4 mm Core diameter: 1050/ 0.08 mm, withstand current 43A
12AWG: OD: 4.5mm Core diameter: 680/0.08mm, withstand current 30A
14AWG: OD: 3.5mm Core diameter: 400/0.08mm, withstand current 20A
16AWG: OD: 3.0mm Core diameter: 252/0.08mm, withstand current 12A

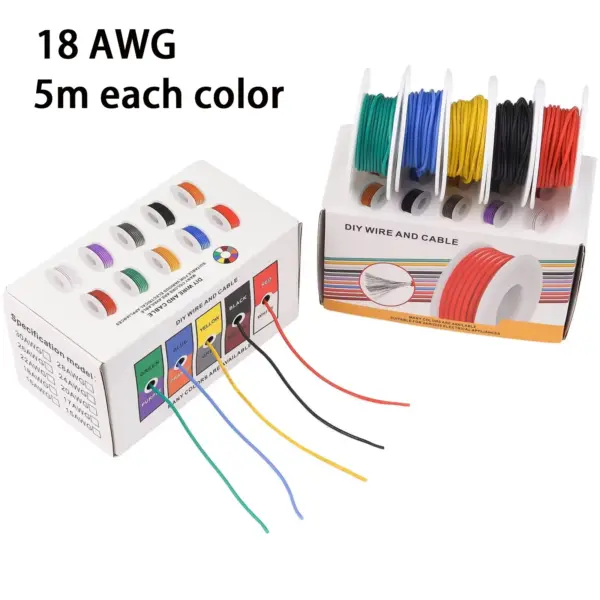

18AWG: OD: 2.3mm Core diameter: 150/0.08mm, withstand current 7.5A
20AWG: OD: 1.8mm Core diameter: 100/0.08mm, withstand current 5A
22AWG: OD: 1.7mm Core diameter: 60/0.08mm, withstand current 3A
24AWG: OD: 1.6mm Core diameter: 40/0.08mm, withstand current 2A
26AWG: OD: 1.5mm Core diameter: 30/0.08mm, withstand current 1.5A
28AWG: OD: 1.2mm Core diameter: 16/0.08mm, withstand current 0.8A
30AWG: OD: 0.8mm Core diameter: 11/0.08mm, withstand current 0.5A
