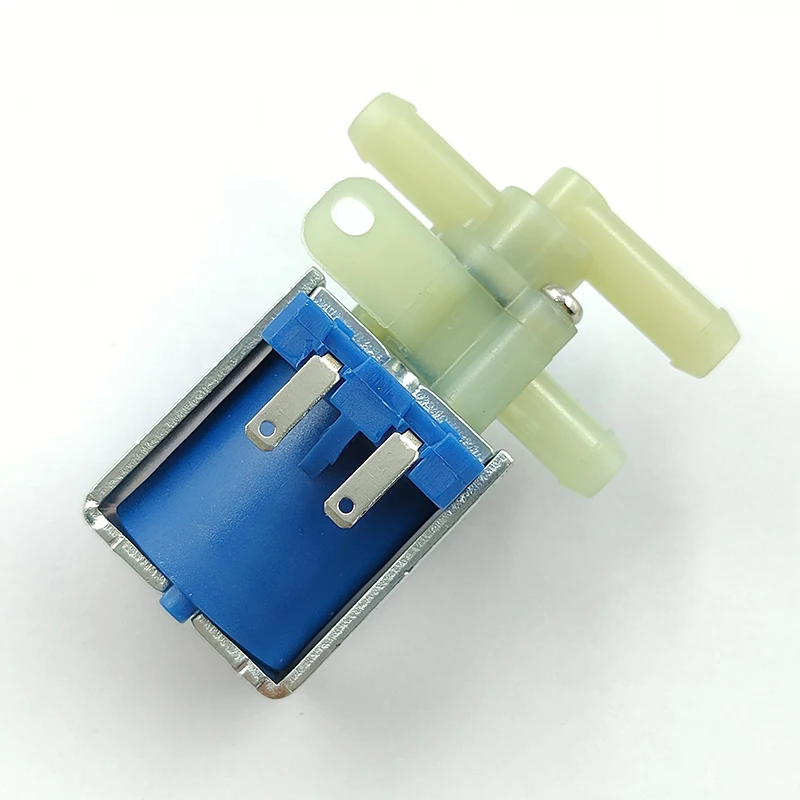

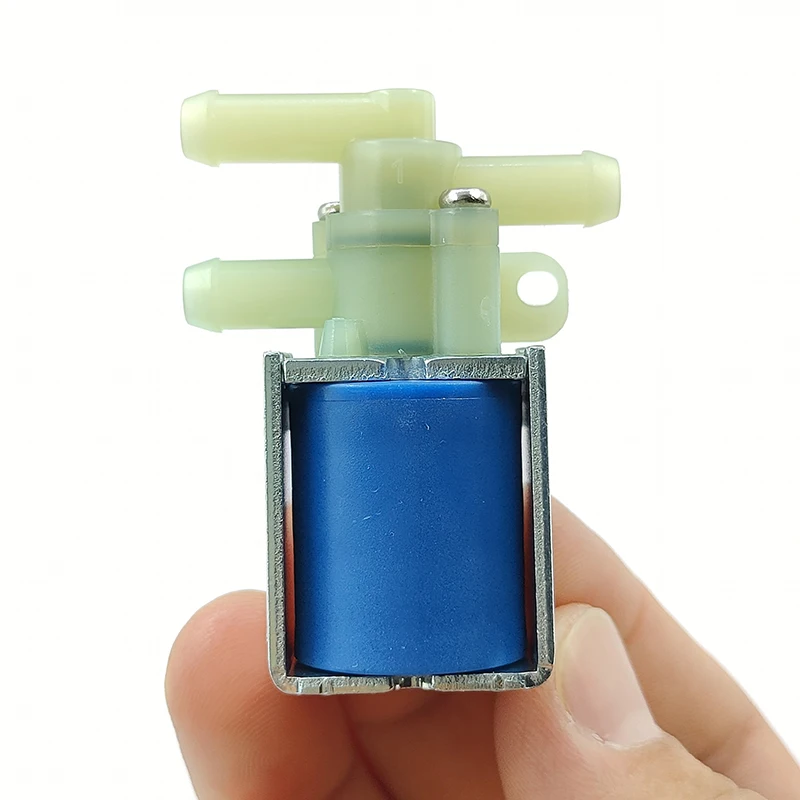

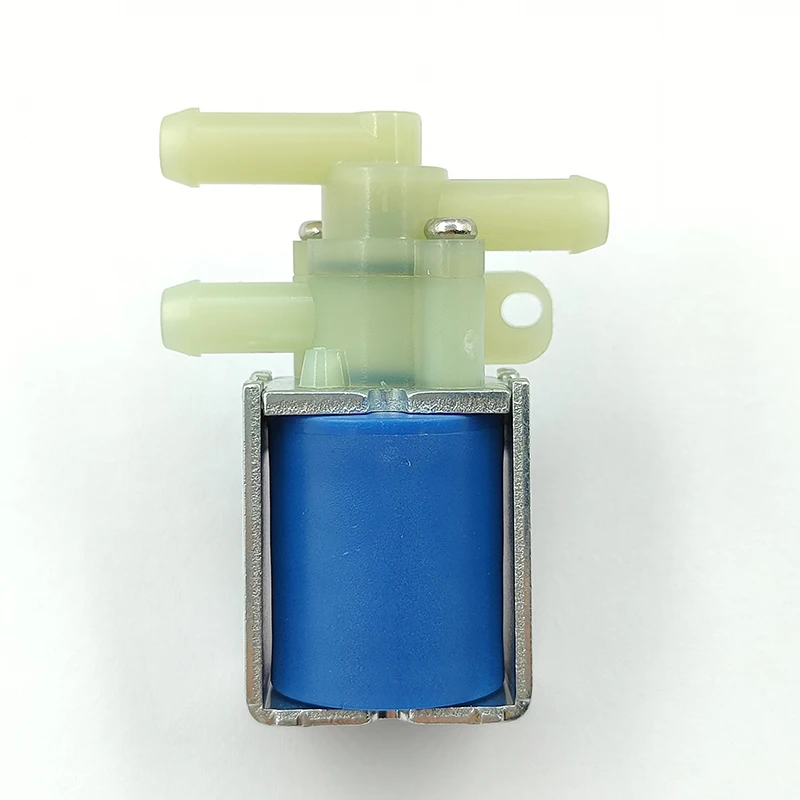

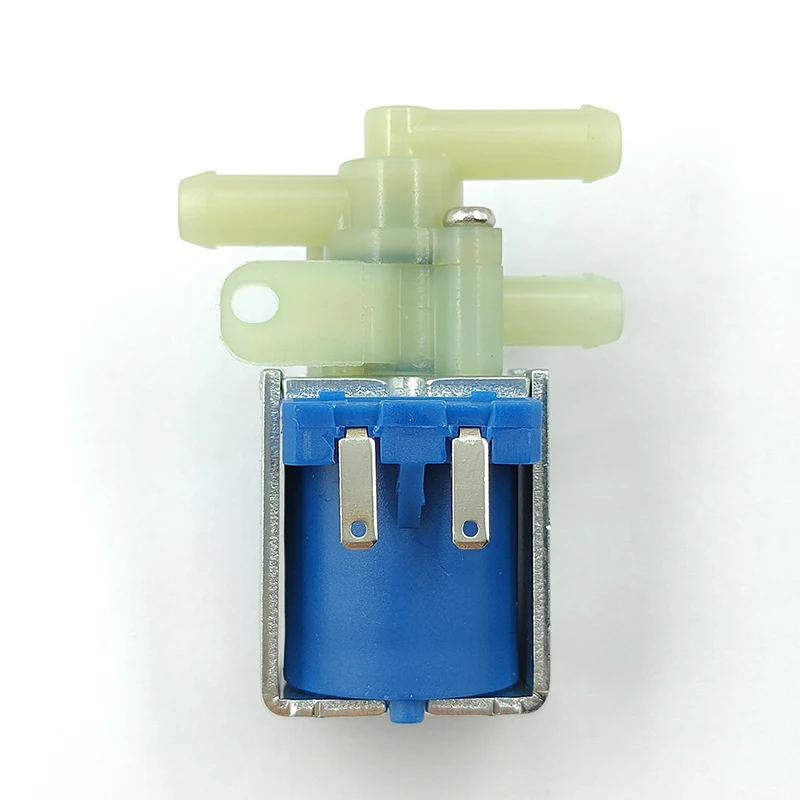

12V DC Electric Solenoid Valve 2-Way 3-Way 2-Position Straight Flow Port Pneumatic Control Valve for Automotive Applications

Specification:

Electromagnetic valve products are widely used in medical, beauty, rehabilitation, home appliance and other fields.

For example, electronic sphygmomanometer, beauty equipment, sweeper robot, leg beauty device, massager,

breast suction device, sealing machine, vacuum packaging machine, shared massage chair, massage bed, massage eye mask, massage head mask, massage medical rehabilitation massage equipment, etc.

1.Brand: jiayin

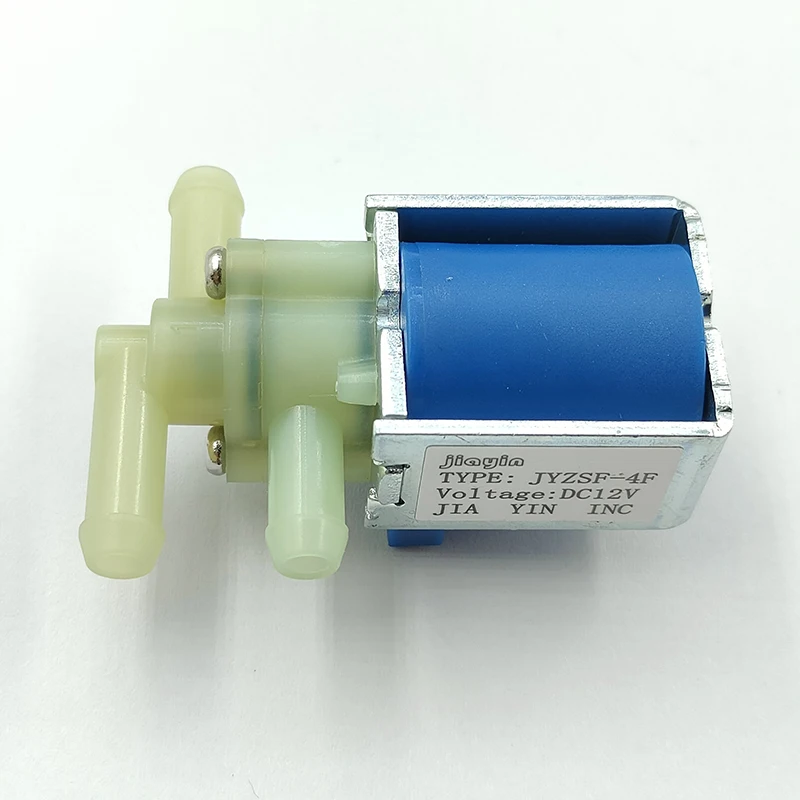

2.Model: JYZSF-4F

3.Rated voltage: DC 12V

4.No-load current: 0.25A

5.Port diameter: 6.6mm (max position) ; 6mm (round position)

6.Type: 2-Position 3-Way

7.Use fluids: Gas or water

8.Weight: 52g

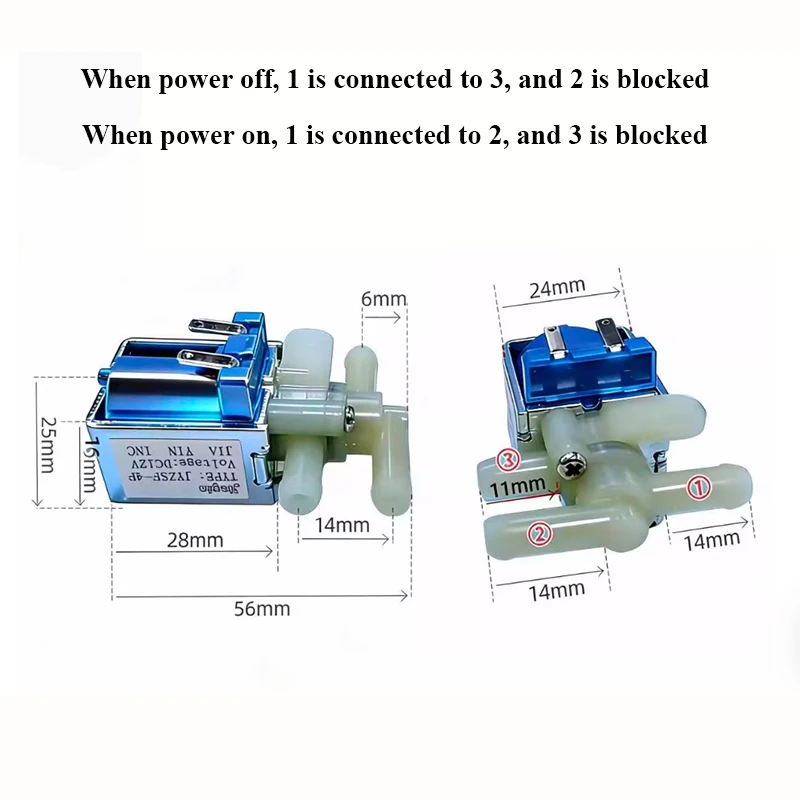

Operating instructions of solenoid valve:

When power off, 1 is connected to 3, and 2 is blocked

When power on, 1 is connected to 2, and 3 is blocked

=========================

Package List:

Mini Solenoid Valve x 1PCS
