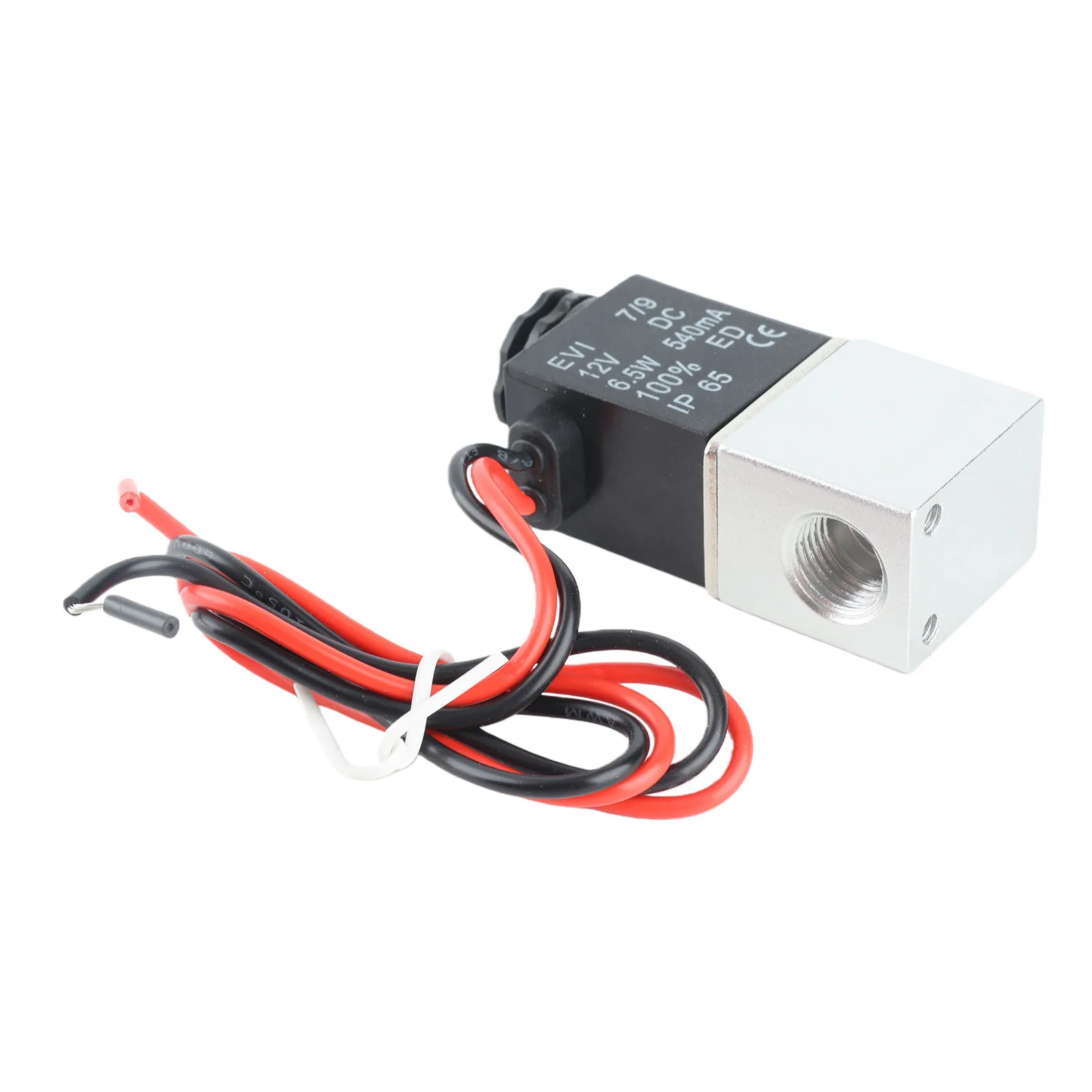

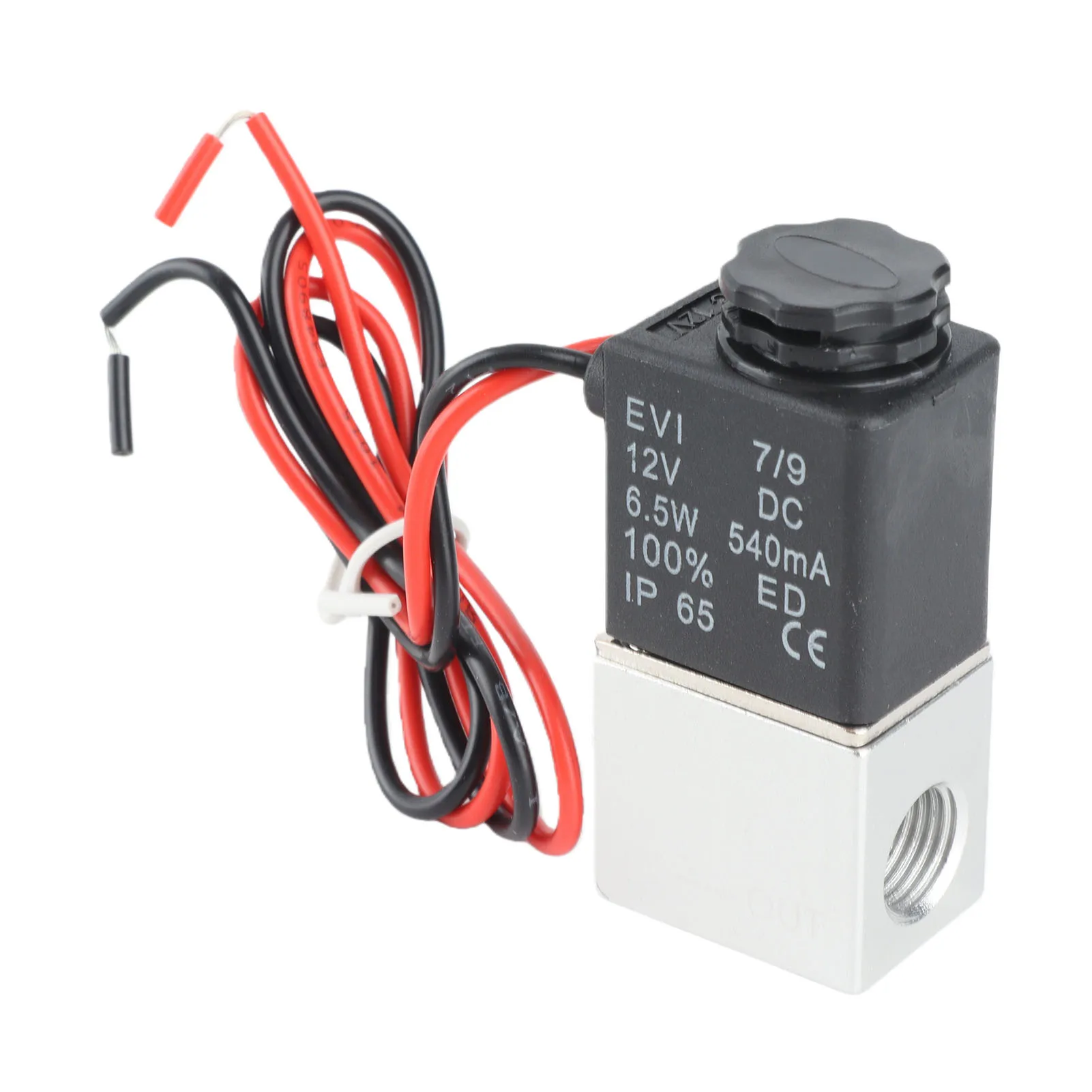

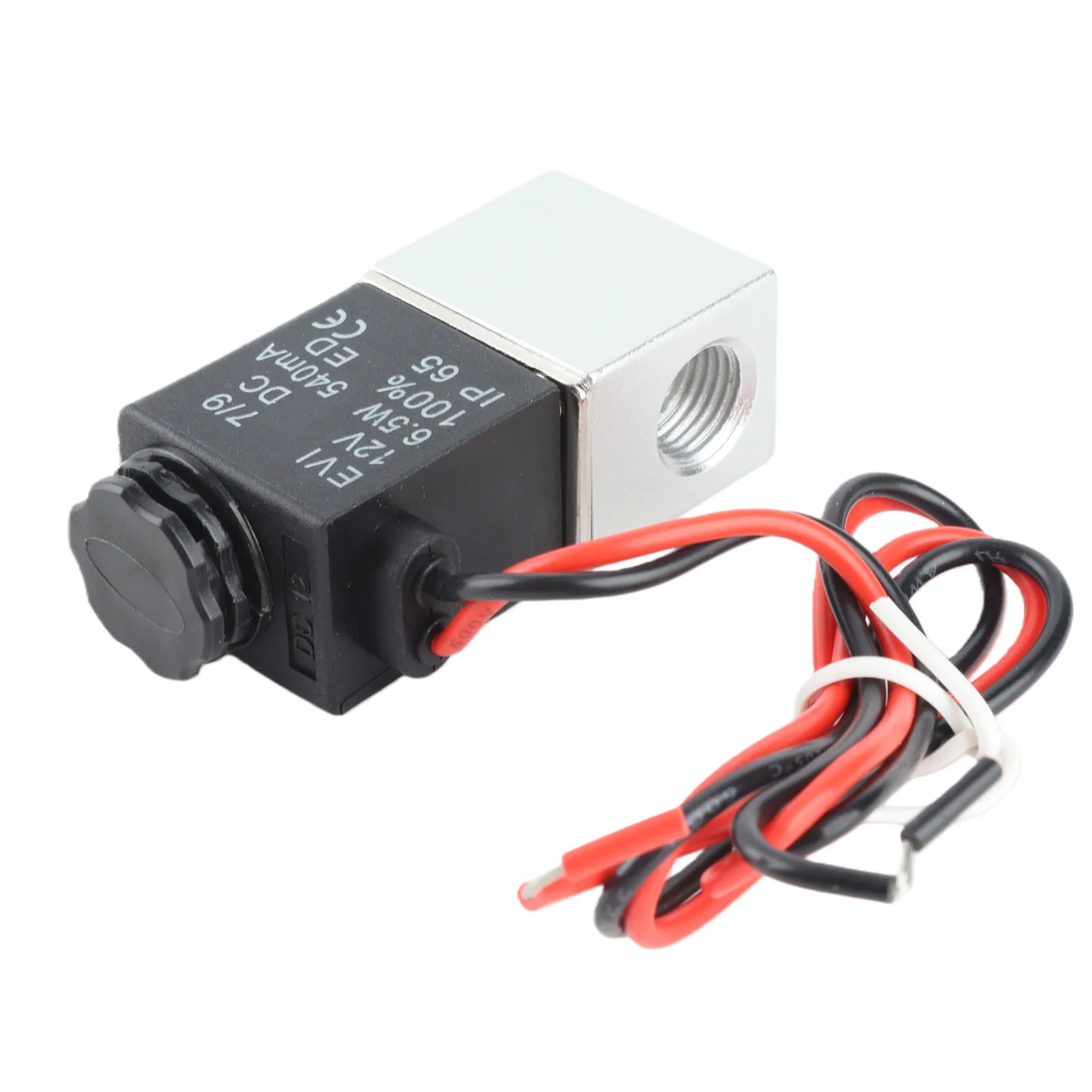

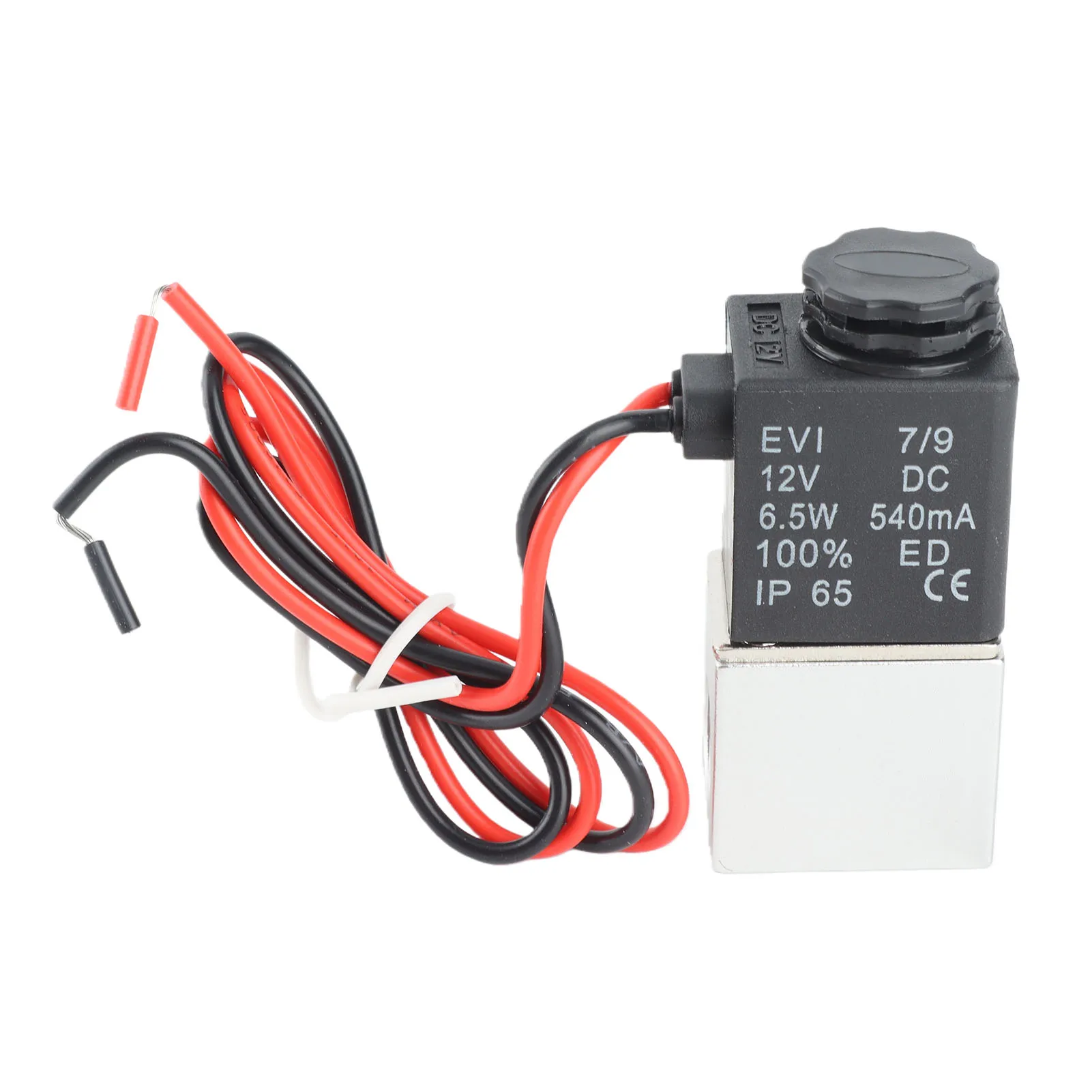

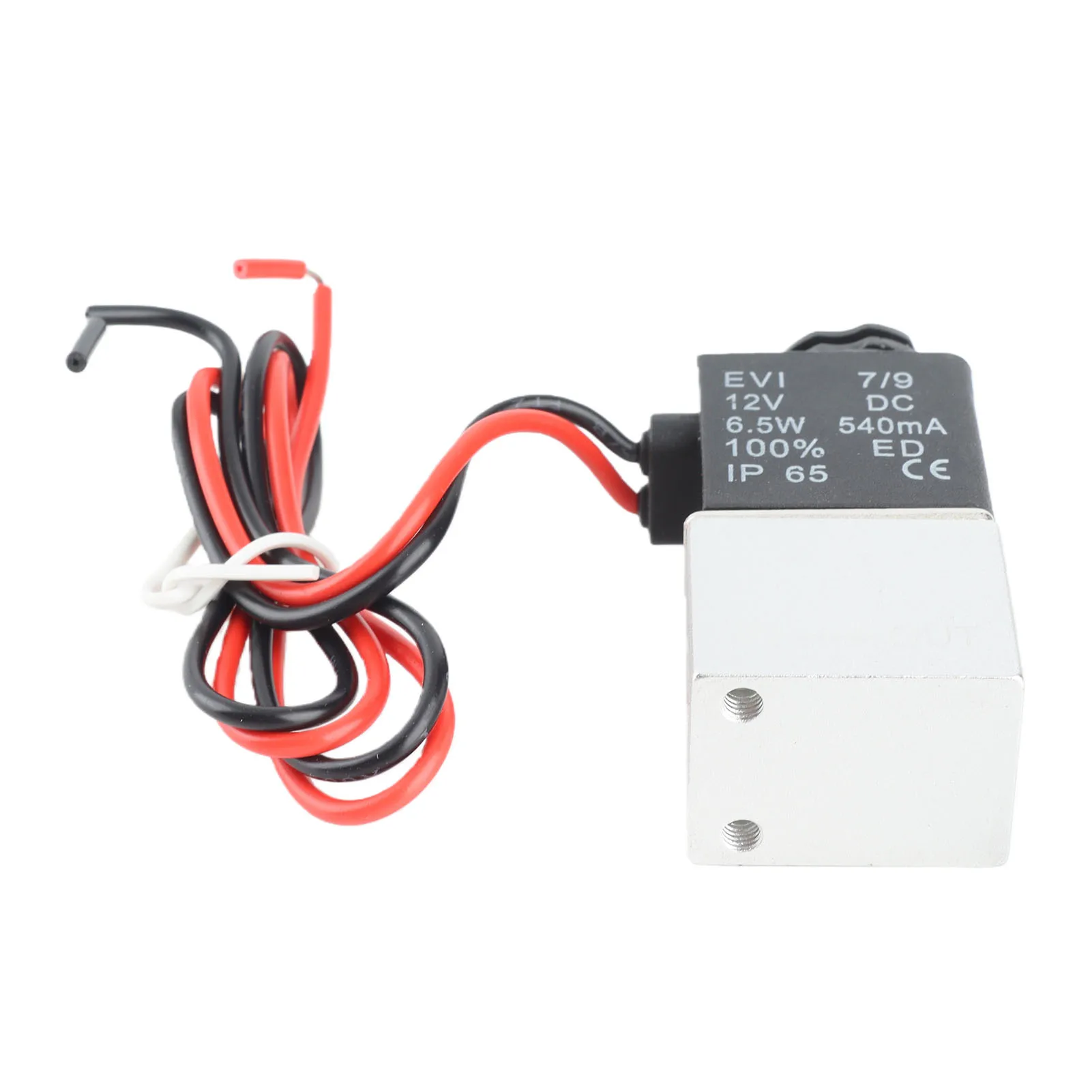

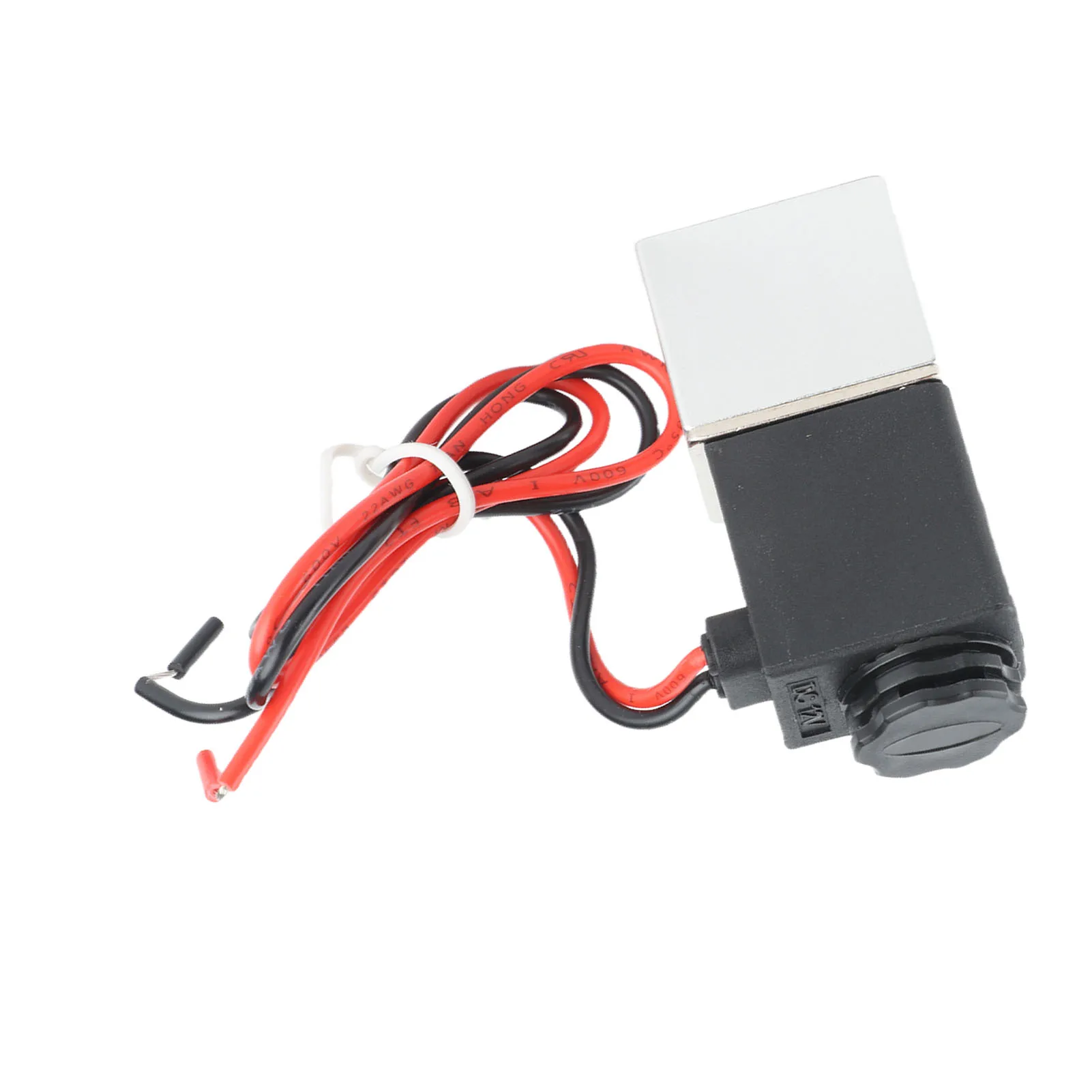

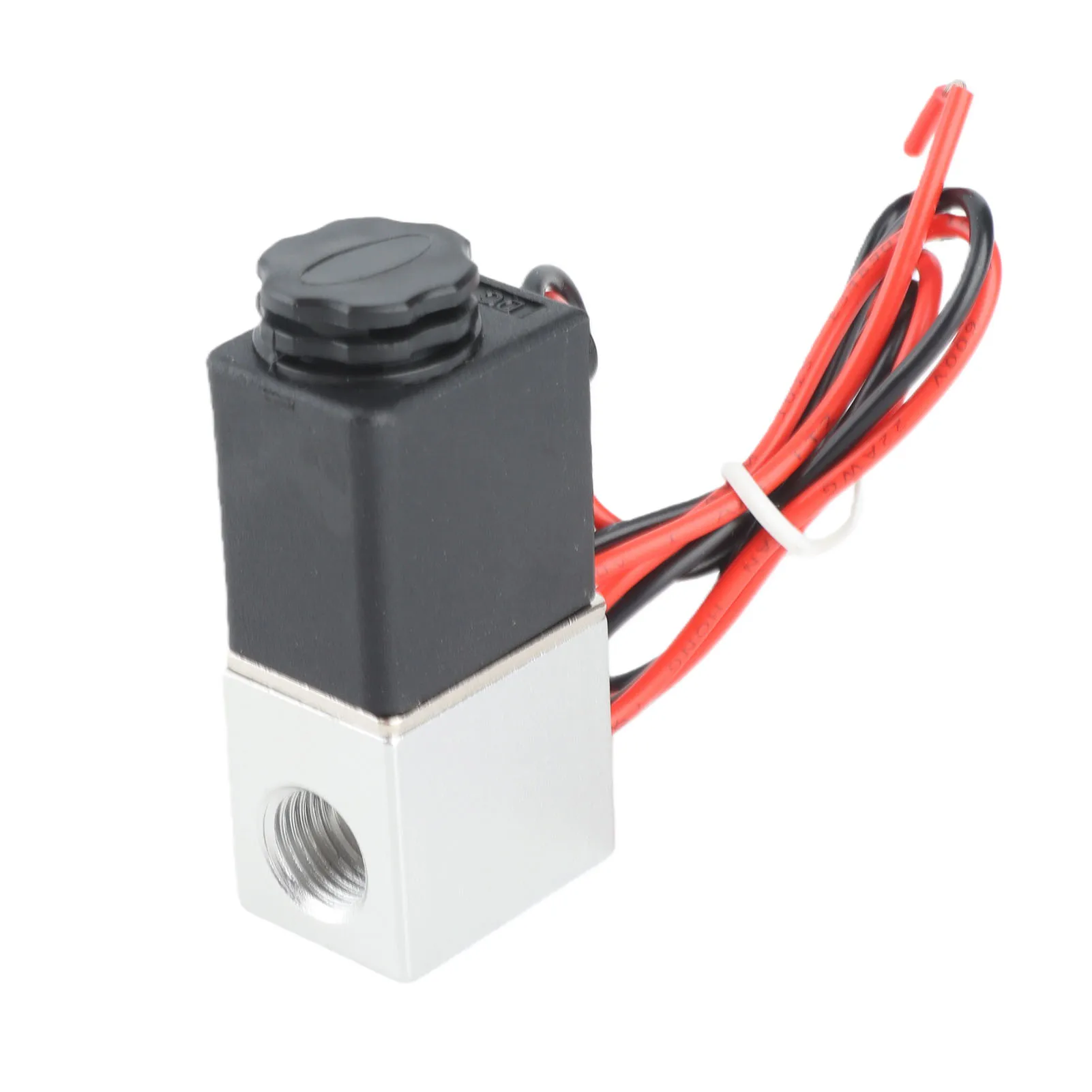

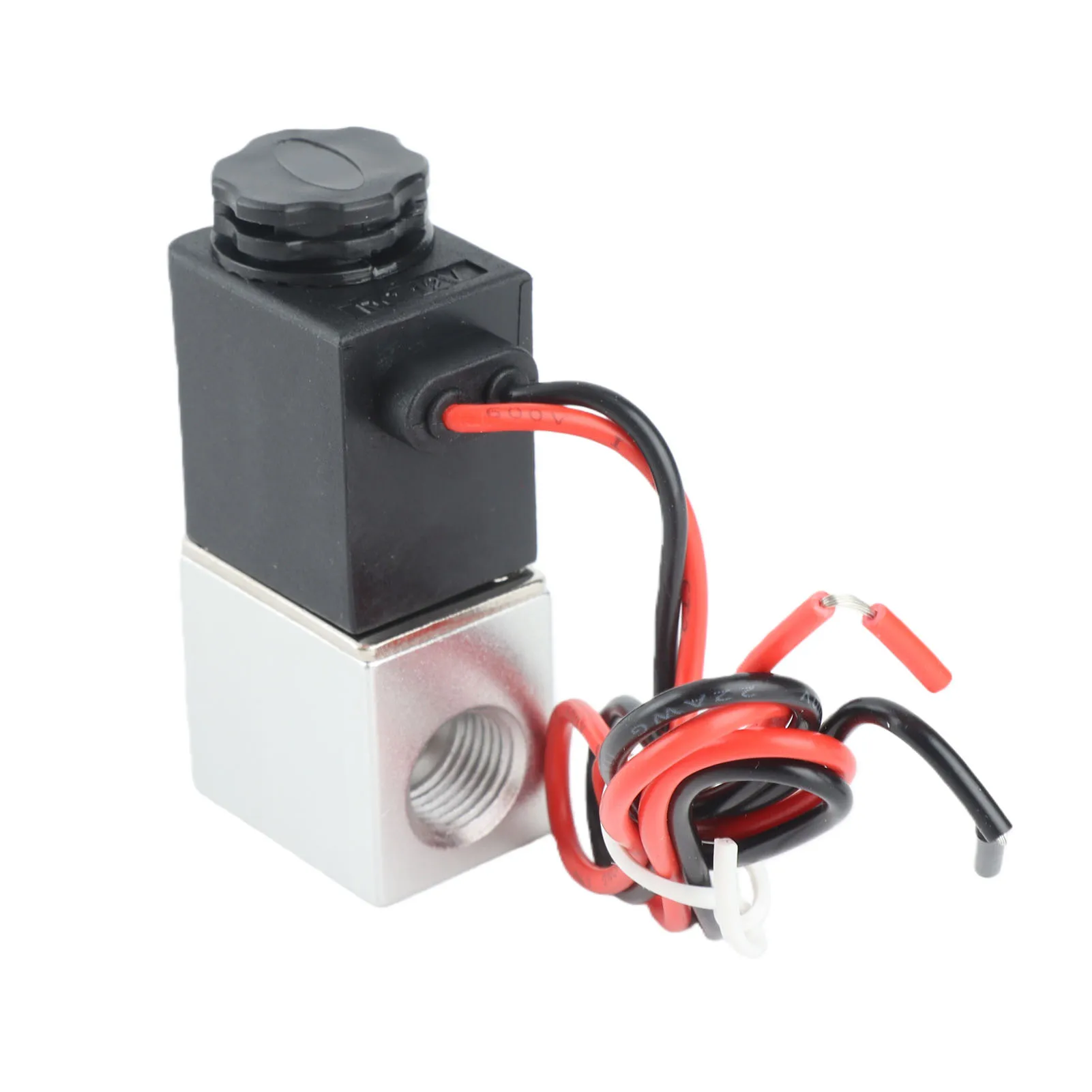

12V DC 1/4" 2 Way Normally Closed Pneumatic Valve Aluminum Electric Solenoid Air Valve

1. 2 Way normally closed (valve opens with energized),normally closed type with long life span and excellent sealing.

2. This is a two-position two-way direct-acting normally closed solenoid valve, which can be switched quickly.

3. It is a normally closed type electric solenoid valve, power on to open it and power off to close it.

4. Compact size and durable, it would be a great replacement for your broken or old ones.

5. Suitable for use with pipelines in water,gas,air,fluid applications.

Model Number: 2V025-1/4-12VDC

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Port Size: G1/4" Female Port

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow)

Response Time: Less than 50 ms

Operating Pressure: 0-0.8Mpa(can be operated at 0 PSI (Vacuum))

Operating Temperature: -5 to 60 °C

Coil Power: 6.5W

Material:

Body Material: Aluminum

Seal Material: NBR (Buna N)

Armature Tube Material: Brass

Plunger & Spring Material: Stainless Steel

Package included:

1 x Solenoid Valve
