Description

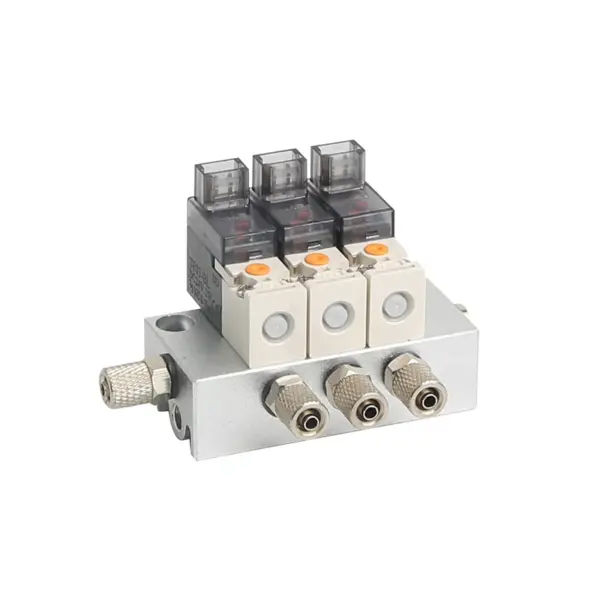

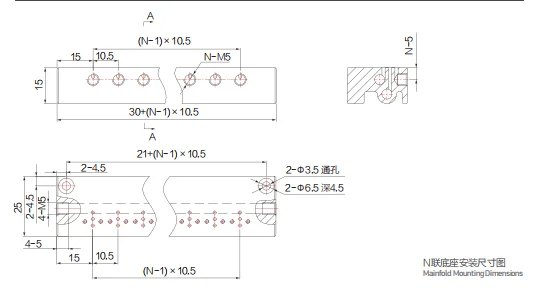

This series of valves has one inlet and multiple outlets with manifold
2F is controlled by one inlet, two outlets, one inlet, two outlets and two coils separately
3F is controlled separately by one inlet, three outlets, one inlet, three outlets and three coils
4F is controlled separately by one inlet, two outlets, one inlet, four outlets and four coils
5F is controlled separately by one inlet, three outlets, one inlet, five outlets and five coils
Two-position three-way normally closed solenoid valve combination
The delivery includes wires and free terminal blocks
OURS TOP PNEUMATIC manufacturer of miniature solenoid valves profession
Miniature solenoid valve, can be used in machinery,
electronics, medical, knitted, semiconductor and
other air way reversing control fifield.
electronics, medical, knitted, semiconductor and
other air way reversing control fifield.
1.Small size and convenient installation
Ideal for installation where the space is limited, you can install on a
single base, you can also set the board installed on the manifold.It has strong compatibility on installation size , and can replace most similar products at home and abroad, also can be used as sy series and 4v
series of pilot control valve.
single base, you can also set the board installed on the manifold.It has strong compatibility on installation size , and can replace most similar products at home and abroad, also can be used as sy series and 4v
series of pilot control valve.
2.
Energy saving and environmental protection
Energy saving and environmental protection
The power consumption of the standard type is only 1w, And the energy saving type is only 0.3w.
3.
High capacity, wide application
High capacity, wide application
It has large flflow rate, can be used for compact cylinder, swing cylinder
and other slider series, also applies to the pilot control of the
processing valve. Especially the flflow rate of the large type has promoted 50% above on the basis of the standard type, can better
meet your needs.
and other slider series, also applies to the pilot control of the
processing valve. Especially the flflow rate of the large type has promoted 50% above on the basis of the standard type, can better
meet your needs.
4.Quick response
the response time is less than 10ms, can realize vacuum function
5.
Specififications
Specififications
According to the voltage identifification, ac220v, ac110v, dc24v, dc12v,
dc6v, dc3v etc. ccording to electrical interface mode to distinguish: vertical type (ltype), the horizontal type (m type), direct line type (g type) etc. easily.
6.
Long service life
Long service life
Even electric sustained rate in 24 hours of continuous work and 100%
case is also very reliable.
case is also very reliable.
类型
Valve function
两位两通 常闭 2/3 N.C.
Valve function
两位两通 常闭 2/3 N.C.
工作介质
Media
压缩空气，惰性气体
Compressed air,Inert gases
Media
压缩空气，惰性气体
Compressed air,Inert gases
润滑
Lubrication
不需要
Not necessary
Lubrication
不需要
Not necessary
环境及介质温度
Ambient and media temperature
-10℃～+80℃
Ambient and media temperature
-10℃～+80℃
工作压力
Working pressure
0～7bar
Working pressure
0～7bar
阀口通径
Orififice size
Φ0.75mm（P port）/Φ1.0mm（R port） We usually ship Φ0.75mm（P port）
Orififice size
Φ0.75mm（P port）/Φ1.0mm（R port） We usually ship Φ0.75mm（P port）
6bar时流量（△p=1bar）
Flow rate at 6 bar and
△
p=1bar
16 NL/min(P1→P2)，23 NL/min(P2→P3)
Flow rate at 6 bar and
△
p=1bar
16 NL/min(P1→P2)，23 NL/min(P2→P3)
电接口方式
Electrical connection
Electrical connection
垂直式（L型） Vertical type(L type)
水平式（M型） Horizontal type(M type)
直接出线式（G型） Direct line type(G type)
标准电压
Nominal voltage
AC220V、AC110V、DC 24V、DC 12V、DC6V、DC3V
Nominal voltage
AC220V、AC110V、DC 24V、DC 12V、DC6V、DC3V
允许电压波动
Voltage tolerance
±10%
Voltage tolerance
±10%
通电持续率
Duty cycle
ED 100%
Duty cycle
ED 100%
绝缘等级
Insulation class
H
Insulation class
H
防护等级
Degree of pretection
IP50
Degree of pretection
IP50
响应时间
Response time
10ms以内
Response time
10ms以内
Less than 10ms
最大工作频率
Max operating frequency
30Hz
最大工作频率
Max operating frequency
30Hz
使用寿命
Life time expectancy
5000万次以上
More than 50 millions times
Life time expectancy
5000万次以上
More than 50 millions times
