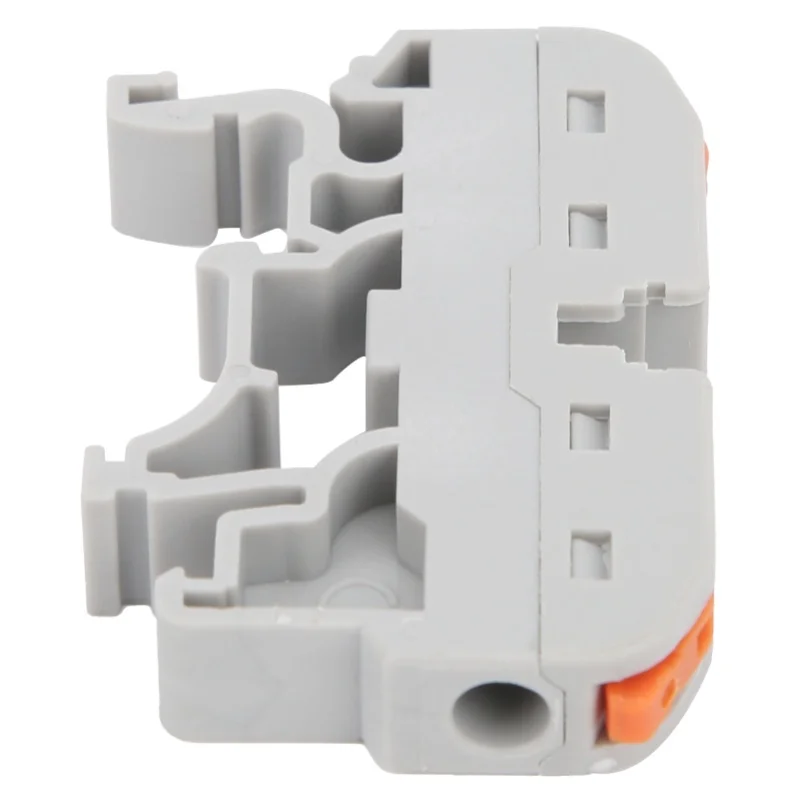

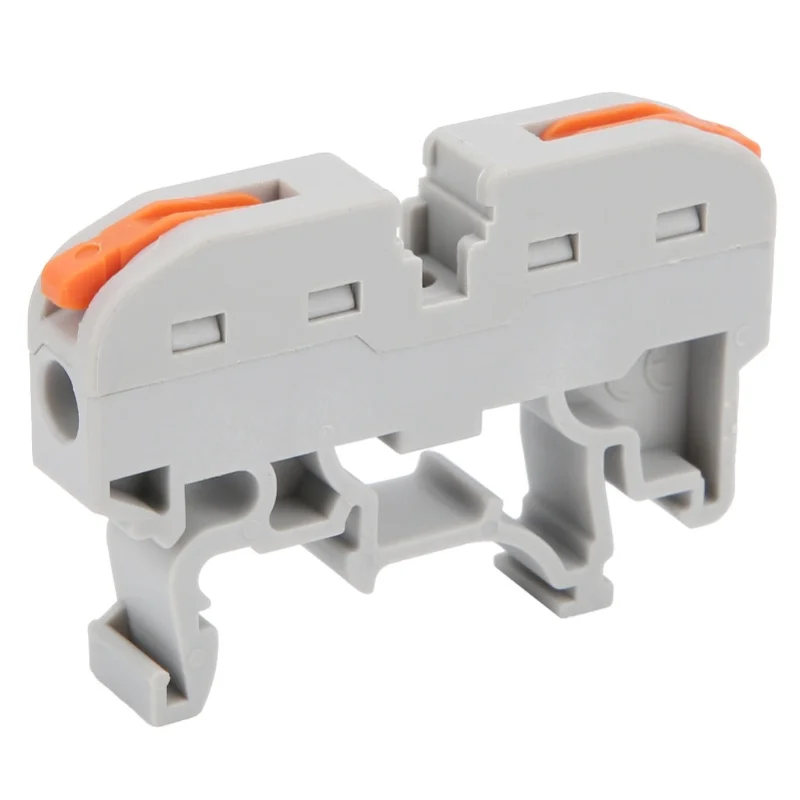

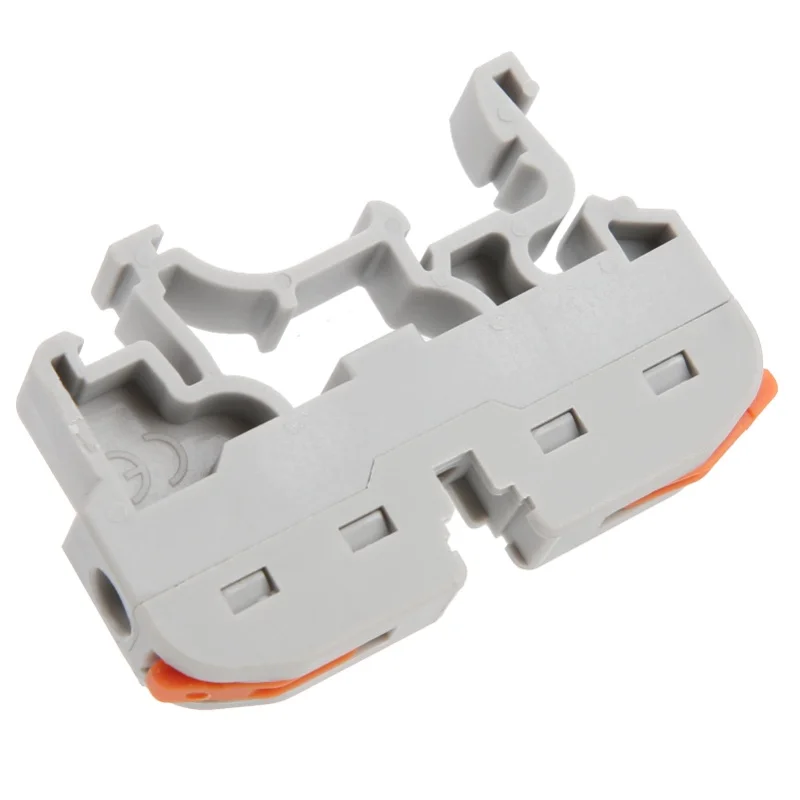

10Pcs Wire Connection Block Din Rail Type Spring Lever Cable Connector Terminal PCT-211

Description

Features:
1.These connectors are made of insulating materials, which are flame-retardant, corrosion-resistant, impact-resistant, and have a long service life.
2.The spring lever connector replaces the traditional wire-to-wire electrical tape winding method, and the connection is fast and the wiring trouble is reduced.
3.Suitable for different types and sizes of wiring or conductors, 0.08-4.0mm²/ 28-12 AWG hard wire or 0.08-2.5mm²/ 28-14 AWG flexible wire.
4.Each node has an independent shrapnel, and different wires are managed separately, which improves the safety performance.
5.Widely used in distribution boxes, control cabinets, switch cabinets, complete sets of equipment, machinery and home decoration.

Specification:
Item Type: Wire Connection Block
Model: PCT-211
Applicable Wire:
Flexible Wire: 0.08-2.5mm²/ 28-14 AWG
Hard Wire: 0.08-4.0mm²/ 28-12 AWG
Rated Voltage: 250V/4KV
Rated Current: 32A
Rated Power: 7KW
Material:
Shell: Flame-retardant PC
Internal: PA
Diversion Bar: Electrolytic copper (tinned on the surface)
Spring: Nickel-chromium alloy steel

Package List:

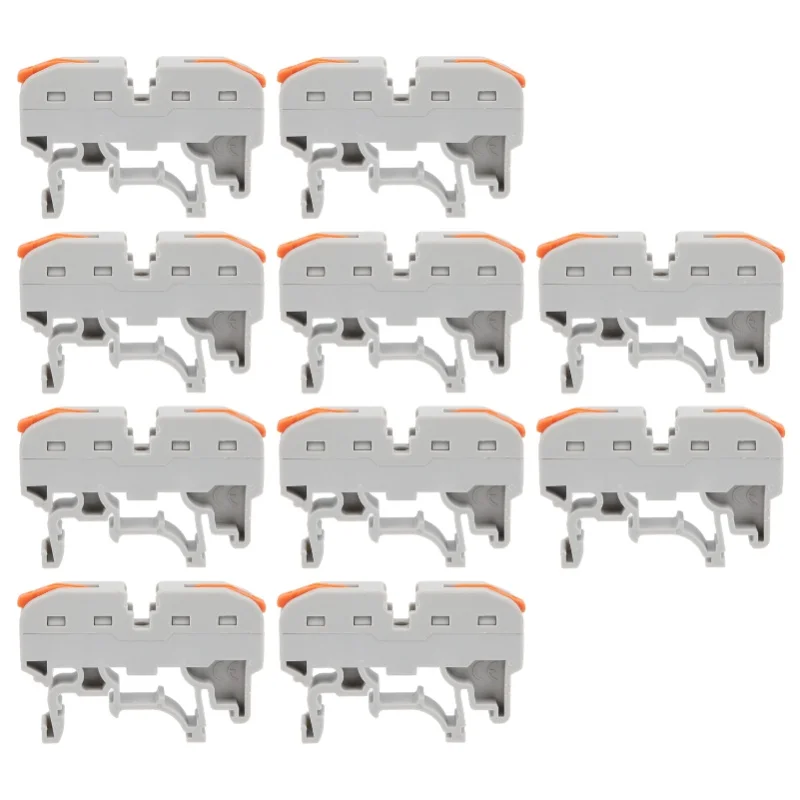

10 x Wire Connection Block
