Description
DESCRIPTION

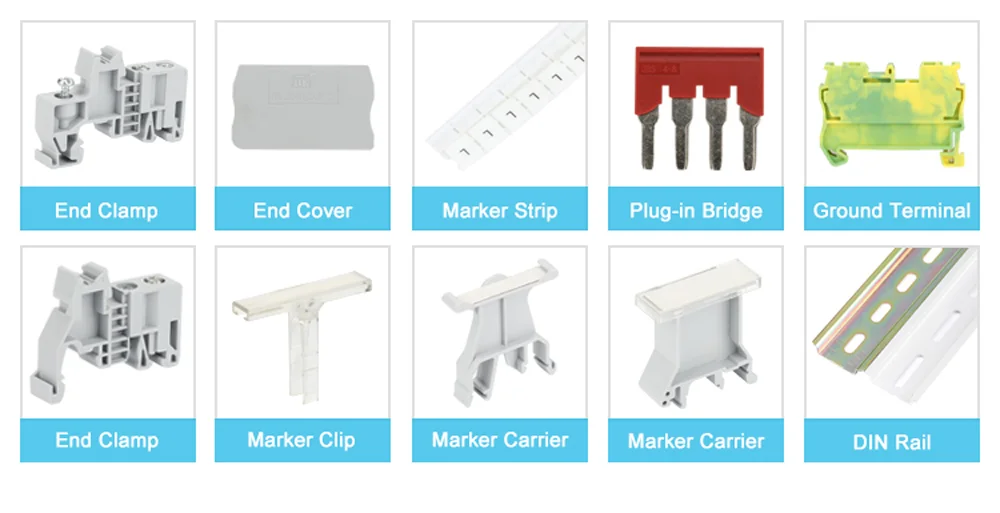

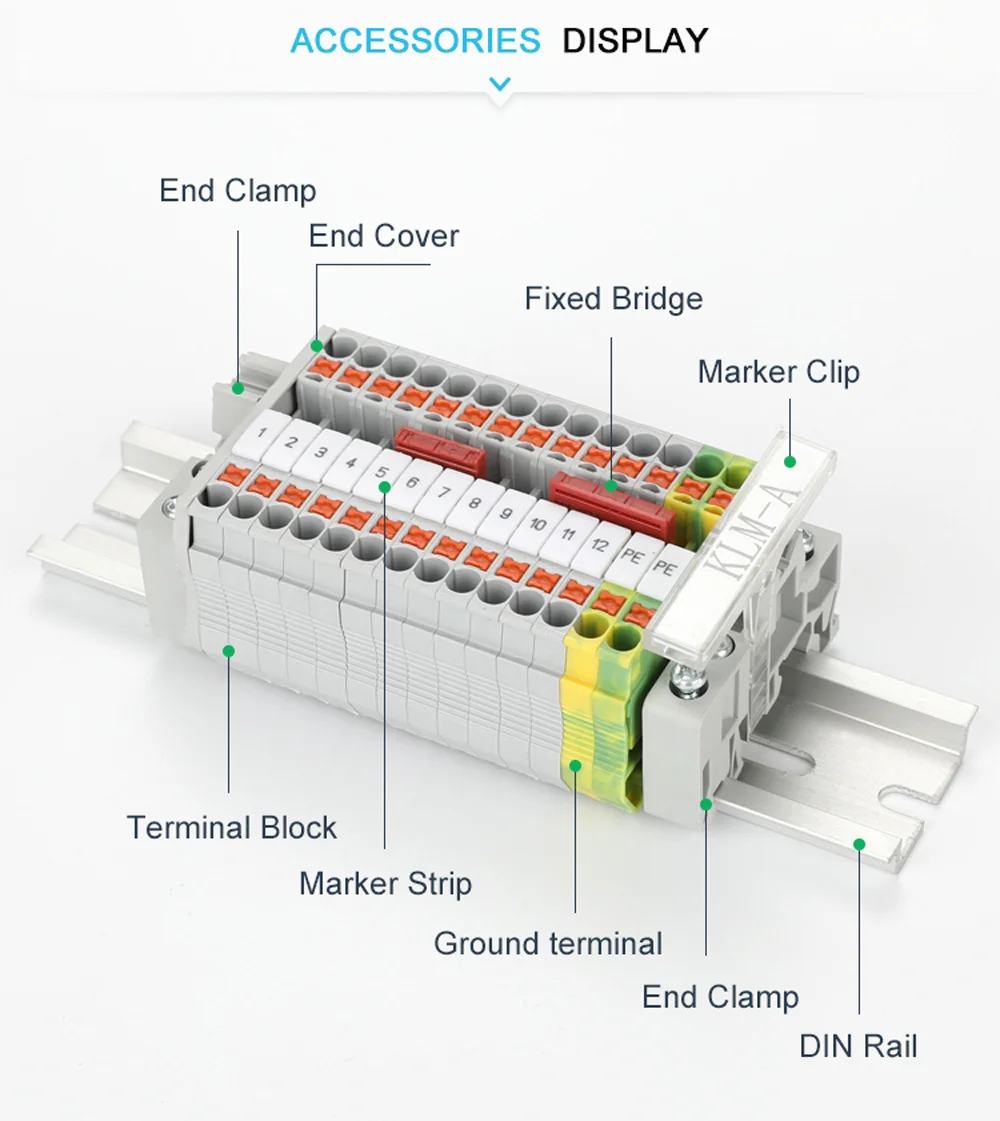

ACCESSORIES ( Click the pictures to the links)
|
|
|
|
|
|
End Cover |
Plug-in Bridge |

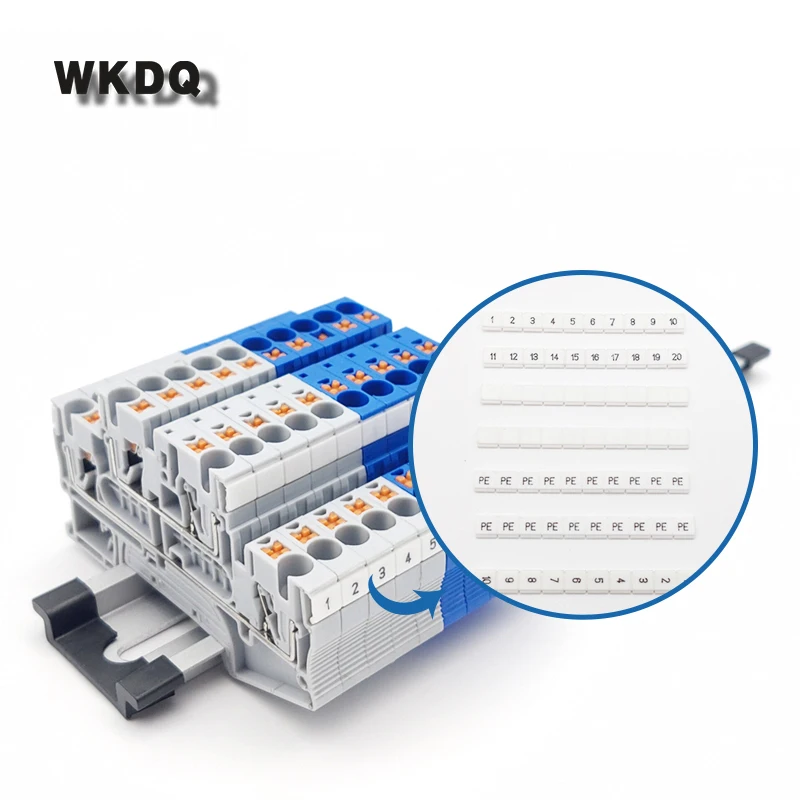

Marker Strip |
End Stop |
|
|
|
|
|
|
Marker Carrier |
Marker Clips |
Din Rail |
Ground Terminal Blocks |
|
Type No. |
Details |
Accessories |
|

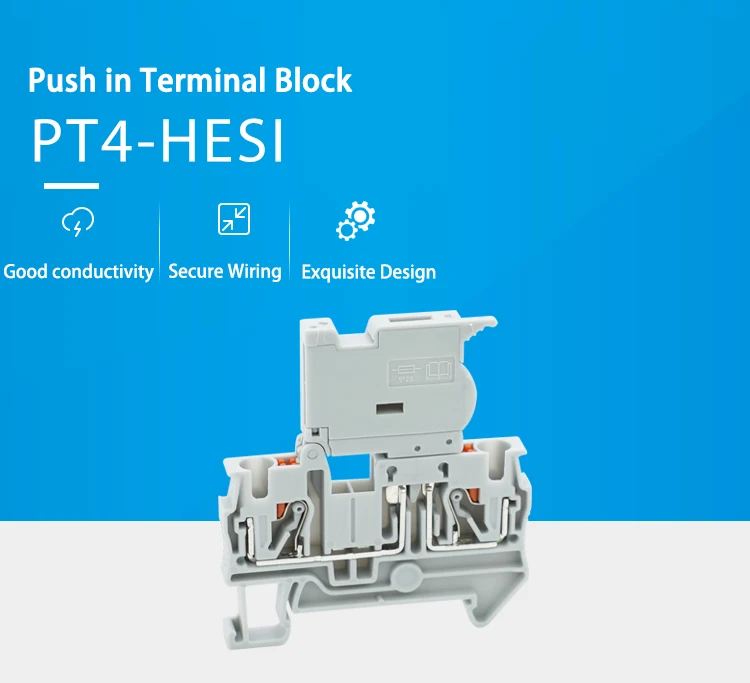

PT 4-HESI PT 4-HESILED |
500V/6.3A |
End cover: |
|
Plug-in bridge: |
||
|
Insertion bridge: |
||
|
Marker strip: |

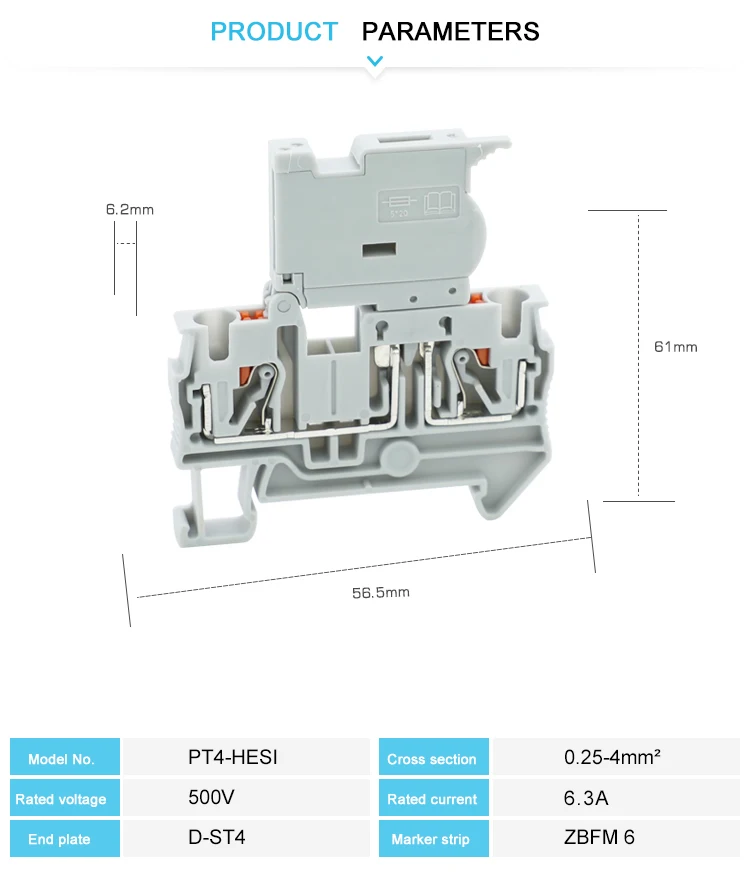

TECHNICAL PARAMETERS
|
Model Number |
PT 4-HESILED |
|
Color |
Grey, Black, other color can be customized |
|
Length/Wide/Height (mm) |
L56/H64.8/W6.2 mm |
|
Connection method |
Push-in connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
500V/6.3A |
|
Cross section, solid/soft Cable |
0.2-6mm²/0.25-4mm² |
|
Conductor Size |
24-10 AWG, 24-12 AWG |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are supported |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
