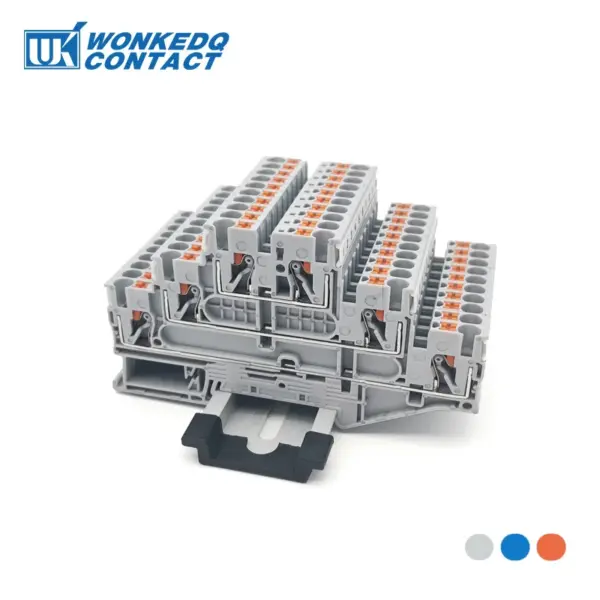

10Pcs PT 2.5-3L Din Rail Terminal Block Push-in Wiring Connector Triple Levels 2.5mm Electrical Cable PT2.5-3L

END COVER
D-PT 2.5-3L

JUMPERS BRIDGE
FBS 2/3/4/5/10-5

MARKER STRIPS
ZBFM-5

END STOP
E-UK

MARKER CARRIER
B1

MARKER CLIPS
KLM-A

DIN RAIL
NS35-S

GROUND TERMINAL BLOCK

PT 2.5-3L-PE

Type No.

Details

Accessories

PT2.5-3L

500V/22A
0.14-4mm²/0.14-2.5mm²
L103/H56.4/W5.2 mm

End cover: D-PT2.5-3L

Plug-in bridge: FBS 2-5,3-5,4-5,5-5,10-5

Marker strip: ZBFM 5

Model Number

PT2.5-3L

Color

Grey

Length/Wide/Height (mm)

103/56.4/5.2

Connection method

Spring-cage connection

Material

Nylon PA66

Rated Voltage/Current

500V/22A

Cross section, solid/soft Cable

0.14-4mm²/0.14-2.5mm²

Conductor Size

26-12 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Packing Detail

25g/pc

Certification

CE/RoHS/CQC/ISO 9001
