10PCS Din Rail Sensor/actuator terminal block DIKD-1.5 Three Layer 3 Level Triple Wire Connector DIKD1.5 Screw connection

Name: 10PCS Din Rail Sensor/actuator terminal block DIKD-1.5 Three Layer 3 Level Triple Wire Connector DIKD1.5 Screw connection
Brand: Toolsindo.id
SKU: 1005006307226752
Price: 235150 IDR
Availability: InStock

4 terjual

SKU: 1005006307226752 Categories: Electrical Equipment & Supplies, Home Improvement

Terjual: 4+ | Toko: Grocery Store Store

🕐 Pre-Order · Estimasi 30 Hari

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description
Reviews (0)

Description

DIN Rail Terminal Blocks DIKD1.5 Instead of Connector Three Layer 3 Level Sensor Actuator Terminal
TECHNICAL PARAMETERS

Type No.	Details	Accessories
DIKD1.5	250V/32A 0.2-4mm²/0.2-2.5mm² L73/H54.5/W6.2 mm	End cover: NONE

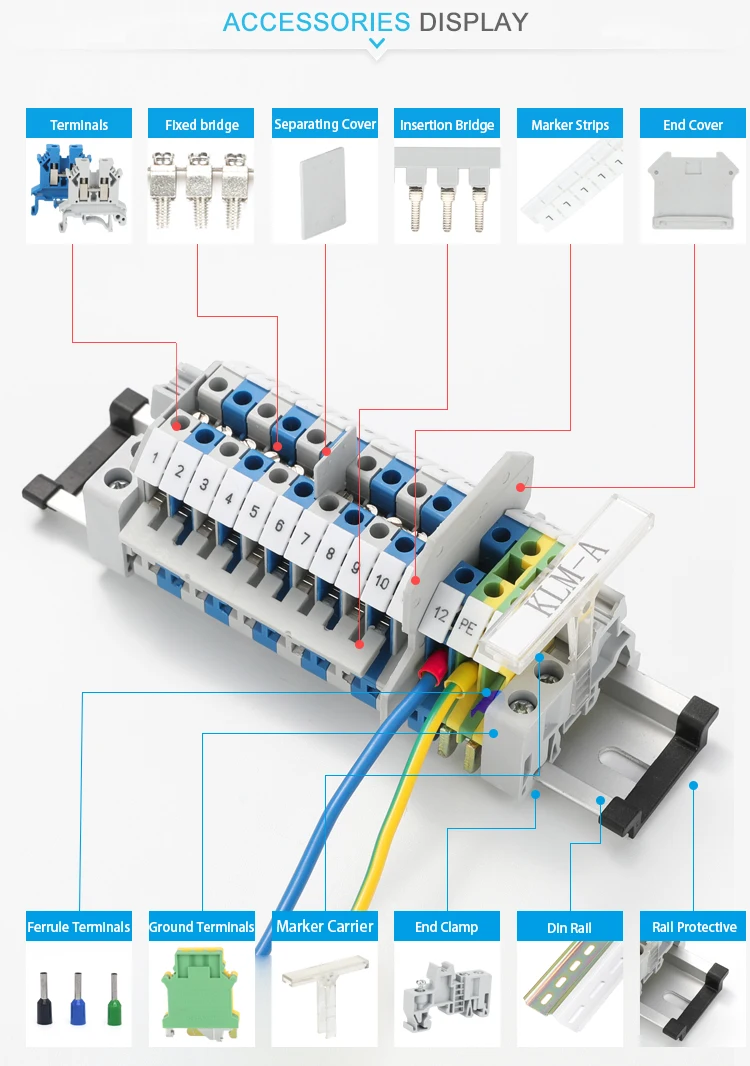

		Fixed bridge: NONE
		Insertion bridge: EB 10-6
		Marker strip: ZB6

Model Number	DIKD 1.5, Sensor/actuator terminal block
Color	Grey, other color can be customized
Length/Height/Wide (mm)	73/54.5/6.2
Connection method	Screw connection

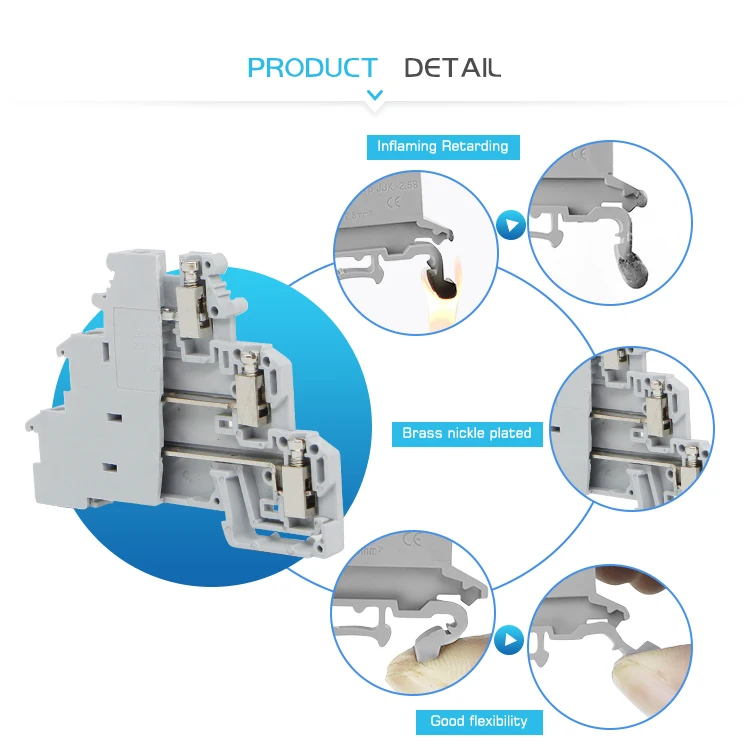

Material	Nylon PA66
Rated Voltage/Current	250V/30A
Cross section, solid/soft Cable	0.2-4 mm²/ 0.2-2.5 mm²
Conductor Size	24-12 AWG

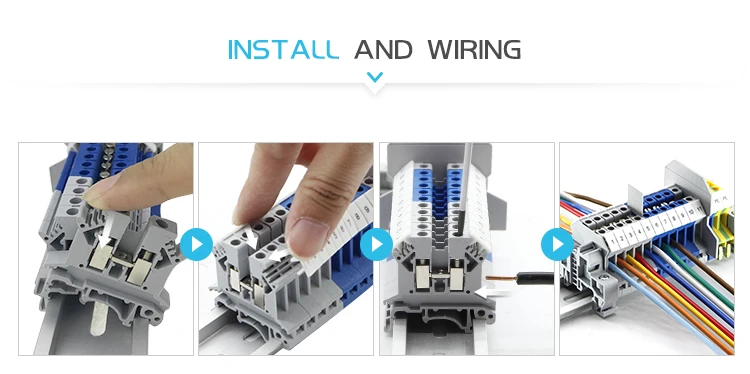

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	20.96g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
