DESCRIPTION
The SAK series terminal blocks with clamping yoke connection make planning easer and operational safety, providing a range of different requirements.
-
Made from engineering antiflaming nylon PA66 with brass screw metal.
-
Maintenance-free and vibration-proof screw connection
-

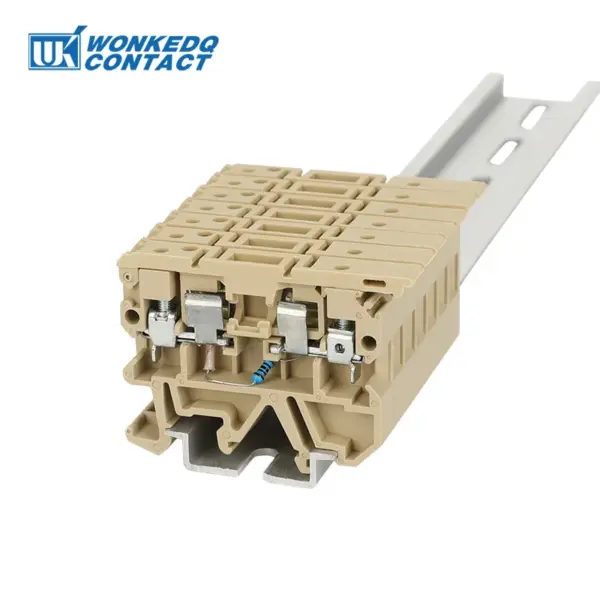

With universal foot which can be installed on Din Rail NS 35. The three different clip-on foot designs available for different types of Din Rails.
-
It can connect two conductors with ease, even large conductor cross sections are not a problem.
-
Electric potential distribution can use fixed bridges in the terminal center o.
-
Large range of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
ACCESSORIES ( Click the pictures to the links )
|
|
|
|
|
|

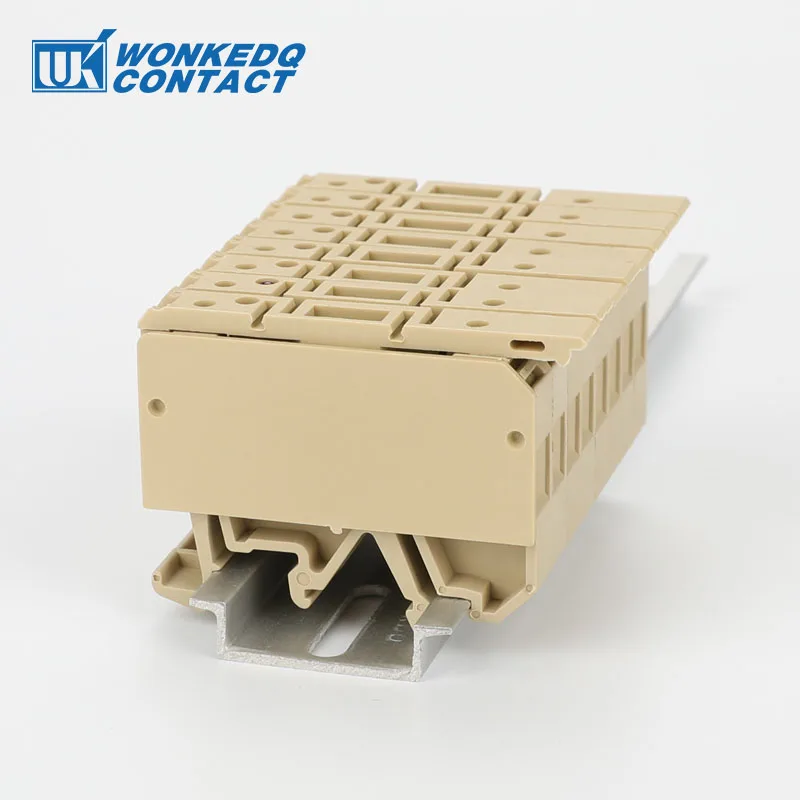

END COVER |
MARKER STRIPS |
END STOP |
MARKER CARRIER |
|
|
|
|
|
|
DIN RAIL |
RECOMMEND (ST2.5) |
RECOMMEND (DIKD1.5) |
RECOMMEND (PT2.5) |
|
Type No. |
Details |
Accessories |
|
|
660V/6.3A
Cross section: 4mm²
L58.5/H42/W8 mm
|
End cover: |
|
Fixed bridge: |
||
|
Insertion bridge: |
||
|
Marker strip: |

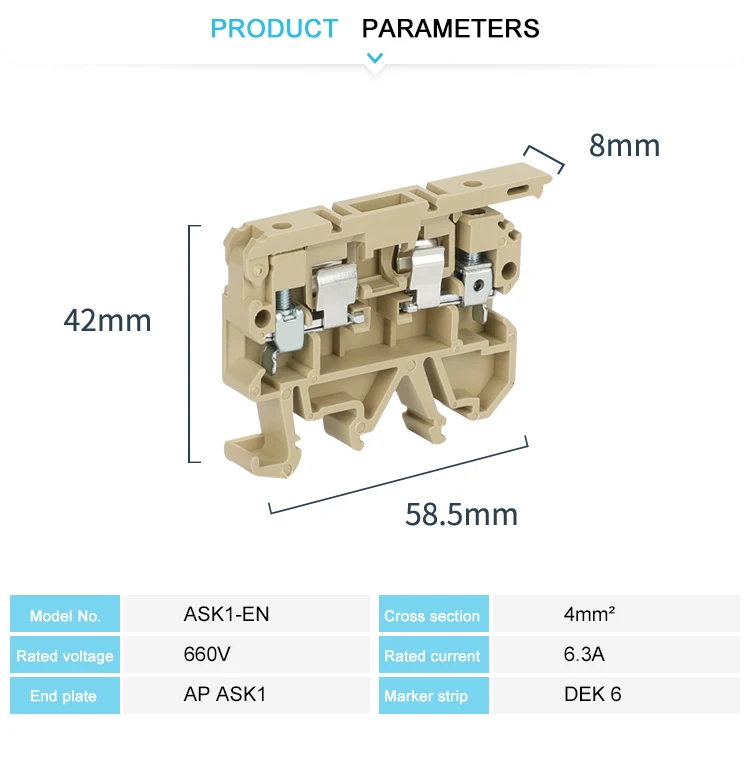

TECHNICAL PARAMETERS
|
Model Number |
ASK1 EN |
|
Color |
Yellow, other color can be customized |
|
Length/Wide/Height (mm) |
58.5/42/8 |
|
Connection method |
Screw connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
660V/6.3A |
|
Rated Cross section |
4 mm2; |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are supported |
|
Packing Detail |
12.55g/pc, 1800PCS/BOX |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
