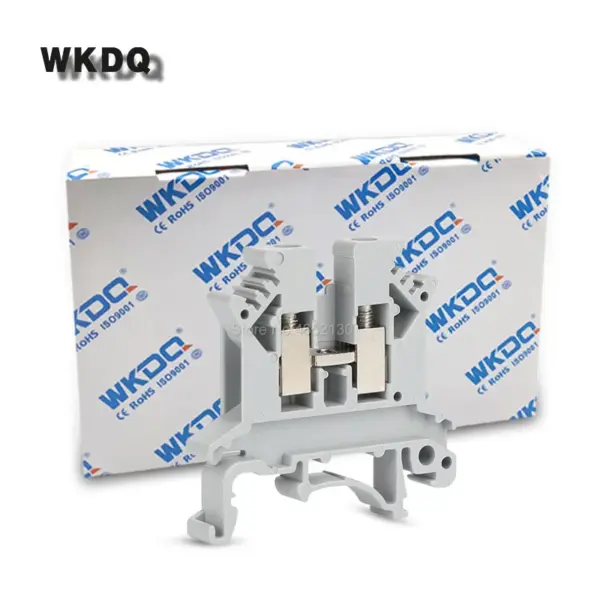

UK 2.5B 2 Conductors Universal Screw Connection Din Rail Terminal Block
DESCRIPTION

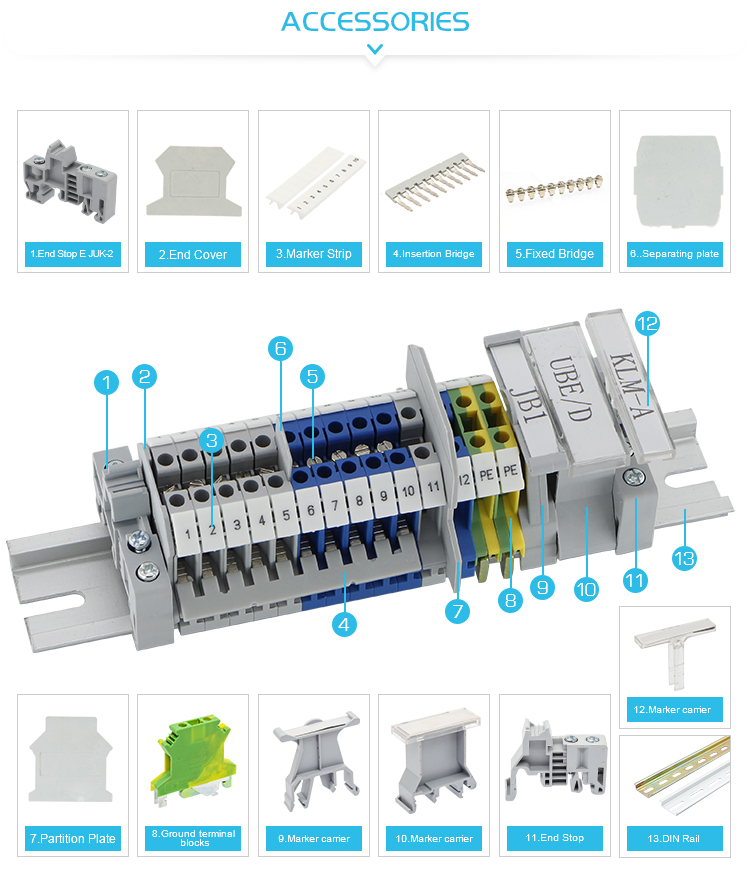

ACCESSORIES( Click the pictures to the links)
|
|
|
|
|
|
End Cover |
Fixed Bridge |
Marker Strips |
Plug-in Bridge |
|
|
|
|
|
|
Marker Carrier |
Marker Clips |
Din Rail |
End Clamp E/UK |
|
Type No. |
Details |
Accessories |
|
UK2.5B |
800V/32A |
End cover: |
|
Fixed bridge: |
||
|
Insertion bridge: |
||
|
Marker strip: |
TECHNICAL PARAMETERS
|
Model Number |
UK2.5B |
|
Color |
Grey, Blue, other color can be customized |
|
Length/Height/Wide (mm) |
42.5/41/6.2 |
|
Connection method |
Screw connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
800V/32A |
|
Cross section, solid/soft Cable |
0.2-4mm2/ 0.2-2.5mm2 |
|
Conductor Size |
24-12 AWG |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
Packing Detail |
6.9g/pc, 100PCS/BOX,3000PCS/CTN |
|
Certification |
CE/RoHS/CQC/ISO 90001 |
