Product Paramenters
Description
For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter. Our company’s PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.It’s convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.

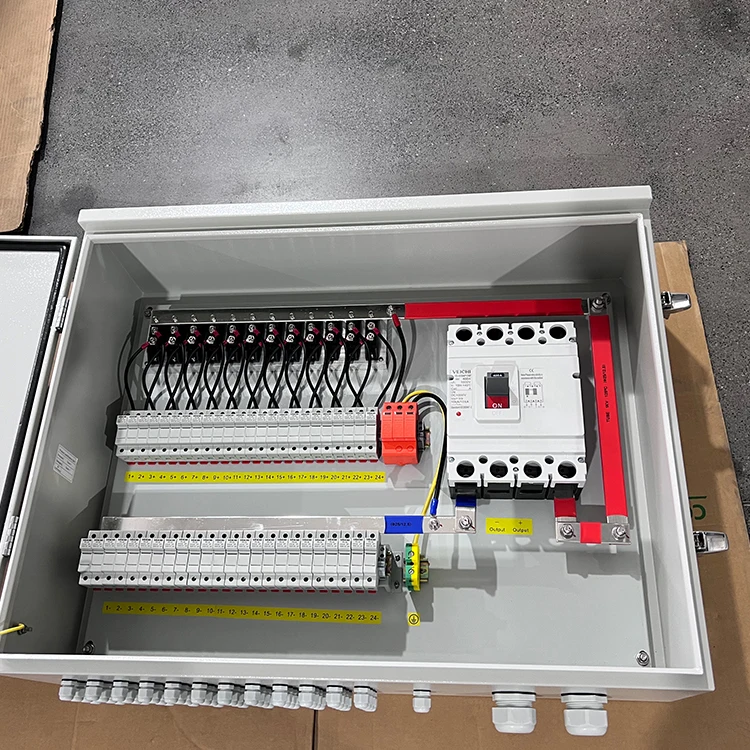

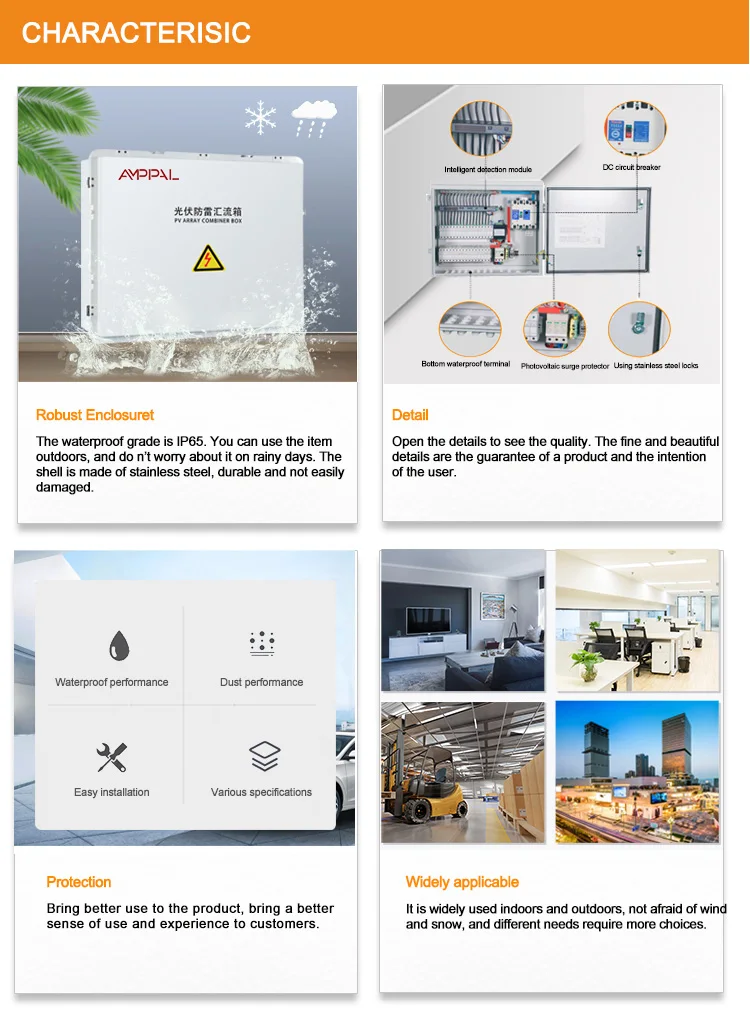

The PV array lightning protection box has the following characteristics:

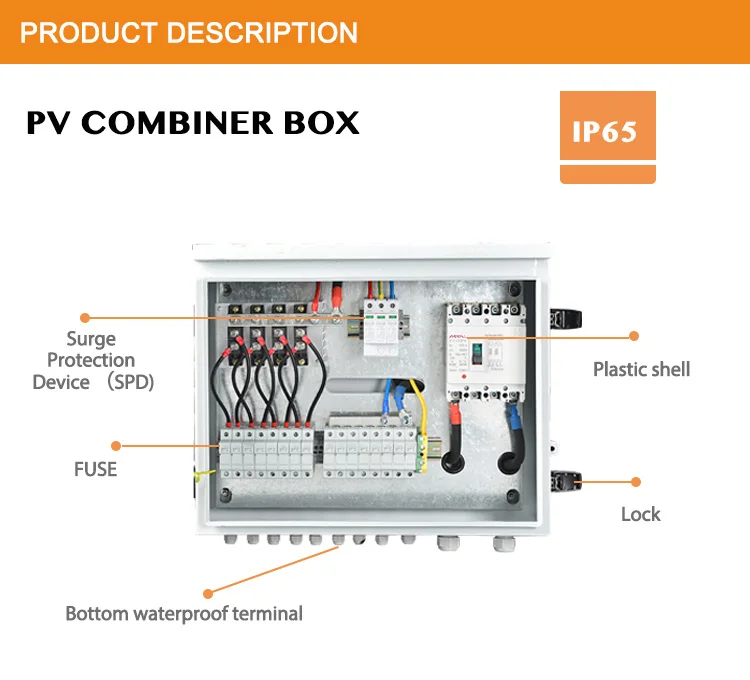

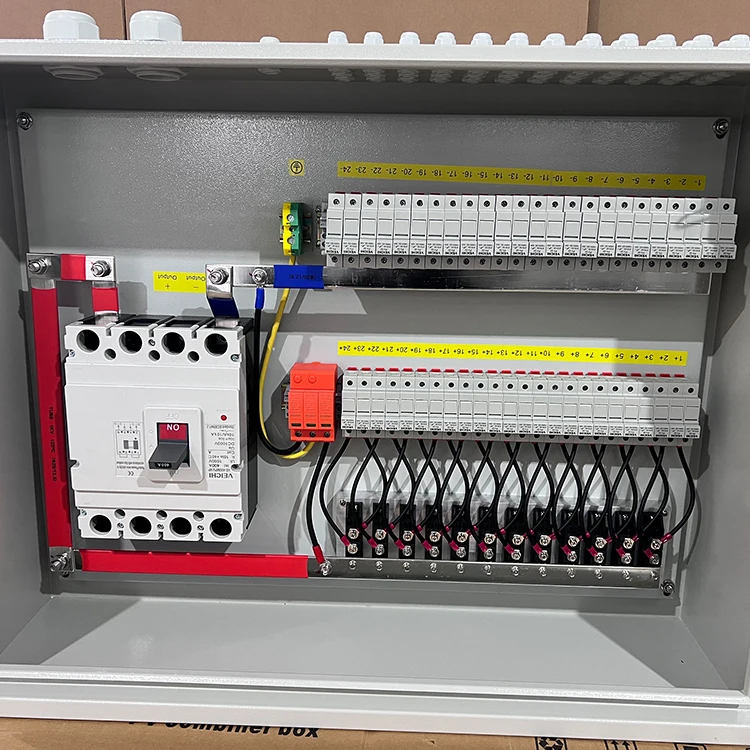

(1) meet the requirements of outdoor installation, protection class IP65/IP66, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;
(2) access 4-way PV array, each with 15A, 1000Vdc fuse (replaceable other grades);
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;
(4) Positive, negative string into the fuse;
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;
Technical data
|
Item
|
Specification / Description
|
|
Product Name
|
Photovoltaic Lightning Protection Combiner Box
|
|
Product Model
|
AFY-CD06-6-Cable
|
|
Maximum Input Circuits
|
6* (1 in 1 out)
|
|
Ambient Temperature
|
-35 to +40°C
|
|
Ambient Humidity
|
0–95%
|
|
Operating Altitude
|
3000 meters
|
|
Maximum Input Current per Circuit
|
DC 15–30A (selected based on PV panel power)
|
|
Maximum Open-Circuit Voltage per Circuit
|
DC 1000V
|
|
Fuse
|
DC 1000V / DC 15–30A / 30kA (positive and negative poles of each circuit separately connected)
|
|
Surge Protector
|
Type II / In=20kA, Imax=40kA, Ucpv=1000V DC (positive and negative poles of each circuit separately connected)
|
|
Circuit Breaker
|
DC 1000V / DC 16–32A / 64A (positive and negative poles of each circuit separately connected)
|
|
Enclosure Design
|
Enclosed design, anti-static, anti-vibration, dustproof, rustproof, waterproof, flame retardant
|
|
Enclosure Cooling
|
Natural cooling
|
|
Enclosure Lightning Protection
|
Grounded lightning protection
|
|
Insulation
|
Insulation resistance between input and ground, output and ground, input and output ≥20MΩ
|
|
Enclosure Waterproof Rating
|
IP65, suitable for indoor and outdoor installation
|
|
Equipment Dimensions
|
680W*500H*180D (mm)
|
