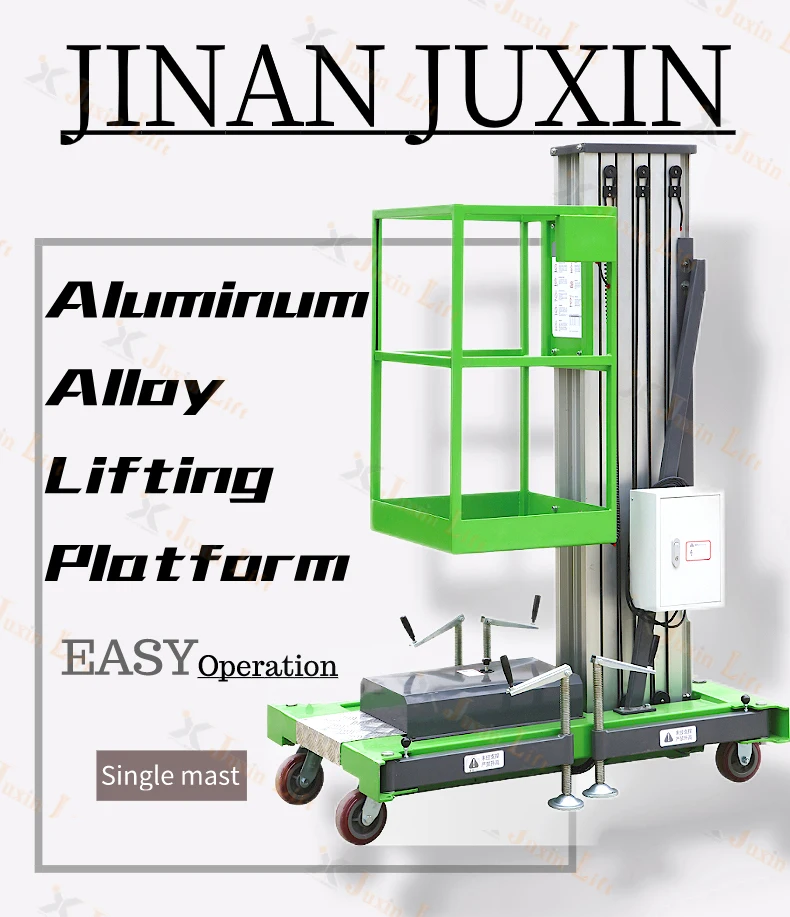

Portable and flexible hydraulic lifting platform for aerial work of aluminum alloy elevator
Product Description
1.Introduction:
A. Vertical aluminum Lifts are made up of high grade aluminum profile.

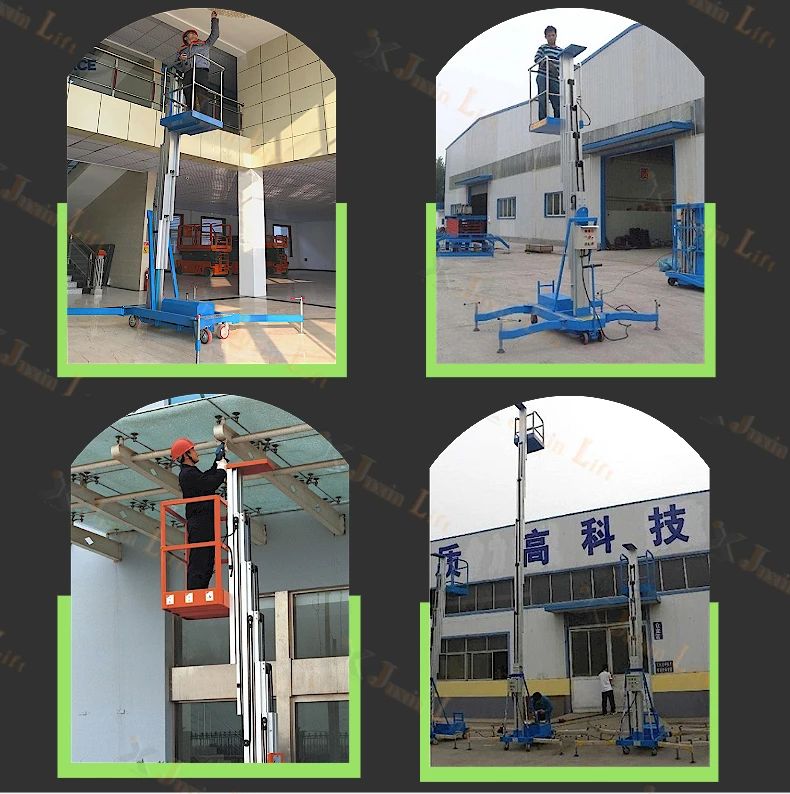

B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 1.2m to 8m and lifting capacity varies about 117kg.The power sources could be 110,220V,380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.
2.Advantages:
A.The Lift is light weight, good flexibility, and suitable for two people to operate.
B. Beautiful structure, light weight.
C.Compact structure, small size transport state, can enter narrow and small area.
D.Safety protection device and imported pump, increases the service life and safety assurance.
3.Safety precautions:
A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
C. Emergency decline valve: it can go down when you meet an emergency.
4.Power Supply & Applicable place:
A. Electric Powered / AC powered
· When the electricity is available at work place, usually for Indoor use
· No noise and air pollution.
B. Battery Powered / DC powered
· When the electricity is not available at work place, usually for Outdoor use
· No noise and air pollution.
A. Vertical aluminum Lifts are made up of high grade aluminum profile.
B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 1.2m to 8m and lifting capacity varies about 117kg.The power sources could be 110,220V,380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.
2.Advantages:
A.The Lift is light weight, good flexibility, and suitable for two people to operate.
B. Beautiful structure, light weight.
C.Compact structure, small size transport state, can enter narrow and small area.
D.Safety protection device and imported pump, increases the service life and safety assurance.
3.Safety precautions:
A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
C. Emergency decline valve: it can go down when you meet an emergency.
4.Power Supply & Applicable place:
A. Electric Powered / AC powered
· When the electricity is available at work place, usually for Indoor use
· No noise and air pollution.
B. Battery Powered / DC powered
· When the electricity is not available at work place, usually for Outdoor use
· No noise and air pollution.
Specification
|
Model No.
|
Working height
|
Platform size
|
Load capacity
|
Overall size
|
Weight
|
|
YBC0.1-4
|
6m
|
600*600mm
|
100kg
|
1.28*0.8*1.75m
|
250kg
|
|
YBC0.1-6
|
8m
|
600*600mm
|
100kg
|
1.28*0.8*1.9m
|
280kg
|
|
YBC0.1-8
|
10m
|
600*600mm
|
100kg
|
1.28*0.8*1.98m
|
300kg
|
|
YBC0.1-10
|
12m
|
600*600mm
|
100kg
|
1.36*0.9*2.1m
|
340kg
|
If you want a more favorable price, you can consult customer service. We accept direct payment and offer greater discounts.
If you want a more favorable price, you can consult customer service. We accept direct payment and offer greater discounts.
